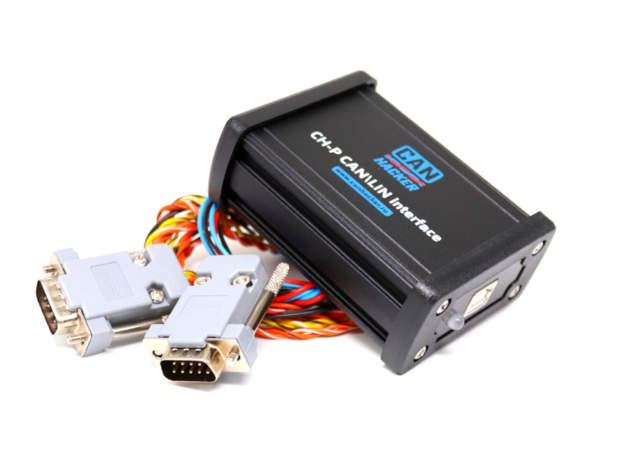

CAN-Hacker CH-P FDL2

Vendor
CanHacker
Includes
Downloads
Basic equipment
CAN-Hacker CH-P FDL2 — 319 $
+ Add
Status: Pre-order

Basic function:

  • CAN-FD bus analyzer
  • LIN bus analyzer

Set

  • Interface CAN-Hacker CH-P FDL1
  • CAN cable with crocodiles
  • LIN cable with crocodiles
  • KIA\HYUNDAI Instrument cluster cable for directed connection
  • OBD2 Cable
  • USB Cable

Supported software

  • CarBusAnalyzer
  • CAN-CODER L2 (optional)

Technical characteristics

  1. CAN-FD channels: 2
  2. LIN channels: 1
  3.  CAN-FD bitrate – 5 Mbit\s
  4. Software controlled 120 Ohm terminators
  5. Voltage range between CAN-High and CAN-Low:  -42….+42 V
  6. Strong Aluminium enclosure
  7. PC Connection: USB 2.0  Virtual COM Port, CDC
  8. Recommended OS: Windows 10

Cables description

CAN Cable

  • Yellow\black– CAN-Low  channel 1
  • Yellow\white– CAN-High channel 1
  • Orange\black – CAN-Low channel 2
  • Orange\white – CAN-High channel 2

LIN Cable

  • Red— +12 V
  • Black — GND
  • Blue— LIN



Main Connector Pinout

  1. CAN-Low, channel 1
  2. n.c.
  3. LIN
  4. +12V for LIN
  5. CAN-High, channel 2
  6. CAN-High, channel 1
  7. GND
  8. GND
  9. CAN-Low, channel 2
