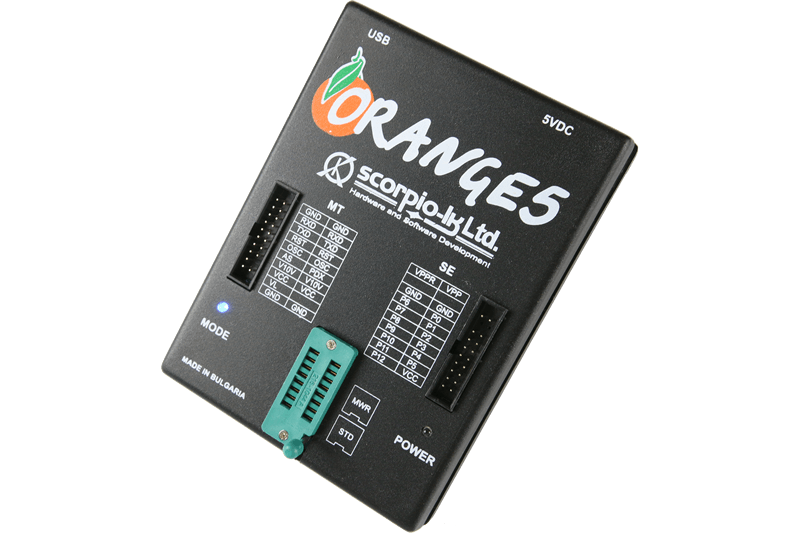

Orange-5 Programmer is a professional general purpose programming device for memory and microcontrollers. Unique feature of the current series programmers is built-in macrolanguage for writing down protocols, which gives fast and easy capability to add new types of ICs, precisely meeting manufacturers' requirements to read/write algorithms.

Hardware Features:

• Universal easy to plug panel ZIF16 for EEPROMs
• Control of contacts in the sockets
• Two expansions sockets (MT & SE)
• Protection against overcurrent
• Overload voltage protection
• Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers.
• High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
• Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
• Capability of functional emulation of class CDC USB devices
• Built-in 32-bit virtual machine
• Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)

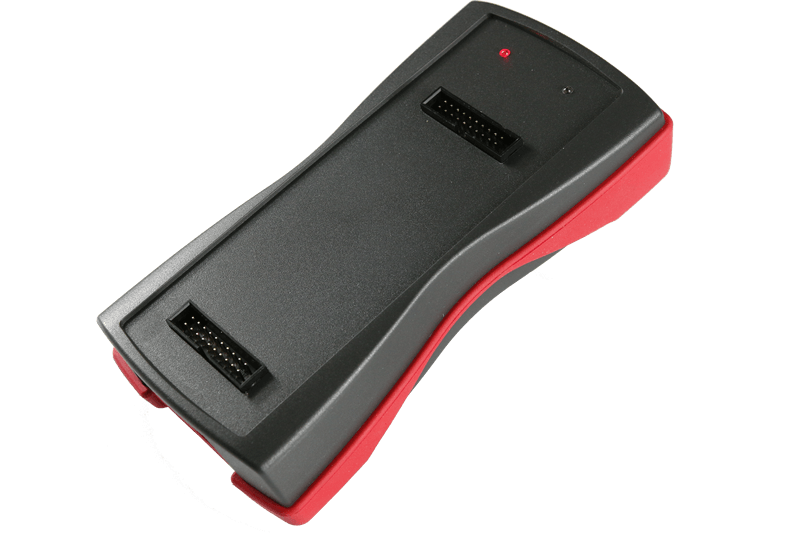

Barracuda is a programming tool focused on solving variety of complex tasks and procedures, bypassing the limitations of standard approach and other solutions.
It is a standalone device, but some of the advanced functions are designed to work in conjuction with Tango.

System Requirements

• 32-bit (x86) or 64-bit (x64) Windows operated PC
• Supported  XP, Vista for 32-bit & 7, 8, 10, 11 for 64-bit
• USB 2.0 Cable: A-Male to B-Male Cord
• Internet Connection

Please note: External power supply adapter 9-24V, AC to DC, 5.5x2.1mm center positive plug is not included in the kit.

Some Barracuda functions are marked as "Subscription" in the features list. They are not included in "Base software" and require purchase of 1 Year Annual Subscription for Barracuda.

Other devices are required for some functions. Barracuda is made to completent Tango & Orange-5 as well as J2534 PassThru compiant OBD adapter (ex.: Tactrix Openport 2.0). There are complex functions that either require these devices too, or can be used synergistically to solve a complex task. Such interactions are documented in Barracuda help files.

The device is intended for programming of transponders, that are a part of automobile immobilizing systems.

The product is in working out stages, therefore the list of the supported transponders will be developed later. For the present moment Tango has the following built in makers and functions

The device has ergonomic design with high mechanical characteristics of  IP65 class according to the DIN EN 60529 standard. The device has following dimensions:

• Length:160 mm
• Width: 80 mm
• Height: 50 / 30 mm

The device enclosure is made of  3mm ABS-plastics with a rubber shock-proof damping seal which simultaneously is a decor element. The seal also prevents the device sliding on a work table surface.

The device derives the power from USB and does not demand connection of an external power source. Difference is use of drivers of other type that allows to avoid conflicts to other devices working through virtual ports.

• USB 2.0/3.0
• The device has wide slot for keys of any size and two small holes of various depth for transponders of any sizes.
• LED indication is taken out on the upper cover of the case that is solution more convenient in using.
• The program interface has the modern intuitive design.

Meeting modern requirements, Tango supports OS Vista. Supported versions of Windows:

• Win 98
• XP
• Vista
• Win 7
• Win 8/8.1
• Win 10

Features:

• Cloning of Toyota / Lexus Smart keys on SLK-01, SLK-02, SLK-03/03E, SLK-04/04E, SLK-05/05E, SLK-07E emulators
• Subaru Image Generation Page1 14, 17
• TangoPlus Subaru Smart Key (Page1 F1, F3) Systems OBD framework
• Toyota-H Immobilizer All Keys Lost solution (Gen1 MCU 11910) — SLK-06 (all markets)
• Clonning of Toyota H-key [Blade](128bit) on LKP-04
• Toyota/Lexus Smart Key Systems OBD Framework
• Toyota G Immobilizers OBD Reset & Add Key (including EU type)
• Toyota/Lexus H Keys Image Generation Page1 39, 59, 5A, 99, 3A, 7A on TRPWS21 transponder
• Toyota/Lexus G Keys Image Generation and Clonning Page1 19,36,56,96,37,57 on LKP-02,CN5
• Toyota/Lexus/Subaru SmartKey Reset (40/80/128bit)
• FREE Off-line Full Copy of TIRIS DST (ID60-70) onto TPX2,EH2,CN2,CN5,LKP-02
• FREE Image generator ID70 on ID4D
• Image generator ID67/68 on ID4D
• Full FREE production of TP22, TP23, TP24, TP25
• Free write Component Security 7 bytes Tool (Megamos48)
• Over 1142 Key Makers, 793 included with basic software
• In-depth Manual and Technical Support Provided
• Searching of the 7th byte by existing car’s key(Megamos48)

Attention! Tango Driver V4 OS specific requirements:
Win7 requires Microsoft security update KB3033929,
WinVista requires Microsoft security update KB2763674
