ECM Titanium is the mapping software that allows you to interpret and modify the files of the control unit easily and with accuracy. It is compatible with all the original files of cars, motorbikes, trucks, tractor and boats; it does not need other files or additional information as all are already included in the software.
To each original file corresponds a driver, supplied by Alientech, that decodes and makes available the parameters of the engine performance, for example: spark advance, engine revolves, acceleration percentage and turbo pressure. In this way you can edit the related parameters modifying the performance of the engine.
DRIVER SEARCH
The driver search is the exclusive feature that will allow you to automatically find all the necessary info to remap the original file you loaded in ECM Titanium. You will not need to purchase or to search for additional information to edit the parameters of the engine performance.

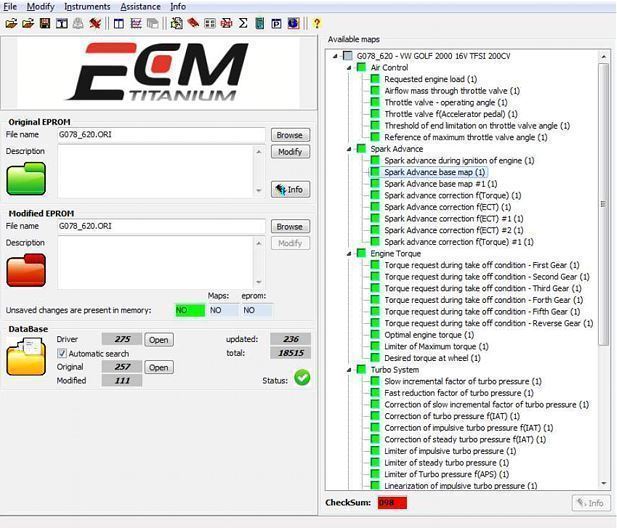

MAP LIST
In the section dedicated to the map list you will find all the necessary information to manage at your best any kind of ECU and TCU. Maps are divided in categories like: intake control, advance, turbo, engine torque, limiters and deactivations. Beside the map categories, you will also find all the available unit of measurement for each single function.

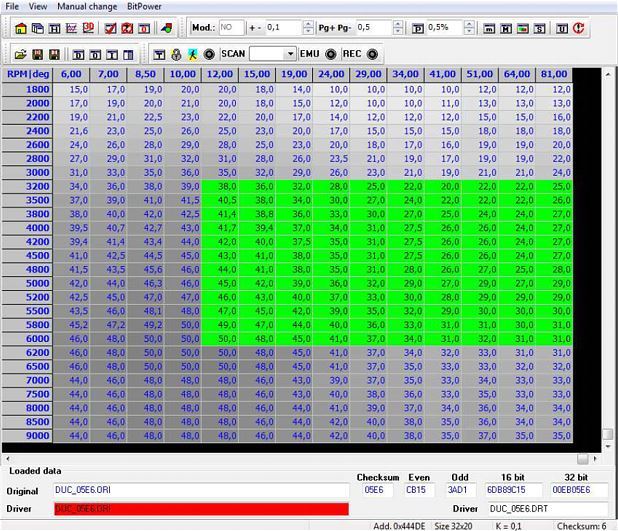

TABLE VIEW
Thanks to the table view you have the exact representation in real values used to manage the engine. You can then create your own strategy to edit the maps in the drivers. For example, you can use the interpolation feature that permits to modify the parameters in a proportional way to a selected area of the map.

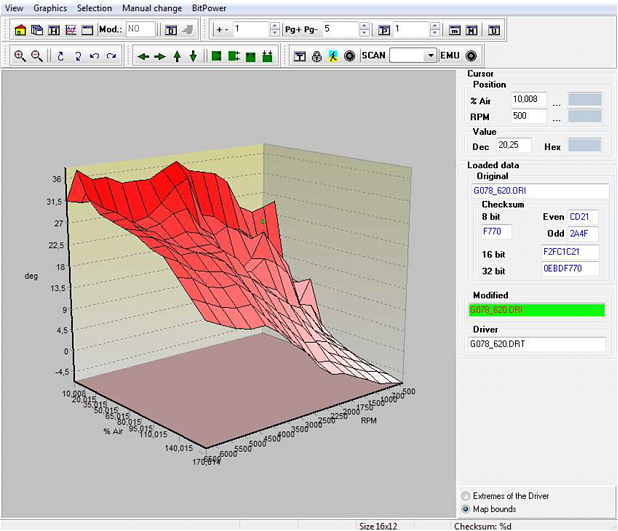

3D VIEW
The 3D view will allow the form and the development of the map; you can so linearise the representation, modifying the values point by point so to make the engine response more uniformed and smooth. You will be also able to increase or decrease specific areas to improve the vehicle performance.

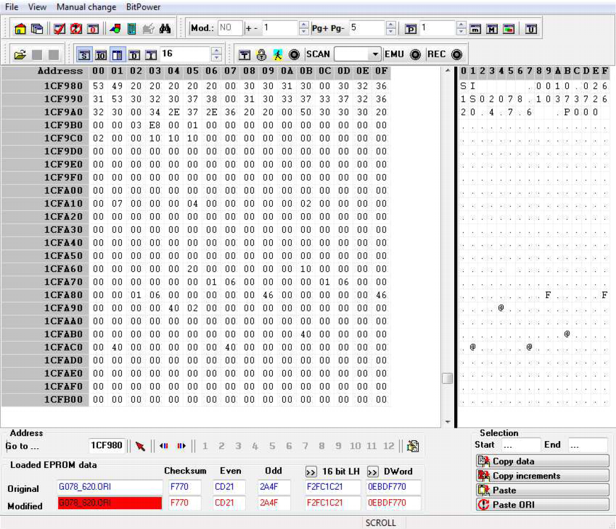

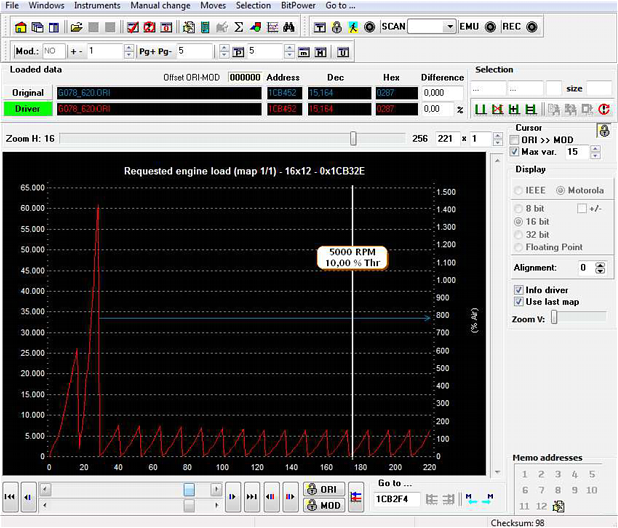

2D VIEW
Through the 2D view, you will have the chance to explore the entire original file to search for one or more maps you want. You will be able to modify any parameter in the loaded map. And thanks to the feature Memo addresses you can memorize the addresses of the maps so that you will easily find them again later.
INTERNAL DATABASE

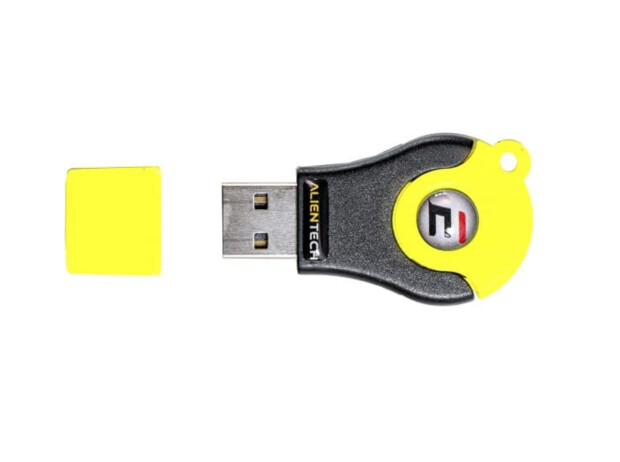

The internal database will allow you to save all the files on ECM Titanium inside the flash drive so to have them always with you and work on many different PCs. If you select the desired original file you will find all the associated mod files you created.
Driver Maker
If you want to get the best from your ECM Titanium and to become even more independent creating your own maps, Driver Maker is the right choice: it is a plugin to create new drivers or to modify existing drivers in the Alientech databank. Thanks to Driver Maker you can become the professional you have ever wanted to be.
Tool Versions
ECM Titanium can be purchased in two variants which differ in the payment strategy:
• Full — for regular use. The price includes one year subscription.
• Credit — for periodic or rare use. The credit option is ideal for beginners. The price includes 1000 credits. The Full version has 6 and 12 months subscription for additional functions. In the Credit version additional functions are paid separately every time they are used. The payments are made using the internal currency — credits. The more credits you buy the bigger discount you can get. Thus, if you buy a lot of credits at a time, the price of the function is lower.
149757EC11 Upgrade of the software from Credit to Full driver version. Included 12 months of subscription.
149757EC11 Upgrade of the software from Credit to Full driver version. Included 12 months of subscription.
149757ECMD Additional plug-in to create and modify Drivers.
149757ECMD Additional plug-in to create and modify Drivers.
Chiptuning Software in full drivers version. Features: see table (CKS algo. Not included) Included 12 months of subscription.
149757ECM9 Chiptuning Software in full drivers version. (CKS algo. Not included) Included 12 months of subscription.
149757EC13 200 x Credit activation to download Driver and/or checksum.
149757EC13 200 x Credit activation to download Driver and/or checksum.
149757EC14 400 x Credit activation to download Driver and/or checksum.
149757EC14 400 x Credit activation to download Driver and/or checksum.
149757EC15 800 x Credit activation to download Driver and/or checksum.
149757EC15 800 x Credit activation to download Driver and/or checksum.
Chiptuning Software in full drivers version. Available only in association with KESSv2 or K-TAG in Master version. Included 12 months of subscription.
Chiptuning Software in full drivers version. Available only in association with KESSv2 or K-TAG in Master version. Included 12 months of subscription.
18C757EC06 Technical Support, Updates and Download of Drivers
18C757EC06 Technical Support, Updates and Download of Drivers
18C7570001 Technical Support, Updates and Download of Drivers
18C7570001 Technical Support, Updates and Download of Drivers
Alientech Kess v2 Master
KESSv2 is a ECU and TCU, the best tool to write back the original or modified file in the vehicle ECU in a few minutes, simply communicating through the OBD port. Through an OBD standard port, or a dedicated connector, KESSv2 can be connected to cars, motorbikes, trucks, tractors and boats to read and write the parameters of the engine or of the transmission. The goal is to maximise the performance of the vehicle and of the electronic control unit, facing problems that a standard diagnostics cannot solve.
The solution KESSv2 Master is suggested to the professionals who want to have the complete control of the remapping procedure of the ECU. First you read the files inside the ECU using KESSv2, then you edit their parameters using our software ECM Titanium according to the needs of your customers, and last you re-write them back in the ECU.
STRENGTHS:
FEATURES:
An important help is K-Suite, KESSv2 software, that easily and step by step will lead you through all the stages: selection of the vehicle or of the ECU you want to work on, updates manuals for any single protocol, necessary cables and also implementations and developments to let your business grow exponentially:
Alientech Kess v2 Slave
KESSv2 Slave is a ECU and TCU, the best tool to write back the original or modified file in the vehicle ECU in a few minutes, simply communicating through the OBD port. Through an OBD standard port, or a dedicated connector, KESSv2 can be connected to cars, motorbikes, trucks, tractors and boats to read and write the parameters of the engine or of the transmission. The goal is to maximise the performance of the vehicle and of the electronic control unit, facing problems that a standard diagnostics cannot solve.
KESSv2 Slave solutions are the best for those garages that want to quickly penetrate in the world of Chiptuning, offering to you personalized files just for you. Thanks to your KESSv2 you can write the files sent to you by your master right in the ECU, in a few minutes. You can select your Master from the network of our expert tuners, certified by our Academy program. Safe engine remapping and a reliable final result.
STRENGTHS:
FEATURES:
An important help is K-Suite, KESSv2 software, that easily and step by step will lead you through all the stages: selection of the vehicle or of the ECU you want to work on, updates manuals for any single protocol, necessary cables and also implementations and developments to let your business grow exponentially:
Alientech K-Tag Master
K-TAG Master is a professional universal bench programmer for ECUs and TCUs of cars, motorcycles, trucks, agricultural machinery and boats.
K-TAG can communicate with all the ECUs, also of the last generation, through a direct connection to the micro. This tool will allow you to read and write the microprocessor of the control unit, the flash memory and the EEPROM. It’s the best choice for the professional who wants to be the best.
The solution K-Tag Master is suggested to professionals who want to have the complete control of the remapping procedure of the car ECU. First you read the files inside the ECU using K-Tag, then you edit their parameters using our software ECM Titanium according to the needs of your customers, and last you re-write them back in the ECU.
STRENGTHS
FEATURES
An important help is K-Suite, K-TAG software, that easily and step by step will lead you through all the stages: selection of the vehicle or of the ECU you want to work on, updates manuals for any single protocol, necessary cables and also implementations and developments to let your business grow exponentially:
Alientech K-Tag Slave
K-TAG Slave is a professional universal bench programmer for ECUs and TCUs of cars, motorcycles, trucks, agricultural machinery and boats.
K-TAG can communicate with all the ECUs, also of the last generation, through a direct connection to the micro. This tool will allow you to read and write the microprocessor of the control unit, the flash memory and the EEPROM. It’s the best choice for the professional who wants to be the best.
K-TAG Slave solutions are the best for those garages that want to quickly penetrate in the world of Chiptuning, offering to you customed files just for you. Thanks to your K-TAG you can write the files sent to you by your master right in the ECU, in a few minutes. You can select your Master from the network of our expert tuners, certified by our Academy program. Engine remapping safe and a reliable final result.STRENGTHS
FEATURES
An important help is K-Suite, K-TAG software, that easily and step by step will lead you through all the stages: selection of the vehicle or of the ECU you want to work on, updates manuals for any single protocol, necessary cables and also implementations and developments to let your business grow exponentially:
CMD Flash Master Full
CMD Flash is a popular flasher in Europe which allows to tune a great number of vehicles of various brands. Its characteristic features are a considerable carlist and regular update of supported ECUs.
Functionality
CMD Flash Slave
It is cheaper to use the Slave version to arrange the work of a few tuners (a network of representatives).
Licensing
CMD Flash is a hardware and software solution which includes:
The tool is purchased together with the necessary licenses and connecting cables. The purchased licenses are provided with free update subscription and technical support during the first year. Later the subscription is to be renewed every year. If the subscription has not been renewed, the tool stops functioning. The subscription can be renewed any time after any pause in usage. In order to get all the updates released since the subscription expired one has to pay for the whole period.
CMD Flash Slave Full Unrestricted
CMD Flash is a popular flasher in Europe which allows to tune a great number of vehicles of various brands. Its characteristic features are a considerable carlist and regular update of supported ECUs.
Functionality
CMD Flash Slave
It is cheaper to use the Slave version to arrange the work of a few tuners (a network of representatives). CMD Flash Slave Full Unrestricted tool can send and receive files to/from any master.
Licensing
CMD Flash is a hardware and software solution which includes:
The tool is purchased together with the necessary licenses and connecting cables. The purchased licenses are provided with free update subscription and technical support during the first year. Later the subscription is to be renewed every year. If the subscription has not been renewed, the tool stops functioning. The subscription can be renewed any time after any pause in usage. In order to get all the updates released since the subscription expired one has to pay for the whole period.
MAGPro2 X17 Master Kit
MAGPro2 X17 tool is a solution for cars equipped with EDC16, EDC17, MED17, MED9, MEDV17, Marelli 6/8, Denso, Delphi and other state of the art ECUs.
The device supports CAN-bus (ISO 15765-4 & SAE-J2234), K-line (ISO 9141-2 & ISO 14230-4), TP2.0 and UDS protocols. In most cases checksum correction is done on the fly without an online connection. It includes a Breakbox interface with cables which allow operations on TRICORE & Nexus equipped ECUs by bootloader. Thanks to the accessories which can be added to the package, this procedure is made much easier and safer.
Additional services such as DPF-OFF, Immo OFF, Hot Start, AdBlue OFF, Swirl Flaps OFF, ECU Clone, ORI database, etc. are available for all master users of X17 tools. The tool is available in MASTER and SLAVE versions. For the first year the updates and support are included in the sale price.
ECUTools is a Magic Motorsport official dealer.
