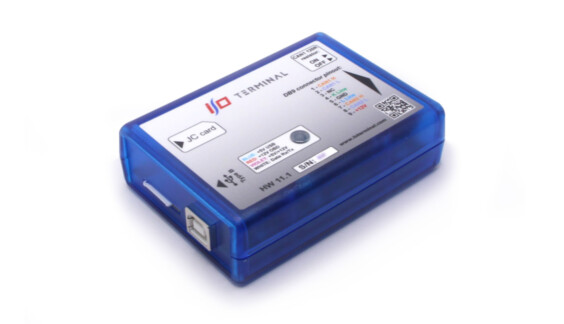

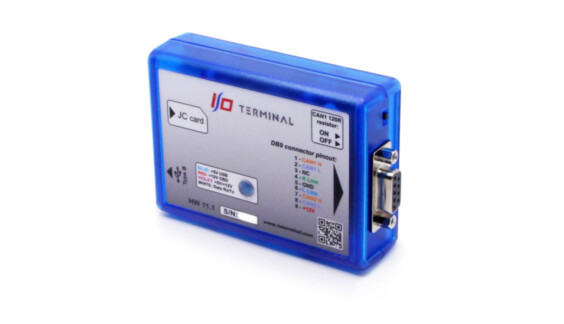

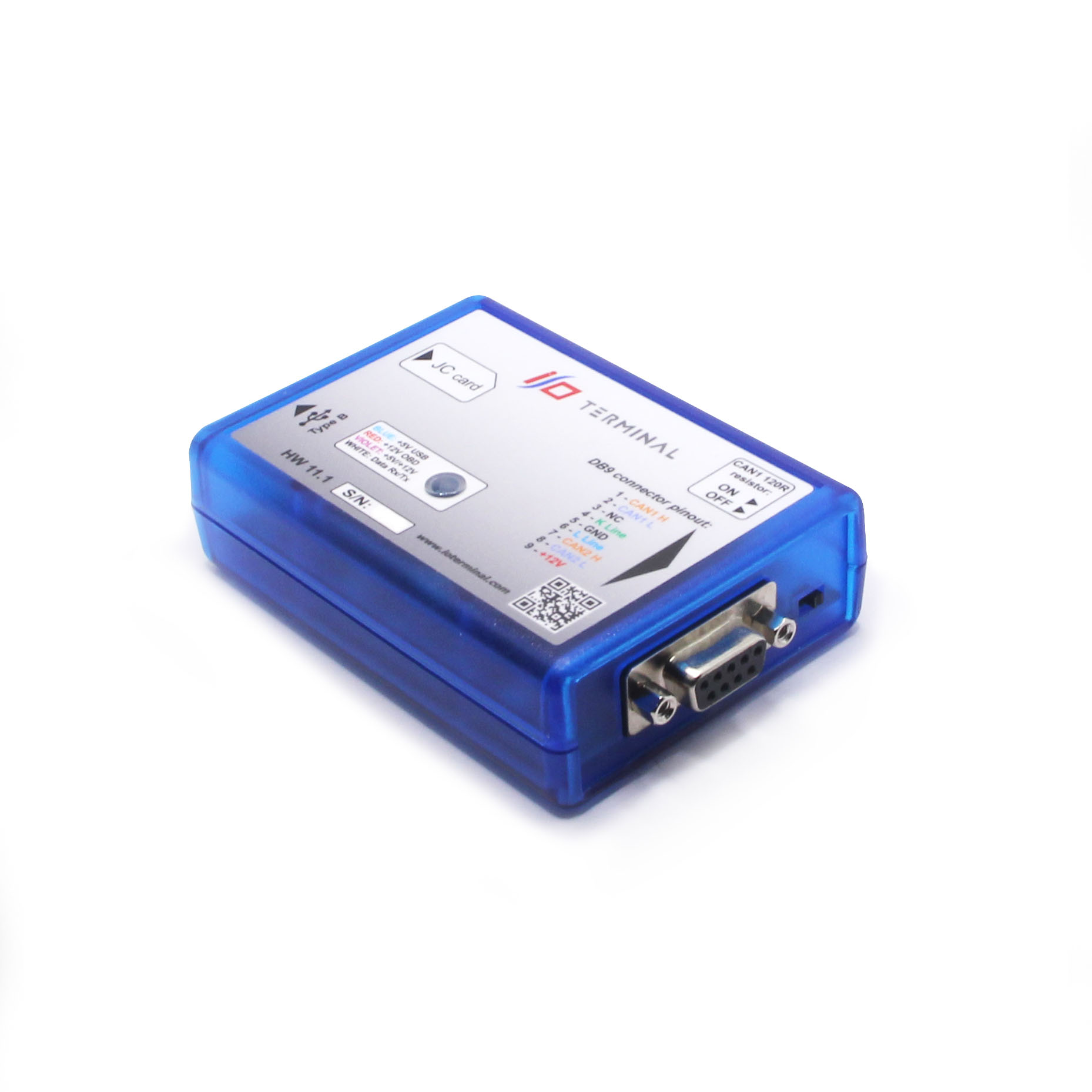

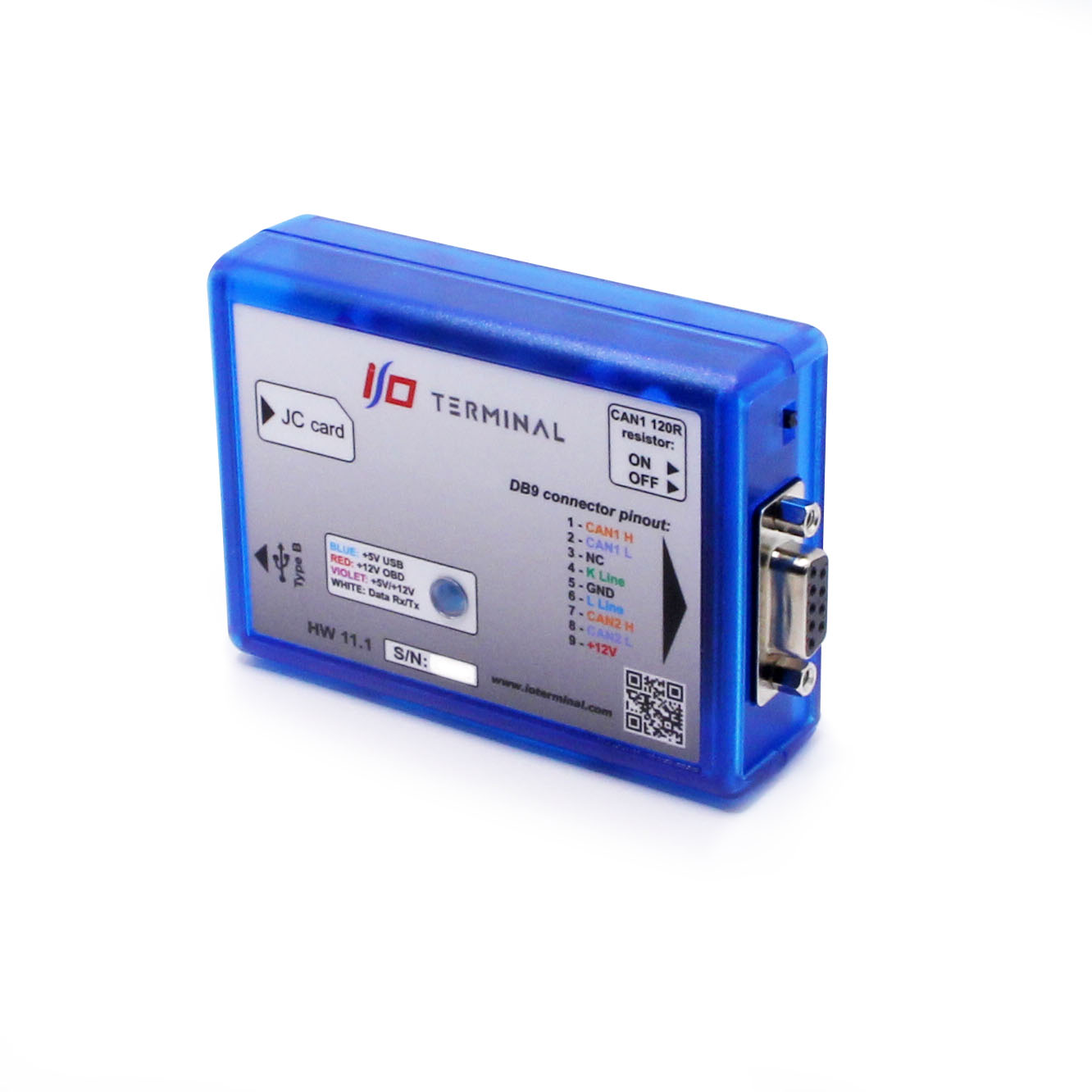

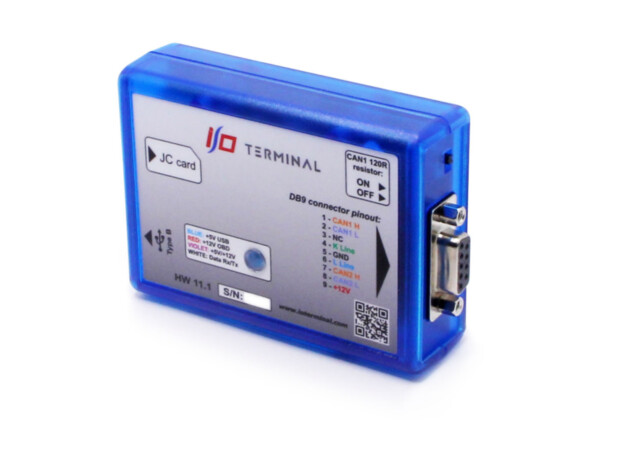

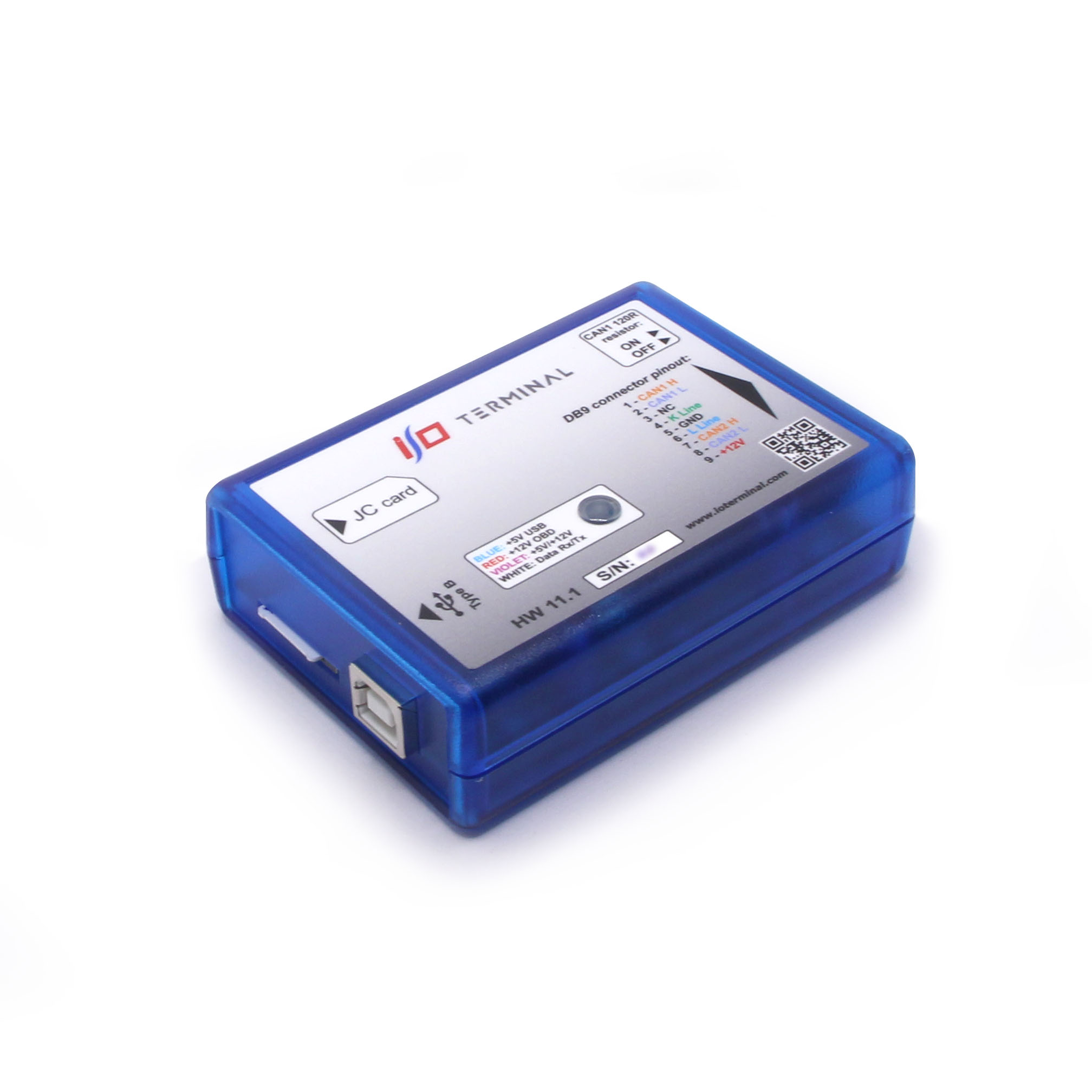

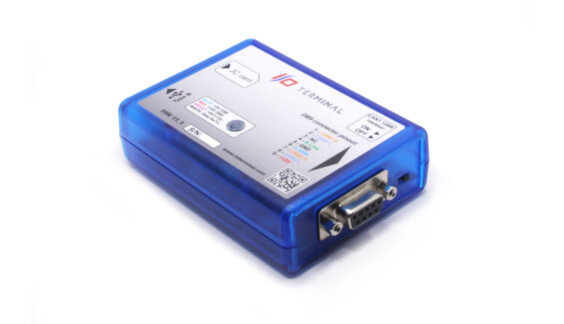

I/O Terminal

PEUGEOT, CITROEN, VOLVO, FORD, VAG, JAGUAR, DAEWOO, OPEL.

EEPROM reading/writing; pincode reading; ECU virginizing; service history (DATE/MILEAGE/DIADEVID) reading/modifying. All operations are done through Kline or CAN bus without opening the ECU.

Supported ECUs:

• BMW Mini/Rover Siemens EMS
• BMW Mini/Rover Siemens EMS2
• BMW Mini Siemens EMS5150
• DAEWOO SIEMENS/KEMSCO D3
• KIA/HYUNDAY Siemens SIMK31
• KIA/HYUNDAY Siemens SIM2K-34VR
• OPEL SIMTEC 70
• OPEL SIMTEC 71
• OPEL SIMTEC 71.1
• OPEL SIMTEC 71.5
• OPEL SIMTEC 71.6
• OPEL SIMTEC 75.5
• OPEL SIMTEC 81
• OPEL SIMTEC 81.1
• OPEL/GM SIMTEC 76.1 – included in MULTITOOL SOFTWARE
• OPEL/GM SIMTEC 78 – included in MULTITOOL SOFTWARE
• OPEL/GM SIMTEC 77 – included in MULTITOOL SOFTWARE
• GM SIEMENS/CONTINENTAL D42 – included in MULTITOOL SOFTWARE
• GM SIEMENS/CONTINENTAL D52 – included in MULTITOOL SOFTWARE
• GM SIEMENS/CONTINENTAL 42R – included in MULTITOOL SOFTWARE
• ALFA ROMEO SIMTEC 75.3
• Land Rover Siemens SID201
• Jaguar Siemens SID201
• Jaguar Siemens SID204
• VAG Siemens SIMOS 6.2
• VAG Siemens SIMOS 7.1
• VAG Siemens SIMOS 7.1A
• Ford Siemens SIM210 ECU Tool
• Ford Siemens SIM22 ECU Tool
• Ford Siemens SIM24 ECU Tool
• Ford Siemens SIM28 ECU Tool
• Ford Siemens SIM29 ECU Tool
• Ford Siemens SID802 ECU Tool
• Ford Siemens SID803 ECU Tool
• Ford Siemens SID803A ECU Tool
• Ford Siemens SID804 ECU Tool
• Ford SIEMENS/CONTINENTAL EMS2101 – included in MULTITOOL SOFTWARE
• Ford SIEMENS/CONTINENTAL EMS2102 – included in MULTITOOL SOFTWARE
• Ford SIEMENS/CONTINENTAL EMS2103 – included in MULTITOOL SOFTWARE
• Volvo Siemens EMS2000
• Volvo Siemens SID803 ECU Tool
• Volvo Siemens SID803A ECU Tool
• PSA ECU Detect
• PSA Siemens SID 201
• PSA Siemens SID 801 ECU Tool
• PSA Siemens SID 801A ECU Tool
• PSA Siemens SID 802 ECU Tool
• PSA Siemens SID 803 ECU Tool
• PSA Siemens SID 803A ECU Tool
• PSA Siemens SID 804 ECU Tool
• PSA Siemens SID 805 ECU Tool
• PSA Siemens SID 806 ECU Tool

Reading/writing, pincode reading, mileage changing of Opel ECUs (Z13DT,Z13DTJ,Z13DTH) by OBD or on bench (6JO,6O2,6O3 ECUs). Fiat ECUs 8F2,8F3,8DF,8GMF HW502,8GMF HW503,8GMW,8GSF,8GSW,6JF,6F3, IAW 5SF8, IAW 5SF3, IAW 5SF9 , IAW5NF , IAW5SF.XX, IAW5SF4, IAW 4AF.

Supported ECUs and functions:

• SUZUKI – 8DS CAN – MPC5565 R/W – 95640 R/W
• SUZUKI – MJD 6O2 KLINE – MPC563 R/W – M58BW016DB R/W – 95320 R/W
• OPEL – MJD 6JO KLINE – MPC555 R/W – 95320 R/W
• OPEL – MJD 6O2 CAN/KLINE – MPC563 R/W – M58BW016DB R/W – 95320 R/W
• OPEL – MJD 6O2 CAN/KLINE – MPC563 R/W – S29CL016J R/W – 95320 R/W
• OPEL – MJD 6O3 CAN – MPC563 R/W – M58BW016DB R/W – 95320 R/W
• FIAT – MJD 9DF CAN – SPC5644 R/W – 95128 R/W
• FIAT – 8GMK CAN – SPC564A80B4 R/W – 95640 R/W
• FIAT – IAW 9GF CAN – SPC564A70L7 R/W – 95640 R/W
• FIAT – 8GSF CAN – MPC5565 R/W – 95640 R/W
• FIAT – 8GSW CAN – MPC5565 R/W – 95640 R/W
• FIAT – 8FMW CAN – MPC5565 R/W – 95128 R/W
• FIAT – 8GMF HW03 CAN – MPC5565 R/W – 95640 R/W
• FIAT – 8GMF HW02 CAN – MPC5553 R/W – 95640 R/W
• FIAT – MJD 8DF KLINE – MPC5553 R/W – 95640 R/W
• FIAT – MJD 8F2 CAN/KLINE – MPC5565 R/W – 95640 R/W
• FIAT – MJD 8F3 CAN/KLINE – MPC5565 R/W – 95640 R/W
• FIAT – IAW 7GF CAN/KLINE – MPC5565 R/W – 95640 R/W – included in MULTITOOL software
• FIAT – IAW 5SF.XX KLINE – ST10F280 R/W
• FIAT – IAW 5SF3 CAN/KLINE – ST10F280 R/W
• FIAT – IAW 5SF4 KLINE – ST10F296 R/W
• FIAT – IAW 5SF8 CAN/KLINE – ST10F296 R/W
• FIAT – IAW 5SF9 CAN/KLINE – ST10F296 R/W
• FIAT – IAW 4AF HW204 KLINE – ST10F168 R/W – 95160 R/W
• FIAT – IAW 4AF HW407 KLINE – ST10F269 R/W – 95160 R/W
• FIAT – IAW 59F <HW100 KLINE – 29F200BB R/W – 95080 R/W
• FIAT – IAW 59F HW303/HW306 KLINE – ST10F168 R/W – 95160 R/W
• FIAT – IAW 59F HW603/HW607 KLINE – ST10F269 R/W – 95160 R/W
• FIAT – IAW 5AF HW303/HW306 KLINE – ST10F168 R/W – 95160 R/W
• FIAT – IAW 5AF HW603/HW607 KLINE – ST10F269 R/W – 95160 R/W
• FIAT – IAW 5NF.T1/5NF.T9 KLINE – MC68F375 R – 95160 R/W
• FIAT – MJD 6JF KLINE – MPC555 R/W – 95320 R/W
• FIAT – MJD 6F3 CAN/KLINE – MPC563 R/W – M58BW016DB R/W – 95320 R/W
• FIAT – MJD 6F3 CAN/KLINE – MPC563 R/W – S29CL016J R/W – 95320 R/W
• FIAT IAW 10GF MPC5642 FLASH+95640 EEPROM R/W
• VAG IAW 9GV MPC5634 FLASH+95320 EEPROM R/W

Reading/writing (64F7055, 64F7058, 64F7059 microcontrollers). FULL FLASH reading/writing; EEPROM reading/writing (usually). All operations are done via K-LINE or CAN by OBD or wired on the bench without opening the ECU. On some ECUs there are some extra functions like odometer calibration, pincode extraction and reset (virgin). Also software has FLASH memory CRC calculator.

ECUs supported:

• OPEL MERIVA, CORSA C 1.7 CDTI HYBRID ECU. Full R/W 64F7055, R/W 93C66 eeprom, show pincode , reset(virgin). (CAN & K-LINE)
• OPEL VECTRA C/SIGNUM 3.0 CDTI. Full R/W 64F7058, R/W 93C86 x2 eeprom , show pincode , odometer calibration, reset(virgin). (CAN)
• OPEL 1.7CDTI 110CV/125CV Z17DTJ/Z17DTR/Z17DTH/A17DTH/A17DTR ASTRA H/ASTRA J/ ZAFIRA B/CORSA D/MERIVA B/TIGRA B. Full R/W 64F7058, R/W 93C86 x3 eeprom , odometer calibration, show pincode , reset(virgin). Full R/W 64F7059, R/W 93C86 x4 eeprom , odometer calibration, show pincode , reset(virgin).  (CAN)
• MAZDA 3/5/6 RF7 ECU. Full R/W 64F7058, R/W 93C86  eeprom. (CAN)
• MAZDA 2 1.5 from year 2010. Full R/W 64F7058, R/W 93A56  eeprom. (CAN)
• MAZDA 6 2.2TD R2AC. Full R/W 64F7058, R/W 93C86  eeprom. (CAN)
• MAZDA RX8 . Full R/W 64F7055, R/W 93C56  eeprom. (CAN)
• NISSAN NAVARA/PATHFINDER 2.5DCI 2005-2009. Full R/W 64F7058, R/W 93C86  eeprom. (CAN)
• NISSAN NAVARA/PATHFINDER D40 2.5DCI from 2010. Full R/W 64F7059, R/W 93C86  eeprom. (CAN)
• MITSUBISHI L200/PAJERO-4D56/4M41 2.5/3.2DID till year 2009. Full R/W 64F7058, R/W 93C86  eeprom. (CAN)
• MITSUBISHI L200/PAJERO-4D56/4M41 2.5/3.2DID from year 2009. Full R/W 64F7059, R/W 93C86  eeprom. (CAN)
• MITSUBISHI DELICA D5/OUTLANDER 2.2DID 4N14 from year 2009. Full R/W 64F7059, R/W 93C86  eeprom. (CAN)
• SUBARU FORESTER 2.0D KH. Full R/W 64F7058, R/W 93C86  eeprom. (CAN)
• SUBARU OUTBACK 2.0DNG. Full R/W 64F7059, R/W 93C86  eeprom. (CAN)
• SUZUKI 1.3/1.5/1.6. Full R/W 64F7058, R/W 93A56  eeprom. (CAN)
• SUZUKI <2007 1.3/1.5/1.6. Full R/W 64F7055, R/W 93A56  eeprom. (CAN)
• SUZUKI JIMNY <2007 1.3  Full R/W 64F7055, R/W 93A56  eeprom. (CAN)
• Volvo V50/S40/V40 2006-2010 140ho/170hp full R/W 64F7058 ,R/W 93C56 eeprom. (CAN)
• Volvo V70/S60/S80 till 2006 140 140ho/170hp full R/W 64F7058 ,R/W 93C56 eeprom. (CAN)
• Volvo V70/S60/S80 till 2006 140 140ho/170hp full R/W 64F7055 , full R/W external flash 29LV200BC ,R/W 93C56 eeprom. (CAN)
• Volvo S80/XC90 4.4L V8 2007-2010   full R/W 64F7058,R/W 93A86 eeprom. (CAN)
• JAGUAR/LANDROVER P3.0NA / JAGUAR XF 4.2SC  full R/W 64F7058,R/W 93A86 eeprom. (CAN)
• JAGUAR S-TYPE 4.2 V8 V8SC  full R/W 64F7058,R/W 93A86 eeprom. (CAN)

EEPROM reading/writing, showing the pincode stored in BSI. Tool works by OBD or ont he bench.

BSIs supported:

• Magneti Marelli with Freescale MCU 3K91D,1k79X (R/W EEPROM SHOW PIN);
• Magneti Marelli with NEC MCU 70F3237,70F3378 (R/W EEPROM SHOW PIN);
• Siemens Continental Freescale MCU 9S12DG128  (R/W EEPROM SHOW PIN).

Vehicles with Freescale 3K91D,1k79X MCUs:

• Alfa Romeo: 147, GT
• Fiat: Stilo(1999-2007), Palio(1999-),Idea
• Lancia: Thesis, Ypsilon
• Maserati: Quattroporte, Granturismo

Vehicles with Freescale 70F3237,70F3378 MCUs:

• Fiat: Bravo(2007-), Ducato(2006-), Stilo(2007-), Punto(2007-)
• Lancia: Ypsilon(2007-)

Vehicles with Freescale 9S12DG128 MCUs:

• Fiat: Panda(2003-)

FULL FLASH reading/writing, DUCATI BIKES ECUS made by CONTINENTAL. All operations done by CAN.

ECUs supported:

• CONTINENTAL M3C with freescale 9S12XDP256 mask 1L15Y;
• CONTINENTAL M3C with freescale 9S12XET256 mask 2M53J.

TEMIC DQ250 MPC555+95160 KLINE

EEPROM 95160 R/W, MPC555 FLASH R/W

Reading/writing.

Supported ECUS and functions:

• BMW EDC15C4 KLINE -29F400BT R/W – 95P08 R/W
• LAND ROVER EDC15C4 KLINE -29F400BT R/W – 95P08 R/W
• SMART ME7.7.0 KLINE – ST10F275 R/W – 95080 R/W
• SMART EDG15C-5.X KLINE – 29F400BT R/W – 95P08 R/W
• OPEL EDC15C7 KLINE – 29F400BT R/W – 95P08 R/W
• OPEL ME7.6.1/ME7.6.2 KLINE – ST10F275 R/W – 95080 R/W – Reset(Virgin) – Change ODO
• OPEL ME7.6.3 KLINE – ST10F276 R/W – 95080 R/W – Reset(Virgin) – Change ODO
• OPEL ME7.6.1/ME7.6.2 KLINE -29F800BB – 95080 R/W – Reset(Virgin) – Change ODO
• OPEL ME1.5.5 KLINE -29F400BB – 95080 R/W – Reset(Virgin)
• VOLVO EDC16C31 CAN (29bit) – M58BW016DB R/W – 95320 (until year 2008) (XC90 until year 2012)
• VOLVO EDC16C34 CAN (29bit) – M58BW016DB R/W – 95160 (V50,S40,C30 until year 2008) (1.6L)
• VOLVO ME9.0 CAN (29bit) – M58BW016DB R/W – 95080 (V50 until year 2008)
• VOLVO ME7.0/ME7.0.1  CAN( 500 kbps) – 29F800BB R/W – 95080 R/W – CKS
• VOLVO ME7.0/ME7.0.1  CAN(250 kbps) – 29F800BB R/W – 95P08 R/W – CKS
• VOLVO EDC15C11 CAN(250kbps/500kbps)/KLINE – 29F400BT R/W – 95P08 R/W
• VOLVO EDC15C3 KLINE – 29F400BT R/W – 95P08 R/W
•  JEEP/CHRYSLER EDC15C5 KLINE – 29F400BT R/W – 95P08 R/W
• MB EDC15C6 KLINE – 29F800BT R/W – 95P08 R/W
• HONDA ME7.9.3 KLINE – 29F800BB R/W – 95040 R/W
• HONDA EDC15C7 KLINE -29F400BT R/W – 95P08 R/W
• TOYOTA EDC15C9 KLINE -29F400BT R/W – 95P08 R/W
• TOYOTA ME7.9.5 KLINE – ST10F275 R/W – 95040 R/W
• TOYOTA ME7.9.51 KLINE – ST10F275 R/W – 95040 R/W
• TOYOTA M7.9.5 KLINE – ST10F275 R/W – 95040 R/W
• TOYOTA M7.9.52 KLINE – ST10F275 R/W – 95160 R/W
•  FIAT ME7.3.1 KLINE BOOTPIN – 29F400BB R/W – 95080 R/W – Reset(Virgin)
•  FIAT ME7.3.H4 KLINE BOOTPIN – 29F400BB R/W – 95080 R/W – Reset(Virgin) – Change ODO – Change Flash Counter
• FIAT ME7.9.10 KLINE – ST10F275 R/W – 95160 R/W – Reset(Virgin)
• FIAT ME7.6.3 KLINE – ST10F276 R/W – 95080 R/W – Reset(Virgin)
• FIAT EDC15C7 KLINE -29F400BT R/W – 95P08 R/W
• VAG ME7.5 KLINE – 29F400BB R/W – 95040 R/W
• VAG ME7.5-1M KLINE – 29F800BB R/W – 95040 R/W
• VAG ME7.5.10 KLINE – 29F400BB R/W – 95040 R/W
• VAG ME7.5.20 KLINE – ST10F275 R/W – 95040 R/W
• VAG MED7.5.11 KLINE – 29F800BB R/W – 95040 R/W
• VAG EDC15P+ KLINE – 29F400BT/29F800BT R/W – 24C04 R/W
• VAG EDC15VM+ KLINE – 29F400BT/29F800BT R/W – 24C04 R/W
• PSA M7.4.4 KLINE – 29F400BB R/W – 95080 R/W
• PSA ME7.4.4 KLINE – 29F400BB R/W – 95160 R/W – Reset(Virgin)
• PSA ME7.4.5 KLINE – ST10F275 R/W – 95320 R/W – Reset(Virgin)
• PSA EDC15C2 1XCONNECTOR KLINE – 29F400BT R/W – 95P08 R/W
• PSA EDC15C2 3XCONNECTOR KLINE – 29F400BT R/W – 95P08 R/W
• KIA EDC15C7 KLINE – 29F400BT R/W – 95P08 R/W
• KIA/HYUNDAY KEFICO/BOSCH M(G)7.9.8 KLINE – ST10F275 R/W – 95160 R/W
• HYUNDAY BOSCH/KEFICO ME7.9.0 KLINE – 29F400BB R/W – 95040 R/W

Reading/writing of various modules used in Volvo cars.

Supported Modules and functions:

• Dashboard cpu mask 1M80F flash+eeprom R/W  – 11bit/500kbit CAN
• Dashboard cpu mask 1M80F flash+eeprom R/W  – 11bit/125kbit CAN
• Dashboard cpu mask 1K78X flash+eeprom R/W  – 11bit/ 125kbit CAN
• Dashboard cpu mask 1H56A eeprom R/W  – 29bit/125kbit CAN
• Dashboard cpu mask 4F73K flash+eeprom R/W  – 29bit/ 125kbit CAN
• Dashboard cpu mask 3K91D flash+eeprom R/W  – 29bit/125kbit CAN
• Dashboard cpu mask 0L85D flash+eeprom R/W  – 29bit/ 125kbit CAN
• Dashboard cpu mask 3L16Y flash+eeprom R/W  – 29bit/ 125kbit CAN
• ICM 64F7055 flash R/W  – 29bit/ 125kbit CAN
• ICM MAC7116 flash+dataflash R/W  – 29bit/125kbit CAN
• ICM MAC7116 flash+dataflash R/W  – 11bit/125kbit CAN
• Read view mirror  cpu mask 0K75F flash+eeprom R/W  – 29bit/125kbit CAN
• Read view mirror  cpu mask 3L40K flash+eeprom R/W  – 29bit/125kbit CAN
• Read view mirror  cpu mask 0L85D flash+eeprom R/W  -29bit/ 125kbit CAN
• EPS XC164CS flash+eeprom(25L160) R/W  – 11bit/500kbit CAN
• Airbag Bosch CR16MCS9 eeprom R/W -29bit/ 125kbit CAN
• Airbag TEMIC/CONTINENTAL  cpu mask 1L40K flash+eeprom R/W  – 29bit/ 125kbit CAN
• Airbag TEMIC/CONTINENTAL  cpu mask 1L15Y flash+eeprom R/W  – 11bit/ 125kbit CAN
• PHM (Phone module) Autoliv  29F800BB flash R/W  – 29bit/ 125kbit CAN
• PHM (Phone module) Autoliv  AM29DL162DT flash R/W  – 29bit/ 125kbit CAN
• CCM (Climate control module)  Alps 28F200 flash R/W  – 29bit/ 125kbit CAN
• CCM (Climate control module)  Alps 29F200BB flash R/W  – 29bit/ 125kbit CAN
• CCM (Climate control module)  Alps 1K79X flash+eeprom R/W  – 29bit/ 125kbit CAN
• CCM (Climate control module)  Alps MAC7111 flash+dataflash R/W  – 11bit/ 125kbit CAN
• CCM (Climate control module)  Alps MPC5516 flash R/W  -11bit/ 125kbit CAN

• Siemens D76F0018+95160 KLINE (BSI-E0X-00/BSI-F0X-00); EEPROM 95160 R/W, show PIN;
• Siemens 1L00M+95128/95256 CAN (BSI-S0X-00); EEPROM 95128/95256 R/W, show PIN, 9S12DP512 FLASH R/W;
• Continental SC667050+95256 CAN (BSI-Q0X-00); EEPROM 95256 R/W, show PIN, SC667050 FLASH R/W;
• Valeo 4L00M+95128/25128 CAN (BSI2004-P0X-00); EEPROM 95128/25128 R/W, show PIN, 9S12DP512 FLASH R/W;
• Valeo 2M48H+24C128 CAN (BSIEV-X0X-00); EEPROM 24C128 R/W, show PIN, 9S12XEP768 FLASH R/W;
• Valeo SC667152+95256 CAN (BSI-N0X-00); EEPROM 95256 R/W, show PIN, SC667152 FLASH R/W;
• Johnson Controls easyCAN4+29LV400+95128 CAN (BSI2004-H0X); EEPROM 95128 R/W, show PIN, 29LV400BB FLASH R/W;
• Johnson Controls easyCAN4F1M-32+95128 CAN (BSI04EV-K0X); EEPROM 95128 R/W, show PIN, easyCAN4F1M-32 FLASH R/W;
• Johnson Controls SPC560B60+95128 CAN (BSI04EV2-KEX); EEPROM 95128 R/W, show PIN, SPC560B60 FLASH R/W

• 3L80R (MC9S12B128) CAN , EEPROM R/W, FLASH R/W;
• 0L01Y (MC9S12DG256) CAN, EEPROM R/W, FLASH R/W;
• 2K79X (MC9S12DG256) CAN, EEPROM R/W, FLASH R/W.

Reading/writing of FIAT, FORD, PSA BSI modules made by DELPHI. Also software extracts PIN CODE and shows KEY PREPARATION DATA from the EEPROM dump or data flash dump.

Supported DELPHI BSI types:

• FIAT DELPHI BSI 70F3237+93C86 CAN . EEPROM   93C86 R/W ,show PIN, show KEY preparartion data. 70F3237 FLASH R/W;
• FIAT DELPHI BSI 70F3379+93C86 CAN . EEPROM   93C86 R/W ,show PIN, show KEY preparartion data. 70F3379 FLASH R/W;
• FIAT DELPHI BSI 70F3632/70F3633 CAN . 70F3632/70F3633 DATA & PROGRAM FLASH R/W ,show PIN, show KEY preparartion data;
• FIAT DELPHI BSI 70F3556 CAN . 70F356 DATA & PROGRAM FLASH R/W;
• FIAT DELPHI BSI 70F3557 CAN . 70F357 DATA & PROGRAM FLASH R/W;
• FORD DELPHI BSI 70F3379+93C86 CAN . EEPROM   93C86 R/W ,show PIN, show KEY preparartion data. 70F3379 FLASH R/W.
• FIAT CONTINENTAL BSI MPC5606 CAN . MPC5606 DATA & PROGRAM FLASH R/W.

Reading/writing of OPEL BCM modules made by DELPHI, BOSCH, CONTINENTAL. Also software extracts PIN CODE rom the EEPROM dump or data flash dump.

Supported BCM/BSI types

• OPEL DELPHI BCM 70F3238+93C86 CAN . EEPROM   93C86 R/W, show PIN, reset PIN. 70F3238 FLASH R/W;
• OPEL DELPHI BCM 70F3379+93C86 CAN . EEPROM   93C86 R/W, show PIN, reset PIN. 70F3379 FLASH R/W;
• OPEL DELPHI BCM 70F3633 CAN . 70F3633 DATA & PROGRAM FLASH R/W, show PIN, reset PIN;
• OPEL/GM BOSCH BCM 70F3469+24C16.70F3469 FLASH R/W. EEPROM 24C16 R/W show PIN, reset, change odometer, change VIN;
• OPEL/GM BOSCH BCM 70F3385+24C16.70F3385 FLASH R/W.  EEPROM 24C16 R/W show PIN ,reset, change odometer, change VIN;
• OPEL/GM BOSCH BCM 70F3558+24C32.70F3558 FLASH R/W. EEPROM 24C32 R/W show PIN, reset,change odometer, change VIN;
• OPEL/GM CONTINENTAL BCM 70F3469+95160(25160). 70F3469 FLASH R/W. EEPROM 95160(25160) R/W show PIN, reset, change odometer, change VIN;
• OPEL/GM CONTINENTAL BCM 70F3558+95320(25320) .70F3558 FLASH R/W. EEPROM 95320(25320) R/W show PIN, reset, change odometer, change VIN.

Reading/writing of OPEL/GM ECUs  by CAN (OBD or wired on the bench) . Also software has bootpin recovery mode.

Supported OPEL/GM ECU types

• ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
• ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
• ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
• ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
• ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
• ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
• DELPHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD);
• DELPHI DCM3.7AP R5F72544 FLASH+DATAFLASH R/W.CAN (OBD);
• DELPHI DCM3.7AP R5F72513 FLASH+DATAFLASH R/W.CAN (OBD);
• ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD);
• ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD);
• ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
• ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
• ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
• ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD);
• ACDELCO (BOSCH) E84 MPC5676 FLASH R/W.CAN (OBD);
• EEPROM DUMP VIEWER, EDITOR.

Reading/writing of OPEL/GM TCM 6T30, 6T35, 6T40, 6T45, 6T50, 6T70, 6T75, 6T80, 6L45, 6L50, 6L80, 6L90 via CAN (OBD or wired on the bench).

Supported OPEL/GM TCM types:

TCM 6T30, 6T35, 6T40, 6T45, 6T50 AM29BDD160GB FULL FLASH R/W. CAN (OBD);
TCM 6T70,6T75,6T80,6L45,6L50,6L80,6L90 FULL M58BW016DB FLASH R/W. CAN (OBD).

Reading/writing of OPEL/GM EPS modules via CAN (OBD or wired on the bench).

Supported OPEL/GM EPS types:

• EPS BOSCH 70F3187+95080 70F3187 FLASH R/W 95080 EEPROM R/W. CAN (OBD).

FCA (Fiat Chrysler Automobiles) RFHUB/RFHM Keyless modules

CONTINENTAL 9S12XEQ384/ 9S12XEG384/ 9S12XET512 FLASH+EEPROM R/W, 95640 EEPROM R/W. (CAN 11-bit system)
CONTINENTAL 9S12XEQ384/ 9S12XEG384/ 9S12XET512 FLASH+EEPROM R/W, 95640 EEPROM R/W. (CAN 29-bit system)

Reading/writing of FORD BCM modules made by DELPHI, CONTINENTAL/SIEMENS

Supported BCM types:

• FORD CONTINENTAL/SIEMENS BCM 4L91N/0L01Y (9S12DT256) CAN. 9S12DT256 EEPROM R/W, 9S12DT256 FLASH R/W;
• FORD CONTINENTAL/SIEMENS BCM 4L00M (9S12DP512) CAN. 9S12DP512 EEPROM R/W, 9S12DP512 FLASH R/W;
• FORD CONTINENTAL/SIEMENS BCM 70F3384/70F3637 CAN. 70F3384/70F3637 DATA & PROGRAM FLASH R/W;
• FORD CONTINENTAL BCM MPC5607 CAN. MPC5607 DATA & PROGRAM FLASH R/W;
• FORD DELPHI BCM M30882F+95320. M30882F DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W;
• FORD DELPHI BCM R5F64524/R5F64525. R5F64524/R5F64525 DATA & PROGRAM FLASH R/W.
• FORD LEAR BCM SPC560B64+95320. SPC560B64 DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W.
• FORD LEAR BCM MC9S12XEP768. MC9S12XEP768 DATA & PROGRAM FLASH R/W.
• FORD LEAR BCM V2 MC9S12XEP768. MC9S12XEP768 EEPROM+DATA FLASH & PROGRAM FLASH R/W.
• FORD TEMIC BCM MC9S12DG256. MC9S12DG256 EEPROM + PROGRAM FLASH R/W.
• FORD TEMIC BCM MC9S12XD256. MC9S12XD256 EEPROM + PROGRAM FLASH R/W.

• VOLVO DELPHI CEM M30882F+95320. M30882F DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W. In order to use need PINCODE.
• VOLVO DELPHI CEM R5F64524/R5F64525. R5F64524/R5F64525 DATA & PROGRAM FLASH R/W. In order to use need PINCODE.
• VOLVO DELPHI CEM REVB. R5F64524/R5F64525. R5F64524/R5F64525 DATA & PROGRAM FLASH R/W. In order to use need PINCODE.
• VOLVO LEAR BCM SPC560B60/SPC560B64+95320. SPC560B60/SPC560B64 DATA & PROGRAM FLASH R/W. EEPROM 95320 R/W. In order to use need PINCODE.

Possible activation on VOLVO simcard.

• VOLVO DELPHI CEM L M30835F+93C86. M30835F PROGRAM FLASH R/W. EEPROM 93C86 R/W. In order to use need PINCODE.
• VOLVO DELPHI CEM L M30855F+93C86. M30855F PROGRAM FLASH R/W. EEPROM 93C86 R/W. In order to use need PINCODE.

Possible activation on VOLVO simcard.

FORD/LAND ROVER/VOLVO AHCM/CPM TTV/TTVEVO WEBASTO CONTINENTAL 9S12DG256. 9S12DG256 FLASH R/W, EEPROM R/W.

VOLVO P3/FORD/JAGUAR  KVM (Keyless Vehicle Module) SIEMENS/CONTINENTAL 9S12DG256.  9S12DG256 FLASH R/W, EEPROM R/W.

OPEL/GM Drive motor power inverted module

ACDELCO S95 with 1xMPC5566 and 3xMPC5565 microcontrollers (FLASH+EMULATED EEPROM ZONEs, reading and writing of PIM/TPIM (Drive motor power inverter module)

Activation of all licenses
