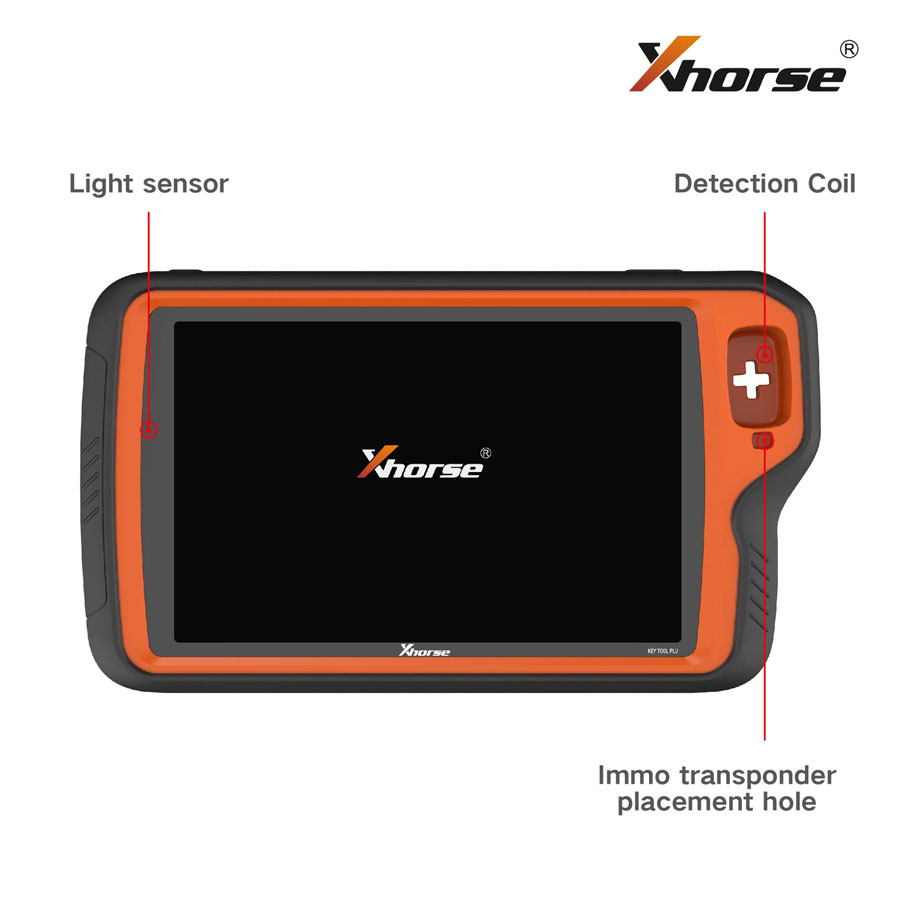

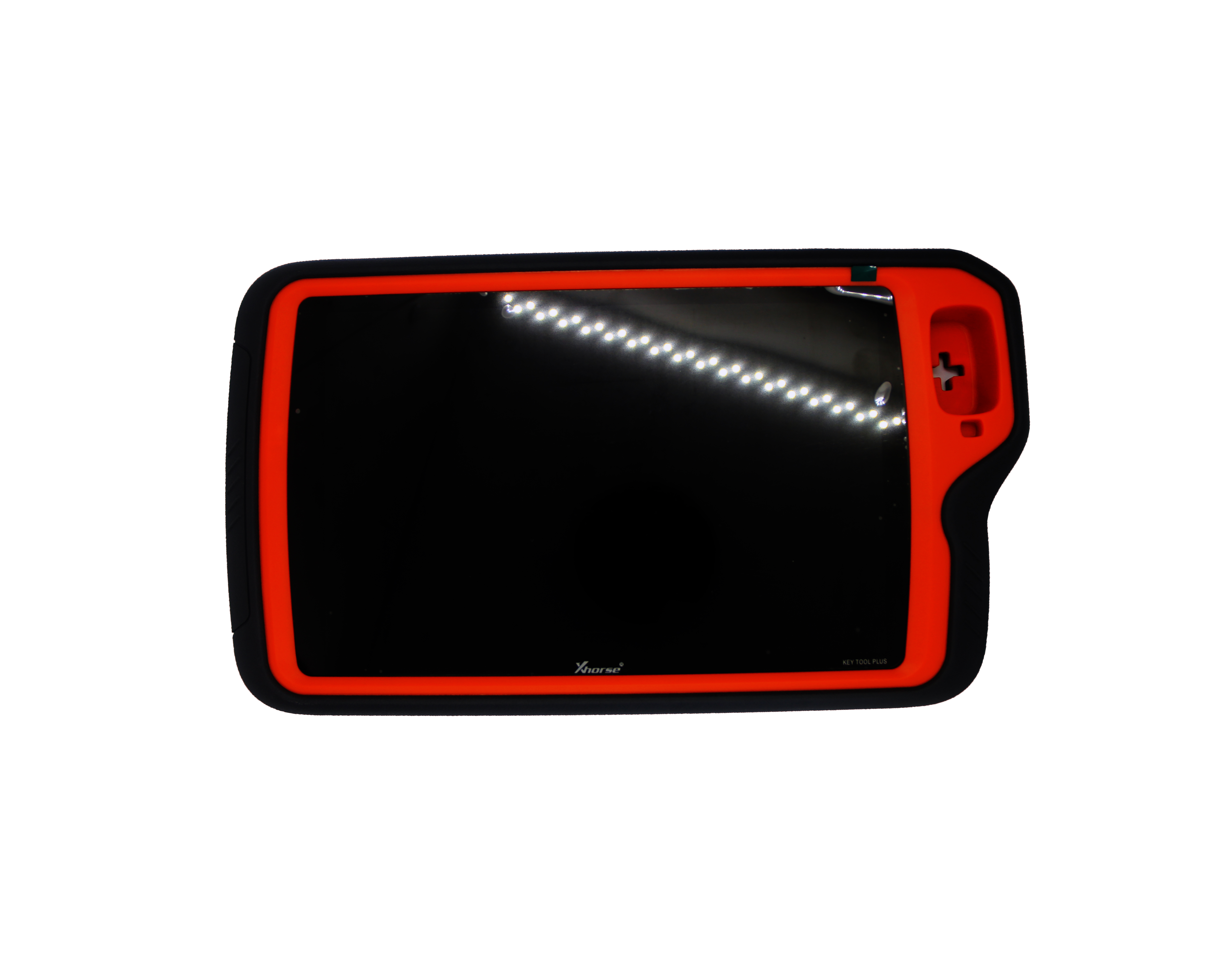

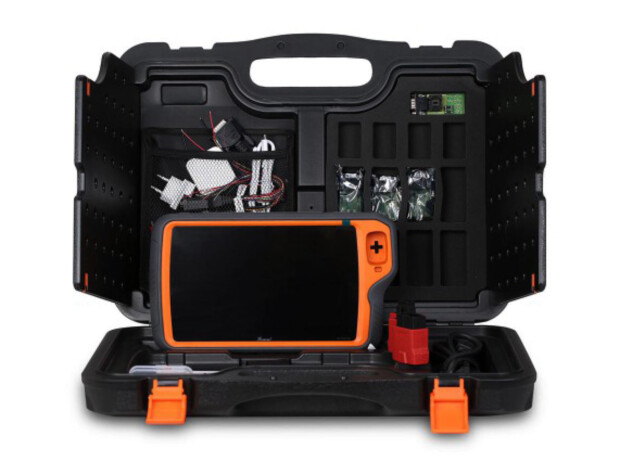

VVDI Key Tool Plus Pad

VVDI KEY TOOL PLUS provides an all-in-one security solution for locksmiths with no need to take your laptop or mobile phone. It supports IMMO programming for vehicles like BMW, BENZ, AUDI, and VW. Besides, it allows controlling Xhorse key cutting machines.

Parameters:

• CPU: 8-core 2GHz
• RAM+ROM: 4G+128G
• Operation System: Android 9.0
• Screen Size: 10.1» HD Anti-glare; Anti-fingerprint. Super 10.1» anti-glare display enables top operation experience.

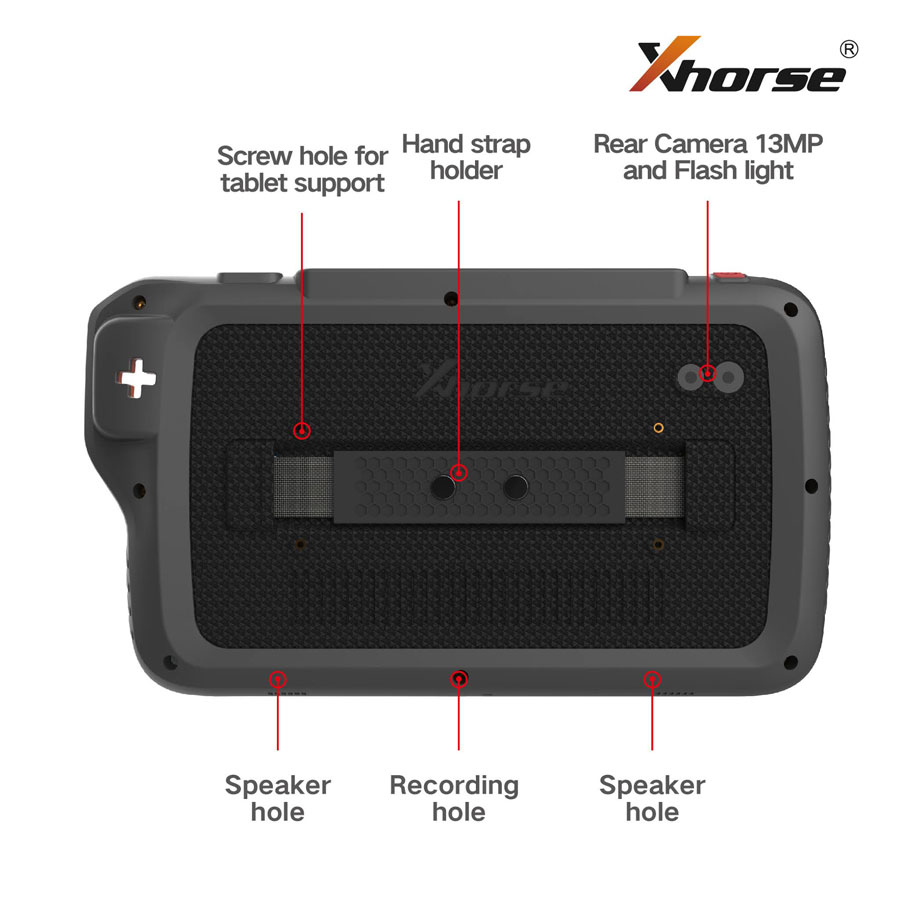

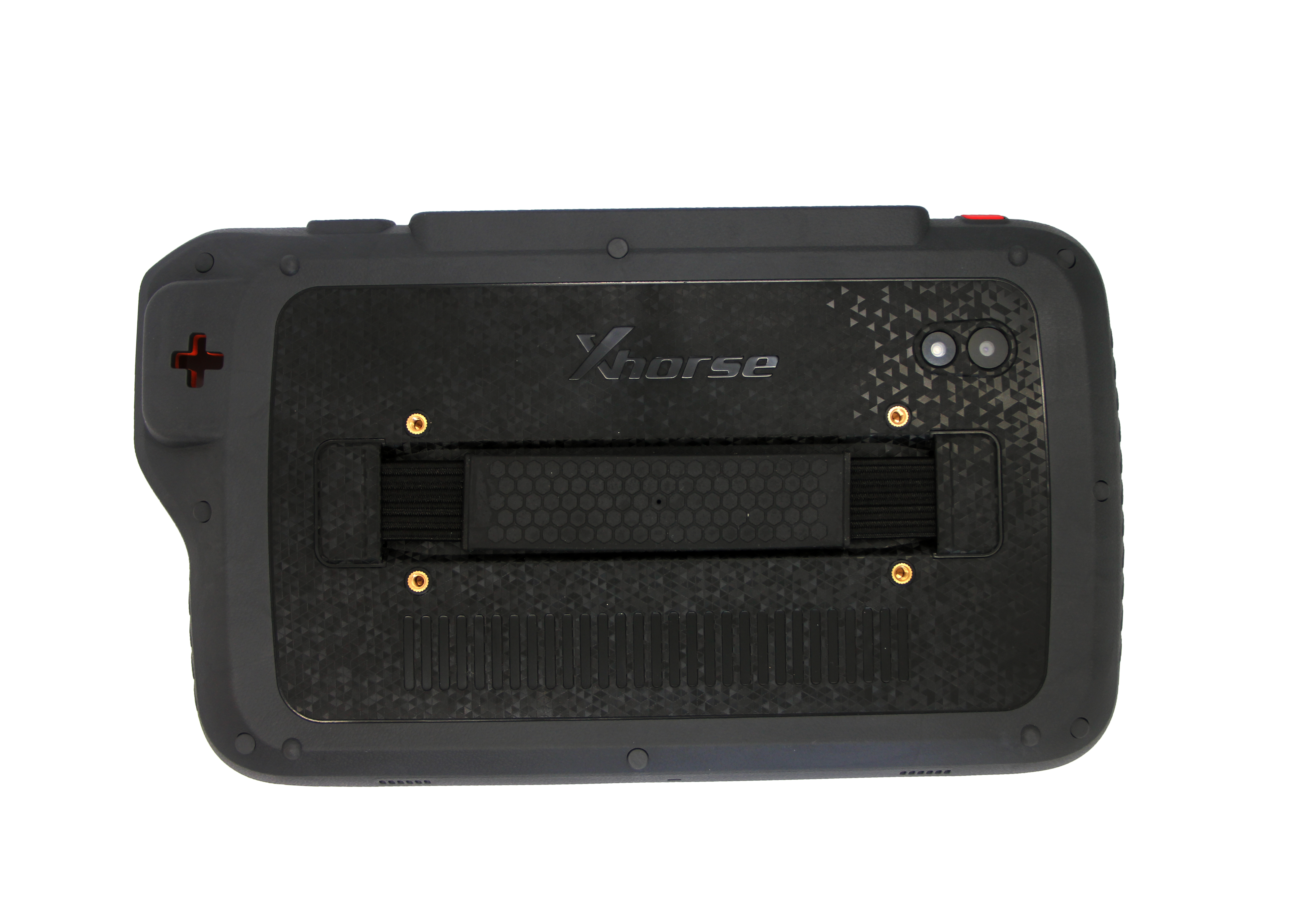

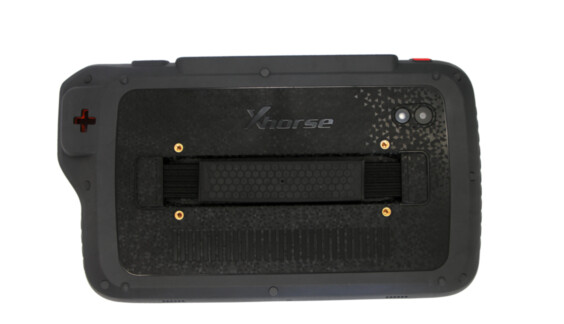

• Rear HD Camera: 13.0MP. The 13MP rear camera is designed to fit in multiple scenarios perfectly.
• Battery Capacity: 10000mAh. Long battery life and PD3.0 fast charge help keep you productive throughout your day.
• Charging: 30W Super Fast Charge
• Bluetooth: 5.0 Bluetooth
• WIFI: 2.4G/5G

Xhorse Key Tool Plus Basic Functions

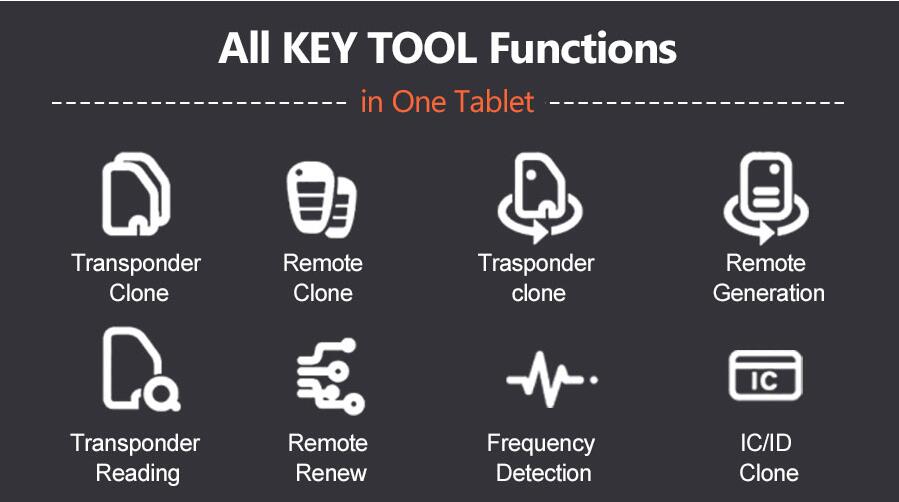

It supports basic functions of a Key Tool, such as remote generating, cloning, transponder detection, and IMMO programming for VW & Audi, BMW, and Mercedes Benz.

• Transponder Detection
• Transponder Cloning
• Transponder Generation
• Remote Cloning
• Remote Generating
• Frequency Detection
• Remote Renew
• IC/ID Clone
• Vehicle Error Light Reset
• Key Cutting Machine Control
• Built-in OBD matrix switch
• Radiofrequency simulator
• Integrated Key Identification Coil
• Mercedes Benz infrared read-head
• Smart Key Simulator
• Long-distance IMMO collection
• Chip pin detection
• More functions to be added in future updates

Please note:

1. Bosch ECU adapter cannot be used with Key Tool Plus. It is for VVDIProg and VVDI BIMTool.

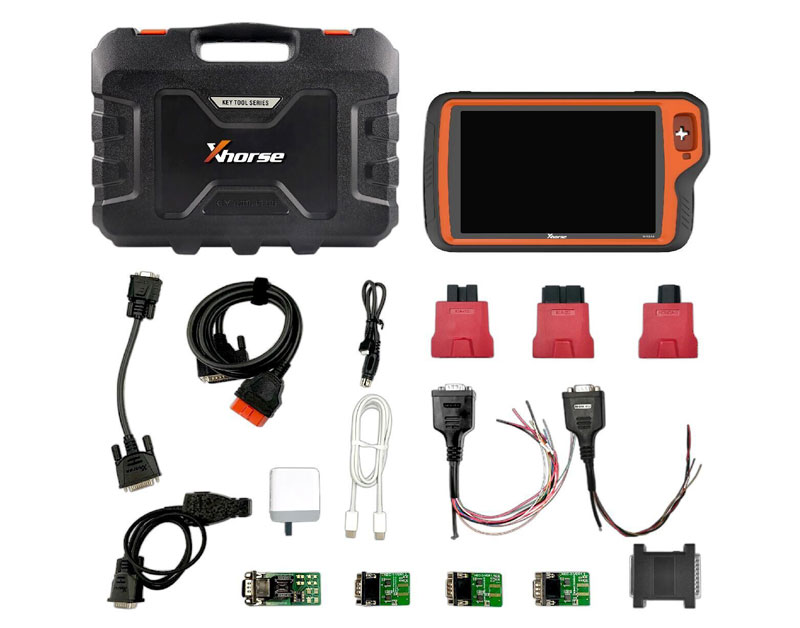

2. VVDI MB power adapter fast cable cannot be used with the pad. The Pad uses a Benz power adapter in its package to fast calculate pass.
3. Benz EIZ/EZS adapter kit can be used with the key tool plus. But require DB9 optional adapter (not release yet) or modification.
4. VVDI Toyota 8A adapter and VVDI remote renew adapters can be used with a VVDI pad.

IMMO Key Programming Function:

Mercedes Benz FBS3 FBS3 Add key/all keys lost, fast password calculation with a high success rate, time-saving (use Benz non-removal adapter)
BMW OBD add key/all keys lost CAS1 CAS2 CAS3+ CAS4 CAS4+ FEM BDC (service mode)
VAG IMMO2 IMMO3 IMMO3.5 IMMO4 IMMO5 MQB add key, all keys lost
VAG online IMMO4 add key and AKL, A6 Q7(J518) All Keys Lost, MQB add key and AKL, 5 °C add key, fast inexpensive, no risk of the car dead with VVDI remote
Toyota 8A mechanical key OBD Add key and All keys lost (No need to remove immo box for AKL. 8A AKL adapter is required.
Mitsubishi OBD Add key, all keys lost, prepare dealer key Outlander, ASX, Eclipse Cross etc)
Porsche Generate dealer key for new Porsche (-2018), OBD IMMO programming (key tool plus read dump and generate key, OBD immo programming)
Peugeot Citroen DS OBD Read Pin, Add key and All keys lost
Ford (-2018) Smart key programming without PIN code for-2018 models/key programming
Ford 2019— Key programming without reading PFLASH backups for 2019 up Focus, Escort (safe, no risk.)
Jeep Chrysler Dodge 2018 up Reading PIN code and key programming key via OBD
Fiat Viaggio Palio OBD Add key, AKL and prepare dealer key
Buick Chevrolet Cadillac OBD Read PIN Code (ID46 transponder), online get PIN code for some cars with 4D/47 transponders
Hyundai Kia OBD read PIN Code for cars with 46, 47, 8A transponders and program key
Honda 2019 up AKL OBD all keys lost for 10th Generation Accord, Envix, Fit, Inspire
Volvo (-2016) OBD read ISN by OBDII (remote key), require CEM EEPROM dump (remote key), require CEM, KVM EEPROM dump (smart key)
Chinese Cars Support key programming for common Chinese cars and PIN code calculation or OBD read PIN code for some models

KEY TOOL PLUS provides users with functions including key programming, key learning, ECU coding/adaption/replacing, diagnostic function, etc. to best resolve most problems occurring in immo programming for Volkswagen and AUDI cars.

VW & Audi:

• 3rd / 4th / 5th generation
• MQB
• MED17/EDC17

KEY TOOL PLUS allows BMW CAS1 CAS2 CAS3 CAS3+ CAS4 CAS4+ OBD key learning, FEM/BDC key programming, File Make Key, ECU ISN reading, ECU and CAS synchronization, etc. Getting work done has never been easier.

BMW IMMO Programming

• CAS3/CAS3+
• CAS4/CAS4+
• FEM/BDC
• ECU ISN Reading Function

KEY TOOL PLUS offers users all-rounded and professional security solutions for Mercedes-Benz. The device helps with FBS3 Keyless-go smart key programming, all key lost, adding keys, enabling & disabling keys and 曰S/EZS，ELV, ECU, gearbox, ISM replacing.

Benz IMMO Prorgamming

• FBS3 standard keys and FBS3 keyless-go keys
• Smart keys, all keys lost, add keys, enable & disable keys
• EIS/EZS, ELV, ECU, gearbox, and ISM replacement

Other Car Models Supported

• Toyota, Honda, Mazda, Ford, Cadillac, LandRover, Peugeot, Kia, Buick, Chevrolet, Volvo, Mitsubishi, Nissan, Suzuki

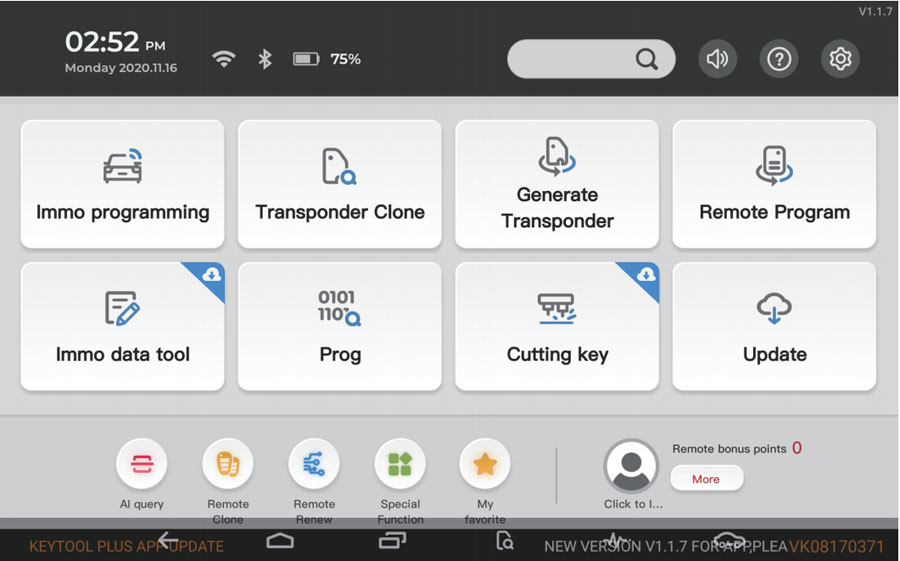

KEY TOOL PLUS supports over 20,000 car models worldwide. We can select the car brands and car models on the immo programming interface. On this smart platform, you can easily find the car models you need by brand area, brand name, and A-Z word search.

Transponder & Remote Function:

Transponders

• ID46 online calculation
• ID48 (96 bit) online calculation
• Toyota H(8A) online calculation
• Transponder generation and cloning of over 850 car models
• Special transponders and special cars and old car models

Remotes

• Support remote generation, smart key generation, frequency detection, remote clone for a variety of car models
• HCS/fix code clone, non-HCS rolling code clone, fix code editing
• PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X fix code editing

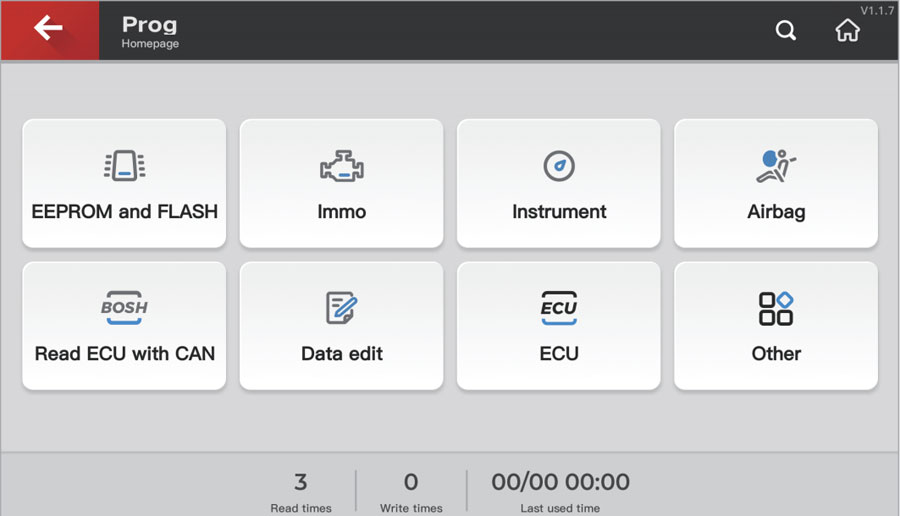

Prog Function:
Key Tool Plus is designed with Prog function, which can work as a solder-free programmer, directly reading and writing common modules and chips for plenty of car models. Xhorse is the first to offer this integrated solution.

KEY TOOL PLUS supports reading and writing common modules and chips. It covers «EEPROM and FLASH», «IMMO», «Instrument», «Airbag», and «ECU», etc.

Supported EEPROM and FLASH: ATMEL, Mitsubishi, Winbond, Catalyst, ST, XICOR, Microchip, SEIKO, Xhorse, MXIC, Toshiba

Supported Modules

• BMW: CAS3/CAS3+/CAS4/CAS4+/FEM/FRM/BDC
• BENZ: EIS/EIZ
• LANDROVER: RFA
• PORSCHE: BCM
• VOLVO: CEM/KVM
• BMW/AUDI/VW: ECU AND MORE
• HONDA/HYUNDAI/KIA: MB91F dashboard

(Note: To complete certain functions, users need to connect KEY TOOL PLUS to the specific adapters and get the required model prompt on the interface. The function is only effective in the advanced edition.)

WHAT CAN BE DONE BY PROG FUNCTION ON KEY TOOL PLUS

• Support EEPROM reading and writing: support reading & writing most types of transponders in the market.
• Support BMW immo module programming covering CAS3, CAS3+, CAS4, CAS4+, BDC, FRM, and FEM.
• Support Land Rover RFA module reading and immo programming.
• Support Porsche BCM programming.
• Support read ECU with CAN on AUDI, BMW, and VOLKSWAGEN.
• Support Instrument programming on HONDA, KIA, and HYUNDAI.

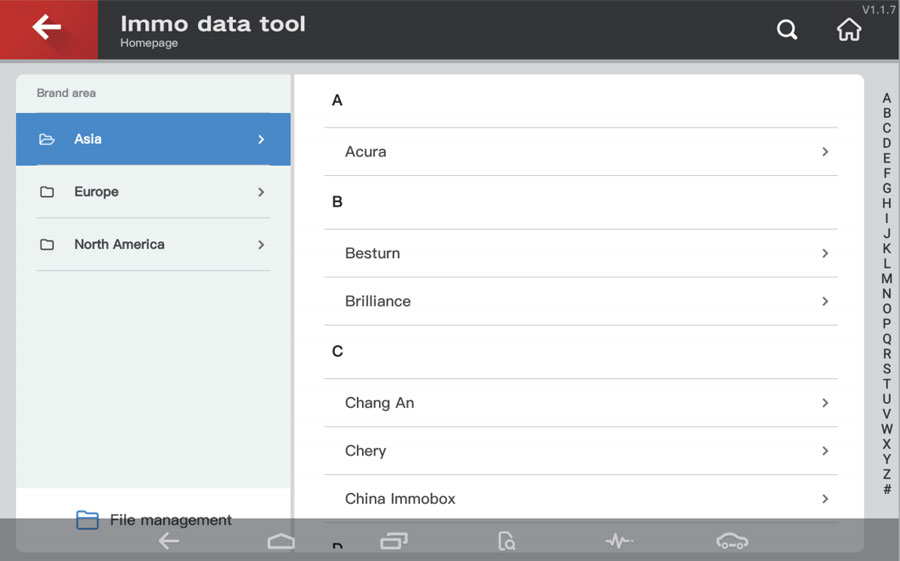

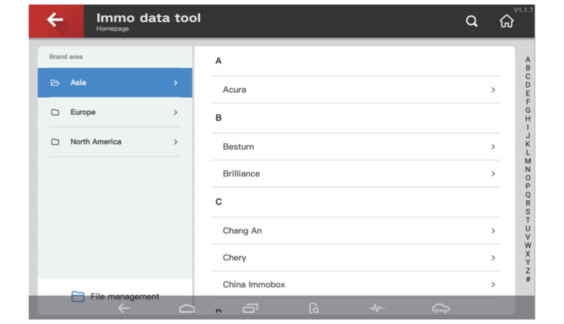

IMMO DATA TOOL (FILE MAKE KEY)
Supports Jaguar — Land Rover — Porsche — Volvo — Mitsubishi — and others

For some cars, key programming and other settings can’t be finished via OBDII. KEY TOOL PLUS gives amazing strength to solve the dilemma by delivering the File Make Key function which can be used to add keys for them. This
very function features generating transponder via reading-related transponder data of the car immo module directly.

[ File make key, to generate a car key via a data file. Users need to use the specific device to read the immo data and generate a boot transponder to directly start the car, no need to match the original car.(Users may need to rewrite the data to the immo box when doing the programming process on some car models.) ]

Maintenance Function

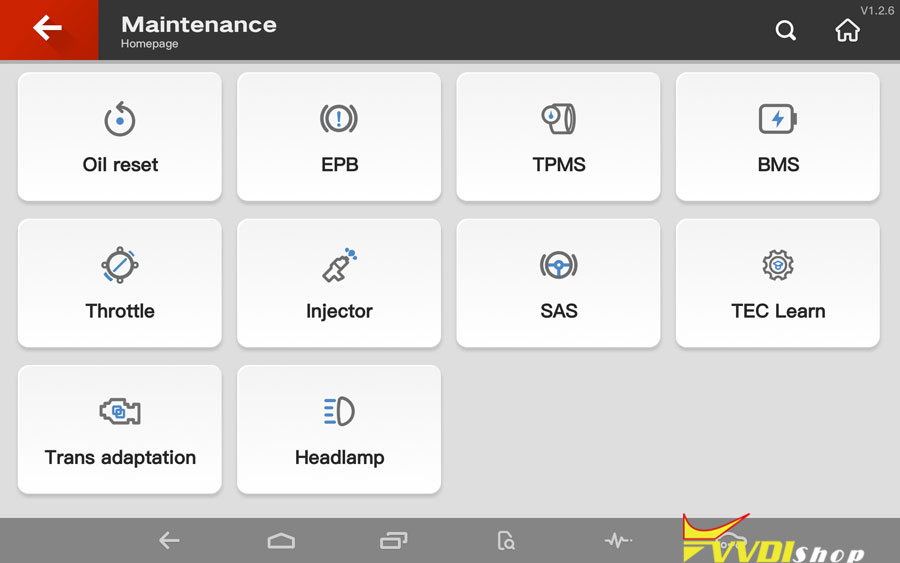

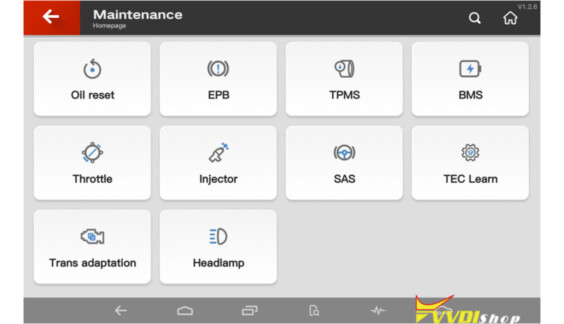

KEY TOOL PLUS supports maintenance light reset, electric parking brake, TPMS, battery matching, throttle program, injector programming, steering angle programming, bitting decode, gearbox programming, headlight programming, etc. More maintenance functions will be released soon.

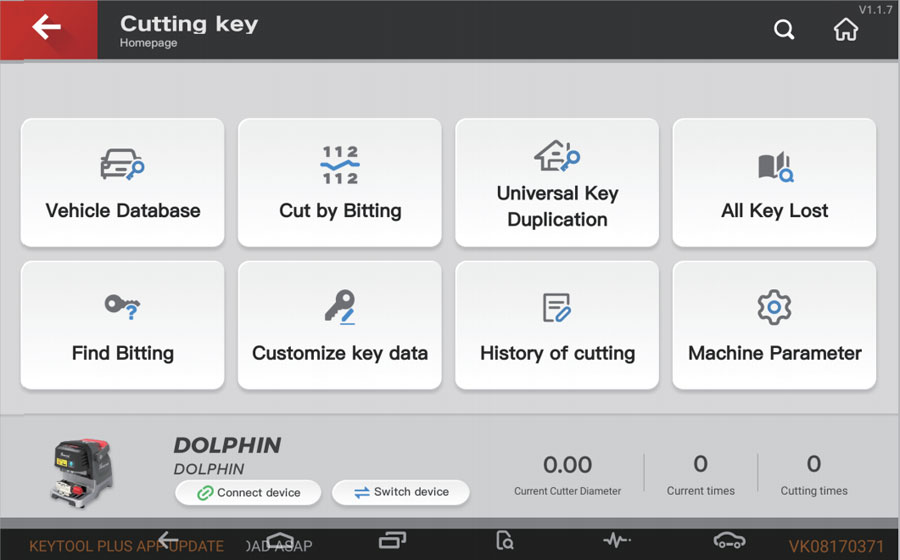

CONTROL KEY CUTTING MACHINES DEVELOPED BY XHORSE

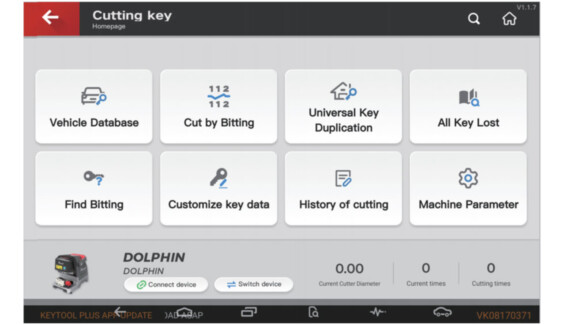

KEY TOOL PLUS is available to control the key cutting machines(CONDOR, DOLPHIN, and PANDA), to perfectly work as an operation screen. By using KEY TOOL PLUS, completely free your mobile phones.

Cloud Diagnosis Mode-C:
After the Key Tool Plus starts the C mode of cloud diagnosis, it will generate the local C-terminal ID and send C-terminal ID to a customer who provides remote service. Customer use cloud diagnosis B-terminal Xhorse device, after inputting C ID and connect to the Plus pad for remote diagnosis, programming, coding, matching, maintenance and other functions.

Other Special Functions:
Remote renew, Set type of VVDI super chip, VVDI Special TP, Unlock Toyota Smart Key, Detect remote, VVDI remote repair calibration, VVDI smart key clone, VVDI smart key customization, remote charge battery, Honda cycle key renew, 8E remote upgrade/unlock, XM smart key customization, Toyota smart key frequency setting
