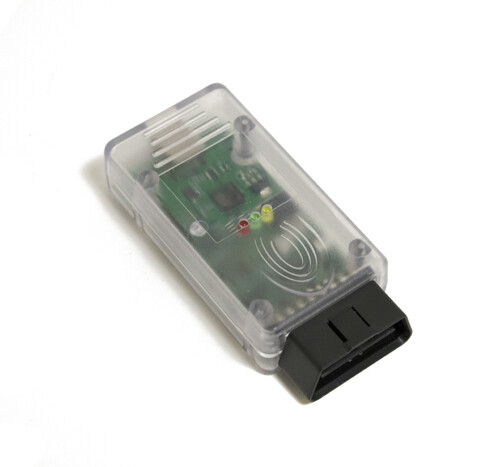

AutoScanner Opel CAN

AutoScanner Opel CAN (PRO) is a software and hardware solution (also known as OpelScan, Opel-Scan, Opel-Scanner) is intended for diagnostics, chip tuning, odometer correction and special functions activation. Some features of the device excel those of dealer scanners.

OpelSacnnerCAN is a multi-purpose diagnostic scanner. It supports the following models:

• Agila-A(1998-2007);
• Agila-B (2008-2010);
• Antara (2007-2010);
• Ascona (1987-1989);
• Astra-F (1992-2002);
• Astra-G (1998-2006);
• Astra-H (2004-2010);
• Astra-J (2010-);
• Calibra (1990-1997);
• Corsa-A/Combo (1987-1993);
• Corsa (Vita)-B (1993-2000);
• Corsa (Vita)-C (2001-2010);
• Corsa (Vita)-D (2007-2010);
• Frontera-A (1992-1998);
• Frontera-B (1999-2003);
• Insignia (2009-2010);
• Kadett-E (1987-1991);
• Meriva-A (2003-2009);
• Meriva-B (2010-);
• Omega-A (1987-1994);
• Omega-B (1994-2003);
• Senator-B (1987-1993);
• Sintra (1997-1999);
• Speedster/VX220 (2001-2006);
• Tigra-A (1995-2000);
• Tigra-B (2005-2010);
• Vectra-A (1989-1995);
• Vectra-B (1996-2001);
• Vectra-C/Signum (2002-2010);
• Zafira-A (1999-2005);
• Zafira-B (2005-2010);
• Suzuki Grand Vitara (2005-2010);
• Saab 9-3 CAN (2002-2010);

Diagnostics of ALL electronic systems is supported on most models:

• Engine Management Automatic;
• Transmission Distributor Transmission 4WD;
• ABS — Anti-Lock Brake System and ESP — Electronic Stability Program;
• Traction Control;
• Air Bag Immobilizer and ATWS — Anti-Theft Warning System;
• Central Door Locking System;
• Info Display;
• Instrument;
• Power Steering;
• Audio System;
• Air Conditioning System and Climate Control;
• Sliding Roof;
• Electronic Seat Memory;
• Add-On Heater;
• Headlamp Leveling Device;
• And many others...

New models and systems are added regularly.

The following functions are available when working with the systems mentioned above:

• Reading ID parameters of control units: VINs (stored, for example, in the ECU), unit numbers as a spare part, hardware and software (firmware) versions, system type or model (e.g. engine models for the ECU), etc.
• Fault codes reading and clearing. Fault codes definition, error status (current or stored) and conditions under which the control unit registers the fault code.
• Viewing the current parameters of the control system. Besides the list of digital values, one parameter is represented graphically in this mode. In addition, standard values are provided for a number of parameters.
• Enhanced mode of parameters graphic analysis: in this mode you can see up to 4 charts of parameter variations simultaneously.
• Actuators control: valves, nozzles, ignition coils, fans, indicator lamps, relays, controllers, etc. For some tests there are tooltips containing test realization conditions.
• Memory (firmware) reading of some control units.
• Mileage correction for some dashboard types (through the diagnostic link connector) Vectra B 1996-2002. VDO, Astra G VDO, Zafira A (till 2000).
• Transponder keys replacement for immobilizers of the first (IMMO1), second (IMMO2) and third (IMMO3 Vectra C, Astra H, Corsa D) generation (login is required).
• Trip computer (Board Computer) and control system (Check Control) enabling on some GID displays of Astra H and Zafira B
• Programming of different modules configuration (including cruise control activation) and CAN network (low, medium and high speed) for some models.
• Clutch bleeding and engagement point adjustment for robotized MTA of the following models: Astra H, Vectra C, Zafira B, Corsa D.

The device software has friendly interface and is regularly updated.

OpelScannerCAN (PRO)

OpelScannerCAN (PRO) is a special function software working with the OpelScannerCAN adapter and a special dongle (purchased separately).

The software allows:

• To read security codes (PIN) from various control units (ECUs, data displays, dashboards, etc.)
• To reset ECUs To correct the mileage in ECUs
• To change engine hours in ECUs
• To read firmware of a number of ECUs

It functions with the following vehicles and systems:

• Agila-A (1998-2007) (ECU);
• Astra-G (1998-2006) (ECU);
• Astra-H (2004-2010) (ECU and data display);
• Corsa (Vita)-C (2001-2010) (ECU and dashboard);
• Corsa (Vita)-D (2007-2010) (ECU);
• Meriva-A (2003-2009) (ECU and dashboard);
• Omega-B (1994-2003) (ECU);
• Vectra-B (1996-2001) (ECU);
• Vectra-C/Signum (2002-2010) (ECU and data display);
• Zafira-A (1999-2005) (ECU);
• Zafira-B (2005-2010) (ECU and data display);

It functions with the following ECU types:

• Motronic M155;
• Motronic ME155;
• Motornic ME761;
• Motronic ME76x;
• Motronic ME96 (Z28NEx);
• Motronic ME311 (Y26SE, Y32SE);
• Simtec 71 (Z18XE(L));
• Multec H ISO (Y16XE, Z14XE, Z16XE, Z16SE);
• Multec H CAN (Z16XE) Multec SF (X14XE, X16XEL);
• HDRC Multijet 6J0 EDC16 (Z17DTH, Z19DT(H));
• MT35E (Z16XEP, Z16XE1) PSG16 ISO/CAN.

CanPRO features can be extended with the help of additional modules: ODO, SRS, PIN2.

OpelScannerCAN Flasher

OpelScannerCAN Flasher allows reading and flashing flash memory controllers installed in Opel vehicles. It functions with the OpelScannerCAN adapter and a special dongle (purchased separately). The software has module structure, making it possible to activate any module independently.

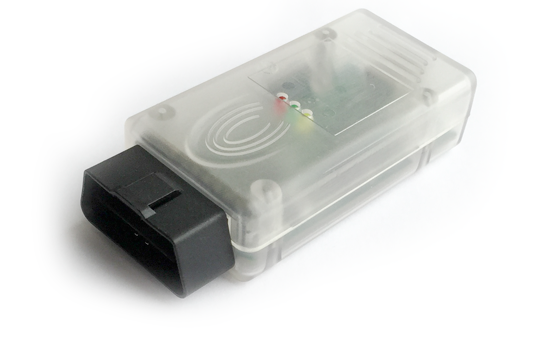

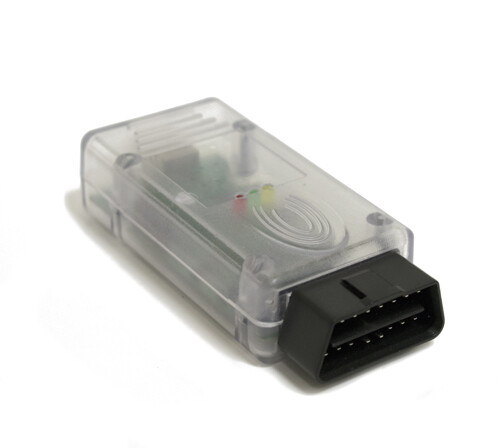

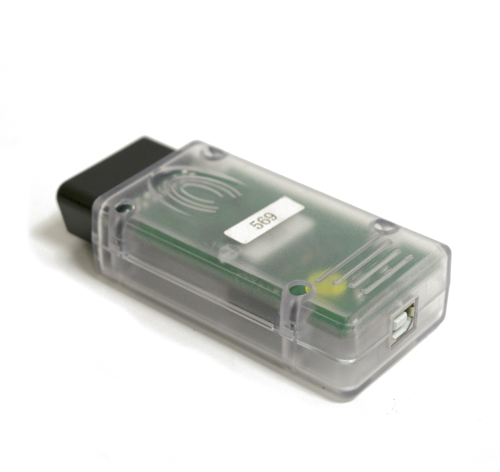

OpelScannerCAN Adapter Technical Specifications

Most ISO and CAN protocols support

Full-speed USB connection to a PC All CAN bus types support (High Speed, MidSpeed, LowSpeed)

Built-in multiplexer Galvanic separation and short-circuit protection Adapter microcode USB updates The adapter is built in the OBD-II connector case.
