AutoScanner Opel CAN (PRO) is a software and hardware solution (also known as OpelScan, Opel-Scan, Opel-Scanner) is intended for diagnostics, chip tuning, odometer correction and special functions activation. Some features of the device excel those of dealer scanners.

OpelSacnnerCAN is a multi-purpose diagnostic scanner. It supports the following models:

• Agila-A(1998-2007);
• Agila-B (2008-2010);
• Antara (2007-2010);
• Ascona (1987-1989);
• Astra-F (1992-2002);
• Astra-G (1998-2006);
• Astra-H (2004-2010);
• Astra-J (2010-);
• Calibra (1990-1997);
• Corsa-A/Combo (1987-1993);
• Corsa (Vita)-B (1993-2000);
• Corsa (Vita)-C (2001-2010);
• Corsa (Vita)-D (2007-2010);
• Frontera-A (1992-1998);
• Frontera-B (1999-2003);
• Insignia (2009-2010);
• Kadett-E (1987-1991);
• Meriva-A (2003-2009);
• Meriva-B (2010-);
• Omega-A (1987-1994);
• Omega-B (1994-2003);
• Senator-B (1987-1993);
• Sintra (1997-1999);
• Speedster/VX220 (2001-2006);
• Tigra-A (1995-2000);
• Tigra-B (2005-2010);
• Vectra-A (1989-1995);
• Vectra-B (1996-2001);
• Vectra-C/Signum (2002-2010);
• Zafira-A (1999-2005);
• Zafira-B (2005-2010);
• Suzuki Grand Vitara (2005-2010);
• Saab 9-3 CAN (2002-2010);

Diagnostics of ALL electronic systems is supported on most models:

• Engine Management Automatic;
• Transmission Distributor Transmission 4WD;
• ABS — Anti-Lock Brake System and ESP — Electronic Stability Program;
• Traction Control;
• Air Bag Immobilizer and ATWS — Anti-Theft Warning System;
• Central Door Locking System;
• Info Display;
• Instrument;
• Power Steering;
• Audio System;
• Air Conditioning System and Climate Control;
• Sliding Roof;
• Electronic Seat Memory;
• Add-On Heater;
• Headlamp Leveling Device;
• And many others...

New models and systems are added regularly.

The following functions are available when working with the systems mentioned above:

• Reading ID parameters of control units: VINs (stored, for example, in the ECU), unit numbers as a spare part, hardware and software (firmware) versions, system type or model (e.g. engine models for the ECU), etc.
• Fault codes reading and clearing. Fault codes definition, error status (current or stored) and conditions under which the control unit registers the fault code.
• Viewing the current parameters of the control system. Besides the list of digital values, one parameter is represented graphically in this mode. In addition, standard values are provided for a number of parameters.
• Enhanced mode of parameters graphic analysis: in this mode you can see up to 4 charts of parameter variations simultaneously.
• Actuators control: valves, nozzles, ignition coils, fans, indicator lamps, relays, controllers, etc. For some tests there are tooltips containing test realization conditions.
• Memory (firmware) reading of some control units.
• Mileage correction for some dashboard types (through the diagnostic link connector) Vectra B 1996-2002. VDO, Astra G VDO, Zafira A (till 2000).
• Transponder keys replacement for immobilizers of the first (IMMO1), second (IMMO2) and third (IMMO3 Vectra C, Astra H, Corsa D) generation (login is required).
• Trip computer (Board Computer) and control system (Check Control) enabling on some GID displays of Astra H and Zafira B
• Programming of different modules configuration (including cruise control activation) and CAN network (low, medium and high speed) for some models.
• Clutch bleeding and engagement point adjustment for robotized MTA of the following models: Astra H, Vectra C, Zafira B, Corsa D.

The device software has friendly interface and is regularly updated.

OpelScannerCAN (PRO)

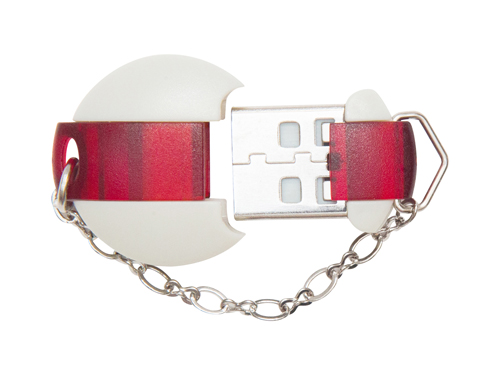

OpelScannerCAN (PRO) is a special function software working with the OpelScannerCAN adapter and a special dongle (purchased separately).

The software allows:

• To read security codes (PIN) from various control units (ECUs, data displays, dashboards, etc.)
• To reset ECUs To correct the mileage in ECUs
• To change engine hours in ECUs
• To read firmware of a number of ECUs

It functions with the following vehicles and systems:

• Agila-A (1998-2007) (ECU);
• Astra-G (1998-2006) (ECU);
• Astra-H (2004-2010) (ECU and data display);
• Corsa (Vita)-C (2001-2010) (ECU and dashboard);
• Corsa (Vita)-D (2007-2010) (ECU);
• Meriva-A (2003-2009) (ECU and dashboard);
• Omega-B (1994-2003) (ECU);
• Vectra-B (1996-2001) (ECU);
• Vectra-C/Signum (2002-2010) (ECU and data display);
• Zafira-A (1999-2005) (ECU);
• Zafira-B (2005-2010) (ECU and data display);

It functions with the following ECU types:

• Motronic M155;
• Motronic ME155;
• Motornic ME761;
• Motronic ME76x;
• Motronic ME96 (Z28NEx);
• Motronic ME311 (Y26SE, Y32SE);
• Simtec 71 (Z18XE(L));
• Multec H ISO (Y16XE, Z14XE, Z16XE, Z16SE);
• Multec H CAN (Z16XE) Multec SF (X14XE, X16XEL);
• HDRC Multijet 6J0 EDC16 (Z17DTH, Z19DT(H));
• MT35E (Z16XEP, Z16XE1) PSG16 ISO/CAN.

CanPRO features can be extended with the help of additional modules: ODO, SRS, PIN2.

OpelScannerCAN Flasher

OpelScannerCAN Flasher allows reading and flashing flash memory controllers installed in Opel vehicles. It functions with the OpelScannerCAN adapter and a special dongle (purchased separately). The software has module structure, making it possible to activate any module independently.

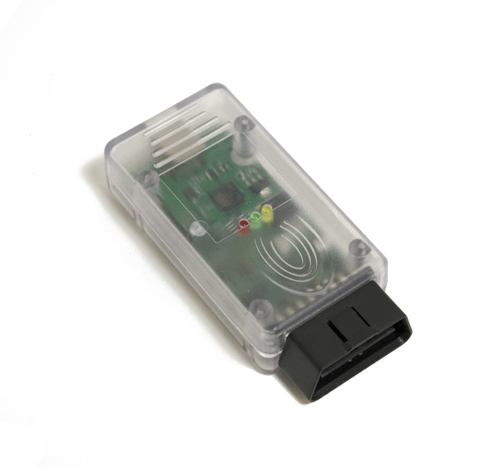

OpelScannerCAN Adapter Technical Specifications

Most ISO and CAN protocols support

Full-speed USB connection to a PC All CAN bus types support (High Speed, MidSpeed, LowSpeed)

Built-in multiplexer Galvanic separation and short-circuit protection Adapter microcode USB updates The adapter is built in the OBD-II connector case.

This addon to the main AutoScannerOpelCAN software is capable to read the security code from the control unit of the vehicle. Besides, it is able to reset the engine control module directly, without having connected it to the immo.

The software allows:

• To read security codes (PIN) from various control units (ECUs, data displays, dashboards, etc.)
• To reset ECUs
• To correct the mileage in ECUs
• To change engine hours in ECUs
• To read firmware of a number of ECUs

It functions with the following vehicles and systems:

• Agila-A (1998-2007) (ECU);
• Astra-G (1998-2006) (ECU);
• Astra-H (2004-2010) (ECU and data display);
• Corsa (Vita)-C (2001-2010) (ECU and dashboard);
• Corsa (Vita)-D (2007-2010) (ECU);
• Meriva-A (2003-2009) (ECU and dashboard);
• Omega-B (1994-2003) (ECU);
• Vectra-B (1996-2001) (ECU);
• Vectra-C/Signum (2002-2010) (ECU and data display);
• Zafira-A (1999-2005) (ECU);
• Zafira-B (2005-2010) (ECU and data display);

It functions with the following ECU types:

• Motronic M155;
• Motronic ME155;
• Motornic ME761;
• Motronic ME76x;
• Motronic ME96 (Z28NEx);
• Motronic ME311 (Y26SE, Y32SE);
• Simtec 71 (Z18XE(L));
• Multec H ISO (Y16XE, Z14XE, Z16XE, Z16SE);
• Multec H CAN (Z16XE) Multec SF (X14XE, X16XEL);
• HDRC Multijet 6J0 EDC16 (Z17DTH, Z19DT(H));
• MT35E (Z16XEP, Z16XE1) PSG16 ISO/CAN.

CanPRO features can be extended with the help of additional modules: ODO, SRS, PIN2.
