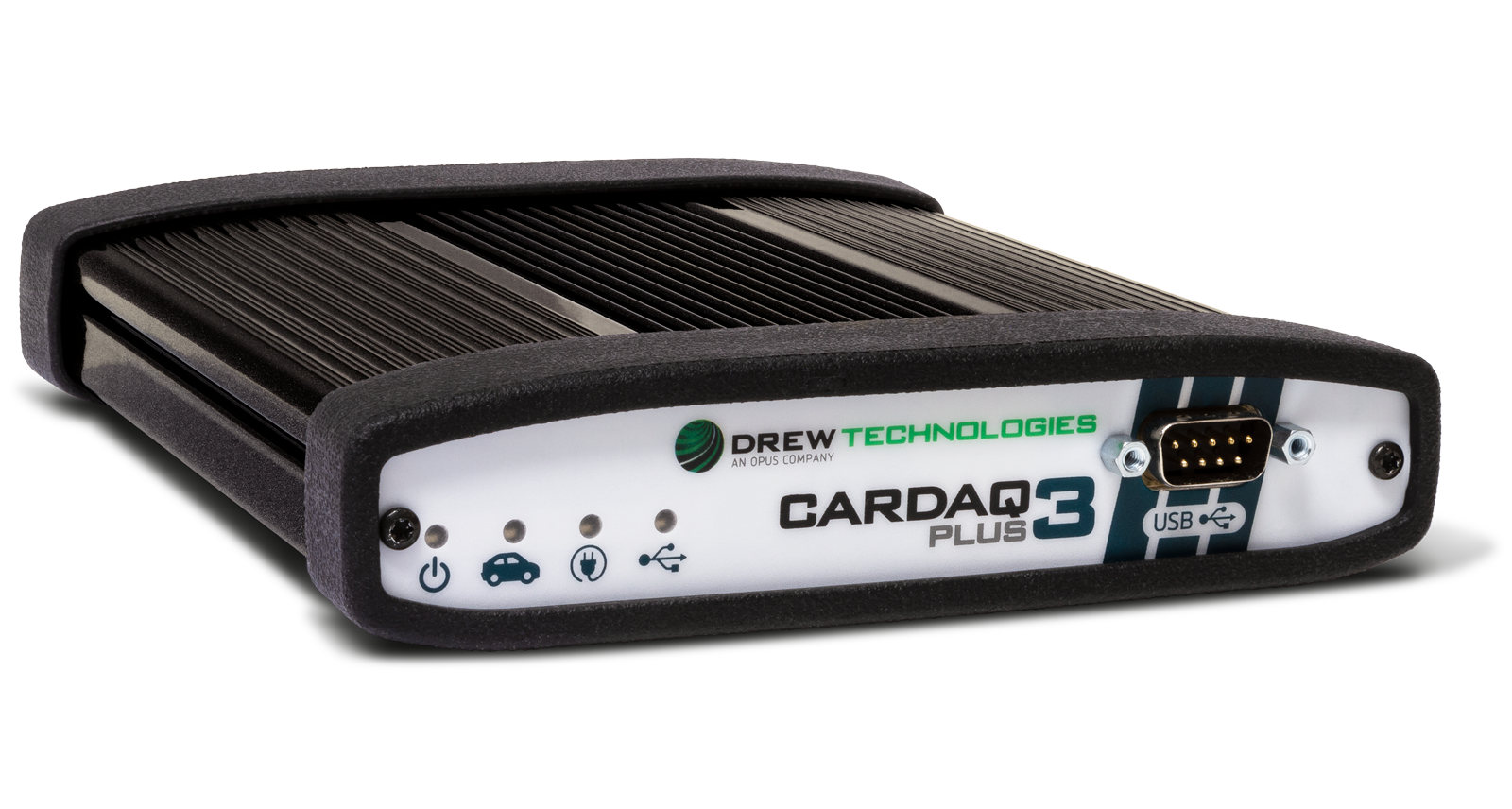

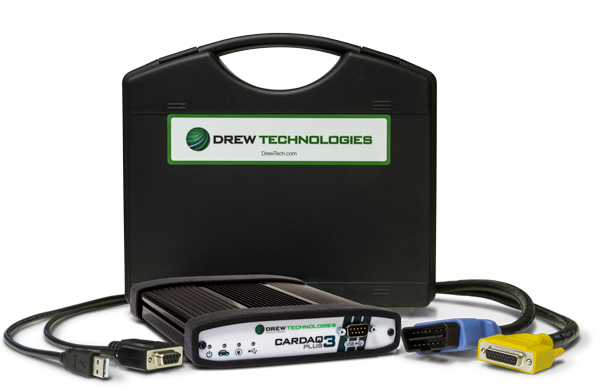

The CarDAQ-Plus 3 is the next generation Drew Technologies fully supported SAE J2534-1 and J2534-2 device with even more advanced support including: CAN FD, 4 CAN Channels, v05.00 API and DoIP. In addition, there is a high speed USB port to connect to a PC.
The CarDAQ-Plus 3 allows you to emulate any dealer diagnostic device whose software uses the protocols mentioned above to communicate with the adapter. Nowadays this software is available for most car brands. Thanks to its wide range of adapter and API capabilities, the device supports all the features of the original dealer software, including key programming and reprogramming of control units.
It is enough to connect the device to the car and to the computer where the dealer software and J2534 Toolbox are installed to start working. The manufacturer has official contracts for the use of the device instead or along with a dealer scanner with some car manufacturers, including BMW, VW/AUDI, Volvo, Toyota, Opel, GM, Honda, Jaguar, Land Rover. It also supports several other brands such as Mercedes Benz (including programming and coding), Renault, Peugeot, Citroen, Kia, Hyundai and others.
OEMs globally trust Drew Technologies and approve the tools for their dealerships as well as their engineering uses, such as: testing, software development, EOL testing, and more. Drew Technologies fully tests our devices for compliance and meet all of today’s SAE J2534 standards.
CarDAQ-Plus 3 Reprogramming:
The support of these standards also allows you to use the adapter to work with the ECU programming software by third-party developers (aftermarket software), such as: PCMFlash, MMC Flasher, Chiploader, Combiloader, BitBox or any other, to perform chip tuning. You can download the adapter firmware and latest version of J2534 Toolbox software from the manufacturer’s website.
J2534 OEM Diagnostics:
Product Specifications:
Bus Protocols:
PC Interface:
Other Information:
Operating System Compatibility:
The 20 pin and 7–8 pin adapters for connection to BMW vehicles.
The 20 pin and 7–8 pin adapters for connection to BMW vehicles.
Mongoose-Plus Toyota3
Multifunctional diagnostic scanner Mongoose Pro Toyota 2 by DrewTech (USA) has been produced to replace the out-of-date Toyota Intelligent Tester II. Mongoose Pro Toyota 2 maintains the functionality of its predecessor and performs high quality diagnostics of Lexus, Toyota and Scion vehicles from 1996 up to now. The tool operates correctly with vehicles produced for Japanese, American and European markets. Toyota Motor Corporation officially approved MongoosePro Toyota 2 (MFC) as a supported interface and is going to promote it for Toyota, Lexus, Scion to dealer centres and aftermarket specialists under Techstream Lite brand. The tool provides full functionality of a dealer diagnostic scanner including coding, ECU adaptation, software update, VIN change and key programming.
Supported Protocols:
Features
MongoosePro ISO/CAN 2 stands out from its competitors with its high reliability and efficiency. The full J2534 support allows to use it with compatible third-party software like BitBox, PCM Flash, MMC Flasher, etc. The necessary firmware and the latest J2534 Toolbox software version can be downloaded from the manufacturer’s website. In order to distinguish the original tool from Chinese clones we recommend to pay attention to the following features:
We sell only original adapters produced by DrewTech.
Mongoose-Plus ISO/CAN 3
Mongoose-Plus ISO/CAN 3 is a multifunctional second generation adapter by DrewTech (USA) designed for working with dealer and third-party software supporting J2534. The adapter allows to work with most of modern European and Japanese vehicles and is ideal for OEM designing and development as well as for use by amateur users. The tool does not support such protocols as J1850, SCI, SW CAN and some others so it cannot be used with some dealer software in full, however, it is significantly cheaper than JLR, Toyota, GM adapters. We strongly recommend checking the compatibility of the adapter with your software before ordering.
We recommend MongoosePro ISO/CAN 3 as an alternative to the popular Openport 2.0 in case of compatibility problems with some software.
Supported Protocols
Features
Mongoose-Plus ISO/CAN 3 stands out from its competitors with its high reliability and efficiency. The full J2534 support allows to use it with compatible third-party software like BitBox, PCM Flash, MMC Flasher, etc. The necessary firmware and the latest J2534 Toolbox software version can be downloaded from the manufacturer’s website.
In order to distinguish the original tool from Chinese clones we recommend to pay attention to the following features:
We sell only original adapters produced by DrewTech.
Mongoose Pro JLR
Multifunctional diagnostic scanner Mongoose Pro JLR by DrewTech (USA) has been produced to replace the out-of-date VCM model. Approved by Land Rover and Jaguar, MongoosePro JLR is used as a full-featured dealer tool for ECU diagnostics, coding and reprogramming in Land Rover and Jaguar vehicles. SDD software full functionality is supported. Due to some peculiarities of Jaguar software, the subscription to the full set of diagnostic software data may be required for independent services to have full scale support of reprogramming functions.
MongoosePro ISO/CAN 2 stands out from its competitors with its high reliability and efficiency. The full J2534 support allows to use it with compatible third-party software like BitBox, PCM Flash, MMC Flasher, etc. The necessary firmware and the latest J2534 Toolbox software version can be downloaded from the manufacturer’s website. In order to distinguish the original tool from Chinese clones we recommend to pay attention to the following features:
We sell only original adapters produced by DrewTech.
MongoosePro VW2
The diagnostic scanner for the whole range of VAG (VW, Audi, Skoda, Seat) passenger vehicles. Mongoose Pro Volkswagen works with ODIS official dealer software and is recommended for use at all VAG dealer stations all over the world.
ODIS full support — not only diagnostics, but programming too!
Mongoose-Plus GM 3
Mongoose-Plus GM 3 is a multifunctional adapter by DrewTech (USA) for GM vehicles diagnostics. It supports GDS2, TIS2WEB for module reprogramming as well as Tech2WIN for diagnostics.
It is a perfect alternative to the more expensive GM MDI interface.
Mongoose-Plus Ford 2
MongoosePro Ford 2 is a low-cost, high-performance reprogramming vehicle interface for Ford vehicles. It has been test for use with Ford. It has been validated and approved by Ford for use with Motorcraft Ford Module programming software including All module flash programming, PATS key programming, and basic diagnostics functions.
Mongoose-Plus Nissan2
MongoosePro Nissan is our low-cost, high-performance reprogramming diagnostics interface for Nissan vehicles. It harnesses the capabilities of Nissan's Consult III Plus R2R with full API 05.00 support, proving you don't always have to go big to succeed!
MongoosePro Nissan offers a wide range of capabilities to help you grow your business and retain customers, supporting:
