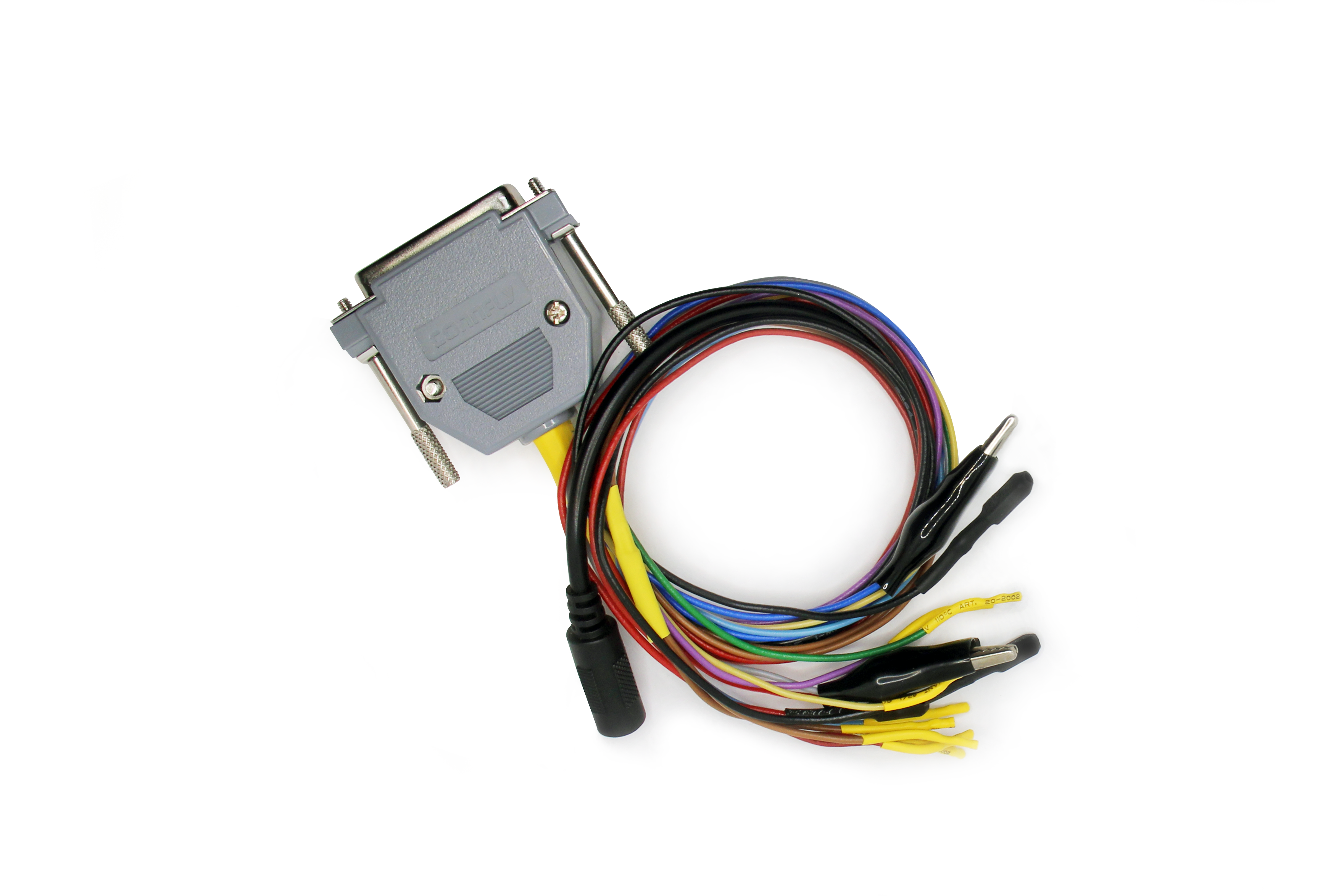

Adapter (boot/bench cable) for bench working with PCMFlash together with Scanmatik 2 or Scanmatik 2 PRO and external power supply (12V or 24V for trucks).

• Power connector is Jack 2.0 mm;
• Has a built-in short circuit protection;
• The maximum allowable current is up to 5 A;
• Automatic power management and Boot and CNF1 signals;

Works with ALL PCMFlash modules that require Bench work and automatic power management, such as 53 , 71 ,77 and others.
Ver. 2, short-circuit protection.

New version pinouts:

Red 4pcs +12v
Black 2pcs GND ground
Brown 2pcs GPT1,GPT2
Yellow CAN H
Blue CAN L
Green K-LINE
Blue (alligator) CNF1
Gray (alligator) Boot
Purple Vpp
