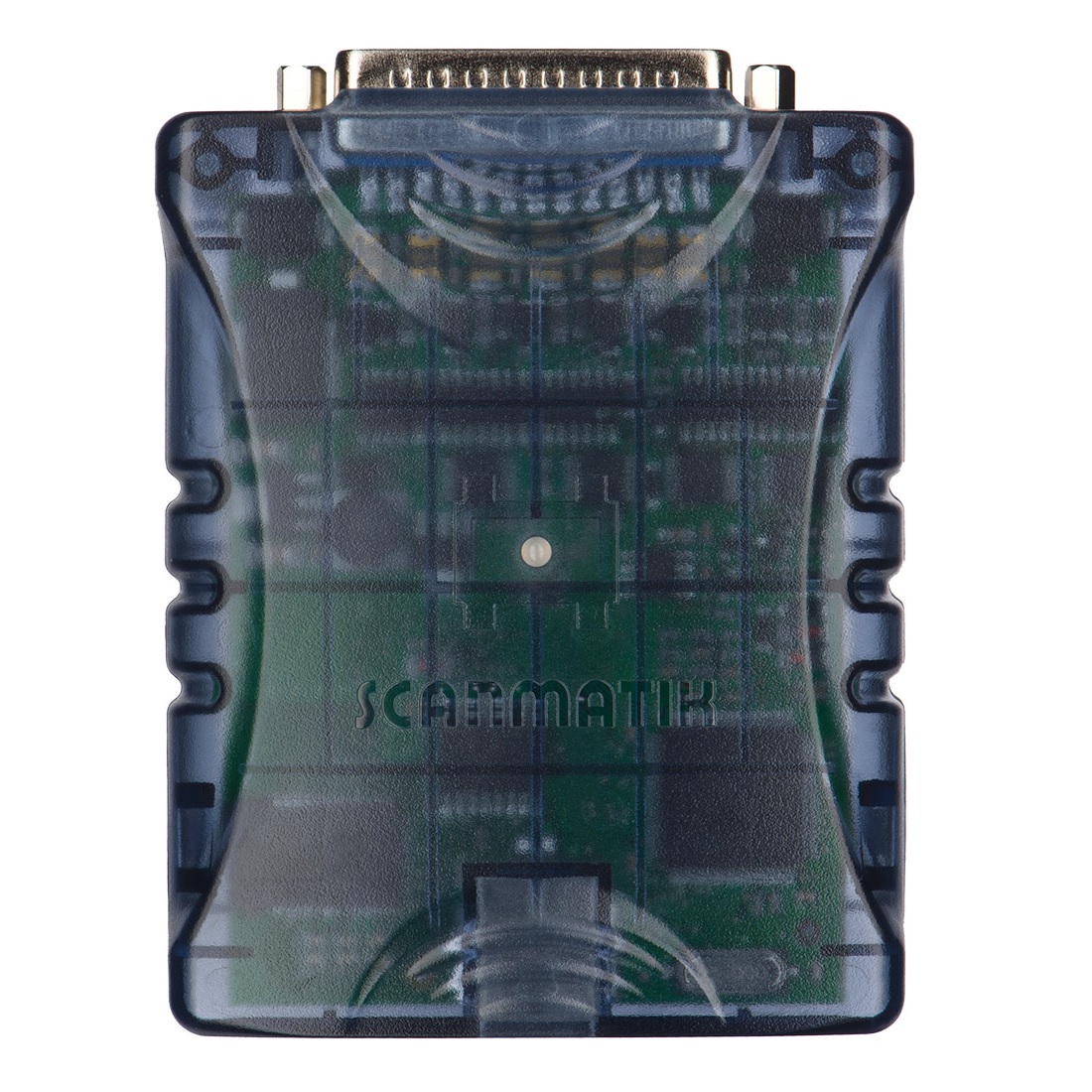

Professional multi-brand auto scanner is designed for diagnostics of electronic control systems of modern cars. Works with a PC, tablet or smartphone, programs for Windows and Android included. When installing the driver (included in the kit), it works with third-party diagnostic software made for SAE J2534 and RP1210 standards, as well as with bootloaders, supplying programming permission voltages to various contacts of the diagnostic connector.

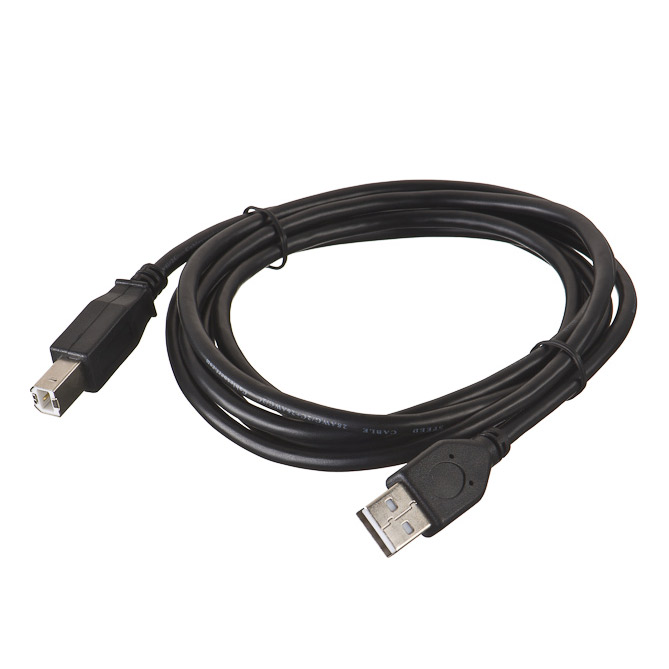

To connect to the adapter, you can use either USB or Wi-Fi interfaces (built into the SM3 adapter)
All kits include the full current version of the program (all currently available software modules):
VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, OBD2.
Works with a large number of diagnostic programs and loaders made for standard SAE J2534 and RP1210 interfaces.

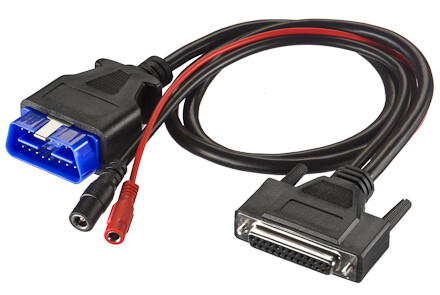

Adapter (boot/bench cable) for bench working with PCMFlash together with Scanmatik 2 or Scanmatik 2 PRO and external power supply (12V or 24V for trucks).
Adapter (boot/bench cable) for bench working with PCMFlash together with Scanmatik 2 or Scanmatik 2 PRO and external power supply (12V or 24V for trucks).
Works with ALL PCMFlash modules that require Bench work and automatic power management, such as 53 , 71 ,77 and others.
Ver. 2, short-circuit protection.
New version pinouts:
Red 4pcs +12v
Black 2pcs GND ground
Brown 2pcs GPT1,GPT2
Yellow CAN H
Blue CAN L
Green K-LINE
Blue (alligator) CNF1
Gray (alligator) Boot
Purple Vpp
Boot-bench connection cable with automatic and manual power control. Compatible with Scanmatik 3 and Scanmatik 2-Pro.
Specifications:

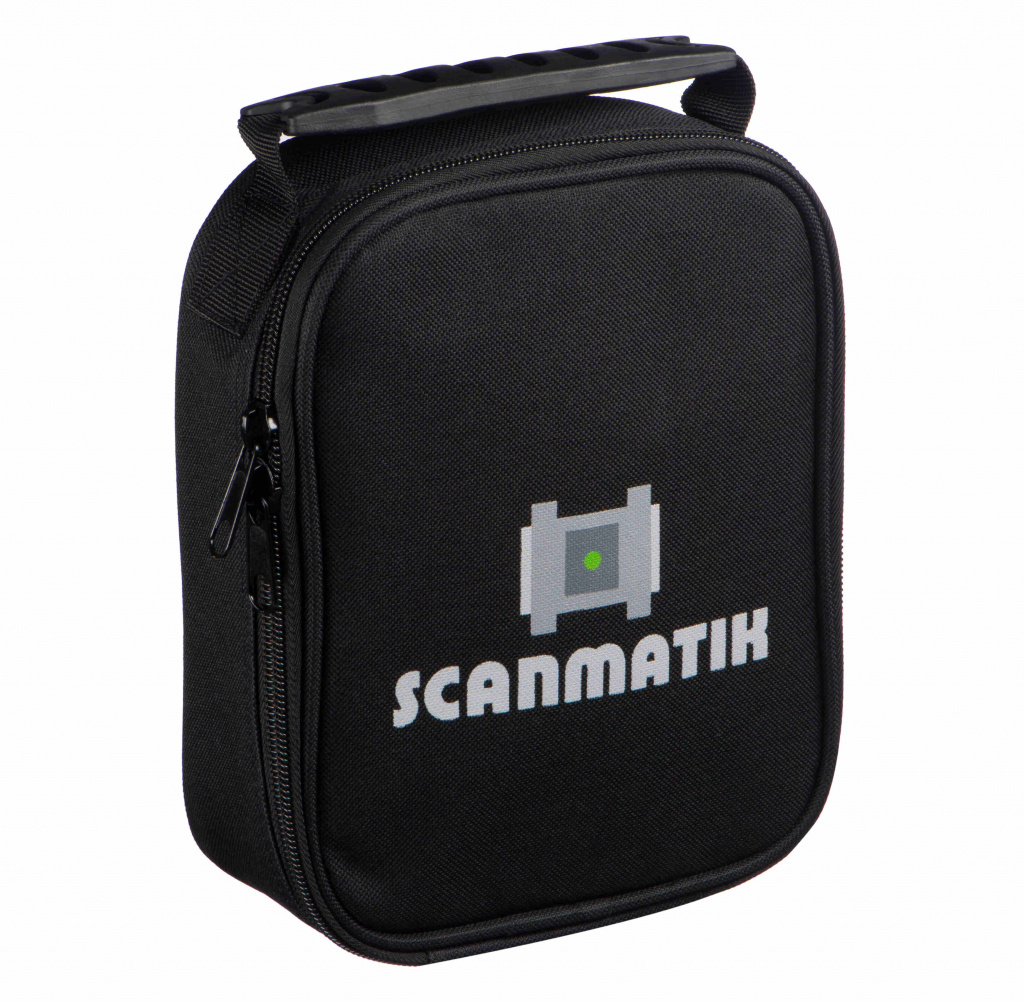

Packaging:
PCMflash
You need both the dongle (basic equipment) and at least one module at the initial purchase. The modules will not work without a dongle.
The software is marketed on a module basis and has simple and clear interface. The Guardant dongle is used for the protection from unauthorized access. It supports flashing both backup (vbf) and binary (bin) files. When flashing binary files checksum verification and correction is available for most of the modules. Conversion from VBF/GDS into BIN is supported if the ECU doesn’t support reading. Most modules support checksum verification and correction as well as VID transfer (if needed) while flashing binary files.
The USB dongle needs to be linked to a PC. The authorization process is automatic and requires Internet connection at the first attempt to work with an ECU. The dongle can be used on several computers.
Technical support is porvided by the developer directly.
Attention! In case of the dongle loss, the module transfer is not possible. You have to buy a dongle and software again.
We do not provide pinouts.
NB! Modules are activated from 10 am to 6 pm GMT+3 on work days.
Modules may not be activated at weekends and on public holidays. Please plan your work and purchases accordingly.
Please note the modules cannot be deactivated. If you provide the wrong dongle number, no refund will be possible.
BitBox
BitBox is a flasher that allows identification, reading and writing of ECU internal flash memory for various purposes. It works via CAN bus or K-line data interfaces using an J2534 Pass-thru adapter.
The package consists of a protection USB dongle and software with a set of plug-ins — software modules. The existing modular system allows to get access to needed software functions without excessive cost. The program has a client-server architecture and needs to be connected to the Internet. Activation of additional modules is also possible in the automatic mode via the Internet.
Attention! Modules cannot be deactivated remotely. Please be ready to send the dongle back in case of wrong purchase.
The technical support is provided by the developer: support@bitbox.ru
CombiLoader

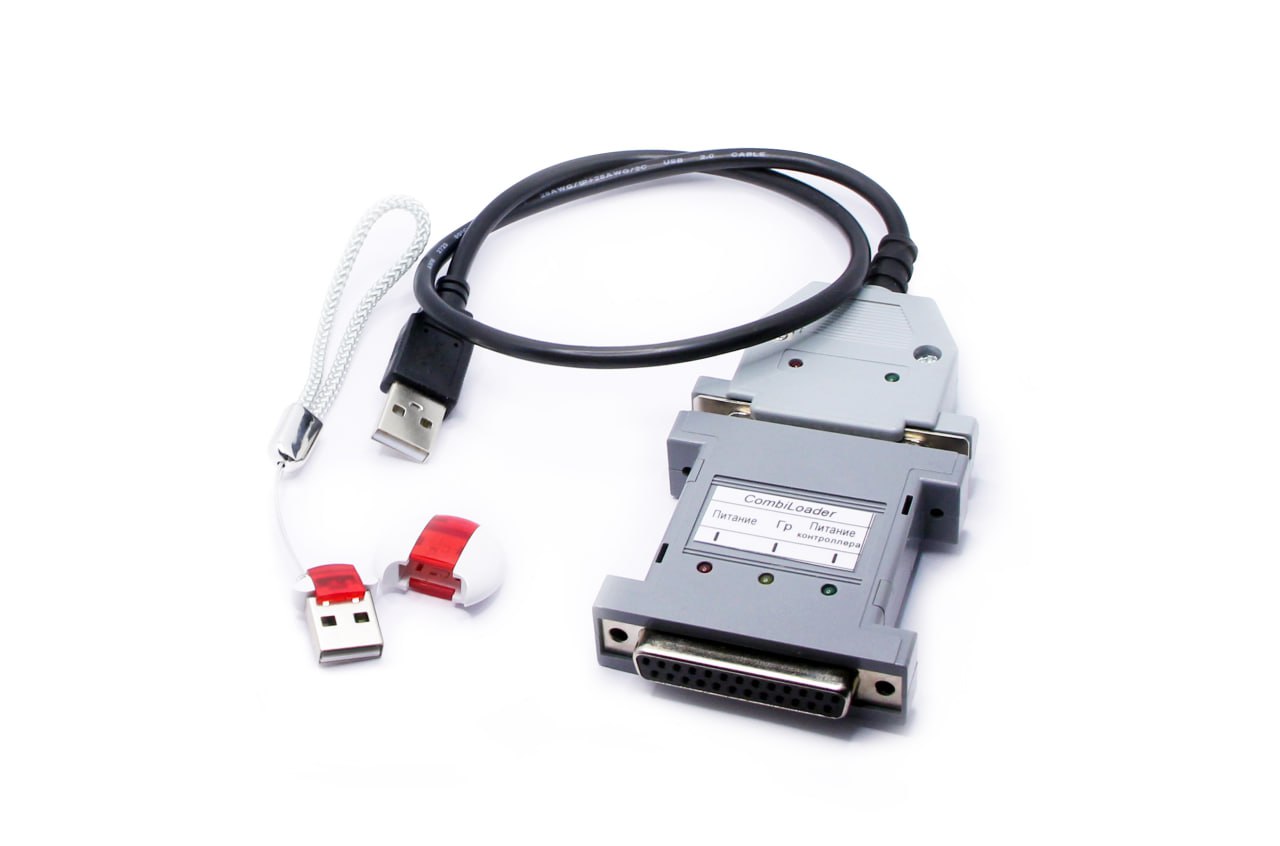

CombiLoader v.3 is a software and hardware system for reading and writing FLASH and EEPROM in the ECUs installed in various vehicles. It provides writing of the map area without dismantling an ECU from the vehicle by means of the diagnostic writing method for all the ECUs when possible. The flasher is convenient to work with, reliable and has a number of additional functions. It is regularly updated and provided with technical support. Combiloader is the most popular chip tuning software in Russia.
Please note: The software interface has been translated into English though some modules are still in Russian only. Help section is available only in the Russian language.
NB: Please always provide the correct email the tool is registred with. Activation may not be possible if the email is incorrect. If you resell your tool, please contact the developer or us via email for the reregistration and provide the new name, surname and email address of the end user.
Scanmatik 2 PRO

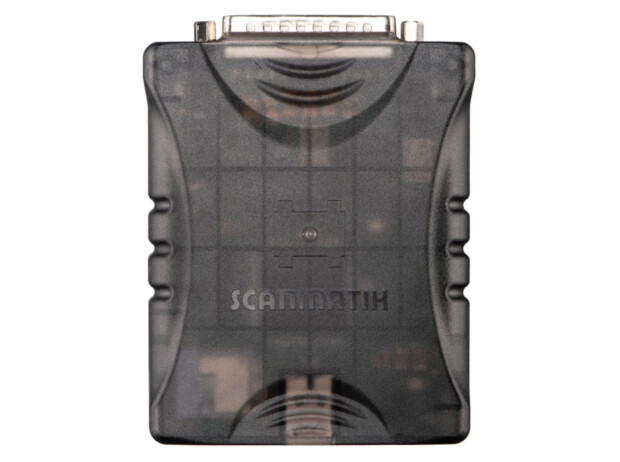

Scanmatik 2 PRO is a professional multibrand scanner designed for diagnostics of electronic control systems of American, European, Japanese and Russian vehicles. It can be used as a J2534 device with a large number of diagnostic programs and flashers made for standard interfaces SAE J2534 and RP1210.
New features of Scanmatik 2 PRO:
The widest support of J2534-1/2 standards:
For full support of peripheral units on GM (GDS2) and VAZ/Renault cars:
Description
The device works with a personal computer, tablet or smartphone. The software for Windows and Android are included in the package. When installing the driver (included) works with third-party software made for SAE J2534 and RP1210 standards. To connect to the adapter both USB and Bluetooth interfaces can be used (built into the Scanmatik 2 PRO adapter). The kit includes the full current version of the program (all currently available software modules): VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, OBD2. It works with a large number of diagnostic programs and flashers made for standard interfaces SAE J2534 and RP1210.
SM2-PRO Adapter Specifications
Scanmatik 2 PRO + Aux
Scanmatik 2 PRO is a professional multibrand scanner designed for diagnostics of electronic control systems of American, European, Japanese and Russian vehicles. It can be used as a J2534 device with a large number of diagnostic programs and flashers made for standard interfaces SAE J2534 and RP1210.
New features of Scanmatik 2 PRO:
The widest support of J2534-1/2 standards:
For full support of peripheral units on GM (GDS2) and VAZ/Renault cars:
Description
The device works with a personal computer, tablet or smartphone. The software for Windows and Android are included in the package. When installing the driver (included) works with third-party software made for SAE J2534 and RP1210 standards. To connect to the adapter both USB and Bluetooth interfaces can be used (built into the Scanmatik 2 PRO adapter). The kit includes the full current version of the program (all currently available software modules): VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, OBD2. It works with a large number of diagnostic programs and flashers made for standard interfaces SAE J2534 and RP1210.
SM2-PRO Adapter Specifications
