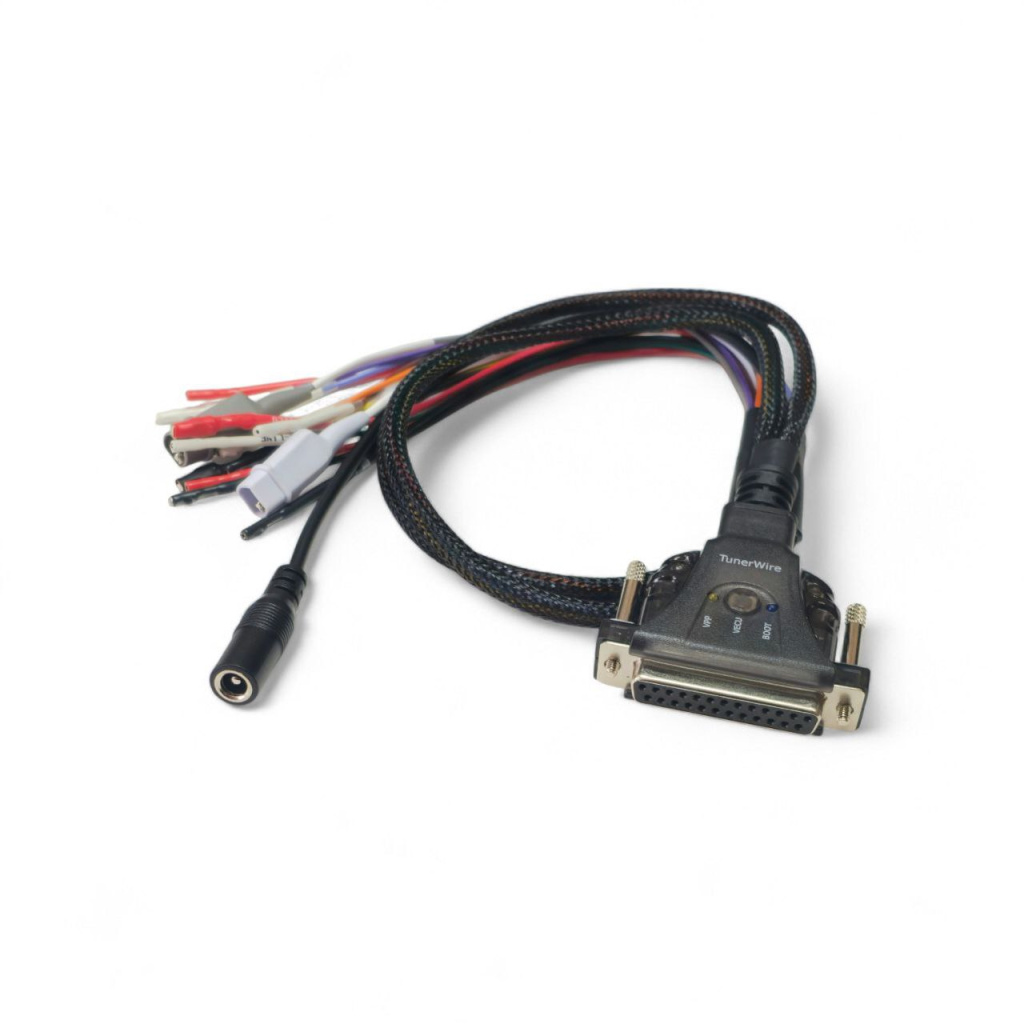

Boot-bench connection cable with automatic and manual power control. Compatible with Scanmatik 3 and Scanmatik 2-Pro.
a unique GPT signals automatic adjustment scheme: there is no need to use external capacitors or resistors to work with EDC ECUs, such as EDC7C32, EDC16CP33, EDC17C49, etc.
tested with all EDC/Simos ECUs supported in PCMflash, BitBox, Combiloader
a switch for ECU forced power supply (VECU line) with the state indication
a powerful CAN bus resistor does not burn and does not lose its functionality in case of incorrect connection to the ECU pins
short circuit, overvoltage (up to 36V) and inverse polarity protection of all signal and power lines
a power key allows smooth working with the ECUs requiring high starter current
BOOT/CNF crocodile clips are comfortable to use
wire colour code designation according to the PCMflash documentation
clamps are made of hard heat shrink tube, do not bend when connected to the ECU pins
BOOT/CNF, Vpp state indication
supporting leg provides stable positioning on the bench
adapters for the ECUs with big flat or round clamps are included in the package
