Adapter (boot/bench cable) for bench working with PCMFlash together with Scanmatik 2 or Scanmatik 2 PRO and external power supply (12V or 24V for trucks).

• Power connector is Jack 2.0 mm;
• Has a built-in short circuit protection;
• The maximum allowable current is up to 5 A;
• Automatic power management and Boot and CNF1 signals;

Works with ALL PCMFlash modules that require Bench work and automatic power management, such as 53 , 71 ,77 and others.

Ver. 2, short-circuit protection.

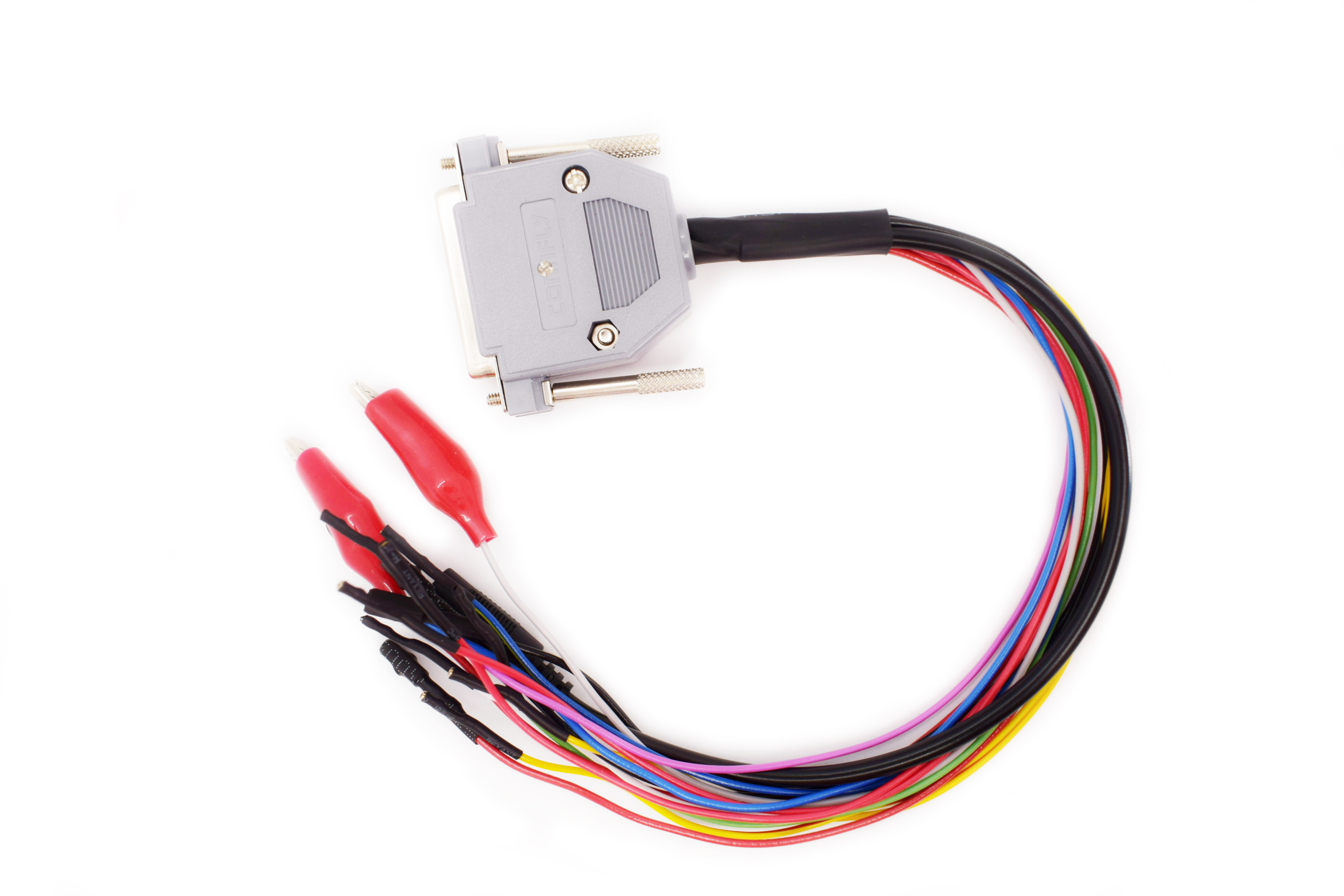

The wire colouring of the connection cable

Red (4 pcs) — +12V
Black (2 pcs) — GND
Brown (2 pcs)— GPT1, GPT2
Yellow — CAN H
Blue — CAN L
Green — K-LINE
Blue (crocodile clip) — CNF1
Grey (crocodile clip) — Boot
Violet — Vpp

External power 12V (5, А mах) Jack

The correct pinouts to the adapter board:

Additional features:

The adapter provides the ability to control the power supply manually. For this feature, it is required to make a switch, see the photo below. Manual control is a better option than automatic control.
For advanced users: after completion it is possible to work on the bench with all packages originally designed to work in the car, for example: 50, 36, etc.

___________________

New version pinouts:

Red 4pcs +12v
Black 2pcs GND ground
Brown 2pcs GPT1,GPT2
Yellow CAN H
Blue CAN L
Green K-LINE
Blue (alligator) CNF1
Gray (alligator) Boot
Purple Vpp
