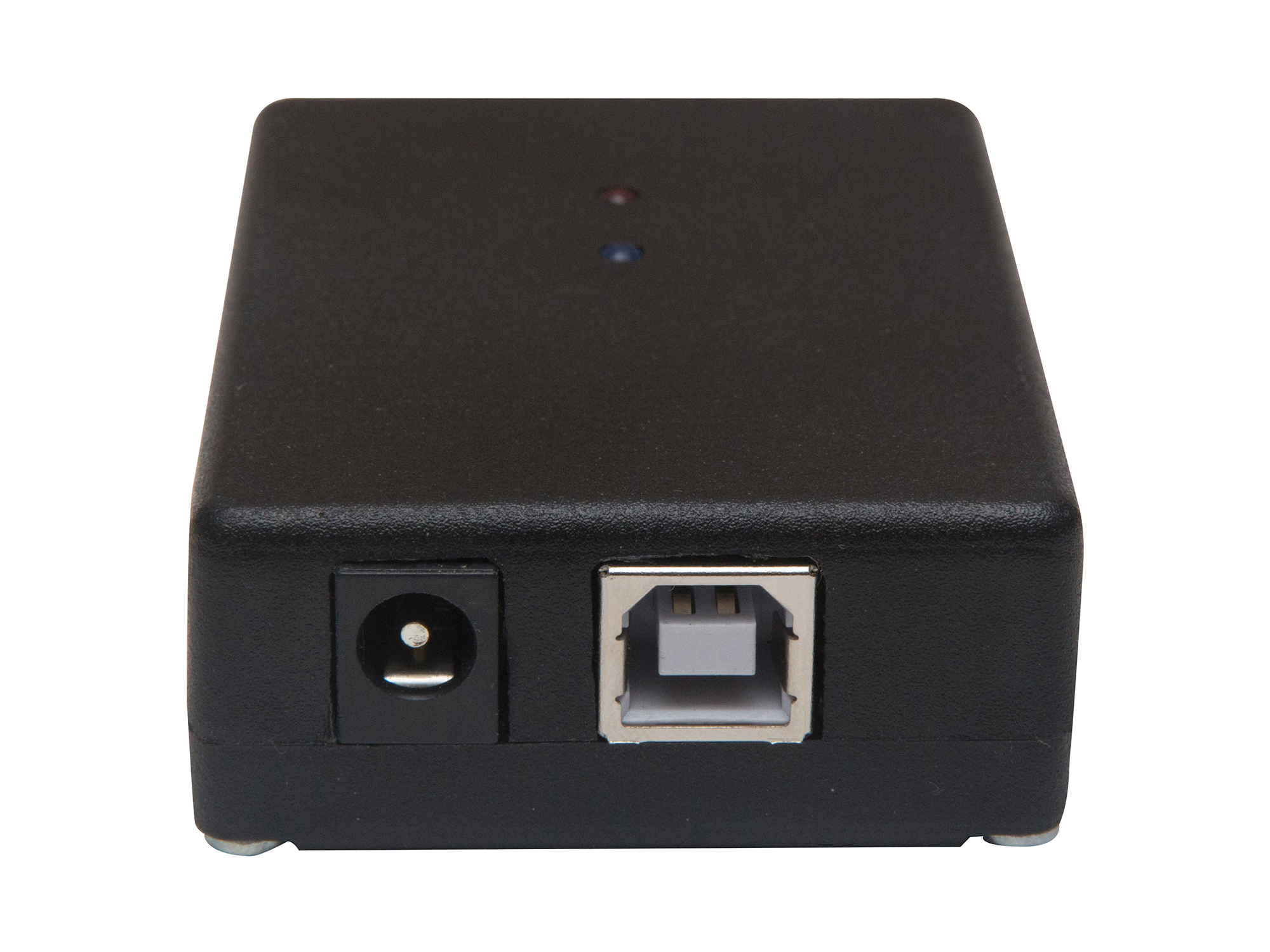

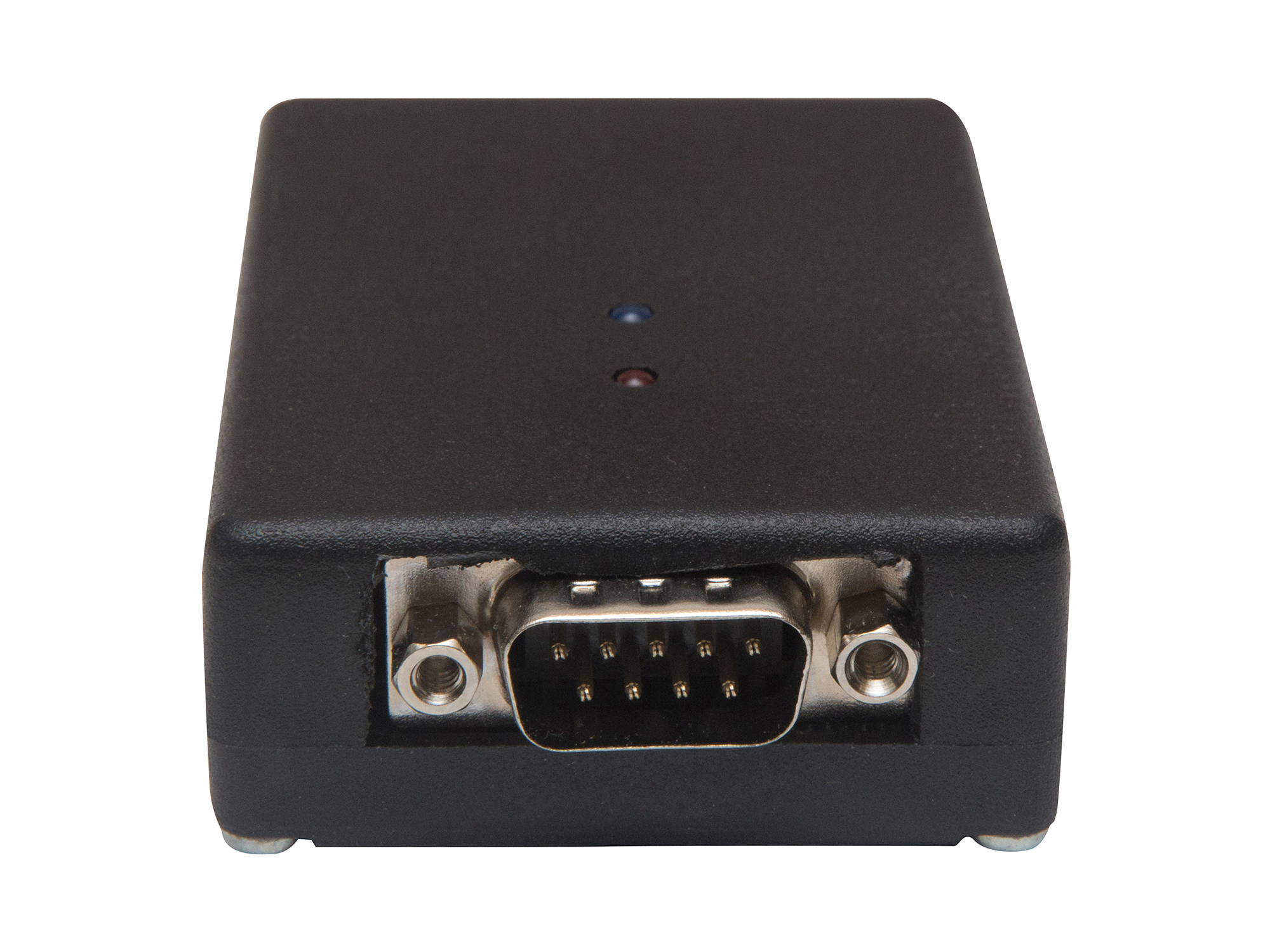

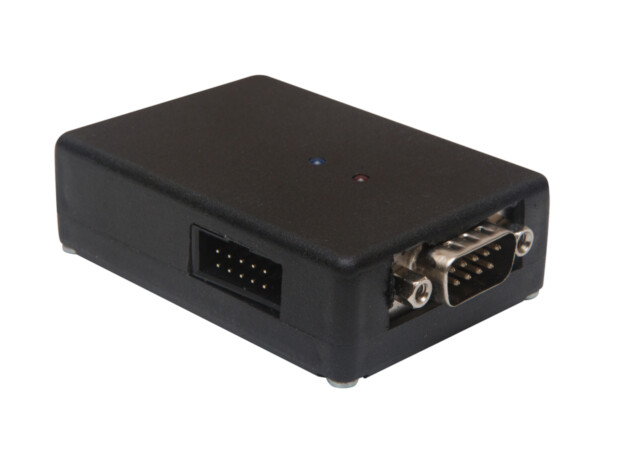

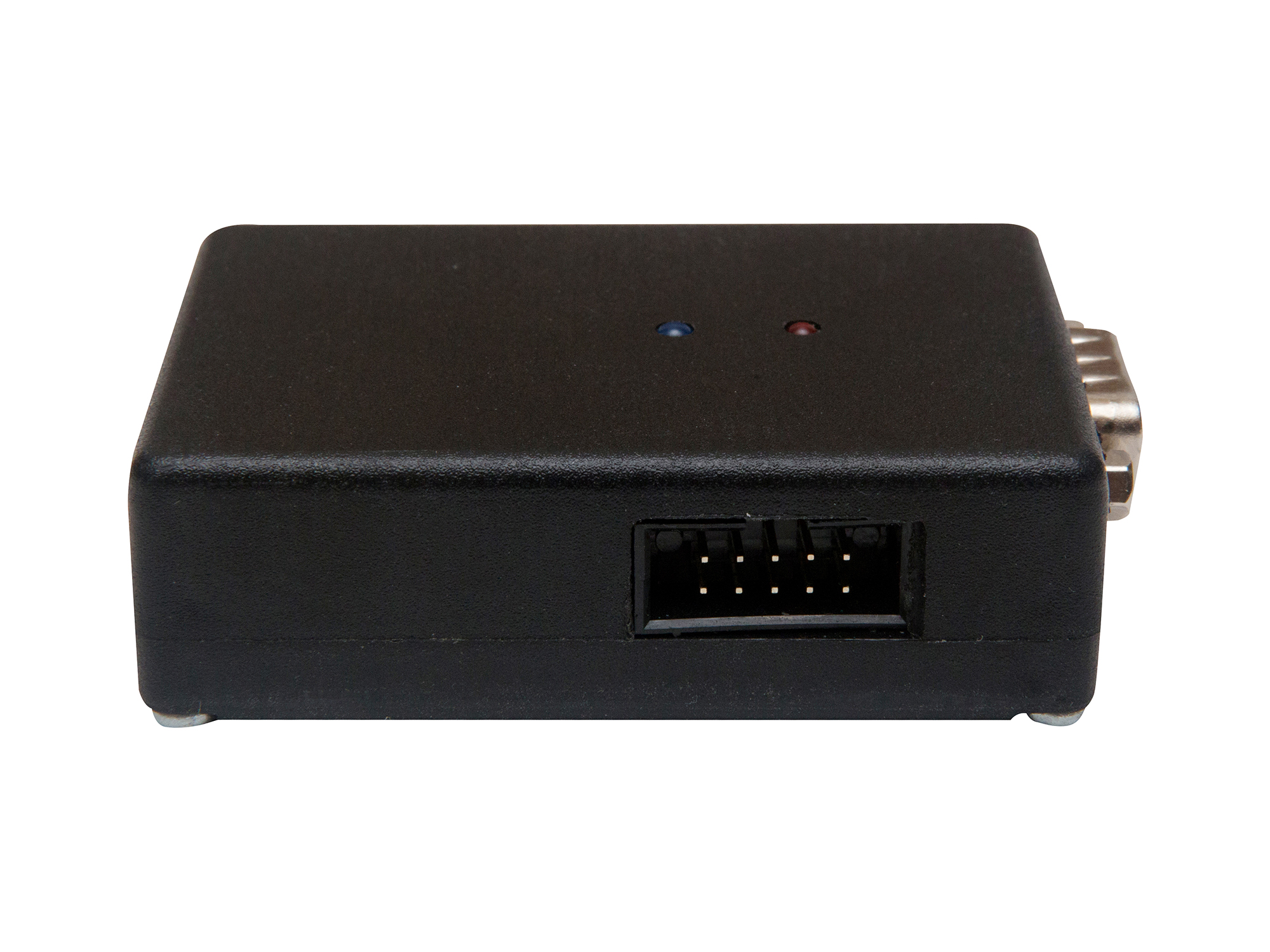

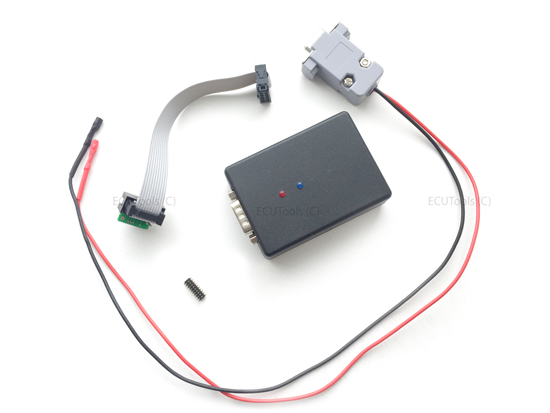

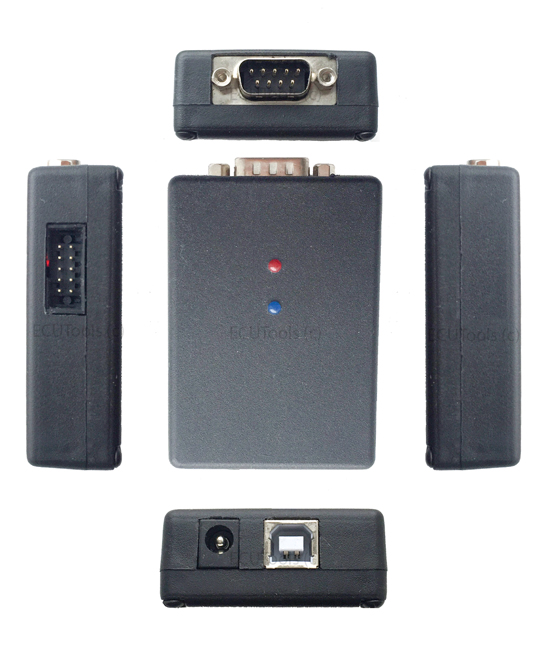

Toyota Lexus ECU Flasher

Vendor code: 11T1000

Vendor

Autokey

Includes

Toyota Lexus ECU Flasher hardware;
Software

Downloads

Basic equipment

Toyota Lexus ECU Flasher — 0 $

+ Add

Status: Product is out of stock

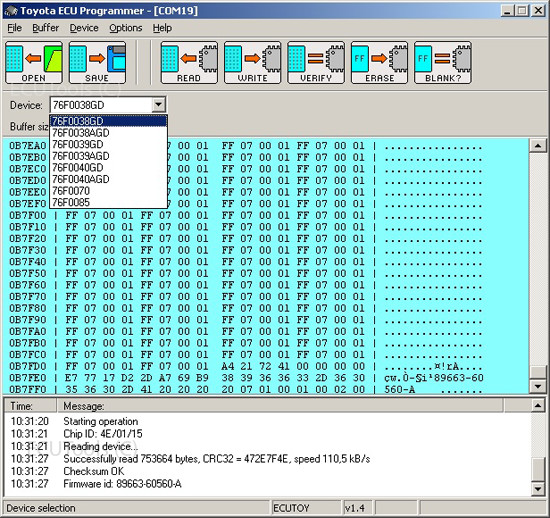

Toyota Flasher, a joint project by Autokey and PCMflash, is a multipurpose programmer for Denso and Fujitsu Ten ECUs with NEC processors installed in TOYOTA, LEXUS and SCION vehicles with petrol and diesel engines through JTAG interface. OBD writing via CAN bus is supported. It is a unique solution in the chip tuning world. It covers almost all the models beginning from 2003-2004. It can read, flash, clear, verificate internal flash memory of microcontrollers if connected to the appropriate connector on the ECU circuit board.

Supported ECUs:

All ECUs with the following processors NEC 7F00XX: 76F0038, 7F0038A, 76F0039, 76F0039A, 76F0040, 76F0040A, 76F0070 BGA, 76F0085 BGA. These processors were introduced at the beginning of CAN support and as a rule with coachwork change.

Advantages:

Its own hardware interface allows to avoid all compatibility and driver problems;
Work through built-in 20 or 26 pin JTAG connector;
Full access to the ECU memory at high speed of more than 100 KB/s;
Saving files in the open format;
Firmware checksum verification and recalculation.

We can ship it from the developer but you need to pay for the delivery twice, should the order contain anything else beside the tool.

Accessories for Toyota Lexus Flasher

(5)

Board for positioning frame Vendor code: 11T1/04

For connecting to Toyota Denso ECUs (JTAG plugs 20 and 26 pin). 10 probes, 1.27x5.8 step. To be used with the Alientech bench.

50 $

USB cable Vendor code: 13P2/02

CableExpert USB(A) to USB(B). Recommended by the manufacturer.

3 $

Power supply unit Vendor code: 13P2/01

MeanWell GS15E-3P1J (12V, 1.25А). Recommended by the manufacturer.

19 $

DB9-OBD2 сable Vendor code: 11T1/02

OBD programming via CAN bus.

14 $

20-pin connectors (20 pcs.) Vendor code: 11T1/05

A set of connectors for soldering.

6 $

Hide the list - Show the list +

Products

PCMflash

You need both the dongle (basic equipment) and at least one module at the initial purchase. The modules will not work without a dongle.

Please specify the type of dongle (small or large) in the comment to the order. We will send the one that is in stock by default.

PCMflash is an integrated software solution intended for reprogramming ECUs and TCUs of Volkswagen, Skoda, Ford, Mazda, Mitsubishi, Nissan/Infiniti, Subaru, Honda/Acura, Hyundai/Kia, Renault, Toyota/Lexus and other vehicles. There are universal modules Denso SH705x Bootloader and BSL TriCore. It supports work via ADS adapter (version 1, not for all ECUs) as well as via any J2534-compatible adapter if there are appropriate drivers and libraries. The tool has been tested with OpenPort 2.0, Mongoose JLR, MongoosePro JLR, Teradyne GNA600 (VCM 1), Mazda VCM 2.

The software is marketed on a module basis and has simple and clear interface. The Guardant dongle is used for the protection from unauthorized access. It supports flashing both backup (vbf) and binary (bin) files. When flashing binary files checksum verification and correction is available for most of the modules. Conversion from VBF/GDS into BIN is supported if the ECU doesn’t support reading. Most modules support checksum verification and correction as well as VID transfer (if needed) while flashing binary files.

The USB dongle needs to be linked to a PC. The authorization process is automatic and requires Internet connection at the first attempt to work with an ECU. The dongle can be used on several computers.

Technical support is porvided by the developer directly.

Attention! In case of the dongle loss, the module transfer is not possible. You have to buy a dongle and software again.

We do not provide pinouts.

NB! Modules are activated from 10 am to 6 pm GMT+3 on work days.
Modules may not be activated at weekends and on public holidays. Please plan your work and purchases accordingly.

Please note the modules cannot be deactivated. If you provide the wrong dongle number, no refund will be possible.

31 $
