PCMflash

Vendor code: 11P1001

Vendor

PCM Flash

Includes

Software (sent via email)

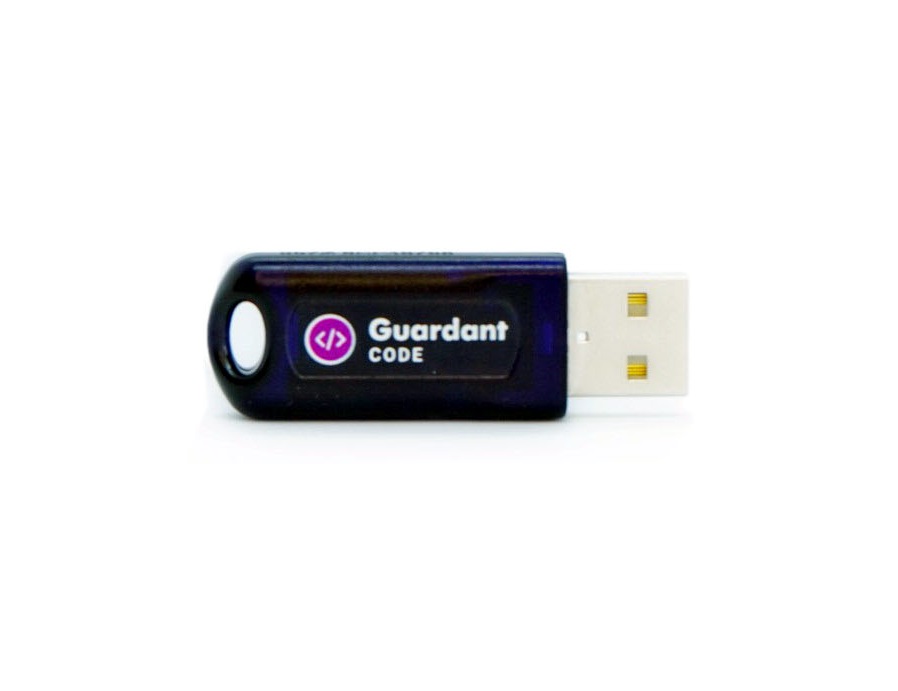

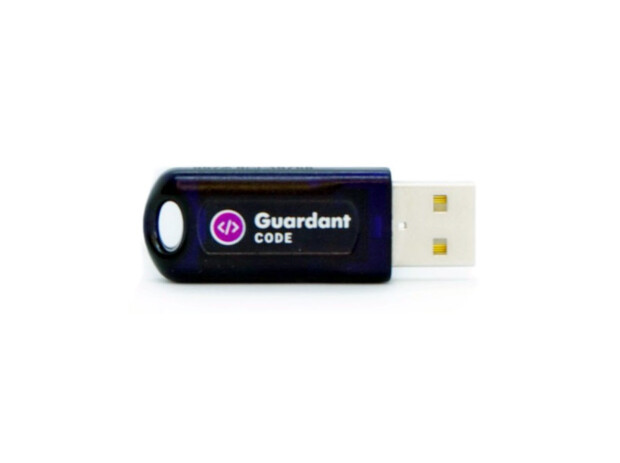

USB dongle (J2534 not included!)

Downloads

Basic equipment

PCMflash — 31 $

+ Add

Status: In stock

You need both the dongle (basic equipment) and at least one module at the initial purchase. The modules will not work without a dongle.

Please specify the type of dongle (small or large) in the comment to the order. We will send the one that is in stock by default.

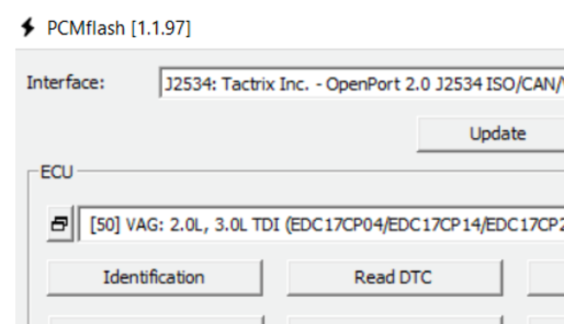

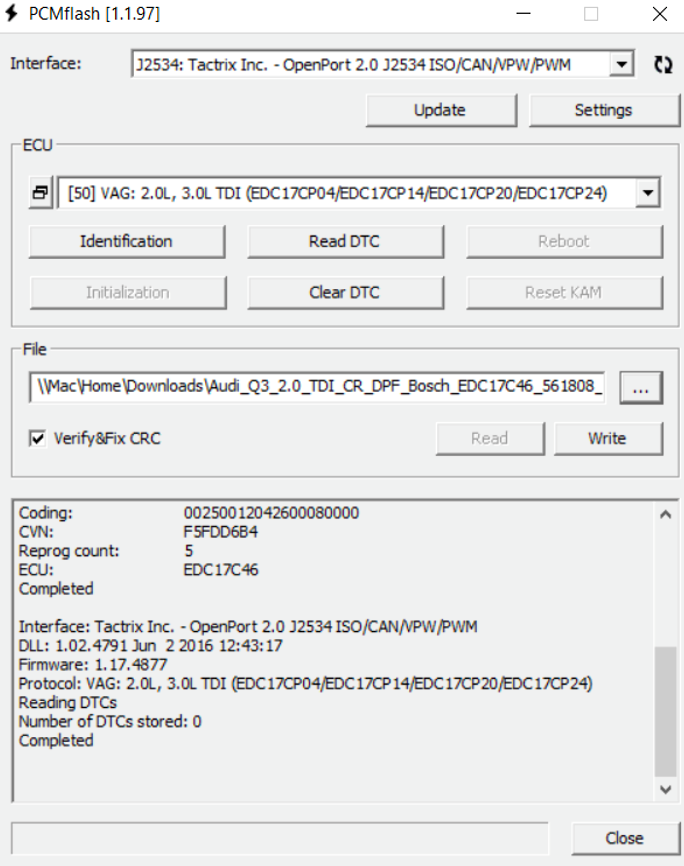

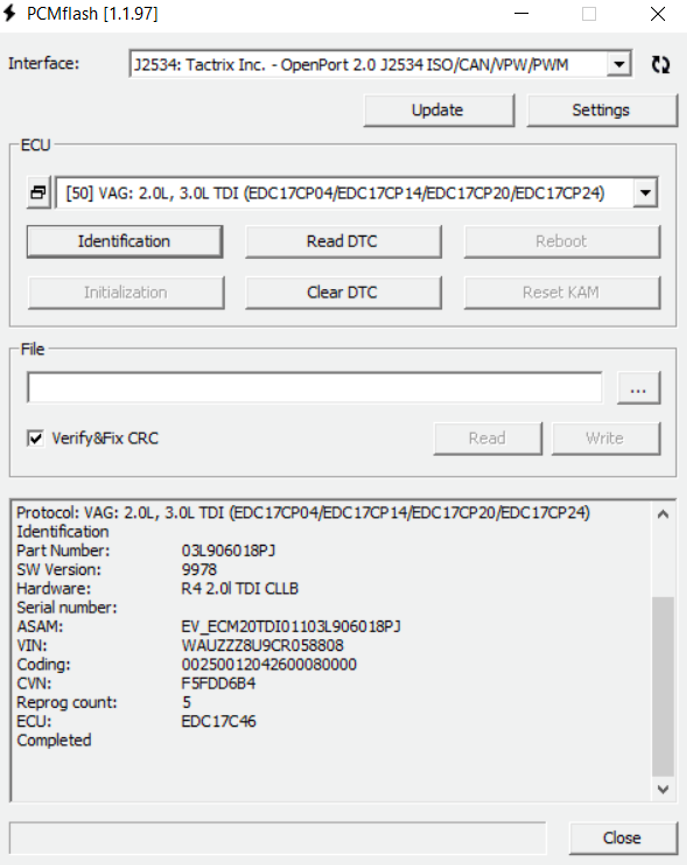

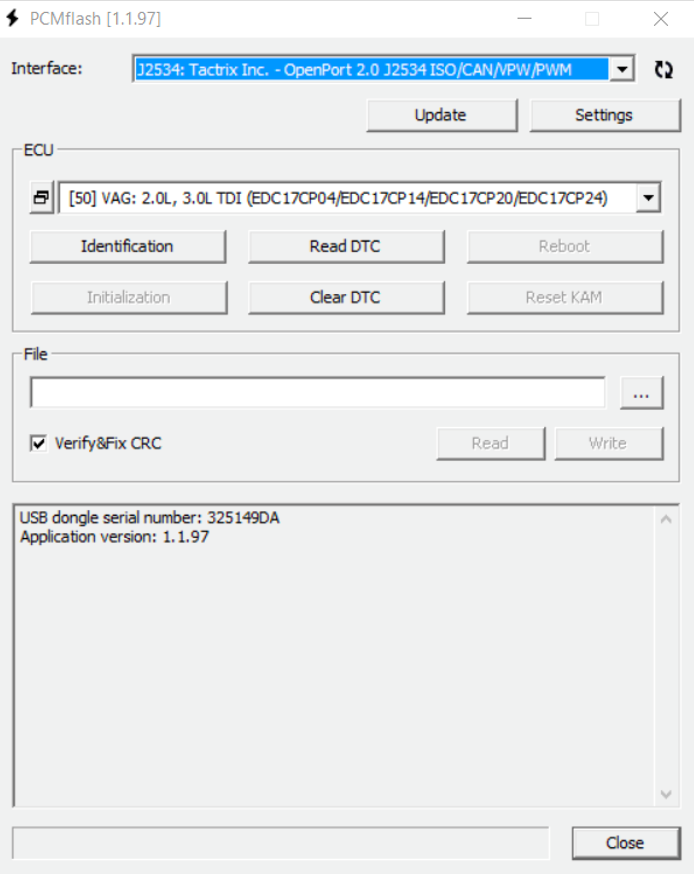

PCMflash is an integrated software solution intended for reprogramming ECUs and TCUs of Volkswagen, Skoda, Ford, Mazda, Mitsubishi, Nissan/Infiniti, Subaru, Honda/Acura, Hyundai/Kia, Renault, Toyota/Lexus and other vehicles. There are universal modules Denso SH705x Bootloader and BSL TriCore. It supports work via ADS adapter (version 1, not for all ECUs) as well as via any J2534-compatible adapter if there are appropriate drivers and libraries. The tool has been tested with OpenPort 2.0, Mongoose JLR, MongoosePro JLR, Teradyne GNA600 (VCM 1), Mazda VCM 2.

The software is marketed on a module basis and has simple and clear interface. The Guardant dongle is used for the protection from unauthorized access. It supports flashing both backup (vbf) and binary (bin) files. When flashing binary files checksum verification and correction is available for most of the modules. Conversion from VBF/GDS into BIN is supported if the ECU doesn’t support reading. Most modules support checksum verification and correction as well as VID transfer (if needed) while flashing binary files.

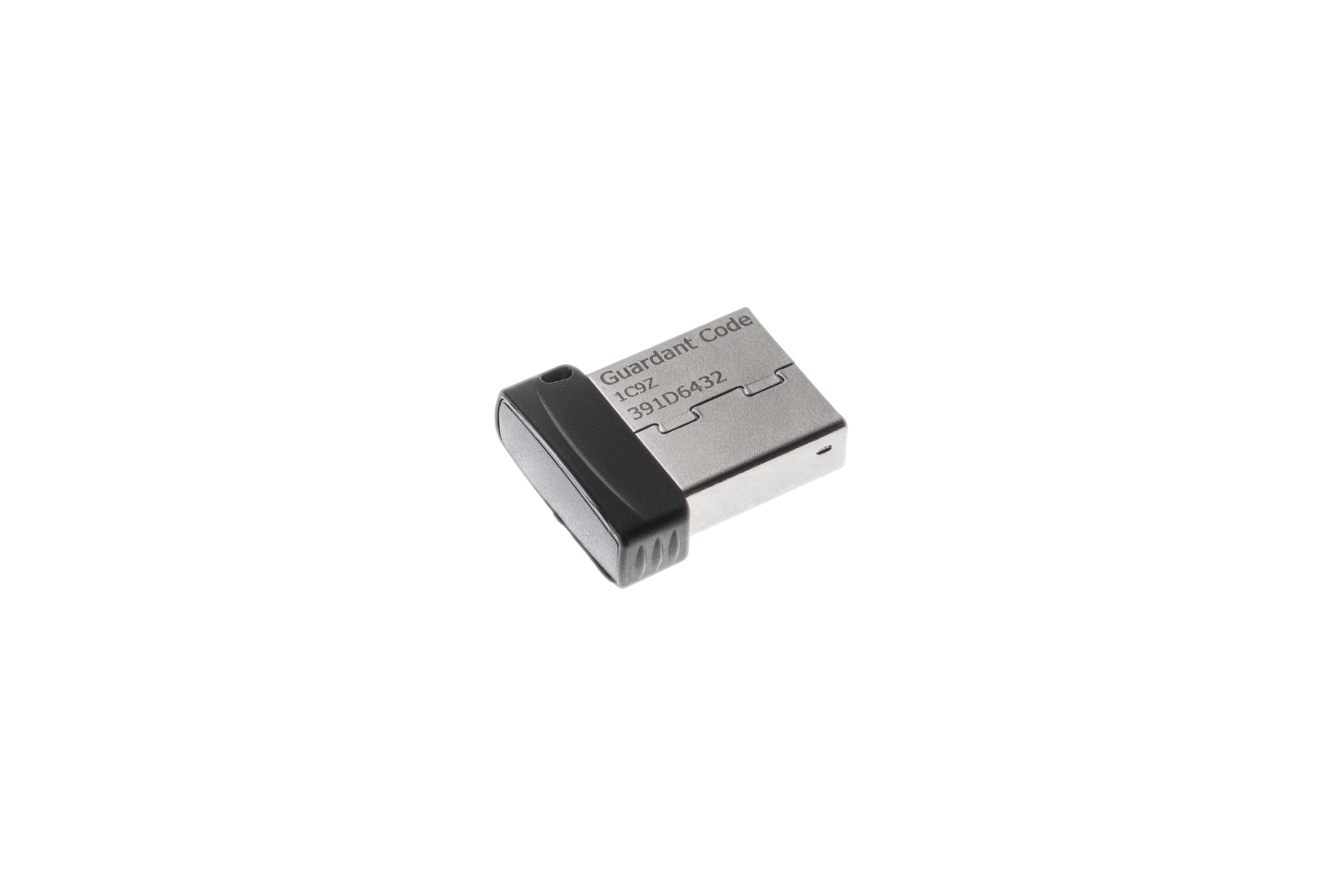

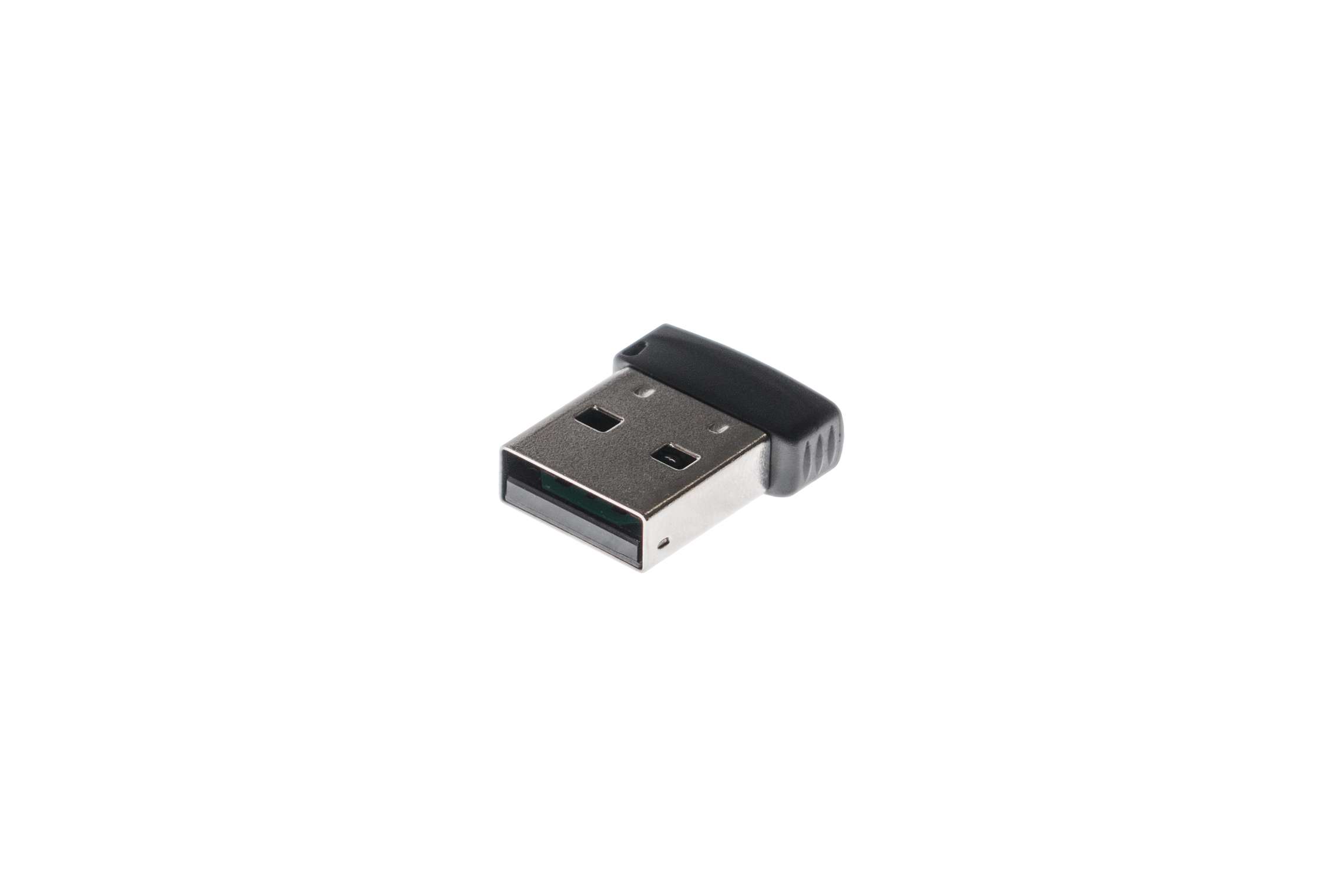

The USB dongle needs to be linked to a PC. The authorization process is automatic and requires Internet connection at the first attempt to work with an ECU. The dongle can be used on several computers.

Technical support is porvided by the developer directly.

Attention! In case of the dongle loss, the module transfer is not possible. You have to buy a dongle and software again.

We do not provide pinouts.

NB! Modules are activated from 10 am to 6 pm GMT+3 on work days.
Modules may not be activated at weekends and on public holidays. Please plan your work and purchases accordingly.

Please note the modules cannot be deactivated. If you provide the wrong dongle number, no refund will be possible.

PCMflash software modules

(100)

Module 1

Ford Focus 3

Ford Focus 3: 1.6L Sigma Ti-VCT 85/105/125PS (EMS2204)
Ford Focus 3: 2.0L Duratec GDI Ti-VCT 150/170PS (MED17)
Ford Focus 3 ST: 2.0L Ecoboost GTDI 250PS (MED17)
Ford Focus 3: 1.6L, 2.0L PowerShift TCM (6DCT250)

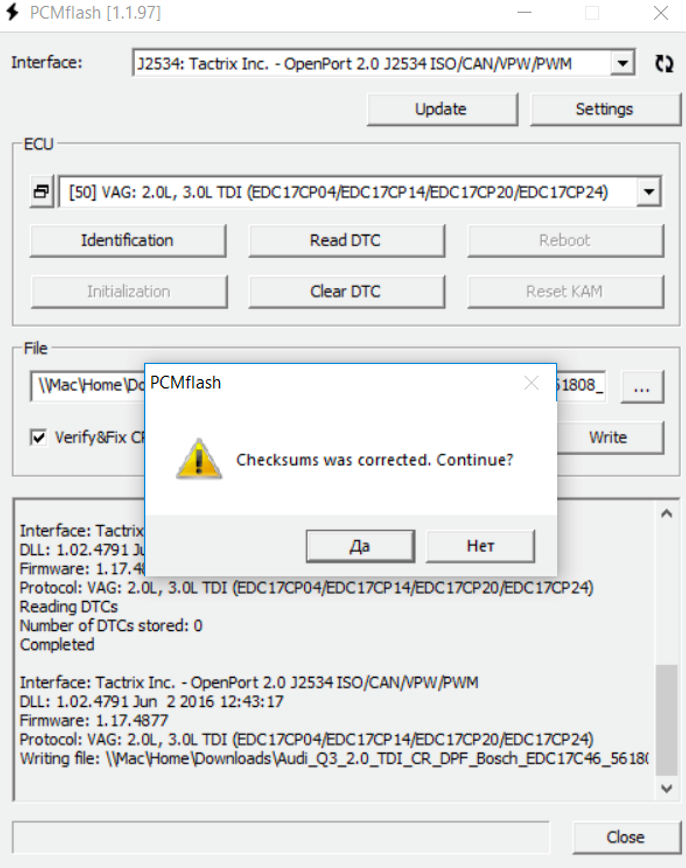

Reading, writing, checksum correction.

Ford Focus 3

Ford Focus 3: 1.6L Sigma Ti-VCT 85/105/125PS (EMS2204)
Ford Focus 3: 2.0L Duratec GDI Ti-VCT 150/170PS (MED17)
Ford Focus 3 ST: 2.0L Ecoboost GTDI 250PS (MED17)
Ford Focus 3: 1.6L, 2.0L PowerShift TCM (6DCT250)
Reading, writing, checksum correction.

86 $

Module 2

Ford Kuga 2, Ford Explorer 2011+

Ford Focus 3: 1.0L Ecoboost 2015+ GTDI 100/125PS [FV6A] (MEDG17)
Ford Kuga 2: 1.6L Ecoboost GTDI AWD 150/182PS (MEDG17)
Ford Mondeo 5: 1.5L Ecoboost GTDI AT 150/180PS (MEDG17)
Ford Mondeo 5: 2.0L Ecoboost GTDI 200PS (MEDG17)
Ford Explorer 2011-: 3.5L Ecoboost V6 GTDI 360PS (MEDG17)
Ford Kuga 2: 2.5L Duratec Ti-VCT 150/171PS
Ford Mondeo 5: 2.5L Duratec Ti-VCT 150/171PS
Ford Explorer 2011-: 3.5L Cyclone V6 Ti-VCT 294PS
Reading, writing, checksum correction.

Ford Kuga 2, Ford Explorer 2011+

Ford Focus 3: 1.0L Ecoboost 2015+ GTDI 100/125PS [FV6A] (MEDG17)
Ford Kuga 2: 1.6L Ecoboost GTDI AWD 150/182PS (MEDG17)
Ford Kuga 2: 2.5L Duratec Ti-VCT 150/171PS
Ford Explorer 2011-: 3.5L Cyclone V6 Ti-VCT 294PS
Ford Explorer 2011-: 3.5L Ecoboost V6 GTDI 360PS (MEDG17)
Ford Mondeo 5: 1.5L Ecoboost GTDI AT 150/180PS (MEDG17)
Ford Mondeo 5: 2.0L Ecoboost GTDI 200PS (MEDG17)
Ford Mondeo 5: 2.5L Duratec Ti-VCT 150/171PS
Ford Mondeo 5: 2.0L Duratec Hybrid (EMS2208) [DS7A]
Lincoln MKZ: 3.7L Duratec V6 Ti-VCT [DG9A]

Reading, writing, checksum correction.

86 $

Module 3

Diesel engines 2.0L, DCM3.5/DCM6.1/SID206

Ford Focus 3: 2.0L DW10C STAGE 5 140/163PS (DCM3.5)
Ford Kuga 1: 2.0L DW10C STAGE 5 140/163PS (DCM3.5)
Ford Kuga 2: 2.0L DW10C STAGE 5 140/163PS (DCM3.5)
Ford Mondeo 4: 2.0L DW10C STAGE 5 140/163PS (DCM3.5)
Virtual reading, writing, checksum correction.

Ford Mondeo 4: 1.8L Lynx, 2.0L DW10C STAGE 4 (SID206)
Ford Mondeo 5: 2.0L DW10F STAGE 5/6 150/180PS (DCM6.1)
Ford Focus 2: 1.8L, 2.0L Duratorq Lynx/DW10C (SID202/SID206)
Reading, writing, checksum correction.

86 $

Module 4

Petrol engines 1.25-1.6L, Ford Fiesta 2008+, Ford Mondeo 4

Ford Fiesta: 1.25L, 1.4L Sigma Ti-VCT (EMS2102)
Ford Fiesta: 1.6L Sigma Ti-VCT (EMS2101)
Ford Fiesta: 1.6L Sigma Ti-VCT USA [AE81] (EMS2205)
Ford Mondeo 4: 1.6L Sigma Ti-VCT 110/125PS (EMS2101)
Reading, writing, checksum correction.

61 $

Module 5

Petrol engines 1.6L, 2.0L, Ecoboost T-PROT7

Ford Focus 3: 1.6L Ecoboost GTDI 150/180PS (MED17)
Ford Mondeo 4: 2.0L Ecoboost GTDI 200/240PS (MED17)
Reading, writing, checksum correction. VBF writing and VBF to BIN conversion is supported!

61 $

Module 6

Petrol Engines 1.0, 1.6L, Ecoboost T-PROT12

Ford Focus 3: 1.0L Ecoboost GTDI 100/125PS (MED17)
Ford Kuga 2: 1.6L Ecoboost GTDI FWD 150PS (MED17)
Ford Fiesta: 1.0L Ecoboost GTDI 100/125PS (MED17)
Reading, writing, checksum correction. VBF writing and VBF to BIN conversion is supported!

61 $

Module 7

Ford Transit/Tourneo/Ranger, Land Rover Defender

Ford Transit 2007: 2.2L, 2.4L Diesel 85/100/115/140PS (DCU101-108, DCU201-208)
Ford Ranger: 2.5L Duratec (EMS2219) [GB3A]
Reading, writing, checksum correction.

Ford Transit 2012: 2.2L, 2.4L Diesel 100/125/140/155PS (SID208)
Land Rover Defender 2012: 2.2L TD4 (SID208))
Ford Ranger: 2.2L, 3.2L Diesel (SID209) [CK4A]
Writing after unlocking in BSL or via OBD ,checksum correction.

Ford Transit 2012: 2.2L Diesel 100/125/140/155PS (SID208/BSL)
Ford Ranger: 3.2L Diesel (SID209/BSL)
Reading.

Ford Transit: 2.0L Diesel (SID211) [Unlocked]
Writing after unlocking via OBD, or in BSL with Module 53, checksum correction.

Ford Transit/Tourneo/Ranger, Land Rover Defender

Ford Transit 2007: 2.2L, 2.4L Diesel 85/100/115/140PS (DCU101-108, DCU201-208)
Ford Ranger: 2.5L Duratec (EMS2219) [GB3A]
Reading, writing, checksum correction.

Ford Transit 2012: 2.2L Diesel 100/125/140/155PS (SID208)
Land Rover Defender 2012: 2.2L TD4 (SID208)
Ford Transit: 2.0L Diesel (SID211)
Reading, writing, checksum correction, unlocking.

Ford Ranger: 3.2L Diesel (SID209)
Writing after unlocking in BSL, checksum correction.

Ford Ranger: 3.2L Diesel (SID209/BSL)
Reading.

86 $

Module 8

Mazda 1st generation (2004–2008/10)

Mazda: 1.6L Z6 AT (Mazda3 2004+)
Mazda: 1.6L Z6 MT (Mazda3 2004+)
Reading, writing.

Mazda: 1.3L ZJ (Mazda Demio 2003+)
Mazda: 1.8L, 2.0L, 2.3L L8/LF/L3 (Mazda3/6/CX7 2003+)
Mazda: 2.0L LF USA (Mazda3 -2009/1MB)
Mazda: 1.3L N3 (Mazda RX8 2003+)
Mazda: 1.3L N3 (Mazda RX8 -2008)
Mazda: 1.3L N3 (Mazda RX8 2009-2012)
Mazda: Melco TCM (Mazda5/6 512KB)
Mazda: Aisin TCM (Mazda MX5 512KB)
Reading, writing, checksum correction.

86 $

Module 9

Mazda 2nd generation (2008/10-2012/13)

1.3L, 1.5L ZJ/ZY (Mazda2 2011+)
1.5L ZY (Mazda2 US 2011+)
1.6L Z6 (Mazda3 2010+)
1.8L, 2.0L, 2.5L L8/LF/L5 (Mazda6 2008+)
2.0L, 2.3L, 2.5L LF/L3/L5 (Mazda3/5/CX7 2010+)
2.0L LF (Mazda Biante 2013+/2MB)
Reading, writing, checksum correction.

Mazda 2nd generation (2008/10-2012/13)

1.3L, 1.5L ZJ/ZY (Mazda2 2011+)
1.5L ZY (Mazda2 US 2011+)
1.6L Z6 (Mazda3 2010+)
1.8L, 2.0L, 2.5L L8/LF/L5 (Mazda6 2008+)
2.0L, 2.3L, 2.5L LF/L3/L5 (Mazda3/5/CX7 2010+)
2.0L LF (Mazda Biante 2013+/2MB)
Reading, writing, checksum correction.

86 $

Module 10

Mazda 3rd generation (2012+)

Mazda 3rd generation (2012+)

Mazda: 1.5L, 2.0L, 2.5L SKYACTIV-G P5/PE/PY (Mazda3/CX5/6 Mitsubishi)
Mazda: 2.5T SKYACTIV-G PY (Mazda CX9 Mitsubishi)
Mazda: 1.5L, 2.0L, 2.5L SKYACTIV-G P5/PE/PY (Mazda3/CX5/6 Denso)
Mazda: 1.5L, 2.0L, 2.5L SKYACTIV-G P5/PE/PY (Mazda3/CX5/6 Denso Crypted)
Mazda: 2.2L SKYACTIV-D SH (Mazda3/CX5/6 Denso)
Mazda: 2.2L SKYACTIV-D SH (Mazda3/CX5/6 Denso Crypted 2MB)
Mazda: 1.5L, 2.2L SKYACTIV-D S5/SH (Mazda2/3/CX5/6 Denso Crypted 3.75MB)
Mazda: 1.6L Z6 (Denso)
Mazda: 1.6L Z6 (Denso Crypted)
Reading, writing, checksum correction.

86 $

Module 12

Honda/Acura CAN-bus

Honda: Honda PGM-FI Generic Read-Only
Honda: Honda AT/CVT/DCT Generic Read-Only

PGM-FI (Keihin SH7058/1MB)
PGM-FI (Keihin SH72543/2MB)
PGM-FI (Keihin SH72546/3.75MB)
PGM-FI (Keihin MPC5566/3MB)
PGM-FI (Keihin TC1782/2.5MB)
AT/CVT/DCT (Keihin 512KB)
AT/CVT/DCT (Keihin 1MB)

PGM-FI (Matsushita SH7058/1MB)
PGM-FI (Matsushita SH72543/2MB)
PGM-FI 2013+ (Matsushita SH72543/2MB) (Test)
PGM-FI (Panasonic TC179X/4MB)
AT/CVT/DCT (Matsushita 512KB) (Test)

Honda: PGM-FI (Continental MPC5554/2MB)

PGM-FI (Hitachi SH7058/1MB) (Test)
PGM-FI (Hitachi SH7059/1.5MB) (Test)
PGM-FI (Hitachi SH72543/2MB)
PGM-FI (Hitachi MPC5554/2MB) (Test)
Reading, writing, checksum correction.

Honda/Acura CAN-bus

PGM-FI Generic Read-Only
AT/CVT/DCT Generic Read-Only
Reading.

PGM-FI (Keihin SH7058/1MB)
PGM-FI (Keihin SH72543/2MB)
PGM-FI (Keihin SH72546/3.75MB)
PGM-FI (Keihin MPC5566/3MB)
PGM-FI (Keihin TC1782/2.5MB)
PGM-FI (Keihin TC275/4MB)
PGM-FI (Keihin TC277/4MB)
AT/CVT/DCT (Keihin 512KB)
AT/CVT/DCT (Keihin 1MB)
Reading, writing, checksum correction.

PGM-FI (Matsushita SH7058/1MB)
PGM-FI (Matsushita SH72543/2MB)
PGM-FI 2013+ (Matsushita SH72543/2MB) (Test)
PGM-FI (Panasonic TC179X/4MB)
PGM-FI (Continental MPC5554/2MB)
Reading, writing, checksum correction.

UDCT (Continental TC1782/2.5MB)
Writing, checksum correction.

PGM-FI (Hitachi SH7058/1MB) (Test)
PGM-FI (Hitachi SH7059/1.5MB) (Test)
PGM-FI (Hitachi SH72543/2MB)
PGM-FI (Hitachi MPC5554/2MB) (Test)
AT/CVT/DCT (Hitachi SH72531/1280KB)
AT/CVT/DCT (Hitachi SH725x3/2048KB)
Reading, writing, checksum correction.

184 $

Module 13

Honda/Acura K-Line

Honda: Accord 7 2003-2005 (Matsushita RBA/RBB SH7055/512KB)
Honda: Accord 7 2006-2007/TSX 2004-2005 (Matsushita RBA/RBB SH7055/512KB)
Acura: TSX 2006 (Matsushita RBB A56-A62 SH7058/1MB)
Honda: Accord/CR-V/Element/Legend/Odyssey/Ridgeline (Keihin SH7058/1MB)
Honda: Element/Inspire (Keihin SH7055/512KB)
Honda: Legend/Acura TL 2005-2007 (Keihin RJA SH7058/1MB)
Honda: CR-V 2002/2005-2007 (Keihin PPA/PNL SH7058/1MB)
Honda: Fit/Jazz/Airwave 2001-2007 (Keihin OKI ML66Q592/192KB)
Acura: MDX 2003-2007 (Motorola RDJ SH7055/512KB)
Honda: Accord 7 USA (Motorola RCA SH7055/512KB SH7058/1024K)
Only writing, checksum correction. Stock files database included!

Honda/Acura K-Line

Honda: Accord 7 2003-2005 (Matsushita RBA/RBB SH7055/512KB)
Honda: Accord 7 2006-2007/TSX 2004-2005 (Matsushita RBA/RBB SH7055/512KB)
Acura: TSX 2006 (Matsushita RBB A56-A62 SH7058/1MB)
Honda: Accord/CR-V/Element/Legend/Odyssey/Ridgeline (Keihin SH7058/1MB)
Honda: Element/Inspire (Keihin SH7055/512KB)
Honda: Legend/Acura TL 2005-2007 (Keihin RJA SH7058/1MB)
Honda: CR-V 2002/2005-2007 (Keihin PPA/PNL SH7058/1MB)
Honda: Fit/Jazz/Airwave 2001-2007 (Keihin OKI ML66Q592/192KB)
Acura: MDX 2003-2007 (Motorola RDJ SH7055/512KB)
Honda: Accord 7 USA (Motorola RCA SH7055/512KB SH7058/1024K)
Virtual reading, writing, checksum correction. Stock files database included!

86 $

Module 14

Petrol engines 1.6L, 2.0L, 2.3L, 2.5L Ford Mondeo 4

Ford Mondeo 4: 1.6L Sigma Ti-VCT 110/125PS (EMS2101)
Ford Mondeo 4: 2.0L Duratec HE (ESU312 Galaxy/S-Max 2006)
Ford Mondeo 4: 2.0L, 2.3L Duratec HE (ESU412/415)
Reading, writing, checksum correction.

Ford Mondeo 4: 2.5L Duratec I5 225PS (ME9.0)
Only writing, checksum correction. VBF writing and VBF to BIN conversion is supported!

Petrol engines 1.6L, 2.0L, 2.3L, 2.5L Ford Mondeo 4

Ford Mondeo 4: 1.6L Sigma Ti-VCT 110/125PS (EMS2101)
Ford Mondeo 4: 2.0L Duratec HE (ESU312 Galaxy/S-Max 2006)
Ford Mondeo 4: 2.0L, 2.3L Duratec HE (ESU412/415)
Reading, writing, checksum correction.

Ford Mondeo 4: 2.5L Duratec I5 225PS (ME9.0)
Writing, checksum correction. VBF writing and VBF to BIN conversion is supported!

86 $

Module 15

Nissan/Infinity K-Line

EFI SH705415N (Hitachi SH7054/384KB)
EFI SH705507N (UJ/Hitachi SH7055/512KB)
EFI SH705513N (Hitachi SH7055/512KB)
EFI SH705520N (Hitachi SH7055/512KB)
EFI SH705821N (Hitachi SH7058/1MB)
EFI SH705823N (Hitachi SH7058/1MB)
EFI SH705524N Almera Classic (Hitachi SH7055/512KB)
EFI SH705529N Almera Classic (Hitachi SH7055/512KB)
EFI SH705826N (Hitachi SH7058/1MB)
Reading, writing, checksum correction.

Nissan/Infinity K-Line

EFI SH705415N (Hitachi SH7054/384KB)
EFI SH705507N (UJ/Hitachi SH7055/512KB)
EFI SH705513N (Hitachi SH7055/512KB)
EFI SH705520N (Hitachi SH7055/512KB)
EFI SH705821N (Hitachi SH7058/1MB)
EFI SH705823N (Hitachi SH7058/1MB)
EFI SH705524N Almera Classic (Hitachi SH7055/512KB)
EFI SH705826N (Hitachi SH7058/1MB)
EFI SH705529N Almera Classic (Hitachi SH7055/512KB)
Reading, writing, checksum correction.

98 $

Module 16

Subaru Hitachi

Forester, Impreza, Legacy 2000-2002 K-Line (UJ WA12212920/128KB)
Forester, Impreza, Legacy 2000-2002 K-Line (UJ WA12212930/256KB)
Forester, Impreza, Legacy 2002-2005 K-Line (UJ/Hitachi WA12212940/384KB)
Forester, Impreza, Legacy 2002-2005 K-Line (UJ/Hitachi WA12212970/512KB)
Reading, writing.

Forester 2006, Impreza 2006-2007 K-Line (Hitachi WA12212970WWW/512KB)
Forester 2007-2008, Impreza 2008+, Legacy 2006+ CAN (Hitachi WA12212970WWW/512KB)
Forester 2009-2011/Legacy 2010-2011 CAN (Hitachi SH7058/1MB)
Forester 2013+ CAN (Hitachi SH7059/1.5MB)
Forester 2013+ CAN (Hitachi SH7254/2MB)
Reading, writing, checksum correction.

Subaru Hitachi

Forester, Impreza, Legacy 2000-2002 K-Line (UJ WA12212920/128KB)
Forester, Impreza, Legacy 2000-2002 K-Line (UJ WA12212930/256KB)
Forester, Impreza, Legacy 2002-2005 K-Line (UJ/Hitachi WA12212940/384KB)
Forester, Impreza, Legacy 2002-2005 K-Line (UJ/Hitachi WA12212970/512KB)
Reading, writing.

Forester 2006, Impreza 2006-2007 K-Line (Hitachi WA12212970WWW/512KB)
Forester 2007-2008, Impreza 2008+, Legacy 2006+ CAN (Hitachi WA12212970WWW/512KB)
Forester 2009-2011/Legacy 2010-2011 CAN (Hitachi SH7058/1MB)
Forester 2013+ CAN (Hitachi SH7059/1.5MB)
Forester 2013+ CAN (Hitachi SH72543/2MB)
Reading, writing, checksum correction.

111 $

Module 17

Volkswagen K-Line

1.6L CFNA/CFNB/CLRA 7GV K-Line (Marelli 7GV/832KB)
1.4L CGGB K-Line (Marelli 7GVE/832KB)
1.6L BFQ K-Line (Simos 3.3A/512KB)
1.4L BUD/BXW/CGGA/CGGB K-Line (Marelli 4HV/832KB)
1.6L BSA/BSE/BSF Calibration K-Line (Simos 7.1/512KB)
1.6L BSA/BSE/BSF Calibration K-Line (Simos 7PP/1MB)
1.2L BME/BZG/CGPA Calibration K-Line (Simos 9.1/512KB)
Reading, writing, checksum correction.

61 $

Module 18

Nissan/Infinity CAN-bus

EFI Generic Read-Only (Hitachi)
EFI SH705519N (Hitachi SH7055/512KB)
EFI SH705822N, SH705828N (Hitachi SH7058/1MB)
EFI SH705927N (Hitachi SH7059/1.5MB)
EFI SH725331N (Hitachi SH72531/1.25MB)
EFI S7253332N (Hitachi SH72533/2MB)
Koleos/Latitude 2.5 SH705822N (Hitachi SH7058/1MB)
Koleos 2 2.5L S7253332N (Hitachi SH72533/2MB)
Reading, writing, checksum correction.

Nissan/Infinity CAN-bus

EFI Generic Read-Only (Hitachi)
Reading.

EFI SH705519N (Hitachi SH7055/512KB)
EFI SH705822N, SH705828N (Hitachi SH7058/1MB)
EFI SH705927N (Hitachi SH7059/1.5MB)
EFI SH725331N (Hitachi SH72531/1.25MB)
EFI S7253332N (Hitachi SH72533/2MB)
Koleos/Latitude 2.5 SH705822N (Hitachi SH7058/1MB)
Koleos 2 2.5L S7253332N (Hitachi SH72533/2MB)
Reading, writing, checksum correction.

98 $

Module 19

Kia/Hyundai

Kia/Hyundai: 1.4L, 1.6L (M(G)7.9.8)
Kia/Hyundai: 1.1L-1.6L (M(G)7.9.7)
Only writing, checksum correction.

Kia/Hyundai: 1.4L, 1.6L (ME17.9.11/12/13)
Kia/Hyundai: 1.4L, 1.6L (ME(G)17.9.21)
Kia/Hyundai: 1.6L, 3.0L (ME17.9.2/ME(D)(G)17.9.8)
Reading, writing, checksum correction.

Kia/Hyundai

Kia/Hyundai: 1.4L, 1.6L (ME17.9.11/12/13)
Kia/Hyundai: 1.4L, 1.6L (ME(G)17.9.21/17.9.21.1)
Kia/Hyundai: 1.6L, 3.0L (ME17.9.2/ME(D)(G)17.9.8)
Reading, writing, checksum correction.

Kia/Hyundai: 1.4L, 1.6L (M(G)7.9.8)
Kia/Hyundai: 1.1L-1.6L (M(G)7.9.7)
Writing, checksum correction.

86 $

Module 20

Ford Focus 2/Fiesta/Fusion (automatic transfer for VID area)

Ford Focus 2: 1.4L, 1.6L Duratec 85/100/115PS (SIM28/29)
Ford Focus 2: 1.8L, 2.0L Duratec HE 125/145PS (ESU131/411/418)
Ford Focus 2: 1.8L, 2.0L Duratorq Lynx/DW10C (SID202/SID206)
Ford Fiesta/Fusion: 1.4L, 1.6L Duratec 85/100PS (SIM210)
Ford Focus 2 ST: 2.5L Duratec I5 225PS (ME9.0)
Reading, writing, checksum correction.

Ford Kuga 1: 2.5L Duratec I5 200PS (ME9.0)
Writing, checksum correction.

Ford Focus 2/Fiesta/Fusion (automatic transfer for VID area)

Ford Focus 2: 1.4L, 1.6L Duratec 85/100/115PS (SIM28/29)
Ford Focus 2: 1.8L, 2.0L Duratec HE 125/145PS (ESU121/131/411/418)
Ford Focus 2: 1.8L, 2.0L Duratorq Lynx/DW10C (SID202/SID206)
Ford Fiesta/Fusion: 1.4L, 1.6L Duratec 85/100PS (SIM210)
Ford Focus 2 ST: 2.5L Duratec I5 225PS (ME9.0)
Reading, writing, checksum correction.

Ford Focus 2 RS: 2.5L Duratec I5 305PS (ME9.0)
Ford Kuga 1: 2.5L Duratec I5 200PS (ME9.0)
Writing, checksum correction.

86 $

Module 21

Ford USA (automatic transfer for VID area)

Mazda6 3.0L AJ 2003-2005
Escape, Explorer, Mazda CX9 -2009 (PCM150F)
Explorer, Mazda CX9 2010-2011/2012 (M799G)
Focus 2008-2011 (GreenOak/PCM190)
Escape, Mariner, Tribute 2009-2011 (9L8A)
Ford F350 6.0L (BlackOak/PCM122/448KB)
Reading, writing, checksum correction.

Mustang 2005-2009 (PCM170F)
Writing, checksum correction.

Ford USA (automatic transfer for VID area)

Aston Martin 4.3L, 4.7L, 6.0L 2004-2015;
Mazda6 3.0L AJ 2003-2005
Escape, Explorer, Mazda CX9 -2009 (PCM150F)
Mustang 2005-2009 (PCM170F)
Explorer, Mazda CX9 2010-2011/2012 (M799G)
Focus 2008-2011 (GreenOak/PCM190)
Escape, Mariner, Tribute 2009-2011 (9L8A)
Escape 2.5L 2010 PHEV (GreenOak/AM6A/2MB)
Ford F350 6.0L (BlackOak/PCM122/448KB)
Expedition, Navigator 5.4L (Bosch ME9.8/2048KB)
F-150 5.4L (Bosch MEG9.8.1/2536KB)
Reading, writing, checksum correction.

86 $

Module 22

Renault

Valeo V40/V42 (SH7058/1024KB)
Sagem 3000 (SH7055/512KB)
EMS3110 (TC1766/1504KB)
Logan, Sandero, Fluence, Megane, Almera EMS3120 (TC1738/2048KB)
Duster, X-Ray EMS3125 (TC1782/2560KB)
Clio 4 1.6T EMS3150 (TC1767/2048KB)
Reading, writing, checksum correction.

86 $

Module 23

Subaru Denso

2.5L, 3.0L, 2.0T, 2.5T Denso 2003+ K-Line (SH7055/512KB)
2.5L, 3.0L, 2.0T, 2.5T Denso 2003+ K-Line (SH7055S/512KB)
2.5L, 3.0L, 2.0T, 2.5T Denso 2003+ K-Line (SH7058/1MB)
2.5L, 3.0L, 2.0T, 2.5T Denso 2007+ CAN-bus (SH7058S/1MB)
2.0L, 2.5L, 3.0L, BRZ Denso 2013+ CAN-bus (SH72531/1.25MB)
1.6L, 2.0L DI Denso 2018+ CAN-bus (1N83M/1.5MB)
2.0L Denso Diesel Euro 4 CAN-bus (SH7058S/1MB)
2.0L Denso Diesel Euro 5 CAN-bus (SH7059/1.5MB)
2.0L Denso Diesel Euro 6 CAN-bus (SH72543/2MB)
Reading, writing, checksum correction.

Subaru Denso

2.5L, 3.0L, 2.0T, 2.5T Denso 2003+ K-Line (SH7055/512KB)
2.5L, 3.0L, 2.0T, 2.5T Denso 2003+ K-Line (SH7055S/512KB)
2.5L, 3.0L, 2.0T, 2.5T Denso 2003+ K-Line (SH7058/1MB)
2.5L, 3.0L, 2.0T, 2.5T Denso 2007+ CAN-bus (SH7058S/1MB)
2.0L, 2.5L, 3.0L, BRZ Denso 2013+ CAN-bus (SH72531/1.25MB)
1.6L, 2.0L DI Denso 2018-2021 CAN-bus (1N83M/1.5MB)
Forester 2.5L DI Denso 2018-2021 CAN-bus (1N83M/4MB)
Outback/Legacy 2.5L DI Denso 2019-2021 CAN-bus (1N83M/4MB)
2.0L Denso Diesel Euro 4 CAN-bus (SH7058S/1MB)
2.0L Denso Diesel Euro 5 CAN-bus (SH7059/1.5MB)
2.0L Denso Diesel Euro 6 CAN-bus (SH72543/2MB)
Reading, writing, checksum correction.

111 $

Module 24

Mitsubishi CAN-bus

MH Generic Read-Only
Colt MT (MH8304F/512KB)
Colt AT (MH8304F/768KB)
Pajero AT (2007-) (MH8304F/768KB)
Pajero Sport (2010-) (MH8106F/1MB)
Lancer X 1.5L (2007-), Outlander XL JDM (MH8104F/512KB)
ASX (-2013), Lancer X 1.6/1.8/2.0L, Outlander XL (MH8106F/1MB)
ASX (2013-), Mirage, Outlander 3 (2013-) (MH8115F/1.25MB)
Galant 9 2.4L (2005-) (MH8304F/768KB)
Pajero MT (2007-) (MH8302F/512KB)
Eclipse Cross (2018-) (MH8601/4MB) (MH8115F/1.25MB)
Expander (2018-) (MH8611/2MB)
Reading, writing, checksum correction.

Mitsubishi CAN-bus

MH Generic Read-Only
Colt MT (MH8304F/512KB)
Colt AT (MH8304F/768KB)
Colt RallyArt 1.5T (MH8104F/512KB)
Pajero AT (2007-) (MH8304F/768KB)
Pajero Sport (2010-) (MH8106F/1MB)
L200 2.4L MT (2008-) (MH8302F/512KB)
Lancer X 1.5L (2007-), Outlander XL JDM (MH8104F/512KB)
ASX (-2013), Lancer X 1.6/1.8/2.0L, Outlander XL (MH8106F/1MB)
ASX (2013-), Mirage, Outlander 3 (2013-) (MH8115F/1.25MB)
Galant 9 2.4L (2005-) (MH8304F/768KB)
Pajero MT (2007-) (MH8302F/512KB)
Eclipse Cross (2018-) (MH8601/4MB) (MH8115F/1.25MB)
Expander (2018-) (MH8611/2MB)
Outlander 2.4L (Delphi SPC563M/1.5MB)
Reading, writing, checksum correction.

111 $

Module 25

Renault/Nissan 1.5dCi

1.5L dCi Delphi DCM 1.2 (ST10/512KB)
1.5L dCi Delphi DCM 3.4 (SH7059/1536KB)
1.5L dCi SID 301/303/304 (MPC562/2MB)
1.5L dCi SID 305/306 (TC1766/1504KB)
1.5L dCi SID 307 (TC1767/2MB)
2.3L dCi SID 309 (TC1767/2MB)
Reading, writing, checksum correction.

86 $

Module 26

Mitsubishi Diesel CAN-bus

Denso Diesel (SH7058/SH7058S/1MB)
Reading, writing, checksum correction.

Mitsubishi Diesel CAN-bus

Denso Diesel (SH7058/SH7058S/1MB SH7059/1.5MB SH72543/2MB)
Reading, writing, checksum correction.

86 $

Module 27

Nissan CAN-bus 2nd generation

EFI SH72533 Gen 2 (2014+) Calibration (Hitachi SH72533/2MB)
Renault Samsung 1.6T (Hitachi SH72533/2MB)
Reading, writing, checksum correction.

61 $

Module 28

VAZ/UAZ

Priora, Kalina 1.6L/16V, Niva 1.7L (M(E)17.9.7)
Patriot/Hunter/Bukhanka 2.7L (M(E)17.9.7)
Reading, writing, checksum correcton.

61 $

Module 29

Ford PWM (Ford VCM2 or Scanmatik is required)

Mondeo 3 1.8L, 2.0L, 2.5L, 3.0L Duratec HE (LEVANTA)
EEC-V 216K (EEC-V)
3.0L, 4.0L, 4.6L Duratec V6/V8 (PCM150)
1.8L, 2.0L, 2.2L Duratorq TDCi (Delphi)
Reading, writing, checksum correction

1.8L, 2.0L, 2.2L Duratorq TDCi (Visteon)
1.8L, 2.0L, 2.2L Duratorq TDCi (Delphi)
Reading, writing

Ford PWM (Ford VCM2 or Scanmatik is required)

Mondeo 3 1.8L, 2.0L, 2.5L, 3.0L Duratec HE (LEVANTA)
EEC-V 216K (EEC-V)
3.0L, 4.0L, 4.6L Duratec V6/V8 (PCM150)
1.8L, 2.0L, 2.2L Duratorq TDCi (Delphi)
Jaguar X 2.2L Duratorq TDCi DPF (Delphi) [9X43]
Reading, writing, checksum correction

1.8L, 2.0L, 2.2L Duratorq TDCi (Visteon)
Reading, writing

86 $

Module 30

Kia/Hyundai SIM2K

2.0L, 2.4L (SIM2K-140)
2.0L, 2.5L (SIM2K-D160)
2.0L, 2.4L (SIM2K-141/142/341)
2.0L (SIM2K-C201)
2.0L, 2.0T (SIM2K-240/241/242/245)
Reading, writing, checksum correction.

86 $

Module 31

Mitsubishi K-Line

K-Line/Bootloader (MH720xF/MH810xF/MH820xF/MH830xF)
Reading, writing, checksum correction.

Mitsubishi K-Line

K-Line/Bootloader (MH720xF/MH810xF/MH820xF/MH830xF/MH8115)
Reading, writing, checksum correction.

86 $

Module 32

Ford Focus 3 2015, Ford Explorer 2016, Ford Kuga 2 2017

Ford Fiesta: 1.0L Ecoboost GTDI 100/125PS [C1BA] (MED17)
Ford Focus 3 2015: 1.0L Ecoboost 2015+ GTDI 100/125PS [DA6A] (MED17)
Ford Focus 3 2015: 1.5L Ecoboost 2015+ GTDI 150/180PS [FV6A] (EMS2510/EMS2511)
Ford Kuga 2 2017: 1.5L Ecoboost 2015+ GTDI 150/180PS [FV6A] (EMS2510/EMS2511)
Ford Explorer 2016: 3.5L Cyclone V6 Ti-VCT 249/294PS (2016)
Ford Mondeo 5: 1.5L Ecoboost GTDI MT 150/180PS (MED17)
Ford Mondeo 5: 2.5L Duratec Ti-VCT 150/171PS [GV6A] (EMS24XX)
Ford Kuga 3: 2.5L Duratec Hybrid [LV4A] (EMS2701)
Reading, writing, checksum correction.

Ford Focus 3 2015, Ford Explorer 2016, Ford Kuga 2 2017

Ford Fiesta: 1.0L Ecoboost GTDI 100/125PS [C1BA] (MED17)
Ford Focus 3 2015: 1.0L Ecoboost 2015+ GTDI 100/125PS [DA6A] (MED17)
Ford Focus 3 2015: 1.5L Ecoboost 2015+ GTDI 150/180PS [FV6A] (EMS2510/EMS2511)
Ford Kuga 2 2017: 1.5L Ecoboost 2015+ GTDI 150/180PS [FV6A] (EMS2510/EMS2511)
Ford Explorer 2016: 3.5L Cyclone V6 Ti-VCT 249/294PS (2016)
Ford Mondeo 5: 1.5L Ecoboost GTDI MT 150/180PS (MED17)
Ford Kuga 2: 2.5L Duratec Ti-VCT MY2017 150/171PS [GV6A] (EMS24XX)
Ford Kuga 3: 2.5L Duratec Hybrid [LV4A] (EMS2701)
Reading, writing, checksum correction.

86 $

Module 33

Ford EcoSport/Fiesta 2015+

2.0L Duratec HE 140PS (IAW 7GFR.HR)
1.6L Sigma Ti-VCT 85/105/110/122PS (EMS2211)
1.6L Sigma Ti-VCT USA [C1BA] (EMS2214)
Reading, writing, checksum correction.

Ford EcoSport/Fiesta 2015+

2.0L Duratec HE 140PS (IAW 7GFR.HR)
1.6L Sigma Ti-VCT 85/105/110/122PS (EMS2211)
1.6L Sigma Ti-VCT USA [C1BA] (EMS2214)
1.6L Sigma Ti-VCT China [FD8A] (EMS2215)
Reading, writing, checksum correction.

86 $

Module 34

Kia/Hyundai EDC15/EDC16

2.0L, 2.5L CRDI K-Line (EDC15C7)
2.0L, 2.2L, 2.5L CRDI K-Line Calibration (EDC16C39)
3.0L CRDI K-Line Calibration (EDC16CP34)
Reading, writing, checksum correction.

2.0L, 2.2L, 2.5L CRDI (EDC16C39)
3.0L CRDI (EDC16CP34)
Writing, checksum correction.

61 $

Module 35

Toyota/Lexus/Scion/Hino

76F0038/39/40/70/85, MPC565/SH72512/SH72544 CAN-bus
76F0038/39/40/50/70/85, 70F4019 GearBox CAN-bus
76F0038/39/40/50/70/85 HV Control CAN-bus
76F0004/23/38/39/40/70/85, MPC565 K-Line
Virtual Reading, Writing, checksum correction.

122 $

Module 36

Kia/Hyundai EDC17

1.6L, 2.0L CRDI (EDC17C08/TPROT3)
2.0L, 2.2L CRDI (EDC17CP14/TPROT3)
2.0L, 2.2L CRDI (EDC17CP14/TPROT11)
1.6L, 2.0L CRDI (EDC17C53)
2.2L CRDI (EDC17C57) (after unlocking with Module 53 or 71)
Reading, writing, checksum correction.

Kia/Hyundai EDC17

1.6L, 2.0L CRDI (EDC17C08/TPROT3)
2.0L, 2.2L CRDI (EDC17CP14/TPROT3)
2.0L, 2.2L, 3.0L CRDI (EDC17CP14/TPROT11)
1.6L, 2.0L CRDI (EDC17C53)
2.0L, 2.2L, 3.0L CRDI (EDC17C57/EDC17CP62) (after unlocking with Module 53 or 71)
2.0L, 2.2L, 3.0L AdBlue CRDI (DCU17PC42/DCU17PC43) (writing after unlocking with Module 53 or 71)
Reading, writing, checksum correction.

86 $

Module 37

UAZ EDC16

Patriot/Hunter 2.2L ZMZ 5143.1 (EDC16C39-6.H1)
Writing, checksum correction.

Patriot 2.3L Iveco F1A (EDC16C39-5.A3)
Reading, writing, checksum correction.

61 $

Module 38

Renault K-Line

Duster 1.6L 2WD EMS3130 (ST10/512KB)
EMS3132 MT (C167/256KB)
EMS3134 AT (C167/512KB)
Reading, writing, checksum correction.

Renault K-Line

Duster 1.6L 2WD EMS3130 (ST10/512KB)
EMS3132 MT (C167/256KB)
EMS3134 AT (C167/512KB)
Sagem 3000 (SH7055/512KB)
Sirius 35 (C167/512KB)
Reading, writing, checksum correction.

61 $

Module 39

VAZ/UAZ ME17.9.71

UAZ: Patriot/Hunter/Bukhanka 2.7L (ME17.9.71)
VAZ: Niva 1.7L (ME17.9.71)
Reading, writing after unlocking, checksum correction.

ME17.9.71 (TC1724/BSL)
Reading.

VAZ/UAZ ME17.9.71

UAZ: Patriot/Hunter/Bukhanka 2.7L (ME17.9.71)
VAZ: Niva 1.7L (ME17.9.71)
Reading, writing after unlocking, checksum correction.

ME17.9.71 (TC1724/BSL)
Reading, unlocking.

61 $

Module 40

Kia/Hyundai SIMK

1.8L, 2.0L, 2.7L K-Line (SIMK-41/43)
2.0L, 2.4L CAN (SIMK-43/SIM2K-47)
Reading, writing, checksum correction.

61 $

Module 41

Scania EMS S6

Scania EMS S6 250Kbps (MPC555)
Scania EMS S6 500Kbps (MPC555)
Reading, writing, checksum correction.

Scania EMS S6

Scania EMS/EDC S6 250Kbps (MPC555)
Scania EMS S6 500Kbps (MPC555)
Reading, writing, checksum correction.

246 $

Module 42

Denso SH705X Bootloader

SH7055/SH7058(S)/SH7059 FLASH (512KB/1024KB/1536KB)
Reading, writing, checksum correction.

Mazda3 Z6 -2009 SH7055/SH7058 EEPROM (56)
Mitsubishi/Nissan/Subaru Diesel SH7058(S)/SH7059 EEPROM (86)
Subaru Metal-Case SH7055/SH7058 EEPROM (56)
Subaru Plastic-Case SH7058 EEPROM (86)
Subaru Plastic-Case SH7058S EEPROM (56)
Subaru Plastic-Case SH7058S EEPROM (86)
Suzuki Liana/Jimny SH7055 EEPROM (56)
Suzuki SH7055/SH7058 EEPROM (56)
Suzuki SH7058S EEPROM (56)
Volvo SH7058 EEPROM (56)
Opel 1.7L CDTI SH7058/SH7059 EEPROM (86)
Trucks SH7058(S)/SH7059 EEPROM (25A320/640/128)
Jaguar X 2001-2008, S/XJ/XK 2003-2006 SH7055 FLASH (512KB)
Jaguar X 2001-2008, S/XJ/XK 2003-2006 SH7055 EEPROM (86)

Reading, writing.

Denso SH705X Bootloader

SH7055/SH7058(S)/SH7059 FLASH (512KB/1024KB/1536KB)
Reading, writing, checksum correction.

Jaguar X 2001-2008, S/XJ/XK 2003-2006 SH7055 FLASH (512KB)
Jaguar X 2001-2008, S/XJ/XK 2003-2006 SH7055 EEPROM (86)
Mazda3 Z6 -2009 SH7055/SH7058 EEPROM (56)
Mitsubishi/Nissan/Subaru Diesel SH7058(S)/SH7059 EEPROM (86)
Subaru Metal-Case SH7055/SH7058 EEPROM (56)
Subaru Plastic-Case SH7058 EEPROM (86)
Subaru Plastic-Case SH7058S EEPROM (56)
Subaru Plastic-Case SH7058S EEPROM (86)
Suzuki Liana/Jimny SH7055 EEPROM (56)
Suzuki SH7055/SH7058 EEPROM (56)
Suzuki SH7058S EEPROM (56)
Volvo SH7055/SH7058 EEPROM (56)
Opel 1.7L CDTI SH7058/SH7059 EEPROM (86)
Trucks SH7058(S)/SH7059 EEPROM (25A320/640/128)

Reading, writing.

123 $

Module 43

JLR

Freelander 2/Evoque/Discovery Sport 2.2L I4 Diesel (EDC17CP42)
Ford Mondeo 4 2.2L DW12C STAGE 5 (EDC17CP42)
Freelander 2 2.2L I4 Diesel (EDC16CP39)
Freelander 2/Evoque 2.0L Ecoboost GTDI (MED17)
Jaguar XF (X250) 2.0L Ecoboost GTDI (MED17.9.7)
Jaguar XE/XJ/F/Range Rover (X152/X351/X760/X761/L405/L494) 5.0L V8 SC (MED17.8.32)
Evoque/Discovery Sport 2.0L Diesel (MEDC17.9)
Jaguar/Range Rover 3.0L V6, 4.4L V8 Diesel (EDC17CP55)

Reading, writing, checksum correction.

JLR

Discovery 3 2.7L TDV6 (SID201/SID204)
Range Rover 3.6L TDV8 (SID203)
Range Rover 2010+ 3.6L TDV8 (SID203)
Jaguar S/XF/XJ (X200/X250/X350) 2.7L TDV6 (SID204)
Discovery 4 2.7L TDV6 (SID204)
Territory 2.7L Duratorq V6 (SID204)
Jaguar/Freelander 2/Evoque/Discovery Sport 2.2L I4 Diesel (EDC17CP42)
Ford Mondeo 4 2.2L DW12C STAGE 5 (EDC17CP42)
Freelander 2 2.2L I4 Diesel (EDC16CP39)
Freelander 2/Evoque 2.0L Ecoboost GTDI (MED17)
Jaguar XF (X250) 2.0L Ecoboost GTDI (MED17.9.7)
Jaguar XE/F 2.0L Ingenium GTDI (MED17.9.9)
Jaguar XJ/Range Rover (X351/L405/L494) 3.0L V6/5.0L V8 SC (MED17.8.31)
Jaguar XE/XJ/F/Range Rover (X152/X351/X760/X761/L405/L494) 5.0L V8 SC (MED17.8.32)
Range Rover Velar (L560) 3.0L V6 SC (MED17.8.32)
Evoque/Discovery Sport/Velar/Defender 2.0L Diesel (MEDC17.9)
Jaguar/Range Rover 3.0L V6, 4.4L V8 Diesel (EDC17CP55)

Reading, writing, checksum correction.

148 $

Module 44

Scania EMS S7/S8

Scania EMS S7 250Kbps (MPC563)
Scania EMS S8 250Kbps (MPC5566) - reading requires direct connection to the ECU
Scania EMS S8/EMD1 500Kbps (MPC5566) - reading requires direct connection to the ECU
Reading, writing, checksum correction

246 $

Module 45

MB Sprinter 906/909 EDC16CP31

Sprinter (906) 2.2L CDI (EDC16CP31-6)
Sprinter Classic (909) 2.2L CDI (EDC16CP31-8)
Dodge Sprinter (906) 3.0L CDI (EDC16CP31-6)
Reading, writing, checksum correction.

86 $

Module 46

Toyota/Lexus/Scion/Hino 2 Generarion

76F0196/198/199/219 CAN-bus
Virtual Reading, Writing, checksum correction.

76F0196/198/199/219 P5-CAN-bus
76F0199 GearBox P5-CAN-bus
Reading, writing, checksum correction.

123 $

Module 47

Mitsubishi Gearbox CAN-bus

CVT Lancer X/ASX 1.8/2.0L, Outlander XL/3 2.0/2.4L (MH8104F/512KB MH8106F/1MB)
AT Pajero Sport (2010-), Lancer X 1.5/1.6L (MH8102F/512KB)
AT Outlander XL 3.0L (MH8104F/512KB)
AT Outlander 3 3.0L (MH8106F/1MB)
TC-SST Getrag 6DCT470
Getrag 6DCT470 Boot (MICRO)
Getrag 6DCT470 Boot (EEPROM)
Reading, writing, checksum correction.

CVT ASX/Outlander 3/Eclipse Cross 1.5T/2.0L/2.4L (MH8115F/1.25MB)
Writing, checksum correction.

123 $

Module 48

VAG ME(D)17 UDS

1.4L, 1.8L TSI (MED17.5/MED17.5.2/MED17.5.5)
1.0L, 1.2L, 1.4L TSI (MED17.5.21/MED17.5.25)
1.0L, 1.6L MPI (ME17.5.20/ME17.5.24/ME17.5.26)
2.0L, 2.5L, 4.0L TSI, 4.2L FSI (MED17.1/MED17.1.1)
1.4L TSI, 3.6L FSI (MED17.1.6/MED17.1.21)
Virtual reading, writing, checksum correction.

VAG ME(D)17 UDS

1.4L, 1.8L TSI (MED17.5/MED17.5.2/MED17.5.5)
1.0L, 1.2L, 1.4L TSI (MED17.5.21/MED17.5.25/MED17.1.27)
1.0L, 1.6L MPI (ME17.5.20/ME17.5.24/ME17.5.26)
1.4L TSI, 2.0L, 2.5L, 4.0L TSI, 4.2L FSI (MED17.1/17.1.1/17.1.10/17.1.61/17.1.62)
1.4L TSI, 3.6L FSI (MED17.1.6/MED17.1.21)
5.2L FSI Master/Salve (MED17.1.1)
Virtual reading, writing, checksum correction.

111 $

Module 49

Toyota/Lexus/Scion/Hino Gen 2 Bootloader

Toyota/Lexus/Scion/Hino Gen 2 Bootloader

76F0196/198/199/219 Bootloader
76F0199 Gearbox Bootloader
76F0196 HV Control Bootloader
Reading, writing, checksum correction

76F0196/198/199/219 Bootloader EEPROM
76F0199 Gearbox Bootloader EEPROM
Reading, writing

Tested with the following adapters Scanmatik 2/Pro/3, Mongoose Pro MFC, Tactrix Openport 2.0. A boot bench cable or Powerbox for PCMflash is required for automatic power and boot pin control.

123 $

Module 50

VAG EDC17CP44, EDC17C46, EDC17C64

2.0L, 3.0L TDI (EDC17CP04/EDC17CP14/EDC17CP20/EDC17CP24)
3.0L TDI (EDC17CP44)
4.2L TDI (EDC17CP24/EDC17CP44)
2.0L TDI (EDC17C46)
2.0L TDI (EDC17C54)
1.6L, 2.0L TDI (EDC17C64)
2.0L TDI (EDC17C74)
3.0L TDI (EDC17CP54)
Virtual reading, writing, checksum correction.

111 $

Module 51

China

Chery/Great Wall/Lifan ME17 (ME17.8.8)
Great Wall MED17 (MED17.8.10)
Geely ME17 (ME17.8.8.1) reading requires direct connection to the ECU
Geely/Great Wall/LuxGen MT80 K-Line
Geely/Great Wall/LuxGen MT80 CAN-bus
Reading, writing, checksum correction.

China
Great Wall/Lifan ME17 (ME17.8.8)
Chery 1.5L/1.6L/2.0L D4G15/E4G16/SQR484 (ME17.8.8)
Chery 2.0L D4G20 (ME17.8.8)
Chery 1.5L/1.5T/2.0T E4G15C/E4T15C/D4T20 (ME17U6)
Chery 1.6T F4J16 (MED17.8.10)
Jetour 1.6T F4J16 (MED17.8.10)
GAC 1.5T/2.0T 4A15M1/4B20M1 (ME17.8.8.1)
GAC 1.5T 4A15J1 (ME17U6/UP6.0)
GAC 1.5T 4A15J1 (MED17.8.10)
Great Wall/Haval MED17 (MED17.8.10) [
Geely ME17 (ME17.8.8.1) - reading requires direct connection to the ECU
Geely 1.8T MED17 (MED17.8.10/TC1728)
Geely 1.5T MED17 (MED17.8.10/TC1782)
MG MED17 (MED17.8.10)
SGMW 1.5L B15 (ME17U6/ECU6.1)
BAIC 2.0T (Delphi MT62.1)
BAIC 2.4T 4K22D4T (Delphi MT62.1U)
BAIC 2.0T (Delphi MT95.1)
BAIC 2.0T PHEV (Delphi MT95.1)
Chevrolet 1.5L Aveo/Sail 3 (ME17.8.8)
Changan 1.5L (Delphi MT62.1)
Changan CS35PLUS 1.6L, Eado 1.5T (Delphi MT92.1)
Changan CS75PLUS 1.5T (Delphi MT92.1E)
Changan 1.5T (Delphi MT95.1/PD06)
Changan 1.5T CAN-FD (Delphi PD05/PD08)
Changfeng 1.5L (Delphi MT22.3)
Changan 1.5T (Delphi MT95.1)
Changfeng 2.0T (Delphi MT62.1)
Chevrolet S10 2.4L (Delphi MT22.3)
Chery 1.5L (Delphi MT22.3)
Chery 1.6L (Delphi MT62.1)
Chery 1.6L E4G16C CNG (Delphi MT62.3)
Chery 1.5T PHEV (Delphi MT62.3)
Chery 1.5T E4T15C PHEV (Delphi MT62.3)
Dayun 2.4T 4K22D4T (Delphi MT62.1U)
Dongfeng 2.0T (Delphi MT92)
Dongfeng/Fengon 2.0L (Delphi MT62/MT62.1)
Dongfeng/Fengon 1.5T (Delphi MT62.3)
Dongfeng/Fengon 1.8L (Delphi MT22.3)
Dongfeng/Fengshen 1.5T (Delphi MT62.1)
Dongfeng/Fengxing 2.0L (Delphi MT62.1)
Dongfeng/Fengxing 1.6T (Delphi MT92.1)
Dongfeng/Fengshen 1.5T (Delphi MT62.1U)
Dongfeng/Fengshen 1.5T (Delphi MT62.3)
Dongfeng/Nazhijie 1.8T (Delphi MT62.1)
Dongfeng/Oting 2.4L (Delphi MT62.1U)
Dongfeng/Oting 1.8T (Delphi MT92.1)
Dongfeng/Oting 2.0T (Delphi MT95.1)
Foton 2.4L (Delphi MT62.1U)
Foton 2.0L (Delphi MT95.1)
GAC 2.0T 4B20J1D (Delphi MT92.1)
GAC 2.0T 4B20J1D (Delphi MT95.1)
Geely/Great Wall/LuxGen MT80 K-Line
Geely/Great Wall/LuxGen MT80 CAN-bus
Great Wall 2.4L (Delphi MT62.1U)
Great Wall/Haval 1.5T, 2.0T (Delphi MT92/MT92.1)
Huanghai 2.4T (Delphi MT62.1)
Isuzu 2.0T 4K21D4T (Delphi MT62.1G)
JAC 1.6L (Delphi MT22.3)
JAC 1.5T (Delphi MT62.1)
JAC 1.5T (Delphi MT92.1E)
Jinbei 2.0L 1TZS (Delphi MT62.1)
Jinbei 1.6L SWDC16M (Delphi MT62.1U)
Joylong 2.0L (Delphi MT62.1G)
Junma/Traum 1.5T SFG15T (Delphi MT62.1)
Lifan 1.8L (Delphi MT22.3)
Lixiang 1.5T (Delphi MT92.1E) [Test]
Nanjun 1.5L DK15C (Delphi MT62.1)
SAIC 2.4L 4G69S4N (Delphi MT22.3)
SAIC 2.0L 1TZH (Delphi MT62.3)
SGMW 1.5T 280T (Delphi MT92.1)
Sharmax (Delphi MT62.3) [Test]
Southeast 1.5L (Delphi MT22.3)
Southeast 1.5T (Delphi MT62.1)
Zotye 2.0T (Delphi MT62.1)

Reading, writing, checksum correction.

Great Wall/Tank 3.0T Master/Slave (Delphi MT95.1)

Reading, writing.

148 $

Module 52

Kia/Hyundai Delphi MT38/86

2.7L, 3.3L, 3.8L (MT38/CAN)
Writing, checksum correction.

2.7L, 3.3L (MT38/K-Line)
2.7L, 3.3L, 3.8L (MT38/BSL)
3.3L, 3.8L, 5.0L (MT86)
Reading, writing, checksum correction.

Kia/Hyundai Delphi MT38/86

2.7L, 3.3L, 3.8L (MT38/CAN)
Writing, checksum correction.

2.7L, 3.3L (MT38/K-Line)
2.7L, 3.3L, 3.8L (MT38/BSL)
3.0L, 3.3L, 3.8L, 5.0L (MT86)

Reading, writing, checksum correction.

86 $

Module 53

Infineon Tricore BSL

TC1762/TC1766 MICRO (1504KB)
TC1762/TC1766 EEPROM (32KB)
TC1792/TC1796 MICRO (2048KB)
TC1796 MICRO+EXT (4096KB/6144KB)
TC1796 EXT (2048KB/4096KB)
TC1792 EEPROM (64KB)
TC1796 EEPROM (128KB)
TC1738/TC1767 MICRO (2048KB)
TC1738/TC1767 EEPROM (64KB)
TC1797 MICRO (4096KB)
TC1797 EEPROM (64KB)
TC1797 MICRO+EXT (6144KB/8192KB)
TC1797 EXT (2048KB/4096KB)
TC1724/TC1728 MICRO (1536KB)
TC1724/TC1728 EEPROM (64KB)
TC1782/TC1784 MICRO (2560KB)
TC1782/TC1784 EEPROM (128KB)
TC1791/TC1793 MICRO (4096KB)
TC1791/TC1793 EEPROM (192KB)
TC1791/TC1793 MICRO+EXT (6144KB/8192KB)
TC1791/TC1793 EXT (2048KB/4096KB)
Delphi MT86 EEPROM (16KB)
Delphi CRD3.1 EEPROM (32KB)

Bosch, Siemens/Continental, Delphi ECUs, etc. Reading, writing, checksum correction for most ECUs.

Possible password reading for SIM2K-24x, Ford EMS22XX, Ford SID20X, Bosch, Bosch GPT, etc.

Infineon Tricore BSL

TC1762/TC1766 MICRO (1504KB)
TC1762/TC1766 EEPROM (32KB)
TC1792/TC1796 MICRO (2048KB)
TC1796 MICRO+EXT (4096KB/6144KB)
TC1796 EXT (2048KB/4096KB)
TC1792 EEPROM (64KB)
TC1796 EEPROM (128KB)
TC1736 MICRO (1024KB)
TC1736 EEPROM (32KB)
TC1738/TC1767 MICRO (2048KB)
TC1738/TC1767 EEPROM (64KB)
TC1797 MICRO (4096KB)
TC1797 EEPROM (64KB)
TC1797 MICRO+EXT (6144KB/8192KB)
TC1797 EXT (2048KB/4096KB)
TC1724/TC1728 MICRO (1536KB)
TC1724/TC1728 EEPROM (64KB)
TC1782/TC1784 MICRO (2560KB)
TC1782/TC1784 EEPROM (128KB)
TC1791/TC1793 MICRO (4096KB)
TC1791/TC1793 EEPROM (192KB)
TC1791/TC1793 MICRO+EXT (6144KB/8192KB)
TC1791/TC1793 EXT (2048KB/4096KB)
Delphi MT86 EEPROM (16KB)
Delphi CRD3.1 EEPROM (32KB)
EDC17C06 EEPROM (8KB)
EDC17CV41 EEPROM (32KB)

Bosch, Siemens/Continental, Delphi ECUs, etc. Reading, writing, checksum correction for most ECUs.

Possible password reading for SIM2K-24x, Ford EMS22XX, Ford SID20X, Bosch, Bosch GPT, SID807EVO (Volvo), etc.

221 $

Module 54

Delphi DCM3.7/AP (SH72513/72543/72544)

Kia/Hyundai 2.5L CRDI (DCM3.7AP)
Opel/Chevrolet 2.0L, 2.2L CDTI (DCM3.7)
SsangYong 2.0L XDI (DCM3.7AP)
VAG 1.2L TDI (DCM3.7)
Great Wall/Haval 2.0L TD (DCM3.7)
Reading, writing, checksum correction.

Reading, writing, checksum correction.

123 $

Module 55

Kia/Hyundai Kefico/Denso

Kia/Hyundai 2.5L CRDI (SH72546)
Reading, writing, checksum correction.

Kia/Hyundai Kefico/Denso

Kia/Hyundai 2.5L CRDI (SH72546)
Hyundai Euro 5 (Denso SH7058S)
Hyundai Euro 6 (Denso SH72543/SH72546)
Reading, writing, checksum correction.

86 $

Module 56

Ford SID807EVO/EDC17C10/EDC17C70

Ford Focus 3: 1.6L DV6C (SID807EVO)
Ford Mondeo 4: 1.6L DV6C (SID807EVO)
Reading, writing after unlocking via OBD, checksum correction.

Ford Focus 3: 1.6L ECOnetic 105PS 2012+ (EDC17C10)
Ford Fiesta: 1.4L, 1.6L DV4/DV6 75/95PS 2010-2011 (EDC17C10)
Ford Fiesta: 1.5L, 1.6L DV5/DV6 70/75/95PS 2012+ (EDC17C10)
Ford Focus 3: 1.5L DV5F 90/105/120PS (EDC17C70)
Ford Fiesta: 1.5L DV5F 90/105/120PS (EDC17C70)
Reading, writing, checksum correction.

86 $

Module 57

SIMOS 8/10/11/12/PCR2.1

2.8L V6 FSI (SIMOS8.1)
3.2L V6 FSI (SIMOS8.2)
Reading, writing, checksum correction.

3.0L V6 TFSI (SIMOS8.3)
3.0L V6 TFSI (SIMOS8.4)
3.0L V6 TFSI (SIMOS8.5)
Virtual reading, writing, checksum correction.

2.8L V6 FSI (SIMOS8.6)
Reading, writing, checksum correction (map area reading/writing after unlocking in BSL!)

SIMOS8.6 (EEPROM/UNLOCK/BSL)
Reading, writing (EEPROM reading/writing, ECU unlocking)

1.2L TSI (SIMOS10)
1.2L MPI (SIMOS11)
1.8L TSI (SIMOS12.1/SIMOS12.2)
2.0L TSI (SIMOS12.1/SIMOS12.2) й
Virtual reading, reading, writing, checksum correction.

1.6L TDI (PCR2.1)
Reading, writing, checksum correction (map area reading/writing after unlocking in BSL!)

PCR2.1 (EEPROM/UNLOCK/BSL)
Reading, writing (EEPROM reading/writing, ECU unlocking).

SIMOS 8/10/11/12/PCR2.1

2.8L V6 FSI (SIMOS8.1)
3.2L V6 FSI (SIMOS8.2)
PCR2.1 Bootloader (FLASH)
SIMOS8.3/8.4/8.5/8.6 Bootloader (FLASH)
SIMOS12.1/12.2 Bootloader (FLASH)
Reading, writing, checksum correction.

3.0L V6 TFSI (SIMOS8.3)
3.0L V6 TFSI (SIMOS8.4)
3.0L V6 TFSI (SIMOS8.5)
1.8L, 2.0L TSI (SIMOS12.1/SIMOS12.2)
Virtual reading, writing, checksum correction.

2.8L V6 FSI (SIMOS8.6)
Reading, writing, checksum correction (map area reading/writing after unlocking in BSL!)

SIMOS8.6 (EEPROM/UNLOCK/BSL)
Reading, writing (EEPROM reading/writing, ECU unlocking)

1.2L TSI (SIMOS10)
1.2L MPI (SIMOS11)
Virtual reading, reading, writing, checksum correction.

1.6L TDI (PCR2.1)
Reading, writing, checksum correction (map area reading/writing after unlocking in BSL!)

PCR2.1 (EEPROM/UNLOCK/BSL)
PCR2.1 Bootloader (EEPROM/UNLOCK)
SIMOS8.3/8.4/8.6 Bootloader (EEPROM/UNLOCK)
EEPROM reading/writing, ECU unlocking.

SIMOS12.1/12.2 Bootloader (EEPROM)
Reading, writing

148 $

Module 58

Temic TCU

DQ200 (0AM)
DQ250E/F (02E)
VL300/V30 (01J/0AN)
VL381/DL382 (0AW/0CK)
DL501/G2 (0B5)
Virtual reading, writing, checksum correction.

DQ200MQB/G2 (0CW)
DQ250C (02E)
DQ250MQB (0D9)
Virtual reading, reading, writing, checksum correction.

DQ400 (0DD)
DQ500 (0BH/0BT)
DQ200/MQB/G2/DQ400 Boot (MICRO)
DQ250E/F/MQB Boot (MICRO)
DQ500 0BH/0BT Bootloader (FLASH)
VL300/V30 BSL (FLASH)
VL300/V30 BSL (EEPROM)
VL381 Boot (MICRO)
DL501/G2 Boot (MICRO)
DL382 Boot (MICRO)
Honda UDCT Boot (Continental TC1782/MICRO)
Haval 7DCT450 Bootloader (EAST80.D1 TC265/MICRO)
Hyundai TAD701/TAD801 D7UF1-2/D7F34-2/D8LF1 Bootloader (TC275/MICRO)
Reading, writing, checksum correction.

DQ200/MQB/G2/DQ400 Boot (EEPROM)
DQ250E/F/MQB Boot (EEPROM)
DQ500 0BH/0BT Bootloader (EEPROM)
VL381 Boot (EEPROM)
DL501/G2 Boot (EEPROM)
DL382 Boot (EEPROM)
Honda UDCT Boot (Continental TC1782/EEPROM)
DKG436G2 Boot (MICRO)
DKG436G2 Boot (EEPROM)
EDC DC0/DC4 Gen2 (DKG250 Gen2) Boot (TC1784/MICRO)
EDC DC0/DC4 Gen2 (DKG250 Gen2) Boot (TC1784/EEPROM)
VGS-FDCT Boot (TC1766/MICRO)
VGS-FDCT Boot (EEPROM)
VGS2-FDCT Boot (TC1784/MICRO)
VGS2-FDCT Boot (TC1784/EEPROM)
Haval 7DCT450 Bootloader (EAST80.D1 TC265/EEPROM)
Hyundai TAD701/TAD801 D7UF1-2/D7F34-2/D8LF1 Bootloader (TC275/EEPROM)
Reading, writing.

246 $

Module 59

Renault/Nissan UDS

1.2T EMS3155 UDS (TC1782/2.5MB)
1.5L dCi SID309 UDS (TC1767/2MB)
1.5L, 2.3L dCi SID310 UDS (TC1791/3MB)
Reading, writing, checksum correction.

Renault/Nissan UDS

1.2T EMS3155 UDS (TC1782/2.5MB)
1.5L dCi SID309 UDS (TC1767/2MB)
1.5L, 2.3L dCi SID310 UDS (TC1791/3MB)
1.6L dCi EDC17C84 UDS (TC1782/2.5MB)
1.8T, 2.0T Hitachi UDS (RH850/4MB)
0.66L, 1.6L Hitachi UDS (R7F701205/2MB)
1.2L Hitachi BEM548 UDS (R7F701216/4MB)
1.5T Delphi MT92.1E UDS (TC265/2.5MB)
BED511 [TEST]
Reading, writing, checksum correction.

1.6L dCi EDC17C84 UDS (Injectors)
Reading, writing.

123 $

Module 60

Citroen/Peugeot (PSA) SID208

Citroen/Peugeot 2.2L HDi (SID208)
Reading, writing, checksum correction (reading/writing after unlocking in BSL!)

Citroen/Peugeot 2.2L HDi (SID208/BSL)
Reading, unlock.

Citroen/Peugeot 2.2L HDi (DCU 102)
Reading, writing, checksum correction (dorect connection is required for reading)

Citroen/Peugeot (PSA) SID208

Citroen/Peugeot 2.2L HDi (SID208)
Reading, writing, checksum correction (reading/writing after unlocking in BSL!)

Citroen/Peugeot 2.2L HDi (SID208/BSL)
Reading, unlock.

Citroen/Peugeot 2.2L HDi (DCU 102)
Reading, writing, checksum correction (direct connection is required for reading)

86 $

Module 61

Kia/Hyundai CPGDSH/CPEGD

1.6L (CPGDSH2.24.1/CPEGD2.20.1/UDS
Reading, writing, checksum correction.

Kia/Hyundai CPGDSH/CPEGD

1.6L (CPGDSH2.24.1/CPEGD2.20.1/UDS)
1.6L (CPEGD3.20.1/CPEGP3.20.2/CPGPSH3.24.1/UDS)
1.5L, 1.6L (CPGPSH3.26.1/UDS)
Reading, writing, checksum correction.

1.4T, 1.6L (CPEGD2.20.3/CPEGD2.20.4/UDS)
1.0L, 1.2L (CPEGP2.10.1/CPGPSH2.14.1/UDS)
Reading, writing, checksum correction, unlocking.

1.2L, 1.6L, 1.5T, 1.6T EEPROM (CPEGD3.20.1/CPEGP3.20.2/CPGPSH3.24.1/CPGPSH3.26.2/UDS)
1.5L, 1.6L EEPROM (CPGPSH3.26.1/UDS)
Reading, writing

123 $

Module 62

Ford/Getrag 6DCT450

PowerShift TCM (6DCT450)
PowerShift 6DCT450 Boot (MICRO)
PowerShift 6DCT450 Boot (EEPROM)
Reading, writing.

Ford/Getrag 6DCT450

PowerShift TCM (6DCT450)
PowerShift 6DCT450 Boot (MICRO)
PowerShift 6DCT450 Boot (EEPROM)
PowerShift 6DCT451 [XPS6 Gen3] Boot (MICRO)
PowerShift 6DCT451 [XPS6 Gen3] Boot (EEPROM)
Reading, writing.

PowerShift 6DCT451 TCM GGDS
Reading, writing, checksum correction.

123 $

Module 63

Renault DC4

EDC DC4 Gearbox (TC1766/1506KB)
Reading, writing, checksum correction.

EDC DC0/DC4 Gen2 (DKG250 Gen2) (TC1784/2560KB)
Reading, writing

61 $

Module 64

Mitsubishi Fuso Canter

Fuso Canter (EDC7C4-6/EDC16C31)
Fuso Canter Euro 5 CAN-bus (EDC17CP15)
Fuso Canter Euro 5 CAN-bus (EDC17CP52)
Reading, writing, checksum correction.

123 $

Module 65

VAG MED17/EDC17 CAN TP2.0/K-Line

EDC17U01/U05/CP04/CP14 K-Line
ME17/MED17/EDC17 CAN TP2.0
EDC17CP20 VW Crafter 2.5L TDI
Virtual reading, writing, checksum correction.

VAG MED17/EDC17 CAN TP2.0/K-Line

EDC17U01/U05/CP04/CP14 K-Line
ME17/MED17/EDC17 CAN TP2.0
Virtual reading, writing, checksum correction.

111 $

Module 66

Honda Bosch

PGM-FI (Bosch EDC17CP06/EDC17CP16/2MB)
Writing, checksum correction.

PGM-FI (Bosch MED17.9.3/4MB)
PGM-FI (Bosch EDC17C58/4MB)
Writing after unlocking with Module 53 or 71, checksum correction.

Honda Bosch

PGM-FI (Bosch EDC17CP06/EDC17CP16/2MB)
Writing, checksum correction.

PGM-FI (Bosch EDC17CP50/4MB) [Unlocked]
PGM-FI (Bosch EDC17C58/4MB) [Unlocked]
PGM-FI (Bosch EDC17C72/2.5MB) [Unlocked]
PGM-FI (Bosch MED17.9.3/4MB) [Unlocked]
PGM-FI (Bosch ME17.9.55/1.5MB) [Unlocked]
Writing after unlocking with Module 53 or 71, checksum correction.

86 $

Module 67

Nissan Bosch

EFI ME7.9.20 Calibration (Bosch ST10F275 EXT/512KB)
Writing, checksum correction.

61 $

Module 68

JLR Denso

Freelander 2 (L359) 3.2L V6 233PS (Denso)
Jaguar XF/XJ/XK (X250/X350/X351/X150) 3.0L V6, 3.5L V8, 4.2L V8/SC (Denso)
Range Rover/Sport/Discovery 3 4.0L V6, 4.4L V8, 4.2L V8/SC (Denso)
Range Rover (L320/L322/L319), Jaguar (X150/X250/X351) 5.0L V8/SC (Denso)

Reading, writing, checksum correction.

JLR Denso

Volvo XC90 29bit 2006-2010 3.2L (Denso) [Test]
Volvo XC90 29bit 2006-2010 4.4L (Denso) [Test]

Reading, writing, checksum correction.

111 $

Module 69

Mercedes-Benz MED17/EDC17

Mercedes-Benz MED17/EDC17

MED17.7.1/17.7.2/17.7.3/17.7.3.1/17.7.5
Virtual reading, writing, checksum correction.

MED17.7.1/17.7.2/17.7.3/17.7.3.1
Aston Martin M177 (MED17.7.5)
Writing, checksum correction.

EDC17CP01/CP10 (only ECUs with extrenal FLASH memory)
EDC17C43/CP46/CP57/CP60/C66

Reading, writing, checksum correction.

M156/M272/M273 (ME9.7)
Calibration reading, writing, checksum correction.

148 $

Module 70

Jeep EDC17

2.8L CRDI (EDC17CP27)
3.0L CRDI (EDC17C49/C79) reading may require direct connection to the ECU

Reading, writing, checksum correction.

86 $

Module 71

Bosch MEDC17 Bootloader

MEDC17 (TC1762/1766/1792/1796)
MEDC17 (TC1724/1728/1767/1782/1784/1797)
MEDC17 (TC1791/1793) FLASH
Reading, writing, checksum correction.

MEDC17 (TC1762/1766/1792/1796) EEPROM
MEDC17 (TC1724/1728/1767/1782/1784/1797) EEPROM
MEDC17 (TC1791/1793) EEPROM
Reading, writing.

MEDC17 BSL PASSWORD
Reading.

Bosch MEDC17 Bootloader
(direct connection to the ECU connector, Scanmatik 2 Pro or Scanmatik 3, a connection cable and a power supply are required)

MEDC17 (TC1762/1766/1792/1796) FLASH
MEDC17 (TC1724/1728/1767/1782/1784/1797) FLASH
MEDC17 (TC1791/1793) FLASH
Reading, writing, checksum correction.

MEDC17 (TC1762/1766/1792/1796) EEPROM
MEDC17 (TC1724/1728/1767/1782/1784/1797) EEPROM
MEDC17 (TC1791/1793) EEPROM
EDC17C06 EEPROM (8KB)
EDC17CV41 EEPROM (32KB)
MEV17.2 EXT EEPROM (8KB)

Reading, writing.

MEDC17 BSL PASSWORD
Reading.

221 $

Module 72

Mazda Gen 4

1.5L, 2.0L, 2.5L SKYACTIV-G P5/PA/PE/PY MY2019 (Mitsubishi) [PYFA]
1.5L, 2.0L, 2.5L SKYACTIV-G P5/PA/PE/PY MY2019 (Denso) [PYFB]
Reading, writing, checksum correction.

Mazda Gen 4

1.5L, 2.0L, 2.5L SKYACTIV-G P5/PA/PE/PY MY2019 (Mitsubishi) [PYFA]
1.5L, 2.0L, 2.5L SKYACTIV-G P5/PA/PE/PY MY2019 (Denso) [PYFB]
1.8L, 2.2L SKYACTIV-D S8/SH MY2019 (Denso) [S801/SH9V]
Reading, writing, checksum correction.

86 $

Module 73

Ford MG1

Ford MG1

Ford F-150: 3.5L Ecoboost V6 (MG1CS015) [HL3A]
Ford Fiesta 8: 1.5L Ecoboost MT (MG1CS016) [JX6A]
Ford Focus 4: 1.0L, 1.5L Ecoboost MT (MG1CS016) [JX6A]
Ford Focus 4: 1.5L Ecoboost AT (MG1CS017) [JX6A]
Ford Mustang 6: 2.3L Ecoboost (MG1CS017) [JR3A]
Ford Edge: 2.7L Ecoboost (MG1CS018) [K2GA]
Ford F-150: 2.7L Ecoboost (MG1CS018) [JL3A]
Ford Mustang 6: 5.0L Coyote V8 (MG1CS019) [JR3A]
Ford F350: 6.2L, 7.3L Boss V8 (MG1CS019) [LC3A]
Reading, writing, checksum correction

123 $

Module 74

Toyota/Lexus Gen 3

R7F701202/R7F701216 P5-UDS
LC300/LX500d 3.3TD P5-UDS (F33A-FTV/R7F701216)
LC300/LX500d 3.3TD MCU #2 P5-UDS (F33A-FTV/R7F701216)
LC150/Hiace/Hilux/Revo/Fortuner 2.4TD, 2.8TD P5-UDS (1GD-FTV/2GD-FTV/R7F701216)
LC150/Hiace/Hilux/Revo/Fortuner 2.4TD, 2.8TD 6AT Gearbox P5-UDS (AC60F/R7F701201)
Camry/ES/Rav4/UX 2.0L, 2.5L P5-UDS (M20A-FKS/A25A-FKS/R7F701202)
Camry/ES/Rav4 2.5L 8AT Gearbox P5-UDS (UB80/R7F701201)
Camry/ES/Rav4 2.5L HV P5-UDS (A25A-FXS/R7F701202) [Test]
Corolla 2.0L P5-UDS (M20A-FKS/R7F701202) [Test]
Highlander/Siena 2.5L HV P5-UDS (A25A-FXS/R7F701216) [Test]
Yaris GR 1.6T P5-UDS (G16E-GTS/R7F701216) [Test] [RD/WR/CK]
Reading, writing, checksum correction

Toyota/Lexus Gen 3

R7F701202/R7F701216 P5-UDS
LC300/LX500d 3.3TD P5-UDS (F33A-FTV/R7F701216)
LC300/LX500d 3.3TD MCU #2 P5-UDS (F33A-FTV/R7F701216)
LC150/Hiace/Hilux/Revo/Fortuner 2.4TD, 2.8TD P5-UDS (1GD-FTV/2GD-FTV/R7F701216)
LC150/Hiace/Hilux/Revo/Fortuner 2.4TD, 2.8TD 6AT Gearbox P5-UDS (AC60F/R7F701201)
Camry/ES/Rav4/UX 2.0L, 2.5L P5-UDS (M20A-FKS/A25A-FKS/R7F701202)
Camry/ES/Rav4 2.5L 8AT Gearbox P5-UDS (UB80/R7F701201)
Camry/ES/Rav4 2.5L HV P5-UDS (A25A-FXS/R7F701202) [Test]
Corolla 2.0L P5-UDS (M20A-FKS/R7F701202)
Highlander/Siena 2.5L HV P5-UDS (A25A-FXS/R7F701216) [Test]
NX250 2.5L P5-UDS (A25A-FKS/R7F701216)
Yaris GR 1.6T P5-UDS (G16E-GTS/R7F701216) [Test]
LC7x 2.8TD P5-UDS (1GD-FTV/2GD-FTV/R7F701216)
LC7x 2.8TD MCU #2 P5-UDS (1GD-FTV/R7F701201

Reading, writing, checksum correction.

123 $

Module 75

Ford Power Stroke

Ford Truck: 6.7L Power Stroke V8 (EDC17CP05) [BC3A]
Ford Truck: 6.7L Power Stroke V8 (EDC17CP05) [FC3A]
Ford Truck: 6.7L Power Stroke V8 (EDC17CP65) [HC3A]
Reading, writing, checksum correctionn

Ford Power Stroke

Ford Truck: 6.7L Power Stroke V8 (EDC17CP05) [BC3A]
Ford Truck: 6.7L Power Stroke V8 (EDC17CP05) [DC3A/FC3A]
Ford Truck: 6.7L Power Stroke V8 (EDC17CP65) [HC3A]
Ford Truck: 3.0L Power Stroke V6 (EDC17CP65) [JL3A]
Reading, writing, checksum correction

123 $

Module 76

Kia/Hyundai Gearbox

Kia/Hyundai: MG7.9.8/MEG17.9.12 Gearbox (ST10F275/TCU)
Reading, writing

Kia/Hyundai: TC14 Gearbox (MPC562/TCU)
Kia/Hyundai: TC60/TC80/ME(D)G17.9.8/13 Gearbox (SH72549/TCU)
Kia/Hyundai: SIM2K-24x/341 Gearbox (TC1766/TCU)
Kia/Hyundai: SIM2K-24x Gearbox (TC1738/TCU)
Kia/Hyundai: SIM2K-341 Gearbox (TC1738/TCU)
Reading, writing, checksum correction

Reading, writing, checksum correction

Kia/Hyundai: MEG17.9.21 Gearbox (SH72549/TCU)
Writing, checksum correction. Reading can be done with Module 82

86 $

Module 77

Bosch ME9/MED9/EDC7/EDC16/PSG16/TCU Bootloader

(direct connection to the ECU, Scanmatik 2 Pro/Scanmatik 3, a connection cable OR a quality J2534 device + Powerbox for PCMflash are required)

ME9/MED9/EDC7/EDC16/PSG16/TCU (MPC556/MPC562/MPC564)
ME9/MED9/EDC7/EDC16/PSG16/TCU MICRO (MPC556/MPC564)
ME9/MED9/EDC7/EDC16/PSG16/TCU EXT (MPC556/MPC562/MPC564)
MED9.6.1 (Ferrari)
Reading, writing, checksum correction;

ME9/MED9/EDC7/EDC16/PSG16/TCU EEPROM (MPC556/MPC562/MPC564)
Reading, writing.

221 $

Module 78

Subaru Gearbox

Subaru Gearbox

Melco CVT CAN-bus (1N83M/1552KB MH8111/1536KB MH5006/1024KB MH8104/512KB)
Reading, writing, checksum correction

86 $

Module 79

direct connection to the ECU is required

Mitsubishi CAN-bus Bootloader
direct connection to the ECU is required

CAN-bus Bootloader FLASH (MH8114F/MH8115F/MH8501F)
CAN-bus Bootloader FLASH (MH8601F/MH8610F/MH8611F/1N83M)
Reading, writing, checksum correction.

111 $

Module 80

Denso SH725XX/1N83M Bootloader
direct connection to the ECU is required

Denso SH725XX/1N83M Bootloader
direct connection to the ECU is required

SH725xx FLASH
1N83M FLASH
Reading, writing, checksum correction

SH725xx EEPROM
1N83M EEPROM
Reading, writing

147 $

Module 81

JLR Gearbox

JLR Gearbox

ZF 6HP26/6HP28 TCM (MPC5xx/TC1766)
ZF 8HP70 TCM (SH725xx)
ZF 8HP45/8HP70 TCM (TC2xx)
ZF 9HP48 TCM (TC1782)
ZF 6HP28 Continental TCM (TC1766) [AH42-Ax]
AWF21 Freelander 2/Evoque TCM [Test]
AWF21 Ford Mondeo 4 TCM
Reading, writing, checksum correction.

ZF 9HP48 TCM EEPROM (TC1782)
ZF 6HP28 Continental TCM (TC1766) EEPROM [AH42-Ax]
Reading, writing.

111 $

Module 82

Bosch SH725XX TCU Bootloader

Bosch SH725XX TCU Bootloader
Direct conneсtion to the ECU is required! Working with Tactrix OpenPort 2.0 is not supported! Working with Scanmatik 2/PRO/Scanmatik 3, Dialink, Chipsoft, Mongoose, CarDAQ has been checked.

Bosch SH725xx TCU (FLASH)
Flash Reading, Writing, Checksum corrections

Bosch SH725xx TCU (EEPROM)
EEPROM Reading, Writing.

ECUs manufactures after the second half of 2021 may not be supported.

123 $

Module 83

VAG Bosch DQ380/DQ381/DQ500/ZF 8HP

DQ380/381/500 (0DE/0DL/0GC)
AL552/AL952 (0D5/0D6)
AL1000/AQ250/AQ450 (0C8/09G) UDS
Virtual reading, writing, checksum correction.

AL420/AL600 (09L/09E) K-Line
AL420/AL600 (09L/09E) CAN TP2.0
AL450/AL551/AL951 (0CM/0BK/0BL)
Virtual reading, reading, writing, checksum correction.

AL600/AL750/AQ250 (09D/09G) K-Line [Test] [RD/WR/CK]
AL750/AQ250 (09D/09G) CAN TP2.0 [Test] [RD/WR/CK]
Reading, writing, checksum correction.

122 $

Module 84

VAG Delphi DCM6.2

1.4L, 1.6L, 2.0L TDI (DCM6.2)
Virtual reading, reading, writing, checksum corrections

123 $

Module 85

Ford Gearbox

6HP26 TCM
6HP26 TCM
5R110 TCM (BlackOak/448KB)
5R110 TCM (GreenOak/512KB)
5R110 TCM (SilverOak/2MB)
6R80/6R140 TCM [BC3A]
6F55/8F40/10R80/10R140 TCM [HC3A/HL3A/JL3A/JX6A/LC4A]
8F40/10R80/10R140 TCM [K1GA/K2GA/LC3A/LK4A]
Reading, writing, checksum corrections

111 $

Module 86

China Gearbox

China Gearbox

Changan Alsvin 5DCT (EAST80.51/SPC563M)
Chery CVT19 (EAST80.11/MPC5534)
Chery CVT18/CVT25 (EAST80.13/SPC563M)
Chery/Exeed VX 8AT 2023MY (Aisin 845AHA)
Virtual reading, writing, checksum correction.

Changan DF733 (ATDG-81-9.4)
Changan DF727 (EAST80.51/C1/SPC563M)
Geely DSI 6AT
FAW DCT270 (ATDG-81-9.4) [Test]
GAC 7WDCT (ATDG-81-9.4)
Haval/Tank 9AT/9HAT (HYCET)
Huanghai A8R50 (ATDG-81-9.4)
Reading, writing, checksum correction.

Changan Alsvin 5DCT Bootloader (EAST80.51/SPC563M)
Chery CVT25 Bootloader (EAST80.13/SPC563M)
Changan DF727 Bootloader (EAST80.51/C1/SPC563M)
Reading, checksum correction.

BAW A8R50 (ATDG-81-9.4)
Geely Coolray 7DCT330
Chery/Exeed/Jetour 7DCT380 (ATDG-81-9.7)
FAW DCT270/DCT300 (ATDG-81-9.4)
Haval 7DCT450 (EAST80.D1)
Haval 7DCT300 (HYCET)
JAC A8R50 (ATDG-81-9.4)
JAC DF733 (ATDG-81-9.4)
Jetour DF727 (ATDG-81-9.4)
Virtual reading, reading, writing, checksum correction.

SWM 7DCT (TCU-C6)
Reading, writing, no checksums

148 $

Module 87

Citroen/Peugeot Delphi DCM6.2/DCM7.1B

Citroen/Peugeot Delphi DCM6.2/DCM7.1B

Citroen/Peugeot 2.0L HDi (DCM6.2A)
Citroen/Peugeot 2.0L HDi (DCM6.2C)
Citroen/Peugeot 2.0L HDi (DCM7.1B)

Reading, writing, checksum correction.

Citroen/Peugeot 2.0L HDi EEPROM (DCM7.1B)

Reading, writing.

111 $

Module 88

Ford AdBlue

AdBlue REDCM (DCU17PC43) [KV6A]
Reading, writing, checksum correction.

Ford AdBlue

AdBlue REDCM (DCU17PC01) [CK41]
AdBlue REDCM (DCU17PC43) [KV6A]
Reading, writing, checksum correction.

61 $

Module 89

China MG1/Denso

China MG1/Denso

BAIC 1.5L A151A1 (MG1UA008)
Changan 1.5T (UP8/MG1UA008)
Changan 1.4T, 1.5T, 2.0T (UD8/MG1US008)
Chery/Exeed 2.0T F4J20 (MG1US008)
DongFeng 1.5T (UP8/MG1US008)
Dongfeng/Voyah C15TDR/C15TE2/C15TP1 1.5T (MG1US008)
FAW 1.5T, 2.0T (UD8/MG1US008)
F-150 2.3L Ecoboost China (MG1US008) [P3N9]
Ranger 2.3L Ecoboost China (MG1US008) [P3N9]
Geely 1.5L (MG1UA008)
Geely/Livan 1.5T (MG1US708) [Test]
Great Wall/Haval 1.5T, 2.0T (MG1US008)
Haval Jolion 1.5T (MG1UA008)
JAC T9 2.0T (UD8/MG1US008)
JAC J7 1.5T (UP8/MG1UA008)
SGMW 1.5L/1.5T N15A/N15T (MG1UA008)
SWM 1.5T (MG1UA008)
Reading, writing, checksum correction.

Geely 2.0T (Denso/0N50N)
Virtual reading, writing, checksum correction.

111 $

Module 90

China DCM6.2AP/DCM7.1AP/DCM7.24

China DCM6.2AP/DCM7.1AP/DCM7.24

BAIC 2.0L TD (DCM6.2AP)
Changan 2.0L TD (DCM7.1AP)
Dongfeng 2.3L TD (DCM7.1AP)
Dongfeng/Yuchai 2.4L TD (DCM7.1AP)
Great Wall/Haval 2.0L TD (DCM6.2AP)
Great Wall/Haval 2.0L TD (DCM7.1AP)
JAC 2.0L TD (DCM6.2AP)
Jiangling/Isuzu 2.8L TD (DCM7.1AP)
Qingling/Isuzu 3.0L TD (DCM6.2AP)
Qingling/Isuzu 3.0L TD (DCM7.1AP)
SsangYong: 2.2L XDI (DCM6.2AP/6D/S2)
Trucks (DCM6.24) [Test]
Foton/Vanche/Yuchai 2.4L TD (DCM7.24)
Foton/Yuchai 4.2L, 4.3L TD (DCM7.24)
JCB 4.4L TD (DCM2.7AP)
JCB 4.4L, 4.8L TD (DCM7.24)
Reading, writing, checksum correction.

BAIC 2.0L TD EEPROM (DCM6.2AP)
Great Wall/Haval 2.0L TD EEPROM (DCM7.1AP)
JAC 2.0L TD EEPROM (DCM6.2AP)
Foton/Vanche/Yuchai 2.4L TD EEPROM (DCM7.24)
Foton/Yuchai 4.2L, 4.3L TD EEPROM (DCM7.24) [Test]
JCB 4.4L, 4.8L TD EEPROM (DCM7.24)
SsangYong: 2.2L XDI (DCM6.2AP/6D) EEPROM [Test]
JCB 4.4L TD EEPROM (DCM2.7AP) [Test]
Reading, writing.

148 $

Module 91

Mercedes Benz CRD3/CRD3P

Mercedes Benz CRD3/CRD3P

Mercedes-Benz CRD3/CRD3P FLASH
Reading, writing, checksum correction.

Mercedes-Benz CRD3/CRD3P EEPROM
Reading, writing.

86 $

Module 92

Bosch MD1/MG1 Bootloader

Bosch MD1/MG1 Bootloader

MD1/MG1 FLASH (SPC572L/SPC574K/SPC5777M/SPC58/TC275TP/TC277TP/TC298TP/TC299TP/TC387QP/TC399XP)]
MG1UA008/MG1US008 FLASH (SPC574K/TC277TP)
MG1UA008/MG1US008 EEPROM (SPC574K/TC277TP)
Reading, writing, checksum correction.

MD1/MG1 EEPROM (SPC572L/SPC574K/SPC5777M/SPC58/TC275TP/TC277TP/TC298TP/TC299TP/TC387QP/TC399XP)
Reading, writing.

PDCU8.0 (TC389QP)

Note: Scanmatik 2 PRO/3 or Dialink (partial support) is required. Work is only possible with ECUs with the old protection system (the implementation of the new one began in mid-2020).

245 $

Module 93

India DCM2.5(P)/DCM2.7/DCM7.1AP

India DCM2.5(P)/DCM2.7/DCM7.1AP

Ashok Leyland TD (DCM2.5)
Ashok Leyland 1.5L TD (DCM7.1AP)
Ashok Leyland LCV TD (DCM7.1AP)
Eicher E366/E474 2.0L, 3.0L TD (DCM7.1AP)
Force 2.6L TD (DCM2.7AP)
Force 2.6L TD EEPROM (DCM2.7AP)
Force Motors 2.6L TD (DCM7.1AP)
Kia/Hyundai 1.6L TD (DCM7.1AP)
Mahindra TD (DCM2.5)
Mahindra 1.6L TD (DCM2.7AP)
Mahindra 1.5L TD (DCM7.1AP)
Tata TD (DCM2.5/DCM2.5P)
Tata 1.5L TD (DCM7.1AP)
Tata LCV TD (DCM7.1AP)
Tata Truck TD (DCM7.24)
Reading, writing, checksum correction.

Mahindra 1.6L TD EEPROM (DCM2.7AP) [Bench]
Mahindra 1.5L TD EEPROM (DCM7.1AP) [Boot]
Reading, writing.

122 $

Module 94

Aisin SH705x TCU Bootloader

Aisin TCU Bootloader

Aisin SH705x TCU (FLASH)
Aisin D70F4019 TCU (FLASH)
Aisin R7F7012xx TCU (FLASH)
Reading, writing, checksum correction.

Aisin SH705x TCU (EEPROM)
Aisin D70F4019 TCU (EEPROM)
Aisin R7F7012xx TCU (EEPROM)
Reading, writing.

184 $

Module 95

Toyota/Lexus Gen 4

Toyota/Lexus Gen 4

Direct connection to the ECU required!

LC300 3.3TD P5-UDS (F33A-FTV/R7F701216)
LC300/LX600/Tundra 3.5T P5-UDS (V35A-FTS/R7F702002)
LS500 3.5T P5-UDS (V35A-FTS/R7F702002)
Tundra 3.5T HV P5-UDS (V35A-FTS/R7F702002)
NX350/RX350/Highlander 2.0T, 2.4T P5-UDS (S24A-FTS/T24A-FTS/R7F702002)
ES200/Camry/Rav4/Wildlander 2.0L, 2.5L China P5-UDS (M20A/M20C/M20D/A25A/R7F702002)
LC250 2.7L P5-UDS (2TR-FE/R7F701216)
LC250 2.8TD P5-UDS (1GD-FTV/R7F701216)
RX450h/Camry/Corolla/Vellfire 2.0L, 2.5L HV P5-UDS (M20A/M20E/A25A/A25B/R7F701216)
Yaris GR 1.6T MCU #1 P5-UDS (G16E-GTS/R7F701216)
Hiace 2.8TD P5-UDS (1GD-FTV/R7F701216)

Reading, writing, no checksums

184 $

Module 96

ZF TC1782/TC275/TC277 TCU Bootloader

ZF TC1782/TC275/TC277 TCU Bootloader

Direct connection to the ECU required!

ZF TC1782/TC275/TC277 TCU (FLASH)
Reading, writing, checksum correction

ZF TC1782/TC275/TC277 TCU (EEPROM)
Reading, writing

184 $

Module 97

China AECS/LinControl

China AECS/LinControl

DAM15KR/EA15MR/SWC14M (LinControl LEC4AF)
DAM16KL (LinControl LEC4AP)
JAC 2.0T HFC4GA3 (LinControl LEC4AF)
Reading, writing

JAC 1.5T HFC4GC1 (LinControl LEC4GD)
BAIC 1.5L DAM15KL/R15C1 (AECS FC-34)
BAIC 1.6L, 2.0L LQ475QMB/LQ481QFB (AECS FC-50)
Changan 1.2L LJ469Q (AECS FC-34)
Changan 1.5L DAM15KL (AECS FC-34)
Chery 1.5L DAM15KR (AECS FC-34)
Dongfeng 1.5L, 1.6L L4A15Q6/LJ4A16QG (AECS FC-34/FC-50)
Dongfeng/Fengxing 1.5T 4J15T (AECS FC-34)
Dongfeng/Fengxing 1.6L 4A92FR (AECS FC-34)
Dongfeng/Fengxing 1.6L CN16 (AECS FC-50)
FAW 1.2L LJ469Q (AECS FC-34)
FAW 1.5L DAM15KL (AECS FC-50)
Foton 1.5L DAM15KL (AECS FC-34)
Iran Khodro 1.7L EF7TC (AECS FC-34)
JAC 1.6L DAM16KL/HFC4GB3 (AECS FC-34)
JAC 1.8L, 2.0L, 2.0T LJ4A18Q6/LJ481Q/HFC4NA3 (AECS FC-34/FC-51)
Lixiang 1.5T (LinControl LEC4GD)
Jinbei/SWM/Brilliance 1.5L SWC15M (AECS FC-34)
Jinlu/Jinlong 2.0L LJ481 (AECS FC-34)
Joylong 2.4L 4K22D4M (AECS FC-50)
King Long/Jinlong 1.8L LJ4A18 (AECS FC-34)
LDV/SAIC 1.5L LJ4A15 (AECS FC-34)
Longma 1.2L, 1.5L LJ469Q/DAM15KR (AECS FC-34)
Nanjun 1.5L LJ4A15 (AECS FC-34)
SGMW 1.8L, 2.0L LJ479Q6/LJM20B (AECS FC-34/FC-50)
Shandong Kama 1.6L DAM16KR (AECS FC-34)
Xiamen Golden Dragon 1.8L, 2.0L LJ4A18/1TZS (AECS FC-34)
UAZ Patriot 2.7L (AECS)
Chery 1.5T E4T15C (AECS FC-54)
JAC 2.0T (AECS FC-60)
Jetour 1.5T E4T15C (G-Tech GT-54)

Reading, writing, checksum correction.

111 $

Module 98

China Continental

China Continental

Geely 01609492 (Easy U2)
Geely 1.0T (EasyU SDI)
SGMW 1.2L N12 (Easy U2.5)
SGMW 1.5L B15 (Easy U2W)
SGMW 1.5L N15A (Easy U3.6)
SGMW K-Line (SIM2K-D51/51.4/SCE60)
SGMW 1.5L N15T (Easy U3D/U3E)
Reading, writing, checksum correction

86 $

Module 99

Volvo/Renault EMS 2.3/2.4 Bootloader

Volvo/Renault EMS 2.3/2.4 Bootloader FLASH (MPC5674F/MPC5777C) [Test]
Reading, writing, checksum correction.

Volvo/Renault EMS 2.3/2.4 Bootloader EEPROM (MPC5674F/MPC5777C) [Test]
Reading, writing

EMS2.3 and EMS2.4 (all versions)

246 $

Module 100

Ford SID212/SID212EVO

Ford Focus 4: 2.0L EcoBlue (SID212/SID212EVO)
Ford Kuga 3: 2.0L EcoBlue (SID212/SID212EVO)
Ford Mondeo 5: 2.0L EcoBlue (SID212/SID212EVO)
Ford Transit: 2.0L Diesel (SID212/SID212EVO)
Reading, writing, checksum correction.

123 $

Module 101

China Marelli

Marelli 11GC Bootloader (FLASH)
Marelli 11GDB Bootloader (FLASH)

Reading, writing, checksum correction

Marelli 11GC Bootloader (EEPROM)
Marelli 11GDB Bootloader (EEPROM)

Reading, writing

111 $

Hide the list - Show the list +

Third Party Cables

(9)

Main cable Vendor code: 11P1/10

A cable to connect DSG and CVT ccables to a J2534 device. Used for PCMflash Module 58.

A cable to connect DSG and CVT cables to a J2534 device. Used for PCMflash Module 58.

52 $

DL382 Vendor code: 11P1/03

A cable to connect to DSG DL382. Compatible with PCMflash Module 58.

93 $

DL501 Vendor code: 11P1/04

A cable to connect to DSG DL501. Compatible with PCMflash Module 58.

68 $

DQ200 Vendor code: 11P1/05

A cable to connect to DSG DQ200. Compatible with PCMflash Module 58.

68 $

DQ250 Vendor code: 11P1/06

A cable to connect to DSG DQ250. Compatible with PCMflash Module 58.

64 $

DQ500 Vendor code: 11P1/07

A cable to connect to DSG DQ500. Compatible with PCMflash Module 58.

64 $

VL300 Vendor code: 11P1/08

A cable to connect to DSG VL300. Compatible with PCMflash Module 58.

70 $

VL381 Vendor code: 11P1/09

A cable to connect to DSG VL381. Compatible with PCMflash Module 58.

64 $

DSG kit

The full kit is designed for direct connection to VAG TCMs. The cables (together with PCMFlash module 58) allow full data transfer from one TCM to another. Both micro and eeprom are supported. Thus, cloning is possible as well as full reading of factory or modified files. The kit includes the main cable and cables for specific transmissions. You can use standard KESS DSG cables with the main cable.

336 $

Hide the list - Show the list +

Products

Openport 2.0

The OpenPort 2.0 is tuning tool hardware that is capable of communicating with a most OBDII compliant vehicles using a standard J2534 interface. Combined with EcuFlash software, the OpenPort 2.0 is capable of reflashing a large number of newer Subaru and Mitsubishi vehicles. A USB cable is included with each OpenPort, which is all the hardware you will need unless you have one of the few vehicles that require a separate reflash adapter. For Subaru you will only need a reflash adapter for the 2001 through 2005 WRX, but not STi, unless you are working on an early non USDM STi in which case you may need one of our WRX adapters. No other Subaru vehicles require reflash adapters including Forester, Baja, Legacy, or naturally aspirated Impreza models. For Mitsubishi, you will need the adapter for most pre CAN vehicles which include the 5-9 Evo. Choose the adapter you need from the ’Reflash Adapters’ list below.

Technical Details

72Mhz 32-bit processor;
USB 2.0 full speed device (USB-A/Mini cable included);
Field upgradeable software;
Supports these major OBD protocols:
- CAN 2.0 (CAN/ISO15765);
- K-line (ISO9141/ISO14230(KWP2000)/dual K line);
J2534 PassThru support with Windows DLL;
Standalone datalogs to microSD / microSDHC card without a laptop;
Able to apply GND or 5V-25V to OBD pins 1,3,9,11,12,13 or AUX 2.5mm stereo connector;
Able to log from Innovate Motorsports 2.5mm stereo MTS data bus;
RGB status LEDs.

It has been successfully tested with the following software: Chiploader, MMC Flasher, Multiflasher, PCM Flash, Toyota Techstream and many others.

NB! We do NOT sell clone tools. This Openport is the original product of Tactrix Inc. Every customer is guaranteed to get all the updates including beta and technical support.

0 $

PowerBox for PCMflash

PowerBox for PCMflash is designed to connect the control unit to the software bootloader "on the bench" and automatic (if supported by the flasher and the J2534 adapter) or manual switching of supply voltages and generation of RESET, BOOT, CNF1, GPT1, GPT2, WATCHDOG signals.

Model 2022 (has a new switch arrangement, see photo in the description) of the year of release has an improved GPT signal generator. For devices of previous generations, we recommend using GPT BOOSTER.

Compatible in automatic mode with bootloaders that use for control:

BOOT - OEM12, 12 contact OBD-II.

Power supply control - L-LINE, 15 contact OBD-II.

Important:

To work with 71 and 77 PCMflash modules, the BOOT switch must be in the AUTO or MANUAL position. (The BOOT indicator should light when power is supplied to the ECU).
In MANUAL mode - power must be supplied by the switch on the PowerBox, and not from an external source.
In GPT mode, it allows you to work with 5V and 12v signals, as well as with differential inputs without using capacitors.

Controls:

The device is equipped with three switches to ensure operation in different modes.

Switch - POWER, power management.
The device has three modes of power supply to the ECU:
- OFF, off, allows you to remove all power signals from the IDC-26 and DB-15 connectors.
- MANUAL, on, supplies power to the VECU and VKEY terminals, as well as to the control outputs depending on the selected operating tactics.
- AUTO, automatic control, in this mode, power control is performed by the bootloader with the L-Line signal (15 OBD-II contact).

BOOT switch, simultaneous control of BOOT, RESET and CNF1 signals (3.3 volts):
- OFF, disabled, allows you to remove all control signals from the DB-15 connector.
- MANUAL, enabled, pulls RESET and BOOT to the signal minus, and CNF1 to +3.3 volts.
- AUTO, automatic control, in this mode, the bootloader (OBD-II contact 12, OEM12) simultaneously controls the BOOT, RESET and CNF1 signals.
For the built-in generator to work with the 71 and 77 PCMflash modules, the BOOT switch must be in the MANUAL or AUTO position (the BOOT LED must be lit).

GPT switch:
- OFF, disabled, allows you to remove all control signals on the GPT signal lines. Can be used for diagnostics and "OBD programming".
- ON, the built-in GPT generator is used.
- EXT, the GPT signal is used directly from the OBD-II connector (the signal is generated by scanmatik).
You cannot use the GPT signal from the device to connect directly to the processor signal circuits on the ECU board.

The device has built-in current-limiting resistors on the signal lines:

BOOT BROWN - 5.1 KOhm (Recommended for Infineon C16X and ST10 family)
BOOT GRAY - 510 Ohm (Recommended for TriCore)
CNF1 - 220 Ohm

The CAN bus has a 120 Ohm terminal resistor, which can be disconnected if necessary - remove the jumper of the same name (located closer to the DC connector).

BOSCH jumper (located closer to the USB connector) - to work with the BOSCH unit in GPT mode, to work with SIMOS12 / SIMOS18 units in GPT mode, you need to remove this jumper.

Connectors:

The device is equipped with multi-purpose connectors, which allows flexible connections.

The USB connector is designed for connecting to a computer. The connector requires connection when using the built-in USB-UART converter, for updating the PowerBox device software, and when programming Renesas processors.

The DC connector is designed to power the built-in circuit of the device, as well as the connected ECU. Only high-quality power supplies are recommended for use. The central pin is for +, the side pin for -. There is input protection against incorrect polarity. When reading the password, when this is not possible on a car, it must be taken into account that high-voltage converters in the ECU consume quite a large current at startup, which can lead to the protection being triggered or even cause the power supply to break down.

The J2534 connector
The connector has the following connection diagram:

1 GPT1 EXT
2 GPT2 EXT / J1850
4 GND
5 GND
6 CAN-H
7 K-LINE
10 J1850
12 SELECT BOOT
13 VPP
14 CAN-L
15 L-LINE
16 POWER

DB-15 connector
It is recommended to use the DB15 - PIN cable.

The connector has the following connection diagram:

1 BOOT BROWN
2 VPP PURPLE
3 GPT2
4 CNF1 BLUE
5 VECU RED
6 J1850 L
7 CAN-H WHITE
9 VKEY ORANGE
10 BOOT GRAY
11 GND BLACK
12 GPT1
13 J1850 H
14 K-LINE YELLOW
15 CAN-L GREEN

IDC-26 connector
The connector has the following connection diagram:

1 GND SIGNAL
2 VECU
3 VPP (Pin 13 OBD-II, OEM13)
5 5V
6 GND
7 RXD
8 TXD
10 WATCHDOG
11 5V
12 K-LINE
13 CAN-H
14 CAN-L
15 GND
21 GND
23 GPT2
24 GPT1

Indicators:

The POWER LED indicates that power is supplied to the ECU. Flashing of the indicator indicates unstable power supply of the device, it is recommended to de-energize the device for at least 1 minute.
The DC LED indicates the presence of supply voltage.
The BOOT LED indicates the presence of 3.3 volts at the CNF1 output, pull-ups to minus on BOOT and RESET, and also indicates the GPT mode (lit - 71 or 77 module \ off - 53 module).

162 $

BSL (GPT) TriCore adapter

The adapter is designed for switching J2534 and ECU power signals. The DB-15 connector is laid for the pinout of the K-Tag cable 14Р600КТ02.
ECU power control (automatic, off or manual mode).

Boot pins (boot, reset, CNF1, VPP) are enabled in the software.

GPT1, GPT2 signals are laid to separate pins and are duplicated to the DB-15 connector. CAN-L, CAN-H are duplicated as well. Power 12V.

The jumper applies 120Ω to CAN bus.

Bosch, Siemens/Continental, Delphi ECUs, etc. Reading, writing, checksum correction for most ECUs.

Possible password reading for SIM2K-24x, Ford EMS22XX, Ford SID20X, Bosch, Bosch GPT, etc.

0 $

CombiBox for PCMflash

CombiBox is designed to connect an ECU to PCMflash and a J2534 device on the bench and to switch power and GPT1, GPT2 signals, and to form BOOT, CNF1 signals. When used with Scanmatik 2 PRO CombiBox for PCMflash allows to form GPT1, GPT2 signals necessary to work with Module 53 and Module 71, and future modules.

Power

CombiBox requires constant 12V supply voltage. The mating part of the connector is included in the delivery package. It is utterly important to respect polarities when arranging soldered connections of the power cable. Incorrect power supply is EXTREMELY DANGEROUS and may cause the CombiBox or the control unit connected to it to fail. It is recommended to use regulated laboratory power supplies with voltage adjustment range up to 30V and with a maximum current of not less than 3A to safely operate CombiBox and program ECUs.

Connection

On the back of the CombiBox there are 2 plugs:

1. J2534 is a plug for connecting a J2534 device (Scanmatik 2 PRO).

The plug has the following connection diagram:

1 — GPT1
2 — GPT2
4 — GND
5 — GND
6 — CAN-H
7 — K-LINE
14 — CAN-L
15 — L–LINE
16 — +12V

2. DC IN 5A Max Jack is a plug for connecting power supply.

On the front panel of the device there is a DB-15 plug designed to connect to the ECU using a universal cable. All cable wires have appropriate markings to connect them correctly.

The plug has the following connection diagram:

2 — Purple, VPP;
3 — Green brown, GPT2;
4 — Blue, CNF1;
5 — Red, VECU +12V;
7 — White, CAN-H;
9 — Orange, VKEY +12V;
10 — Grey, BOOT;
11 — Black, GND;
12 — Yellow Orange, GPT1;
14 — Yellow, K-Line;
15 — Green, CAN-L.

Controls elements

«POWER» switch, power control. The device has three modes of power supply to the ECU:

«OFF», allows to remove all power and control signals from the DB-15 connector.
«ON», power is supplied to VECU and VKEY terminals, as well as control outputs depending on the chosen operation mode of the BOOT switch.
«AUTO», in this mode, power management is performed by the PCMflash.

Boot SW switch, BOOT signal control:

«OFF», allows to remove all control signals from the DB-15 connector;
«ON», pulls BOOT up to the signal minus;
«AUTO», in this mode, simultaneous control of signals is performed by the PCMflash.

«CNF1» switch, CNF1 signal control (3.3V):

«OFF», allows to remove all control signals from the DB-15 connector;
«ON», pulls CNF1 up to +3.3 V;
«AUTO», in this mode, simultaneous control of signals is performed by the PCMflash.

The device has built-in current-limiting resistors on signal lines:

«BOOT» — 1000 Ohm;
«CNF1» — 510 Ohm;
«CAN» — 120 Ohm.

Indicators:

The «Power IN» LED indicates the presence of the supply voltage;
The «Power OUT» LED indicates the presence of the voltage on the ECU;
The «Boot ON» LED indicates pull-ups on BOOT;
The «CNF1 ON» LED indicates pull-ups on CNF1.

99 $

Scanmatik 3

Professional multi-brand auto scanner is designed for diagnostics of electronic control systems of modern cars. Works with a PC, tablet or smartphone, programs for Windows and Android included. When installing the driver (included in the kit), it works with third-party diagnostic software made for SAE J2534 and RP1210 standards, as well as with bootloaders, supplying programming permission voltages to various contacts of the diagnostic connector.

To connect to the adapter, you can use either USB or Wi-Fi interfaces (built into the SM3 adapter)

All kits include the full current version of the program (all currently available software modules):
VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, OBD2.

Works with a large number of diagnostic programs and loaders made for standard SAE J2534 and RP1210 interfaces.

Technical characteristics of the SM3 adapter

Interfaces for communication with a PC (Tablet, Smartphone) — USB or Wi-Fi
Supply voltage: 5…35V from the vehicle’s on-board network or USB (galvanic isolation with power supply)
Current consumption, no more than 350mA
Internal pulse power supplies of our own design (no heating + wide range of input voltages from 5 to 55V)
Wi-Fi transceiver standard: IEEE 802.11b/g/n
Supported data buses:
- 13 x ISO-9141/ISO-14230 (K-LINE)
- 1 x J1850VPW
- 1 x J1850PWM
- 4 x CAN 2.0/CAN-FD
- 1 x Single Wire CAN
- 1 x Ethernet 10/100BASE-TX
Built-in multiplexer for switching diagnostic lines
The widest support for J2534-½ standards
Programming voltage supply (5-20V) — to OBD2 connector pins: 6, 8, 9, 11, 12, 13, 14
AUX programming voltage output
Adapter dimensions (L x W x H), no more than: 97×75×22mm
Weight of the device in the basic configuration, no more than: 0.7 kg

474 $

PCMflash

Controls:

Connectors:

The device is equipped with multi-purpose connectors, which allows flexible connections.

Indicators:

Technical characteristics of the SM3 adapter

Interfaces for communication with a PC (Tablet, Smartphone) — USB or Wi-Fi
