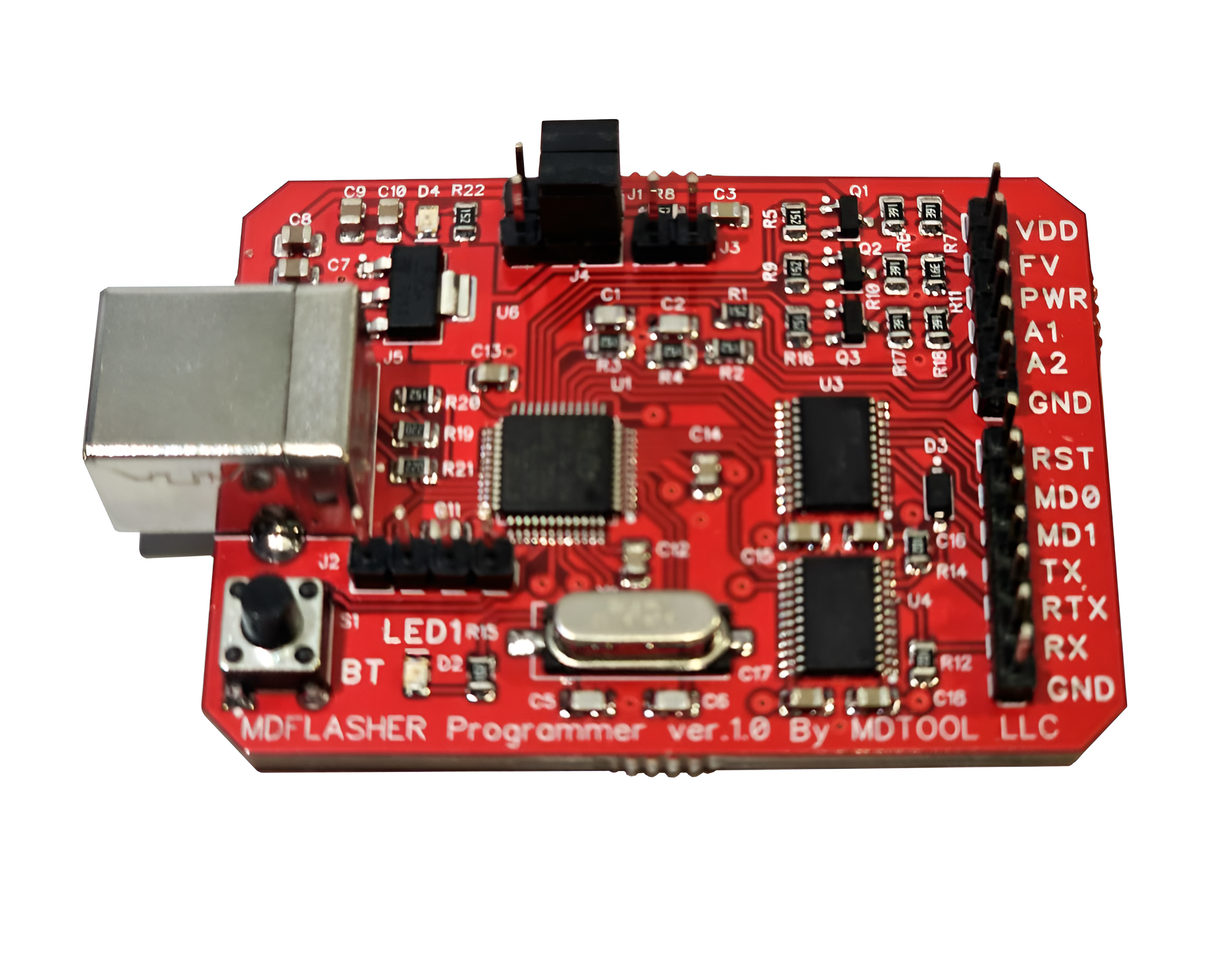

M&D Flasher

Allows to read/write the FULL Flash 29F200/29F400. Allows reading/writing Flash emulated in EEPROM.
"Virginize" function - allows to make the ECU "New", suitable for installation on the car and its further adaptation for operation.
Read/Write works even when the immobiliser is locked, which allows you to repair the immobiliser without disassembling the ECU.
The firmware read in this way fully corresponds to the file read by the programmer in the "panel".
The work is done by direct connection to the ECU, without disassembling the ECU.

List of supported ECUs:

• Sirius 32 KLINE
• Sirius 32 CAN
• Sirius 34 KLINE
• Sirius 34 CAN
• Siemens EMS 3132 KLINE
• Siemens EMS 3132 CAN
• Siemens EMS 3134 KLINE
• Siemens EMS 3134 CAN
• Continental EMS 3132
• Continental EMS 3134
• Siemens SIM 32 CAN

Approximate list of vehicles:

• Renault Logan
• Renault Symbol
• Renault Scenic
• Renault Laguna
• Renault Megane
• Lada Largus
• Dacia Logan
• Nissan Almera

Not all software versions may be supported.

Mileage correction in the following ECUs:

• Continental SID 305 KM Read/Write
• Continental SID 306 KM Read/Write
• Continental SID 307 Read/Write CM
• Continental SID 309 Read/Write CM
• Delphi DCM3.4 Read/Write KM
• EDC16 Koleos Read/Write CM
• EDC16 Megane Read/Write CM
• EDC16 Scenic Read/Write CM
• EDC17 Master Read/Write KM
• EMS3120 Read/Write KM
• EMS3125 Read/Write KM
• EMS3130 Read/Write KM
• Valeo V4x Read/Write KM

Built-in calculators for working with ECU EEPROM files:

• EDC17
• EMS3120
• EMS3125
• Continental SID 305
• Continental SID 306
• Continental SID 307
• Continental SID 309

Not all software versions may be supported.

Chevrolet Cruze, Opel Actra J, Insignia and their platforms
BCM
— Identification
— Read CM
— Writing CM
— PIN reading
— Dismantling the ECU(Resetting PIN)
— ECU unit mounting(Binding of ECU unit to car(In case ECU and BCM calibrations are the same version)).
— BCM unit installation(Binding of BCM unit to car(In case ECU and BCM calibrations are the same version))
— EEPROM Editor(allows to transfer car data (VIN, PIN, Immo Data, keys, radio channel) to another BCM or ECU.
— VIN recording
ABS
— Identification
— PIN reading
— Dismantle unit(Reset PIN)
— Record VIN
— Write PIN
Instrument panel
— Identification
— Read PIN/RAM
— Dismantling unit(Reset PIN)
— Writing PIN
— Write VIN
— Read/Write DID(No decoding)
AIRBAG
— Identification
— Read RAM
— Dismantling unit(Reset PIN)
— Write PIN
— Write VIN
Climate control unit
— Identification
— Dismantling the unit(Reset PIN)
— VIN record
— Recording PIN
Radio
— Identification
— Reset VIN
— VIN Recording (Allows you to link a used unit)
— 5 Byte Seed Key Calculation Calculator

Delphi MT80 ECU
— Identification
— Read PIN
— Dismantling the unit(Reset PIN)
— Write VIN
— EEPROM editor (allows to transfer car data (VIN, PIN, Immo Data, keys, radio channel) to another BCM or ECU.

ECU Delphi ACDelco E83
— Identification
— PIN reading
— Dismantling unit(Reset PIN)
— Write VIN
— EEPROM Editor(allows to transfer car data(VIN, PIN, Immo Data, keys, radio channel) To another BCM or ECU

ECU Delphi ACDelcoE78
— Identification
— PIN reading
— Dismantle unit(Reset PIN)
— Write VIN
— EEPROM editor (allows to transfer car data (VIN, PIN, Immo Data, keys, radio channel) to another BCM or ECU.
Denso 1.7
— Identification
— Read/Write EEPROM (4 EEPROMs)
— Read PIN
— Reset PIN
— Write VIN
— Read/Write CM

Chevrolet CAPTIVA
Instrument panel
— Read/Write CM

Opel Astra H/Vectra C/Zafira B
Info Display
— PIN reading

Delphi Delco MT35
— Identification
— Reading EEPROM
— Read PIN
— Reset PIN
— Write VIN
— Read /Write CM

Simtec71.5/Simtec71.6
— Identification
— Read/Write EEPROM
— Read PIN
— PIN reset
— Forced reset of the block when the timer does not allow the block to be reset any more
— Read/Write CM
— Write VIN

Simtec75.5
— Identification
— Read/Write EEPROM
— Read PIN
— PIN reset
— Forced reset of the block when the timer no longer allows the block to be reset
— Read/Write CM
— Write VIN

Simtec80.x
— Identification
— Read/Write EEPROM
— Read PIN
— PIN reset
— Forced reset of the block when the timer no longer allows the block to be reset
— Read/Write CM
— Write VIN

Bosch 762
— Identification
— Read PIN/RAM
— Reset PIN
— Read/Write CM
— Write VIN

Bosch EDC16C9
— Identification
— Read PIN/RAM
— Reset PIN
— Write VIN
— Read/Write CM

Bosch EDC16C39
— Identification
— Reset PIN
— Write VIN
— Read and Write CM

Magnetti Marelli MJD602/MJD603
— Identification
— EEPROM Read/Write
— PIN reading
— PIN Reset
— Write VIN

Denso 1.7
— Identification
— Read/Write EEPROM (2 EEPROMs)
— Read PIN
— Reset PIN
— Write VIN

CORSA D
Info Display
— Read PIN

BCM
— Identification
— Write PIN
— Block Reset
— Write VIN
— Immobiliser Options
— ECU replacement
— BCM replacement
— BCM + ECU replacement

Instrument panel
— Identification
— PIN reading
— Reset PIN
— Write PIN
— Write VIN

Bosch 761
— Identification
— Read PIN/RAM
— Reset PIN
— Read/Write CM
— Write VIN

Bosch 762
— Identification
— Read PIN/RAM
— Reset PIN
— Read/Write CM
— Write VIN

Magnetti Marelli MJD602/MJD603
— Identification
— EEPROM Read/Write
— Read PIN
— PIN Reset
— Write VIN

Not all software versions may be supported.

Suzuki Swift Continental VDO Mileage reading/writing, EEPROM reading/writing;
Suzuki Kizashi Continental VDO Mileage reading/writing, EEPROM reading/writing;
Suzuki Grand Continental VDO Mileage reading/writing, EEPROM reading/writing.

Not all software versions are supported.

Autoliv ECUs;
INFINEON XC2361 EEPROM reading/writing, flash reading, crash data erasing;
INFINEON XC2336B EEPROM reading/writing, flash reading, crash data erasing;
Murano, Altima, Rogue 2017.

Not all software versions are supported.

Attention! It is highly recommended to connect ECUs (from 2015 and later) on the bench in their 'normal' (not upside down) position!

Supported dashboards:

• Skoda Fabia 2011 (P/N 5J0920810E) Mileage reading/writing, EEPROM reading/writing, Pin Reading
• Skoda Octavia A5 2009 (P/N 1Z0920803B) Mileage reading/writing, EEPROM reading/writing, Pin Reading
• VW Amarok 2011 (P/N 2H0920863) Mileage reading/writing, EEPROM reading/writing, Pin Reading
• VW Polo 2009 (P/N 6RF920860) Mileage reading/writing, EEPROM reading/writing, Pin Reading
• VW Polo 2011 (P/N 6RU920860A/B) Mileage reading/writing, EEPROM reading/writing, Pin Reading
• Vw Polo 2013 (P/N 6RU920860C/D) Mileage reading/writing, EEPROM reading/writing, Pin Reading
• Format converter Tango-MDFLASHER
• Dump editor MM7GV EEPROM 95320
• Dump editor IMMO CS/MAC/Pin

Not all software versions are supported.

CRASH DATA deleting via CAN bus on the bench:

Lexus DENSO SRS MCU  RENESAS H8SX 1725/1797 (256/512KB) CAN/UART
Lexus FUJITSU SRS MCU  RENESAS H8SX 1725/1797 (256/512KB) CAN/UART
Toyota DENSO SRS MCU  RENESAS H8SX 1725/1797 (256/512KB) CAN/UART
Toyota FUJITSU SRS MCU  RENESAS H8SX 1725/1797 (256/512KB) CAN/UART
Subaru DENSO SRS MCU  RENESAS H8SX 1725/1797 (256/512KB) CAN/UART
Subaru DENSO SRS MCU  RENESAS H8SX 1721 KLINE/UART
HONDA DENSO SRS MCU  RENESAS H8SX  KLINE/UART

HONDA KLINE RENESAS H8sx ECUs:

77960-SZN-A011-M1
77960-SZT-A011-M2
77960-SZT-G811-M2
77960-SZT-J411-M2
77960-SZT-L010-M2
77960-STX-A211-M1
77960-STX-A311-M1
77960-TK8-A011-M1
77960-TM8-A020-M2
77960-TM8-A031-M2
77960-TM8-G820-M2
77960-TP6-A111-M2
77960-TR0-L012-M2

Possible ECU writing (recovery): Toyota/Lexus/Subaru/Honda with UART of the ECUs with DENSO and FREESCALE via UART Adapter (based on FTDI 2232 microcontroller).
Built-in stock file base for Toyota, Subaru, Lexus, Honda with more than 312 files.

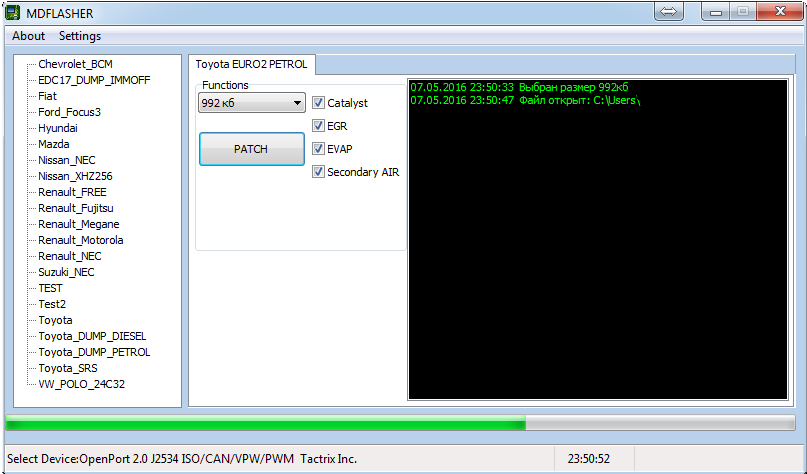

Disabling the control of the following systems: the catalytic converter, EVAP, EGR , the secondary air injection system (error mask, emulation required!).
Supported ECUs: DENSO with NEC 76F00xx CPUs with the following dump sizes: 256, 320, 368, 384, 496, 736, 992.
It also provides correction of the dump read without the checksum recalculation.

The module DOES NOT support ALL the software. You can use it at your own risk.

Toyota NEC VDO+24C16 Corolla/Avensis/Auris 2013+

• Read KM
• Write KM
• Read EEPROM 24C16
• Write EEPROM 24C16

Toyota NEC VDO+24C16 2014+ AVENSIS / AURIS COROLLA

• Read KM
• Write KM
• Read EEPROM 24C16
• Write EEPROM 24C16

Toyota NEC 70F3535 WITHOUT EXTERNAL EEPROM VDO AURIS / COROLLA 2014+

• Read KM
• Write KM

Toyota NEC 70F3535 WITHOUT EXTERNAL EEPROM VDO AURIS / COROLLA 2014+

• Read KM
• Write KM
• Read EEPROM 70F3535
• Write EEPROM 70F3535

Toyota NEC 70F3535 WITHOUT EXTERNAL EEPROM VDO C-HR 2017

• Read KM
• Write KM
• Read EEPROM 70F3535
• Write EEPROM 70F3535

Toyota NEC R7F7014x WITHOUT EXTERNAL EEPROM VDO CAMRY 2018

• Read KM
• Write KM
• Read EEPROM R7F7014x
• Write EEPROM R7F7014x

Toyota Tacoma R7F701418 2017-2023

• Read KM
• Write KM
• Read EEPROM R7F701418
• Write EEPROM R7F701418

Toyota Raize R7F701417 2019-2021 (available from software version 2.0.1.210)

• Read KM
• Write KM
• Read EEPROM R7F701417
• Write EEPROM R7F701417

Not all software versions may be supported.

Disabling the immobilizer function for troubleshooting and checking the ECM during repairs.
The work is done by upgrading the EEPROM file.
Works as an editor.

List of supported ECUs:

• Delphi DCM3.2
• Delphi DCM3.7
• Delphi DCM6.2
• Delphi HCF32

Not all software versions may be supported.

Renault MeganIII/Scenic III/Fluence/ClioIII/Modus/

Restores EPS dump, makes it «new» — ready for installation on a vehicle, Virginizing.

• ECU identification
• VIN number Reading/Writing
• Error resetting

Renault MEGANIII/SCENICIII/LAGUNAIII/LATITUDE/CLIOII/KANGOO/TRAFIC/MASTER/MASTERII / LOGAN2
Restores the dump to its industrial state (BCM), makes it «new» — ready for installation on a car. Virginizing

• ECU identification.
• VIN number Reading/Writing
• Error resetting

Not all software versions may be supported.

Disabling the immobilizer function for troubleshooting and checking the ECM during repairs.
The work is done by upgrading the Flash file.
Works as an editor.

List of supported ECUs:

• EMS3132
• EMS3134
• Sirius32
• Sirius34

The module performs checksum correction.
Not all software versions may be supported.

For Read/Write Flash it is recommended to use License 01 Renault ECU C167.

• Reading/Clearing DTCs
• Clearing collision information.
• ECU unlocking
• Changing the ECU configuration.
• VIN reading/writing

List of supported ECUs:

Renault SANDEROII/DUSTERII/LOGANII/STEPWAY/KAPTUR/LADA X-RAY
SRS Renault Temik KLINE LOGAN I /DUSTER I /STEPWAY /SANDERO I
SRS Renault Temik_KLINE_LOGAN_X90
SRS Renault Temik_KLINE_DUSTER_H79
SRS Nissan Almera KLINE
SRS Nissan Terrano KLINE
Renault CLIOIII/MODUS
Renault CLIOII PHASEII

Not all software versions may be supported.

• Reading/Clearing DTCs
• Clearing collision information in ECUs with 9s12XDT384+95640.
• ECU unlocking
• Changing the ECU configuration
• VIN reading/Writing

Approximate list of supported vehicles:

Renault Fluence
Renault Megane III
Renault Latitude
Renault ScenicIII
Renault Kangoo II
Renault Twingo II
Renault MEGANE II / SCENIC II (Autoliv ACU4)
Renault MASTER III / CLIO III Ph2 (2008+) / MODUS Ph2 (Autoliv RC5 P1P2)
Renault LAGUNA III (Autoliv RC5)
OPEL MOVANO-B (2010+) (Autoliv RC5 P1P2)

Not all software versions may be supported.

ECUs with NEC34+24C16 microcontroller

• Working with ECUs on the bench is required
• Milage reading/writing
• EEPROM reading/writing
• Flash reading/writing (program area + calibration)

ECU with Motorola 9S12XHY256 microcontroller
Working with ECUs on the bench is required
Milage reading/writing
Flash reading/writing (program area + calibration)
Configuration reading/writing

Approximate list of vehicles:
Lada X Ray
Nissan Terrano
Renault Clio IV
Renault Duster2
Renault Fluence
Renault Captur
Renault Laguna
Renault Latitude
Renault Logan2
Renault MeganeIII
Renault Sandero2

Not all software versions may be supported.

The license support the following ECUs:

ECUs with MB96F386+95160 microcontrollers

• ECU start on the bench
• Mileage reading/writing
• EEPROM reading/writing
• Flash reading/writing (software + map area)

ECUs with MB96F387+95160 microcontrollers

• ECU start on the bench
• Mileage reading/writing
• EEPROM reading/writing
• Flash reading/writing (software + map area)

ECUs with MB96F385+95160 microcontrollers

• ECU start on the bench
• EEPROM reading/writing
• Flash reading/writing (software + map area)

ECUs with MB96F6A6 microcontrollers

• ECU start on the bench
• EEPROM reading/writing
• Flash reading/writing(software + map area)

Not all software versions may be supported.

Mileage reading, writing with 24с04 and 93с56 EEPROM;
Motorola HC08 dashboards;
Direct connection on the bench;

• Renault Clio
• Renault Kangoo
• Renault LagunaII
• Renault Megane
• Renault Scenic 2002 - 2005.

The module works via OBD;
Only the panels with 9S12XHZ256 microcontrollers are supported!
Nissan Qashqai 2010+ Milleage reading/writing; FLASH reading/writing;
Rogue 2010+ Milleage reading/writing; FLASH reading/writing;
X-TRAIL 2010+ ODO Milleage reading/writing; FLASH reading/writing.

Mileage reading/writing, EEPROM reading/writing, FLASH reading on Nissan/Infiniti vehicles of 2013 and later VDO NEC+24C16 via OBD2

NISSAN

• ALTIMA from 2013
• LEAF from 2011
• PATHFINDER from 2011
• TEANA from 2014
• SERENA from 2011

Mitsubishi ASX 2014+ 8100B951 (NEC 70F3529 without external EEPROM) Mileage reading/writing, EEPROM reading/writing;

Mitsubishi ASX 2014+ 8100B951 (NEC 70F3529 without external EEPROM) Mileage reading/writing, EEPROM reading/writing;
Mitsubishi ASX 2014+ 8100B961 (NEC 70F3523 without external EEPROM) Mileage reading/writing, EEPROM reading/writing;
Mitsubishi ASX 8100C051 (Fujitsu 91F223 + 93C76) Mileage reading/writing
Mitsubishi ASX 8100B451 (Fujitsu 91F223 + 93c86) Mileage reading/writing
Mitsubishi ASX 8100B361 (Fujitsu 91F223 + 93c86) Mileage reading/writing
Mitsubishi ASX 8100B801 (Fujitsu 91F223 + 93c76) Mileage reading/writing
Mitsubishi ASX 8100B821 (Fujitsu 91F223 + 93c76) Mileage reading/writing
Mitsubishi ECLIPSE 2018+ 8100C412 (NEC 70F3529 without external EEPROM) Mileage reading/writing, EEPROM reading/writing;

Mitsubishi L200 2015+ 8100B975 (NEC+93c76) Mileage reading/writing, EEPROM reading/writing;
Mitsubishi L200 2016+ 8100C564 (NEC+93c76) Mileage reading/writing

Mitsubishi Lancer 8100C051 (Fujitsu 91F223 + 93C76) Mileage reading/writing
Mitsubishi Lancer 8100B451 (Fujitsu 91F223+93c86) Mileage reading/writing
Mitsubishi Lancer 8100B361 (Fujitsu 91F223+93c86) Mileage reading/writing
Mitsubishi Lancer 8100B801 (Fujitsu 91F223+93c76) Mileage reading/writing
Mitsubishi Lancer 8100B821 (Fujitsu 91F223+93c76) Mileage reading/writing

Mitsubishi Outlander 8100B197 (Fujitsu 91F223 + 93C86) Mileage reading/writing
Mitsubishi Outlander 8100B451 (Fujitsu 91F223 + 93c86) Mileage reading/writing
Mitsubishi Outlander 8100B202 (Fujitsu 91F223 + 93c86) Mileage reading/writing
Mitsubishi Outlander 8100B801 (Fujitsu 91F223 + 93c76) Mileage reading/writing

Mitsubishi Outlander 2014+ 8100B889 (NEC+93c76) Mileage reading/writing
Mitsubishi Outlander 2014+ 8100C292 (NEC+93c76) Mileage reading/writing
Mitsubishi Outlander 2014+ 8100B895 (NEC+93c76) Mileage reading/writing
Mitsubishi Outlander 2014+ 8100C294 (NEC+93c76) Mileage reading/writing
Mitsubishi Outlander 2014+ 8100C506 (NEC+93c76) Mileage reading/writing
Mitsubishi Outlander 2014+ 8100C533 (NEC+93c76) Mileage reading/writing
Mitsubishi Outlander 2014+ 8100C543 (NEC+93c76) Mileage reading/writing

Mitsubishi Pajero Sport 2017+ (NEC+93c76) Mileage reading/writing

Peugeot 4007 8100B451 (mb91F223+93c86) Mileage reading/writing
Peugeot 4007 8100B197 (mb91F223+93c86) Mileage reading/writing
Peugeot 4007 8100B202 (mb91F223+93c86) Mileage reading/writing

Citroën C-Crosser 8100B451 (mb91F223+93c86) Mileage reading/writing
Citroën C-Crosser 8100B197 (mb91F223+93c86) Mileage reading/writing
Citroën C-Crosser 8100B202 (mb91F223+93c86) Mileage reading/writing
Citroën C-Crosser 8100B801 (mb91F223+93c76) Mileage reading/writing

Not all software versions may be supported.

Disabling the immobiliser function for troubleshooting and checking the ECU during repair. Operation is done by upgrading the Flash file.
Works as an editor.

List of supported ECUs:

• Sirius D32 (with checksum recalculation)
• Sirius D42 (with checksum recalculation)
• Sirius D51 (with checksum recalculation)
• Sirius D52 (with checksum recalculation)
• Delphi ECU MR-140/HV-240 (without checksum conversion)

Not all the software versions can be supported. To add a new software version, please contact the support portal and attach a file.

Adapter FTDI2232 UART ver.3.0 is required.

MB91F016A R/W WORK FLASH, R/W MAIN FLASH
MB91F060BS R/W WORK FLASH, R/W MAIN FLASH
MB91F061BS R/W WORK FLASH, R/W MAIN FLASH
MB91F062BS R/W WORK FLASH, R/W MAIN FLASH
MB91F067BS R/W WORK FLASH, R/W MAIN FLASH
MB91F523B/D/J/K/L R/W WORK FLASH, R/W MAIN FLASH
S6J3001LSJ R/W WORK FLASH, R/W TC FLASH
S6J300BKSE R/W WORK FLASH, R/W TC FLASH
S6J311AHAA R/W WORK FLASH, R/W TC FLASH
S6J311EJAA/EHAA R/W WORK FLASH, R/W TC FLASH
S6J311BJAB/BHAB/BJBB/BHBB R/W WORK FLASH, R/W TC FLASH
S6J311CJAB/CHAB/CJBB/CHBB R/W WORK FLASH, R/W TC FLASH
S6J311DJAB/DHAB/DJBB/DHBB R/W WORK FLASH, R/W TC FLASH
S6J311EJAB/EHAB/EJBB/EHBB R/W WORK FLASH, R/W TC FLASH
S6J312AHAA R/W WORK FLASH, R/W TC FLASH
S6J320CQXA R/W WORK FLASH, R/W TC FLASH
S6J323C/4C/5C/6C/7C/8C R/W WORK FLASH, R/W TC FLASH
S6J324CLS/CKS R/W WORK FLASH, R/W TC FLASH
S6J326CLS/CKS R/W WORK FLASH, R/W TC FLASH
S6J32A9/B9/C9/D9 R/W WORK FLASH, R/W TC FLASH
S6J32AA/BA/CA/DA R/W WORK FLASH, R/W TC FLASH
S6J331E R/W WORK FLASH, R/W TC FLASH

These MCs were installed in various ECUs, on cars:
Daihatsu

• Move 2015+

Honda

• Accord 2018+
• Fit 2015+
• Fit Hybrid 2014+
• Jade 2015+
• Vezel Hybrid 2014+

 Hyundai

• Avante 2015+
• Elantra 2015+
• i30 2015+
• i40 2015+
• Kona 2017+
• Palisade 2019+
• Palisade Big Display 2019+
• Santa Fe 2018+
• Sonata 2015+
• Tucson 2015+

Kia

• Carnaval 2015+
• Ceed 2018+ (mb91F061)
• Cerato 2018+ (mb91F061)
• Forte 2015+
• Picanto 2015+ (mb91F061)
• Sedona 2015+
• Sorento 2015+ (mb91F067)
• Telluride (s6j332E)
• Telluride Big Display (s6j332E)

 Lexus

• ES350 2018+ (s6j3001)
• UX200 2018+ (s6j3001)

 Suzuki

• Hustler 2015+

 Toyota

• Camry v70 2015+
• Corolla 2018+ (s6j3001)
• Corolla 2018+ v2 (s6j3001)
• Fortuner 2015+ (mb91F061)
• RAV4 2015+ (mb91F060)
• RAV4 2018+ (s6j3001)
• RAV4 2019+ (s6j3001)
• RAV4 2020+ (s6j3001)
• Sienta 2018 (mb91F060)

The *years are approximate, ECU disassembly is required to accurately identify the installed microcontroller.

Mazda 6, CX5 2013+ Mileage reading, writing / EEPROM reading, writing;
Mazda 2,3 2014+ Mileage reading, writing / EEPROM reading, writing;
Mazda MX5 2015+ Mileage reading, writing / EEPROM reading, writing;
Mazda 3 2010-2013 Mileage reading, writing / EEPROM reading, writing;
Mazda 5 2010-2013 Mileage reading, writing / EEPROM reading, writing;
Mazda 6 2010-2013 Mileage reading, writing / EEPROM reading, writing;
Mazda CX9 2010-2013 Mileage reading, writing / EEPROM reading, writing.
Mazda CX5(TFT BIG) 2020+ Mileage reading, writing / EEPROM reading, writing.

Disabling the immobiliser function for troubleshooting and checking the ECU during repair.
Operation is done by upgrading the Flash file.
Works as an editor.

List of supported ECUs:

• MELCO 2/3 gen.
• MELCO Galant
• MELCO Colt
• Pajero IV GEN 4


Not all the software versions can be supported. To add a new software version, please contact the support portal and attach a file.

Attention! It is highly recommended to connect ECUs (from 2015 and later) on the bench in their 'normal' (not upside down) position!

Via the OBDII connector or on a bench with SRS units installed on Hyundai/Kia vehicles, which allows for full repair and restoration work on these ECUs.

ECUs on the INFINEON XC2336/XC2361 MC:

Identification
Reading Errors.
Clearing Errors.
Reading DFLASH
Writing DFLASH
Clearing Crash Data via CAN.

ECUs on the MAC7242 MC:

Identification
Reading Errors.
Clearing Errors.
Reading DFLASH
Writing DFLASH
Clearing Crash Data via CAN.

MOBIS EEPROM 95128/95256/95320/95640 ECUs:

Identification
Reading Errors.
Clearing Errors. Clearing CAN collision data.
RH850 MCU:
Identification
Reading Errors.
Clearing Errors.
Clearing CAN collision data.

SPC MCU:
Identification
Reading Errors.
Clearing Errors.
Clearing CAN collision data.

H8Sx MCU + EEPROM 95256 MCU:
Identification
Reading Errors.
Clearing Errors.
Clearing CAN collision data.
Not all software versions may be supported.

IMMO OFF; it works as an editor with the dump.

Not all the software versions can be supported. To add a new software version, please contact the support portal and attach a file.

Connection via OBD, operation period 4-10 minutes.

Suggested car list:
Hyundai Avante MB91F061 Mileage writing, Flash memory reading/writing;
Hyundai Elantra MB91F061 Mileage writing, Flash memory reading/writing;
Hyundai Santafe MB91F061 Mileage writing, Flash memory reading/writing;
Hyundai I30 MB91F062 Mileage writing, Flash memory reading/writing;
Hyundai I40 MB91F062 Mileage writing, Flash memory reading/writing;
Hyundai Sonata MB91F062 Mileage writing, Flash memory reading/writing;
Hyundai Tucson MB91F062 Mileage writing, Flash memory reading/writing;
Hyundai Avante MB91F067 Mileage writing, Flash memory reading/writing;
Hyundai Elantra MB91F067 Mileage writing, Flash memory reading/writing;
Hyundai Santafe MB91F067 Mileage writing, Flash memory reading/writing;

Kia Carnival MB91F061 Mileage writing, Flash memory reading/writing;
Kia Picanto MB91F061 Mileage writing, Flash memory reading/writing;
Kia Sedona MB91F061 Mileage writing, Flash memory reading/writing;
Kia Sorento MB91F061 Mileage writing, Flash memory reading/writing;
Kia Sorento MB91F067 Mileage writing, Flash memory reading/writing.

Possible panel coding (from 2013)

Kia Sportage 2017 Yazaki, reading/writing of mileage calculator 25160;
Kia NEC+24c16 2015-...
Kia Optima mileage calculator reading/writing, EEPROM reading/writing;
Kia Ceed mileage calculator reading/writing, EEPROM reading/writing;
Kia Sportage mileage calculator reading/writing, EEPROM reading/writing;
Kia Magnetis mileage calculator reading/writing, EEPROM reading/writing;
Kia Sorento mileage calculator reading/writing, EEPROM reading/writing;
Kia Sportage NEC 2014-... NEC 70F35xx mileage calculator reading/writing, EEPROM reading/writing;
Kia Optima 2014-... NEC 70F35xx mileage calculator reading/writing, EEPROM reading;
Kia Magnetis NEC mileage calculator reading/writing, EEPROM reading/writing;
Kia Sorento NEC mileage calculator reading/writing, EEPROM reading/writing;
Kia Optima NEC mileage calculator reading/writing, EEPROM reading/writing;
Kia Ceed NEC mileage calculator reading/writing, EEPROM reading/writing;
Kia Sportage NEC mileage calculator reading/writing, EEPROM reading/writing;
Kia Soul NEC mileage calculator reading/writing, EEPROM reading/writing;
Kia Rio NEC mileage calculator reading/writing, EEPROM reading/writing;

Hyundai Solaris 2017- mileage calculator reading/writing, EEPROM reading/writing;
Hyundai I20 NEC 70F35xx mileage calculator reading/writing, EEPROM reading/writing;
Hyundai Tucson NEC 70F35xx mileage calculator reading/writing, EEPROM reading/writing;
Hyundai Veloster NEC mileage calculator reading/writing, EEPROM reading/writing;
Hyundai Genesis NEC mileage calculator reading/writing, EEPROM reading/writing;
Hyundai Elantra NEC mileage calculator reading/writing, EEPROM reading/writing;
Hyundai VeraCruz NEC mileage calculator reading/writing, EEPROM reading/writing;
Hyundai I20 NEC mileage calculator reading/writing, EEPROM reading/writing;
Hyundai Azera NEC mileage calculator reading/writing, EEPROM reading/writing;
Hyunday HB20 NEC mileage calculator reading/writing, EEPROM reading/writing.

Mileage writing, ЕЕPROM 95040, vehicles till 2011;
Mileage writing, ЕЕPROM 95160, vehicles after 2011;
Fiat Albea, Ducato, etc. Peugeot Partner.

Attention! It is highly recommended to connect ECUs (from 2015 and later) on the bench in their 'normal' (not upside down) position!

INFINEON XC2361 READING/WRITING of EEPROM/READING of FLASH;
INFINEON XC2336 READING/WRITING of EEPROM/READING of FLASH;
MAC7242 RADING/WRITING of EEPROM/READING of FLASH.
ECUs from 2013+ in CX-5, MAZDA 3 NEW, MAZDA 6 NEW, etc.

FORD SRS RESETTER CAN 2005-2010;
removing crash data on Ford vehicles 2005-2011.

MAZDA SRS RESETTER CAN 2005-2011;
removing crash data on MAZDA 2005-2011.

This module provides data removal from the immobilizer of MED17 and EDC17 ECUs, correction of the TRICORE dump read in the BOOT mode (FULL FLASH) without the checksum recalculation.

Audi/Seat/Skoda/VW - Bosch MED17.5
Audi/Seat/Skoda/VW - Bosch EDC17C46
Audi/Seat/Skoda/VW - Bosch EDC17CP04
Audi/Seat/Skoda/VW - Bosch EDC17CP14
Audi/Seat/Skoda/VW - Bosch EDC17CP20
Audi/Seat/Skoda/VW - Bosch EDC17CP22
Audi/Seat/Skoda/VW - Bosch EDC17CP44
Audi/Seat/Skoda/VW - Bosch EDC17U01
Audi/Seat/Skoda/VW - Bosch EDC17U05
Land Rover - Bosch EDC17CP11
Fiat - Bosch EDC17CP49
Fiat - Bosch EDC17CP52
Ford - Bosch EDC17CP20
Hyundai - Bosch EDC17C08
KIA - Bosch EDC17C08
KIA - Bosch EDC17C14
KIA - MED17.9.8 TC1767
Porsche - Bosch EDC17CP44
Porsche - Bosch EDC17CP14
Citroen - Bosch EDC17C10
Citroen - Bosch MEV17.4
Peugeot - Bosch EDC17C10
Peugeot - Bosch MEV17.4
Volvo - Bosch EDC17CP22
BMW - Bosch EDC17C06
UAZ 17.9.7 and 17.9.71
Not all the software versions can be supported. To add a new software version, please contact the support portal and attach a file.

Chery Kimo via J2534 - Read/Write EEPROM; Read/Write ODO;
Chery Amulet ver1 via KLINE - Read/Write EEPROM; Read/Write ODO;
Chery Tiggo ver1 via KLINE - Read/Write EEPROM; Read/Write ODO;
Chery Fora via J2534 - Read/Write EEPROM; Read/Write ODO;
Chery Indis via J2534 - Read/Write EEPROM; Read/Write ODO;
Geely Emgrand EC7 CAN via J2534 - Read/Write EEPROM; Read/Write ODO;
GREAT WALL (HOVER,HAVAL) H3,H5 EEPROM 24C32 restyling (~2010-2017) via J2534 - Read/Write EEPROM; Read/Write ODO;
GREAT WALL (HOVER,HAVAL) H3,H5 EEPROM 93c66 before restyling, via K-Line - Read/Write EEPROM; Read/Write ODO;
Chery Tiggo 5 via J2534 - Read/Write ODO;
Chery Arrizo 7 via J2534 - Read/Write ODO.

Mileage reading/writing;

VW Polo (P/N 6RF920860Q).
Not all software may be supported

Renault Megane III Mileage reading/writing, EEPROM reading/writing in ABS/CDC/ESP units by ATE;
Renault Laguna III Mileage reading/writing, EEPROM reading/writing in ABS/CDC/ESP units by ATE;
Renault Fluence Mileage reading/writing, EEPROM reading/writing in ABS/CDC/ESP units by ATE;
Renault Latitude Mileage reading/writing, EEPROM reading/writing in ABS/CDC/ESP units by ATE;
Renault Scenic III Mileage reading/writing, EEPROM reading/writing in ABS/CDC/ESP units by ATE;
Renault Scala Mileage reading/writing, EEPROM reading/writing in ABS/CDC/ESP units by ATE;
Samsung SM3 Mileage reading/writing, EEPROM reading/writing in ABS/CDC/ESP units by ATE;
Samsung SM5 Mileage reading/writing, EEPROM reading/writing in ABS/CDC/ESP units by ATE; Renault TraficIV Mileage reading/writing, EEPROM reading/writing in ABS/CDC/ESP units by ATE;
Renault MeganeIV Mileage reading/writing, EEPROM reading/writing in ABS/CDC/ESP units by ATE;
Renault ScenicIV Mileage reading/writing, EEPROM reading/writing in ABS/CDC/ESP units by ATE;
Renault EspaceV Mileage reading/writing, EEPROM reading/writing in ABS/CDC/ESP units by ATE;
Renault Kadjar Mileage reading/writing, EEPROM reading/writing in ABS/CDC/ESP units by ATE;
Renault Talisman Mileage reading/writing, EEPROM reading/writing in ABS/CDC/ESP units by ATE.

The module allows to work with dashboards via OBD or on the bench using a J2534 device.

Available functions:

• Mileage reading/writing;
• 93C66 EEPROM reading/writing.

Reading/writing take 1–2 minutes depending on the J2534 device.

Supported J2534 devices:

• DrewTech Mongoose
• DrewTech CarDAQ
• Scanmatik 2 PRO
• SMS — DiaLink
• Chipsoft J2534 Lite (with disabled OpenPort2 support)
• Chipsoft J2534 Mid (with disabled OpenPort2 support)
• Chipsoft J2534 Pro (with disabled OpenPort2 support)

Openport 2.0 is NOT supported!

Suggested car list:

• Hyundai Equus 2013–2015 Full TFT LCD(Fujitsu MB91F037+93C66)
• Hyundai Centennial 2013–2015 Full TFT LCD(Fujitsu MB91F037+93C66)
• Kia Cadenza 2013_2016 7» TFT LCD(Fujitsu MB91F037+93C66)
• Kia Carens 2012–2016 Small LCD(Fujitsu MB90F026+93C66)
• Kia Carens 2012–2016 SuperVision TFT LCD(Fujitsu MB91F037+93C66)
• Kia Carnival 2014+ Small segment LCD(Fujitsu MB91F047+93C66)
• Kia Sedona 2014+ Small segment LCD(Fujitsu MB91F047+93C66)
• Kia Cerato 2012–2016 Segment LCD(Fujitsu MB90F025+93C66)
• Kia K3 2012–2016 Segment LCD(Fujitsu MB90F025+93C66)
• Kia Forte 2012–2016 Segment LCD(Fujitsu MB90F025+93C66)
• Kia Cerato 2012–2017 SuperVision Monochrome(Fujitsu MB91F037+93C66)
• Kia K3 2012–2017 SuperVision Monochrome(Fujitsu MB91F037+93C66)
• Kia Forte 2012–2017 SuperVision Monochrome(Fujitsu MB91F037+93C66)
• Kia Cerato 2012–2017 SuperVision TFT LCD(Fujitsu MB91F037+93C66)
• Kia K3 2012–2017 SuperVision TFT LCD(Fujitsu MB91F037+93C66)
• Kia Forte 2012–2017 SuperVision TFT LCD(Fujitsu MB91F037+93C66)
• Kia Quoris 2012–2014 SuperVision Full TFT LCD(Fujitsu MB91F037+93C66)
• Kia Quoris 2012–2014 SuperVision TFT LCD(Fujitsu MB91F037+93C66)
• Kia Quoris 2015–2017 SuperVision Full TFT LCD(Fujitsu MB91F037+93C66)

VAG VDO Continental MQBAB 2014-... NEC D70F35xx(RENESAS A2Cxxx) OBDII;
Only VDO/ Continental 2014.07+ controls panels are supported;
Control panels by Johnson Controls ARE NOT supported;
2017+ Full LCD control panels ARE NOT supported;
Work is possible only when you have a functioning key in the ignition lock;
Important: If you have KESSY (SMART key), you need to keep it near the coil during the operation process;
The module has been tested with the following control panels:
Skoda Octavia III 07.2014+
VW Golf 7 07.2014+
VW Passat B8 07.2014+
Scoda Rapid 09.2015+
It may be possible to work with:
Audi A3 Mk3 07.2014+
Audi Q2
Skoda Fabia III 07.2014+
Skoda Superb III (B8)
Seat Leon III 07.2014+
Seat Ateca
Seat Toledo IV 2015+
Seat Ibiza IV (6P) 2015+
VW Electric Golf 04.2014-...
VW Golf GTE 02.2014-...
VW Golf Sportsvan 06.2014-...
VW Tiguan II
VW Touran II
VW Crafter (7C) 2017+
VW Polo 5 2015+.

PIN code reading in the following ECUs:
BOSCH 17.9.11
BOSCH 17.9.12

Control panels by Calsonic Kansei;
Mazda 3 Color Display (93c86) 2018-... Mileage reading/writing;
Mazda 6 Color Display (93c86) 2016-... Mileage reading/writing;
Mazda 6 Color Display (93c86) 2017-... Mileage reading/writing;
Mazda CX5 Color Display (93c86) 2016-... Mileage reading/writing;
Mazda CX5 Color Display (93c86) 2017-... Mileage reading/writing; Mazda CX9 Color Display (93c86) 2017-... Mileage reading/writing.

Subaru Outback 2015+ MCU D70F35xx (without external EEPROM): internal NEC D70F35xx EEPROM reading/writing, mileage reading/writing;
Subaru Legacy 2015+ MCU D70F35xx (without external EEPROM): internal NEC D70F35xx EEPROM reading/writing, mileage reading/writing.

GM ECU Delphi MT60 Reading/writing_Tricore_Full_Flash_OBDII;
GM ECU Delphi MT80 Reading/writing_Tricore_Full_Flash_OBDII;
EEPROM reading;
Cloning.

Cloning, EEPROM reading/writing;
Suggested carlist:
Opel Astra J
Opel Corsa D
Chevrolet Cruze
Chevrolet Cobalt
ECU virginzing: you need to flash a file from a new ECU and then link it to the vehicle via SPS service;
Syncronization transfer (if the SW versions coincide or if you know that they are compatible);
Second hand ECU preparation (VIN, PIN, etc transfer); Mileage change (with a third party calculator!).

Crash data deleting; SRS errors reading/deleting; ECU SRS unlocking.
Suggested car list:
Renault Clio RH850 Renesas R7F010xx;
Renault Capture RH850 Renesas R7F010xx.

Crash data deleting;
Error reading/deleting; ECU SRS unlock.

Suggested car list:

• Renault Clio RH850 Renesas R7F7010xx
• Renault Capture RH850 Renesas R7F7010xx
• Renault Logan New Ph2 RH850 Renesas R7F7010xx

Autoliv RC7 ECUs based on XC23xx:

Renault Kadjar DTCs reading/clearing; ECU unlock; rash data erasing;
Renault MeganeIV DTCs reading/clearing; ECU unlock; rash data erasing;
Renault EspaceV DTCs reading/clearing; ECU unlock; rash data erasing;
Renault ScenicIV DTCs reading/clearing; ECU unlock; rash data erasing;
Renault Talisman DTCs reading/clearing; ECU unlock; rash data erasing;
Renault Koleos II DTCs reading/clearing; ECU unlock; rash data erasing;

Veoneer based on Tricore TC2xx(2019+):

Dacia Sandero III DTCs reading/clearing; ECU unlock; rash data erasing;
Renault MeganeIV DTCs reading/clearing; ECU unlock; rash data erasing;
Renault EspaceV DTCs reading/clearing; ECU unlock; rash data erasing;
Renault Talisman DTCs reading/clearing; ECU unlock; rash data erasing;

Cloning of the ECUs based on RENESAS SH705x without opening;
SH7058 and SH7059 FULL FLASH reading/writing without checksum calculation;
EEPROM reading/writing in Opel and Mitsubishi vehicles;
Mileage calculator for Mitsubishi DENSO;
Suggested carlist:
Nissan Navara, Pathfinder SH7058, SH7059 FULL FLASH reading/writing;
Opel VECTRA, C SIGNUM, MERIVA, CORSA C, ASTRA H, ASTRA J, ZAFIRA B, CORSA D, MERIVA B SH7058, SH7059 FULL FLASH reading/writing; EEPROM reading/writing;
Mazda 2,3,5,6 SH7058, SH7059 FULL FLASH reading/writing;
Suzuki Grand Vitara SH7058 FULL FLASH reading/writing;
Mitsubishi L200, Pajero SH7058, SH7059 FULL FLASH reading/writing;
Subaru Forester, Outback, Legacy SH7058, SH7059 FULL FLASH reading/writing.

Supported dashboards 9via OBD):
8450007022
8450030825
Mileage correction;
Disabling synchronization with ABS unit;
P_FLASH reading/writing (flashing area is not written!)
D_FLASH reading;
Dashboard configuration change:
Automatic transmission (ON/OFF);
Cruise control/speed limiter (ON/OFF);
Tyre pressure monitoring system (ON/OFF)
ABS (ON/OFF);
SRS (ON/OFF).

VAG VDO Continental MQBAB 2012-2014 NEC D70F35xx (RENESAS A2Cxxx) OBDII

Supports ONLY VDO/Continental control panels made in 2012 - 06.2014. Johnson Controls controls panels ARE NOT SUPPORTED. The module functions only when the key is in the ignition switch. Important: if you have a KESSY (SMART key), it should be inside the vehicle dureing the opration time.

The module has been tested with the following control panels:

• Skoda Octavia A7 03.2014

Possible support of:

• Audi A3 2012...06/2014
• Seat Leon 2012...06/2014
• VW Golf 7 2012...06/2014

The module allows to work with BCM Continental via OBD or on the bench.

Funtions:

• BCM identification; Error codes reading/erasing;
• Flash memory reading/writing (without the loading area);
• Vin change; BCM virginizing;
• PINCODE reading (necessary to write keys into BCM),
• ISK code reading, transponder password reading;
• BCM training (virgin unit pairing);
• ECM training (new engine ECU);
• Key programming, even if lost.

Pin code reading takes ~1 minute depending on the J2534 device.

Supported J2534 devices:

• DrewTech Mongoose
• DrewTech CarDAQ
• Scanmatik 2 PRO
• SMS — DiaLink
• Chipsoft J2534 Lite (with disabled OpenPort2 support)
• Chipsoft J2534 Mid (with disabled OpenPort2 support)
• Chipsoft J2534 Pro (with disabled OpenPort2 support)

Openport 2.0 is NOT supported!

Suggested carlist with Continental BCMs (steel cored keys):

• LADA VESTA 2015 +
• Renault Logan 2012 +
• Renault Duster 2012 +
• Renault Dokker 2012 +
• Renault Lodgy 2012 +
• Renault Symbol 2012 +
• Dacia Logan 2012 +
• Dacia Duster 2012 +
• Dacia Dokker 2012 +
• Dacia Lodgy 2012 +
• Dacia Symbol 2012 +

FULL FLASH reading/writing of FUJITSU/SPANSION/CYPRESS microcontrollers via DENSO-UART adapters on FTDI.
The following processors are supported:

• MB96F673
• MB96F675
• MB96F693
• MB96F696
• CY96F673
• CY96F675
• CY96F693
• CY96F696

The module has built-in calculators for calculating and modifying mileage readings in the dashboards where the following microcontrollers are installed:

• GAZ NEXT 2013 MB96F696
• GAZ NEXT 2014 MB96F696
• GAZ NEXT 2015 V1 MB96F696
• GAZ NEXT 2015 V2 MB96F696
• GAZ NEXT 2016 2017 MB96F696
• GAZ NEXT 2016 A21R23 MB96F696
• GAZ NEXT 2016 A21R25 MB96F696
• GAZ NEXT 2017 MB96F696
• GAZ NEXT 2018 MB96F696
• GAZ PA8160 5 MB96F673
• GAZ SOBOL 385 3801010 MB96F696
• GAZON NEXT 2014 MB96F696
• GAZON NEXT 2015 MB96F696
• GAZON NEXT 2016 UP MB96F696
• KAMAZ PA8090 v1 MB96F673
• KAMAZ PA8090 v2 MB96F673
• KRAZ PA8090 4 MB96F673
• LIAZ PA8090 MB96F673
• MAZ PA8090 4 MB96F673
• MAZ PA8090 5 MB96F673
• MAZ PA8090 6 MB96F673
• UAZ 236300 3801020 10 MB96F693 fw 1.28
• UAZ 236300 3801020 20 MB96F693 fw 1.34
• UAZ 3163 3801010 80 MB96F693
• UAZ 3163 3801010 81 MB96F693
• UAZ 3163 3801010 81 MB96F696
• UAZ 3163 3801010 82 MB96F693
• UAZ 316300 3801020 00 MB96F693
• UAZ 316300 3801020 20 MB96F693 fw 1.34
• UAZ 31638 3801010 80 MB96F693
• UAZ FERMER PA8160 MB96F673
• UAZ HUNTER PA8160 3 MB96F673
• UAZ HUNTER PA8160 4 v1 MB96F673
• UAZ HUNTER PA8160 4 v2 MB96F673
• UAZ HUNTER PA8160 4 v3 MB96F673
• URAL PA8160 6 MB96F673

Not all the software versions can be supported in the built-in calculators.

If you do not find the calculator performance satisfactory, you can use a third-party calculator.

The module includes the recovery mode which allows to write even a blank microcontroller in case of the dashboard recovery.

IMMO OFF for Bosch M7.9.7/M7.9.7+/ME7.9.7/M7.8/ME7.8.8 installed in Chinese and ZAZ vehicles.
Supports working with the file read in BSL; automatic checksum correction.
Suggested car list:
Geely:

• FC_1.8
• MC
• Otaka
• СК

Hafei:

• Brio_1.1L
• Princip_1.6L

Аmulet:

• A11
• A11+
• A15+

Chery:

• Chery A113
• CrossEastar (B14)
• Kimo_1.3 M11 (M12)
• QQ6 S11(Jaggi S21) 1.3
• S18d
• Tiggo
• Fora а520 (Estina a21, Elara a21)
• Vortex_Tingo_1.8L
• Bonus
• Corda

ZAZ:

• Forza

Brilliance_V5:

• MA0L2D_MA0L2D01
• NM0L2D_NM0L2D01

Changan:

• CS35
• CХ35

Great Wall:

• M2
• М3
• M4

Not all the software versions can be supported. To add a new software version, please contact the support portal and attach a file.

Mileage change, P_FLASH reading/writing (the loader area is not written), D_FLASH reading via OBD and on the bench.
The following dashboards are supported:

• Lada Granta 8450101019 (locked MCU 9S12HY64) ~ since 04.2018
• Lada Granta 8450101020 (locked MCU 9S12HY64) ~ since 12.2018
• Lada Granta 2190-3801010-20(MCU 9S12HY64) ~ since 2016
• Lada Granta 2190-3801010-40(MCU 9S12HY64) ~ since 2016
• Datsun on-DO 8450100528 ~ since 2018
• 118/2170-3801010 ITELMA K-LINE (only odometer values change)

Checksum correction, mileage change in EDC17 and MED17 ECUs in VAG vehicles. The file is to be read with a third party flasher!

Functionality:

• Mileage reading of MED17/EDC17 ECUs via OBD in metres;
• Automatic search for the mileage in the EEPROM file uploaded to the program;
• Correction of all found mileages;
• Calculation of ALL checksums in the EEPROM file after mileage correction.

IMMO OFF (for example, for the system components checkup) in Sim2k-140\141\341 ECUs in KIA/Hyundai vehicles.

This ECU type has been installed in KIA/HYUNDAI vehicles since 2004. The module supports files read both via OBD and via BDM.

Suggested car list:

• Carens (UN)
• Cerato Forte (TD)
• Genesis Cupe (BK)
• Magentis (MG)
• SantaFe (СМ)
• Sonata (NF)
• Sonata (YF)
• Sorento (XM)
• Sportage (SL_SLE)
• Tucson ix35 (LM_EL)

Not all the software versions can be supported. To add a new software version, please contact the support portal and attach a file.

FULL FLASH reading/writing
Supported ECUs:

• Simtec 71.5
• Simtec 71.6
• Simtec 75.1
• Simtec 75.5
• Simtec 81
• Simtec 81.1

The following areas are accessible:

1. FLASH Address space 0x0000 - 0x7FFFF
2. EEPROM Address space 0x4000 - 0x8000
3. Calibration Address space 0x70000- 0x7FFFF

Special features:

1. Reading, saving, writing of FULL FLASH necessary for cloning. For safety reasons cloning should be done on the bench;
2. Reading/wriing of the map area for chip tuning (the license does not calculate the checksums, another editor is required);
3. Autimatic ECU version identifiation;
4. FULL FLASH reading/writing time is 2 minutes.

Suggested car list:

• Opel Astra H (2004-2007) Z18XE
• Opel Vectra C (2002-2007) Z18XE
• Opel Signum (2002-2007) Z18XE
• Opel Astra H (2006-2009) Z16XER/Z18XER
• Opel Vectra C (2005-2009) Z18XER
• Opel Signum (2005-2009) Z18XER
• Opel Zafira B (2005-2009) Z16XER/Z18XER
• Opel Astra H (2007-2009) Z22YH
• Opel Vectra C (2003-2008) Z22YH
• Opel Signum (2003-2008) Z22YH
• Opel Zafira B (2005-2009) Z22YH

The license is intended to work with M74M, M86 ECU with VAZ and ITELMA software installed in VAZ and UAZ vehicles.

The license supports two modes: CAN and KLine.

1. CAN mode (in the vehicle or with the direct connection to the ECU on the bench): Reading, identification, Flash writing (checksum correction).

2. KLine mode (BSL on the bench): Flash reading. Flash writing. EEPROM reading. EEPROM writing.

The license also has a built-in black box editor which allows to edit all the black box parameters.

Not all software versions may be supported.

Reading/writing of CFLASH / DFLASH / UBOOT/ OPBT0 memory of RENESAS RH850 R7F701xxxx via DENSO-UART to FTDI adapter.

The following processors are supported:

• R7F701002 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701003 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701006 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701007 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701008 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701009 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701010 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701011 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701012 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701013 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701014 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701015 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701016 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701017 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701018 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701019 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701020 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701021 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701022 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701023 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701024 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701025 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701026 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701027 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701028 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701029 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701030 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701032 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701033 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701034 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701040 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701041 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701042 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701043 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701044 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701045 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701046 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701047 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701048 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701049 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701050 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701051 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701052 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701053 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701054 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701055 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701056 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701057 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701062 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701064 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701067 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701069 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701071 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701201 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701202 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701204 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701205 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701215 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701216 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701312 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701320E READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701400 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701401 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701402 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701403 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701404 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701405 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701406 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701407 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701408 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701410 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701411 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701412 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701414 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701416 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701417 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701417M READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701418 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701421 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701422 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701423 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701428 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701430 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701431 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701432 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701434 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701437 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701438 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701441 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701442 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701461 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701462 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701542 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701543 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701544 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701545 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701546 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701547 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701548 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701549 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701552 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701553 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701557 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701560 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701561 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701562 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701563 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701564 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701565 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701566 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701567 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701568 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701569 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701572 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701573 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701577 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701580 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701581 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701582 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701583 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701586 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701587 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701589 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701597 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701602 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701603 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701610 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701611 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701612 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701613 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701620 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701621 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701622 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701623 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701644 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701645 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701646 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701647 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701648 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701649 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701650 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701651 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701652 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701653 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701684 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701685 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701686 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701687 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701688 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701689 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701690 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701691 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701692 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701693 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701694 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701695 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701A03 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701A22 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701A31 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701A33 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701A35 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701A38 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701A43 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010023 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010024 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010033 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010063 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010064 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010073 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010074 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010083 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010084 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010093 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010094 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010103 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010104 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010113 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010114 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010123 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010124 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010133 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010134 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010143 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010144 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010153 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010154 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010163 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010164 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010173 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010174 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010183 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010184 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010193 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010194 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010203 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010204 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010213 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010214 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010223 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010224 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010233 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010234 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010243 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010244 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010253 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010254 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010283 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010284 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010293 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010294 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010303 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010304 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010323 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010324 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010331 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010333 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010334 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010343 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010344 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010352 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010423 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010424 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010433 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010434 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010443 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010453 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010474 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010483 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010533 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010534 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010543 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010573 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010623 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010643 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010673 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010693 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7010713 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7015223 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7015484 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7015603 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7015653 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7015683 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7015693 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7015733 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7015803 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7015813 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7015833 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7015863 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7015873 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016114 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016443 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016483 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016483 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016493 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016843 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016844 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016853 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016854 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016863 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016864 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016873 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016874 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016883 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016884 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016893 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016894 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016903 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016904 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016913 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016914 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016923 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016924 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016933 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016934 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016943 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016944 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016953 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7016954 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7017083 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F7017093 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701A033 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701A223 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701A313 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701A333 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701A352 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701A383 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0
• R7F701A403 READ,WRITE CFLASH//DFLASH//UBOOT//OPBT0

UART Adapter is required

With the ACDelco E78 ECU in OBDII Mode, Bench Mode, and Recovery.

1. OBDII Mode (on-vehicle operation):

Read Identification
Read Errors
Reset Errors
Read Flash
Write Calibration Area (with checksum recalculation, except for TorqSecurity)
Write Second Processor Calibrations

2. Bench Mode (on-bench operation):
Read Flash
Write Flash (without checksum recalculation)
Read EEPROM
Write EEPROM

3. Recovery Mode (on-bench recovery mode):
Read Flash
Write Flash (without checksum recalculation)
Read EEPROM
Write EEPROM

4. EEPROM Editor
Change Odometer Readings
Make New for Linking
Immo Data Calculator for Transferring Immobilizer Synchronization to the BCM

Not all software versions may be supported.

Bench work required!!!
Reading/writing of NEC(RENESAS)Full Flash and EEPROM external microchip in GM BCM BOSCH ECUs.
Both 'open' and 'locked' microcontrollers are supported.
The work is done via CAN bus using a J2534 device. Reading/writing takes 2-5 minutes and depends on the J2534 manufacturer.

The supported BCM BOSCH:

• MCU NEC(RENESAS) D70F3385 + EEPROM 24C16
• MCU NEC(RENESAS) D70F3469 + EEPROM 24C16

Possible cloning.

Suggested car list:

• CHEVROLET AVEO
• CHEVROLET CRUZE
• CHEVROLET ORLANDO
• CHEVROLET SONIC
• CHEVROLET SPARK
• OPEL ASTRA J
• OPEL INSIGNIA
• OPEL MOKKA

The following adapters are supported:

• DrewTech Mongoose
• DrewTech CarDAQ
• Scanmatik 2
• DiaLink
• Chipsoft J2534 Lite (with disabled OpenPort2 support)
• Chipsoft J2534 Mid (with disabled OpenPort2 support)
• Chipsoft J2534 Pro (with disabled OpenPort2 support)

Openport 2.0 is NOT supported!

The module works with CONTINENTAL BCM.

• Reading full NEC (RENESAS) processor flash.
• Writing full NEC (RENESAS) processor flash.
• Reading EEPROM 95160
• Writing EEPROM 95160

The module operates with a direct connection (on the bench). Reading "Open" and "Closed" MCUs.

The following ECU types are supported:

1. NEC (RENESAS) D70F3469 MCU + EEPROM 25160

Not all software versions may be supported.

CFLASH / DFLASH memory reading/writing of RENESAS V850 microcontrollers via DENSO-UART adapter with FTDI.

Supported processors:

D70F3230 -D70F3231 -D70F3232 -D70F3233 -D70F3234 -D70F3235 -D70F3236 -D70F3237 -D70F3238 -D70F3239 -D70F3333 -D70F3334-D70F3335 -D70F3336 -D70F3340 -D70F3341 -D70F3342 -D70F3343 -D70F3344 -D70F3345 -D70F3346 -D70F3347 -D70F3348 -D70F3349 -D70F3350 -D70F3351 -D70F3352 -D70F3353 -D70F3354 -D70F3355 -D70F3356 -D70F3357 -D70F3358 -D70F3364 -D70F3365 -D70F3366 -D70F3367 -D70F3368 -D70F3370 -D70F3371 -D70F3372 -D70F3373 -D70F3374 -D70F3375 -D70F3376 -D70F3377 -D70F3378 -D70F3379 -D70F3380 -D70F3381 -D70F3382 -D70F3383 -D70F3384 -D70F3385 -D70F3402 -D70F3403 -D70F3422 -D70F3423 -D70F3424 -D70F3425 -D70F3426 -D70F3427 -D70F3433 -D70F3438 -D70F3461 -D70F3464 -D70F3465 -D70F3466 -D70F3469 -D70F3470 -D70F3471 -D70F3472 -D70F3474 -D70F3475 -D70F3476 -D70F3477 -D70F3478 -D70F3479 -D70F3480 -D70F3481 -D70F3482 -D70F3483 -D70F3485 -D70F3486 -D70F3487 -D70F3488 -D70F3610 -D70F3611 -D70F3612 -D70F3613 -D70F3614 -D70F3615 -D70F3616 -D70F3617 -D70F3618 -D70F3619 -D70F3620 -D70F3621 -D70F3622 -D70F3623 -D70F3624 -D70F3625 -D70F3626 -D70F3627 -D70F3628 -D70F3629 -D70F3630 -D70F3631 -D70F3632 -D70F3633 -D70F3634 -D70F3635 -D70F3636 -D70F3637 -D70F3638 -D70F3809 -D70F3810 -D70F3811 -D70F3812 -D70F3813 -D70F3814 -D70F3815 -D70F3816 -D70F3817 -D70F3818 -D70F3819 -D70F3820 -D70F3821 -D70F3822 -D70F3823 -D70F3824 -D70F3825 -D70F3926 -D70F3927 -D70F3931 -D70F3932 -D70F3933 -D70F3934 -D70F3935 -D70F3936 -D70F3937 -D70F3938 -D70F3939

Suggested panel list: SRS, EPS, GATEWAY, BCM, etc.

IMMO OFF (e.g. for the system components checkup) in Hitachi ECUs installed in Nissan and Infinity vehicles from 2000 till 2010.

Supports files read both via OBDII and JTAG. Automatic checksum calculation.

Supported processors:

• SH705415N-384kb
• SH705507 -512kb
• SH705513N-512kb
• SH705519N-512kb
• SH705520N-512kb

Car list:

• NISSAN
  • ALMERA (N16)
  • BLUEBIRD (G11)
  • CUBE (Z11)
  • FAIRLADY Z (Z33)
  • MARCH (K12)
  • MICRA (K12),(K12E)
  • MURANO (Z50)
  • NOTE (E11),(E11E)
  • PATHFINDER (R50)
  • PATROL GR (Y61)
  • PRIMERA (P11E),(P12E)
  • QASHQAI (J10E)
  • SERENA (C25)
  • TEANA (J31)
  • TIIDA (C11X),(C12W)
  • X-TRAIL (T30)
• INFINITY
  • FX35 (S50)
  • FX45 (S50)

Full flash reading/writing;

*Simtec 76

Supported areas:

1. FLASH
2. EEPROM

Features:

1. Reading, saving and flashing of FULL FLASH necessary for cloning. For safety reasons it is recommended to clone ECUs on the bench;
2. FULL FLASH reading/writing takes about 2 minutes.

Suggested car list:

• Chevrolet Cruze
• Chevrolet Orlando

The module allows to work with dashboards via the diagnostic connector or on the bench with/without the dongle.

• EEPROM R/W 24с64;
• IMMO DATA R/W;
• Container creation for TANGO (the container is written on MEGAMOS 48W);
• Built-in IMMO editor: CS, MAC, LOGIN, VIN;
• Mileage R/W.

The brand list will be added to the software and will include AUDI, SEAT, SKODA, VW and models.

The following dashboards will be supported:

• NEC + 24C64 06/2010+
• NEC + 24C64 06/2012+
• NEC + 24C64 06/2014+
• NEC + 24C64 TFT 06/2014+

The following dashboards have been tested:

• 5N0920973E
• 5N0920872B
• 5K0920862X
• 3AA920870CX
• 5K0920870DX
• 5C6920861X
• 5C6920953B
• 2H0920863X
• 5JA920810B
• 5J0920811E
• 5J0920810E
• 1Z0920803BKD0
• 8U0920930G
• 8U0920940A
• 8P0920932KX
• 8×0920930

The licnese works with ACDelco Gen1 (1st generation ECUs - 2 Byte SeedKey) and ACDelco Gen2 (2nd generation ECUs - 5 Byte SeedKey) ECUs installed in GM vehicles, enabling full-fledged professional chip tuning.

• ECU identification.
• Reading/Clearing fault codes.
• Reading processor FullFlash/Writing calibration area.

Supported ECU types with the processor:

GM ACDelco E37 — Motorola MPC561 (no checksum calculation)
GM ACDelco E38 — Motorola MPC561 (no checksum calculation)
GM ACDelco E39 — Motorola MPC5566 (no checksum calculation)
GM ACDelco E39A — Motorola MPC5566 (no checksum calculation)
GM ACDelco E67 — Motorola MPC561 (no checksum calculation)
GM ACDelco E78 — Motorola MPC5566 (no checksum calculation)
GM ACDelco E80 — Motorola MPC5676 (no checksum calculation)
GM ACDelco E83 — Motorola MPC5565 (no checksum calculation)
GM ACDelco E84 — Motorola MPC5676 (without checksum calculation)
GM ACDelco E87 — Motorola MPC5565 (without checksum calculation)
GM ACDelco E92 — Motorola MPC5674 (without checksum calculation)
GM ACDelco E98 — Motorola MPC5674 (without checksum calculation)

This module is completely safe to use. If the connection is lost during writing, for example if the battery on a laptop or a car runs out, simply repeat the writing procedure and functionality will be restored.
The reading/writing process takes 2 to 10 minutes, depending on the ECU type and the adapter used.

Car brands in which these ECUs are installed:

• Cadillac
• Chevrolet
• GMC
• Hummer
• Opel

Not all software versions may be supported.

This module allows you to work via the OBDII connector via CAN-bus with engine control units EMS3110, EMS3120, EMS3125, EMS3150, EMS3155, Hitachi based on the SH705822N processor, Valeo V40/V42, Sagem 3000, equipped on Renault, Dacia, Nissan, VAZ cars.

Available functions:

• ECU Identification
• Error Reading/Clearing
• Reading / Writing the calibration area and the ECU program
• Reading / writing procedure takes from 2 to 10 minutes, depending on the type of ECU and the adapter used
• The module calculates the checksum of the calibration area

Adapters to work with:

• DrewTech Mongoose
• DrewTech CarDAQ
• Skanmatik 2/2 PRO
• SMS — DiaLink
• Chipsoft J2534 Lite (with disabled OpenPort2 support)
• Chipsoft J2534 Mid (with OpenPort2 support disabled)
• Chipsoft J2534 Pro (with OpenPort2 support disabled)
• Openport 2.0 is not supported

List of supported vehicles and ECUs:

VAZ

• Largus 1.6 H4M — Continental EMS3125
• Largus K4M — Continental EMS3120
• X-Ray 1.6 K4M — Continental EMS3125
• Vesta 1.6 K4M — Continental EMS3125

DACIA

• Dokker 1.2 TCe H5F — Continental EMS3155
• Duster 1.2 TCe H5F — Continental EMS3155
• Duster 1.6 K4M — Valeo V40/V42
• Duster 1.6 K4M — Continental EMS3110
• Duster 2.0 F4R — Valeo V40/V42
• Lodgy 1.2 TCe H5F — Continental EMS3155
• Logan 1.6 H4M — Continental EMS3125
• Logan K4M — Continental EMS3120

NISSAN

• Almera 1.6 H4M — Continental EMS3125
• Almera K4M — Continental EMS3120
• Juke 1.2 DIG-T HR12DDT — Continental EMS3155
• Pulsar 1.2 DIG-T HR12DDT — Continental EMS3155
• Qashqai 1.2 DIG-T HR12DDT — Continental EMS3155
• Terrano 1.6 H4M — Continental EMS3125
• Terrano 2.0 F4R — Continental EMS3125

RENAULT

• Clio 3 1.2 D4F — Continental EMS3110
• Clio 4 1.2 D4F — Continental EMS3125
• Clio 4 1.2 TCe H5F — Continental EMS3155
• Clio 4 1.6 K4M — Valeo V40/V42
• Duster 1.6 K4M — Valeo V40/V42
• Duster 1.6 K4M — Continental EMS3125
• Duster 2.0 F4R — Valeo V40/V42
• Fluence 1.6 K4M — Valeo V40/V42
• Fluence 2.0 M4R — Continental EMS3110
• Kadjar 1.2 TCe H5F — Continental EMS3155
• Kangoo 1.6 K4 M-Continental EMS3110
• Kaptur 1.6 K4M — Continental EMS3125
• Kaptur 2.0 F4R — Continental EMS3125
• Latitude 2.0 M4R — Continental EMS3110
• Logan 1.6 H4M — Continental EMS3125
• Logan K4M — Continental EMS3120
• Megan 3 1.4 TCe H4J — Valeo V40/V42
• Megan 3 1.6 K4M — Valeo V40/V42
• Megan 3 2.0 M4R — Continental EMS3110
• Megan 3 2.0 TCe F4R-T — Continental EMS3110
• Megan 4 1.2 TCe H5F — Continental EMS3155
• Modus 1.2 D4F — Continental EMS3110
• Sandero 1.6 H4M — Continental EMS3125
• Sandero 2.0 RS F4R — Continental EMS3125
• Scenic 3 1.4 TCe H4J — Valeo V40/V42
• Scenic 3 1.6 K4M — Valeo V40/V42
• Scenic 3 2.0 M4R — Continental EMS3110
• Scenic 4 1.2 TCe H5F — Continental EMS3155
• Koleos/Latitude 2.5 — SH705822N (Hitachi SH7058/1MB)

Attention! The operation of this module is completely safe, in case of loss of communication during writing, for example, if the battery on a laptop or the battery on a car runs out, it is
enough to repeat the recording procedure and the operation will be restored.

This module allows working via OBDII connector via CAN-bus with the control units ABS/ESP BOSCH 9.0–9.1 with MC TMS470, TMS570 and EEPROM 95128/95320/95640, equipped on the following vehicles: Renault, Dacia, Nissan, VAZ, 2014+

Module supports:

• ECU Identification
• Error Reading/Clearing
• EEPROM Reading / Writing
• Reading FullFlash / Writing calibration and software area
• VIN data changing
• ECU reset
• Backups are saved automatically to the «Backup» folder. Even if you have accidentally deleted the file after reading, you can find it in the folder with the date and time of creation in the title.

EEPROM reading / writing takes from 7 to 15 seconds, depending on the processor and the adapter used.

Approximate vehicle list:

• Dacia Duster
• Dacia Logan
• Dacia Sandero
• Lada Vesta
• Lada X-Ray
• Nissan Terrano
• Renault Duster
• Renault Logan
• Renault Sandero
• Renault ClioIV
• Renault Captur
• Renault Kaptur

Checked ECUs:

• TMS470+95320 — 2014
• TMS470+95320 — 2015
• TMS570+95128 — 2016
• TMS570+95128 — 2017
• TMS570+95128 — 2018
• TMS570+95128 — 2019
• TMS570+95128 — 2020
• TMS570+95320 — 2017
• TMS570+95640 — 2016

Attention! The operation of this module is completely safe, in case of loss of communication during recording, for example, if the battery on a laptop or the battery on a car runs out,
it is enough to repeat the recording procedure and the operation will be restored.

• Reading EEPROM 95320.
• Writing EEPROM 95320
• Reading Flash
• Writing Flash (with checksum recalculation)

Built-in immobilizer data editor: CS, MAC, Login, Immobilizer Status.

The module can be used for chip tuning, ECU cloning, and immobilizer status changes.

Working with VAG vehicle engine ECUs via the diagnostic connector or on the bench.

Not all software versions may be supported.

This license is a dump editor. It allows mileage changing with checksum recalculation in the files read from EEPROM area of the TRICORE processor in EDC17 diesel ECUs installed on KIA and HYUNDAI vehicles.

The module supports:

• Reading the mileage of KIA and HYUNDAI vehicles via OBDII in meters
• Reading the total operating time of KIA and HYUNDAI vehicles via OBDII in minutes
• Automatic search for the specified mileage in the EEPROM dump loaded into the program.
• Changing all found mileages to those specified by the user.
• Calculation of all checksums of the EEPROM dump after changing the mileage.

The license has in-built calculators.

To expand the list of supported ECUs, feel free to send dumps to technical support with exact data read by the module via CAN.

This module allows to work via OBDII connector via the CAN bus with the Delphi DCM3.4, SID301 / 303 / 304 / 305 / 306 / 307 engine control units based on the SH7059, MPC562, TC1766, TC1767 processor installed on Renault, Dacia, Nissan vehicles.

The module supports:

• ECU Identification
• Error Reading/Clearing
• Reading / Writing calibration and software area
• VIN reading/writing

The module allows to do IMMO OFF (e.g. for checking up the system components) in SIEMENS VDO ECUs installed in Hyundai and Kia vehicles from 2001 to 2010. It requires a Full Flash file read in BSL or by a programming tool.

Additional functions:

• Siemens -> Bin converter
• Bin -> Siemens converter
• checksum correction

Suggested car list:

• Hyundai Cupe (Tiburon) (GK)
• Hyundai Elantra (XD, HD)
• Hyundai Matrix (FC)
• Hyundai Santa_Fe (SM)
• Hyundai Sonata (EF)
• Hyundai Tucson (JM)
• Kia Ceed (ED)
• Kia Cerato (LD)
• Kia Magestik (MG)
• Kia Sportage (KM)

Supported software:

• ca661010
• ca661016
• ca661018
• ca663031
• ca663040
• ca663056
• ca665022
• ca665023
• ca669012

This module allows working via OBDII connector via CAN-bus or K-Line with BOSCH M7.9.2 / M7.9.7 / M (G) 7.9.8 / ME17.9.11 / ME17.9.11.1 / ME (G) 17.9.12 / ME (G) 17.9.13 ECUs based on processors ST10, C167, TC1762 equipped on Hyundai and Kia vehicles.

Module supports:

• ECU Identification
• Error Reading/Clearing
• Reading of the Processor FullFlash / Writing calibration area
• Automatic check and preparation (if required) of files for writing on ME17.9.11 / ME17.9.11.1 / ME (G) 17.9.12 / ME (G) 17.9.13.

Reading and writing of calibrations and control program via OBDII for the following ECUs:

• ME17.9.11 — File size of FLASH memory 1.46 MB (1 540 096 bytes)
• ME17.9.11.1 — Flash memory size 1.46 MB (1,540,096 bytes)
• ME (G) 17.9.12 — File size FLASH memory 1.46 MB (1 540 096 bytes)
• ME (G) 17.9.13 — File size FLASH memory 1.46 MB (1 540 096 bytes)

Writing via OBDII for:

• M7.9.2 — File size of FLASH memory 512 KB (524 288 bytes)
• M7.9.7 — File size of FLASH memory 512 KB (524 288 bytes)
• M7.9.8 — File size of FLASH memory 832 Kb (851968 bytes)
• M (G) 7.9.8 — File size FLASH memory 832 Kb (851968 bytes)

This module allows working via OBD by K-Line with SIMK43 / SIM2K-47 ECUs with C167 processors equipped on Hyundai, Kia vehicles.

The module supports:

• ECU identification
• Error Reading/Clearing
• FullFlash Reading / Writing calibration area
• Automatic check of files and checksum correction of calibration area

SIMK-43 — calibration FLASH filesize — 512 Kb (524 288 b)
SIM2K-47 — calibration FLASH filesize — 512 Kb (524 288 b)

This module allows working via OBD by K-Line with petrol ECUs Mikas12 with Infineon XC27xx processor in GAZ vehicles.

1. XC2765 — File size of FLASH — 832 kb (851 968 b)
2. XC2768 — File size of FLASH -1088 kb (1 114 112 b)

The module supports:

• ECU Identification
• Reading of the registration data
• DTC reading, clearing
• ECU reset
• ECU initialization
• Flash reading and writing
• EEPROM reading and writing
• Registration editor
• Recovery mode

Full flash reading, map area writing via OBD. No checksum correction.

Full flash readiing/writing; EEPROM reading/writing (EEPROM and VID).

Password reading; ECU cloning on the bench. Recovery mode: allows to recover the ECU which do not respond via CAN bus or bricked ECUs. Recovery is possible only when there is the ECU password.

Suggested car list:

• BUICK LaCrosse
• BUICK Regal
• BUICK Verano
• CADILLAC ATS
• CADILLAC SRX
• CADILLAC XTS
• CHEVROLET Camaro
• CADILLAC Impala
• CADILLAC Malibu
• GMC Canyon
• OPEL Insignia

Full flash reading/writing; EEPROM reading/writing.

Allows not to reflash the boot sector; сloning. Even though full flash reading/writing is supported via OBD, it is recommnded to perform the cloning procedure on the bench.

Reading/writing time is 2–15 min depending on the J2534 device manufacturer.

Suggested car list:

• CHEVROLET Orlando
• CHEVROLET Cruze
• CHEVROLET Malibu
• CHEVROLET Captiva
• OPEL Astra J
• OPEL Antara

FLASH reading/writing of VAZ TCMs.
Additional feature of VIN change which allows to mount a second-hand TCM.

Reading/writing time takes 2–15 minutes, depending on the J2534 device.

Suggested car list:

• Lada Granta
• Lada Priora
• Lada Vesta
• Lada XRAY

The license works with ACDelco E87 and ACDelco E67 ECUs, allowing for full repair and restoration work on these ECUs.

1. OBDII Mode (on-vehicle operation), supported for E67/E87:

• Read Identification
• Read Error Codes
• Clear Error Codes
• Read Flash
• Write Calibration Area (without recalculating checksums)

2. Bench Mode (on-vehicle operation), supported for E67/E87:

• Read Flash
• Write Flash (without recalculating checksums)
• Read EEPROM
• Write EEPROM

3. Recovery Mode (on-vehicle operation), supported for E87:

• Read Flash
• Write Flash (without recalculating checksums)
• Read EEPROM
• Write EEPROM

4. EEPROM Editor (supported for E87):

• Change Odometer Reading
• Configure ECU as New for Linking

Not all software versions may be supported.

This module allows working on the bench in BSL with different ECUs with Infineon XC2xxx, C167, ST10

The module supports:

• FLASH MK Reading
• FLASH МК Writing

Approximate ECU list:

1. XC2060
2. XC2765
3. XC2768

М74, М86

ST10
1. Mikas 11.CR/VS8
2. Mikas 11ET/TM
3. Janvar 7.2+
4. M73(Itelma)/M74K
5. Bosch Kefico M(G)7.9.8

C167
1. Siemens Simos 3.x
2. Siemens Simos 7.1
3. Siemens Simos 9.1
4. Sirius D3 / 4R
5. Sirius D32 / D42 / 42R / D52
6. Simtec 71.6(GM)
7. Simtec 75(GM)
8. Simtec 76(GM)
9. EMS3132
10. EMS3134
11. SIMK41/SIMK42/SIMK43 29F200BB
12. SIMK42/SIMK43/SIM2K47 29F400BB

This module allowas working via OBDII or on the bench with SRS Takata ECUs with SPC560P34L1 on Lada Vesta. Allows ECU recovering.

Supported ECUs:

1. 8450007028
2. 8450007029

The module supports:

• Identification
• Error Reading
• Error eracing
• VIN reading
• Initialization
• Deinitialization
• Crash data erasing

This module allows working via OBD or on the bench with SRS ECUs with TriCore Aurix TC2xx in Ford/Mazda.

The module supports:

• Identification
• Error reading
• Error erasing
• DFLASH reading
• DFLASH writing

This module allows working via OBD or on the bench with SRS ECUs with TriCore Aurix TC2xx in Hyundai/Kia.

The module supports:

• Identification
• Error reading
• Error erasing
• DFLASH reading
• DFLASH writing

Not all software versions are supported. If the software versions are not supported by this license, please contact the support on this portal. Please also include a photo of the ECU and the full information regarding CFLASH, DFLASH, UCB, OTP, etc.

This module allows working via OBD or on the bench with SRS ECUs with TriCore Aurix TC2xx in Nissan/Infinity.

The module supports:

• Identification
• Error reading
• Error erasing
• DFLASH reading
• DFLASH writing

Not all software versions are supported. If the software versions are not supported by this license, please contact the support on this portal. Please also include a photo of the ECU and the full information regarding CFLASH, DFLASH, UCB, OTP, etc.

The module works withRenesas RH850 R7F701400, Renesas D70F3525, Renesas D70F3532, Renesas D70F3532 dashboards via OBD or in the bench.

The module supports:

• Dashboard identification (Continental, Visteon)
• Errors reading / erasing (Continental, Visteon)
• Dashboard mileage changing (might be required for used vehicle parts) (Continental, Visteon)
• Virtual EEPROM reading and writing (Continental, Visteon)
• Reading Code Flash (Continental)
• ECU reset

Approximate list with vehicles that have these dashboards:

• Renault Arkana
• Renault Duster
• Renault Espace V
• Renault Kadjar
• Renault Koleos II
• Renault  Megane IV
• Renault Scenic IV
• Renault Talisman
• Dacia Logan II
• Dacia Sandero II
• Dacia Duster II

Please note: the module works with the dashboard (without changing / patching CFLASH), the vehicles also have an active duplicate of the current mileage in ABS, you need to change the readings in ABS or install a CAN filter for it to work properly.

Bosch BCM, Continental Gen.1 (2 byte SeedKey), Gen.2 (5 byte SeedKey).

Full Flash reading of NEC(RENESAS).
Full Flash writing of NEC(RENESAS).
EEPROM Reading/Writing

Direct connection is required (working is done on the bench).

The following ECUs are supported:

1. MCU NEC(RENESAS) D70F3558 + EEPROM 24C32
2. MCU NEC(RENESAS) D70F3558 + EEPROM 25320

Not all software versions might be supported.

This module is a dump editor which allows mileage correction with checksum corrections from the read EEPROM from the processor in the DSG DQ200, DSG DQ200_MQB, DSG DQ200G2, DSG DQ250E / F (02E) units installed on VAG vehicles.

The module supports:

• Mileage reading of VAG vehicles via OBDII.
• Automatic search for the mileage in the EEPROM file uploaded to the program.
• Correction of all found mileages.
• Calculation of ALL checksums in the EEPROM file after mileage correction.

Not all software versions are supported. If the software versions are not supported by this license, please contact the support on this portal. Please also include a photo of the ECU and the full information regarding CFLASH, DFLASH, UCB, OTP, etc.

SiriusD3/D32/4R/42R/D42/D52 of GM velicles.

The module has two tabs for working with these ECUs and has the following functions:

OBDII tab:

• ECU identification (via OBDII).
• Base software and calibration area reading (via OBDII).
• Calibration area writing (via OBDII).
• Recalculation of checksums.

Bench tab (BSL mode), cloning:

• Full Flash Reading
• Full Flash Writing
• EEPROM Reading
• EEPROM Writing

Not all software versions might be supported.

The module allows working with Renesas RH850 R7F701404, R7F701428, NEC 70F3529, NEC 70F3532 MCs in Continental VDO, CYM (Haval Jolion only) instrument panels installed on Haval H6/H9/F7, Jolion and Great Wall Poer cars, via the diagnostic connector or on the bench (connection in the help) OBDII.

The module supports:

• Dashboard identification
• Error reading / erasing
• Dashboard mileage changing (might be required for used vehicle parts)
• Virtual EEPROM reading and writing
• Code Flash reading
• VIN reading / editing
• ECU resetting
• Resetting the service interval
• Configuration reading / writing

IMMO OFF for Siemens EMS3120/EMS3125/ValeoV40/42 on Dacia, Lada, Nissan and Renault vehicles.

Full flash file read in BSL mode is required for working with this license.

Additional functions:

• The checksums are automatically calculated

Vehicle list with these ECUs:

• Dacia Duster
• Dacia Logan
• Dacia Sandero
• Dacia Dokker
• Dacia Lodgy
• Lada Largus
• Lada X-Ray
• Nissan Terrano
• Nissan Almera
• Renault Duster/Kaptur
• Renault Logan 2
• Renault Sandero 2
• Renault Megane 3
• Renault Fluence
• Renault Clio IV
• Renault Clio V

Supported software:

EMS3120

• EMS3120_RDC230
• EMS3120_RDC540
• EMS3120_RDC560
• EMS3120_RDC570
• EMS3120_RDC580
• EMS3120_RDC820
• EMS3120_RDC830
• EMS3120_RDC840
• EMS3120_RDC900

EMS3125

• EMS3125_RDE5F0
• EMS3125_RDE320
• EMS3125_RDE450
• EMS3125_RDE470
• EMS3125_RDE530
• EMS3125_RDE540
• EMS3125_RDE570
• EMS3125_RDE580
• EMS3125_RDE590

Valeo V4x

• 0734R
• 0107R
• 1730R
• 1793R
• 1794R
• 3058R
• 3064R
• 4864R
• 4868R
• 4870R
• 3792R
• 2047R
• 3340R
• 3348R
• 5379R
• 5380R
• 6022R
• 6023R
• 2046R
• 4800R
• 5849R
• 6029R
• 6918R
• 1348R
• 2068R
• 3512R
• 4226R
• 4227R
• 6003R
• 6004R

Delphi BCM

• Full Flash Reading NEC (RENESAS)
• Full Flash Writing NEC (RENESAS)
• EEPROM (93C86) Reading, Writing
• DFLASH (D70F3633) Reading, Writing

Direct connection is required (working is done on the bench).

The following ECUs are supported:

1. MCU NEC (RENESAS) D70F3238+ EEPROM 93C86
2. MCU NEC (RENESAS) D70F3633

Not all software versions might be supported.

The module works with ACDelco E37/E38 in OBDII Mode or Bench Mode.

1. OBDII Mode (working in the vehicle):

• Identification
• Error reading
• Error reset
• Flash reading
• Calibration area writing (without checksum corrections)

2. Bench Mode:

• Flash reading
• Flash writing (without checksum corrections)
• EEPROM reading
• EEPROM writing

Not all software versions may be supported.

Siemens ECUs with INFINEON TRICORE and MOTOROLA MPC5xx

• ECU Identification
• Error reading/clearing
• Full Flash Reading/Calibration area Writing
• Automatic checksum corrections of the calibration area

Working via OBD via CAN-bus (in the vehicle with working IMMO):

• SIM2K-240 — File size of FLASH memory 2,00 Mb (2 097 152 bytes)
• SIM2K-241 — File size of FLASH memory 2,00 Mb (2 097 152 bytes)
• SIM2K-242 — File size of FLASH memory 2,00 Mb (2 097 152 bytes)
• SIM2K-245 — File size of FLASH memory 2,00 Mb (2 097 152 bytes)

Working via OBD via CAN-bus (in the vehicle or via direct connection on the bench):

• SIM2K-141 — File size of FLASH memory 2,00 Mb (2 097 152 bytes)
• SIM2K-142 — File size of FLASH memory 2,00 Mb (2 097 152 bytes)
• SIM2K-143 — File size of FLASH memory 2,00 Mb (2 097 152 bytes)
• SIM2K-341 — File size of FLASH memory 2,00 Mb (2 097 152 bytes)

Not all software options are supported.

The module allows working with ACDelco E80/E82/E84 ECUs in OBDII Mode, Bench Mode and Recovery.

1. OBDII Mode:

• Identification reading
• Error reding
• Error reset
• Flash Reading
• Calibration area writing (without the checksums recalculted)

2. Bench Mode:

• Flash Reading
• Flash writing (without the checksums recalculted)
• EEPROM Reading
• EEPROM Writing

3. Recovery Mode:

• Flash Reading
• Flash writing (without the checksums recalculted)
• EEPROM Reading
• EEPROM Writing

Not all software versions might be supported.

Supports working via OBDII or on the bench with SRS units installed on Jaguar / Land Rover vehicles, which allows doing full-fledged repair and restoration work with ECU data.

ECU with INFINEON XC2361 processor:

• Identification
• Error Reading
• Error Reset
• DFLASH Reading
• DFLASH Writing

ECU with Tricore Aurix TC2xx processor:

• Identification
• Error Reading
• Error Reset
• Clearing collision information via CAN.

Not all software versions may be supported.

Allows to work with ECM/TCM ECU Continental installed on Ford vehicles.

OBDII Mode(in the car and on the bench):

• Identification reading
• Error reading
• Error reset
• Flash reading
• Flash writing with map area checksum correction
• VBF to BIN converter

Supported ECU:
ECM:

• EMS2101
• EMS2102
• EMS2103
• EMS2204
• EMS2205
• EMS2211
• EMS2213
• EMS2214
• EMS2215
• EMS2510
• EMS2511
• EMS2512
• EMS2513

TCM:

• 6DCT250

Not all software versions may be supported.

Siemens ECM on Ford vehicles:

OBDII Mode (work on car or on the bench):

• Identification
• Errors Reading
• Error Reset
• Flash Reading
• Flash Writing with recalculation of checksums of the calibration area
• Adaptation Reset

List of supported ECUs:

• SIM21
• SIM22
• SIM28
• SIM29
• SIM210

Not all software versions are supported.

ECM Visteon on Ford vehicles:

OBDII Mode (work in the car):

• Identification
• Errors Reading
• Errors Reset
• Reading Flash
• Flash Writing with recalculation of checksums of the calibration area
• Initialization

List of supported ECUs:

• ECM Visteon ESU-121
• ECM Visteon ESU-131
• ECM Visteon ESU-312
• ECM Visteon ESU-411
• ECM Visteon ESU-412
• ECM Visteon ESU-415
• ECM Visteon ESU-418

Not all software versions may be supported.

ECM Delphi DCM Diesel on Ford vehicles

• OBDII Mode (working on car or on the bench):
• Identification Reading
• Errors Reading
• Errors Reset
• Reading Flash (calibration area)
• Flash Writing (calibration area with checksum recalculation)

List of supported ECUs:

• DKM 3.5
• DCM 6.1

Not all software versions may be supported.

The module works with the ACDelco E98 ECU via OBDII, on the Bench and in Recovery mode.

OBDII Mode (work on car):

• Identification
• Errors Reading
• Error Reset
• Flash Reading
• Flash Writing of the calibration area wiyhout the CS

Bench Mode:

• Flash Reading
• Flash writing (without the checksums recalculted)
• EEPROM Reading
• EEPROM Writing

Recovery Mode:

• Flash Reading
• Flash writing (without the checksums recalculted)
• EEPROM Reading
• EEPROM Writing

Not all software versions may be supported.

1.OBDII Mode (work on car):

• Reading Identification
• Error Reading
• Error Reset
• Flash Reading
• Calibration area writing (without checksum recalculation)

2. Bench Mode (work on the bench):

• Flash Reading
• Flash Writing (no checksum recalculation)
• EEPROM Reading
• EEPROM Writing

3. Recovery Mode (desktop recovery mode):

• Flash Reading
• Flash Writing (no checksum recalculation)
• EEPROM Reading
• EEPROM Writing

4. File editor:

• ECU virginize
• KM change

The module allows you to work with the ACDelco E92 ECU in OBDII Mode, Bench Mode and Recovery.

Not all software versions may be supported.

The license works with with dashboards based on the Freescale 9S12HY64 MK installed on Lada Largus cars from 2024.

• Identification
• Mileage reading/writing
• Configuration reading/writing
• VIN reading/writing
• PFLASH writing  (calibration area)

To work, you need a constant connection to the Internet.

Not all software versions may be supported.

Allows working via the OBDII connector or on the bench with multimedia units installed on GM cars, which allows for full-fledged repair and restoration work with ECU data.

Scope of application: Change of region, Used installation, frequency step, language, expansion of functionality by changing calibrations (Recording calibrations).

Functions:

• Identification
• VIN Reset
• Calibratioтs writing

The Scanmatik adapter is recommended. Stable internt connection is required.

Not all software versions may be supported.

The license supports DCM2.5 ECUs installed in Ashok Leyland, Mahindra, Tata vehicles via OBDII or with a direct connection via CAN-bus.

• Delphi DCM2.5   Ashok Leyland XC2xxx   Flash  832 KB (851968 byte) - Full Flash reading/software and map area writing;
• Delphi DCM2.5   Mahindra XC2xxx   Flash  832 KB (851968 byte) - Full Flash reading/software and map area writing;
• Delphi DCM2.5P  Tata XC2xxx   Flash  1,06 MB (1114112 byte) - Full Flash reading/software and map area writing.

Functions:

• Identification
• Error reading
• Error reset
• Full Flash reading (sufficient for BSL recovery)
• Software and map area writing/map area checksum correction.
• VIN writing

The Scanmatik adapter is recommended. Stable internet connection is required.
Not all software versions may be supported.


The license works via OBDII or on bench with SRS Great Wall ECUs based on XC2336 MCUs installed on Great Wall Haval vehicles, which allows for full repair and restoration of the ECU data.

Functions:

• Identification
• Reading errors
• Erase errors
• Clearing collision information via CAN

Stable internet connection is required.

Not all software versions may be supported.

The licence works with ABS ECU on Tricore Aurix MC (TC234-32 °F) installed on Lada Vesta NG, Lada Niva cars manufactured since 2024.

• Identification
• Reading/Clearing DTC
• Reading/Writing Milage
• Reading/Writing configuration (as a byte array without decoding)
• VIN Reading/Writing
• Writing FLASH (application area)

A stable connection to the Internet is required. Not all software versions may be supported.

The license works with Volvo SRS units based on the TMS570 MK installed on Volvo cars, allowing fully repair and restore ECU data.

• Identification
• Errors Reading
• Error Reset
• Reading FLASH
• Crash data erasing via CAN.

Stable Internet connection is required.
Not all software versions may be supported.

License works with DENSO dashboard on the Spansion S6J3001 MC installed on Toyota, Lexus cars from 2018+

Work is performed with open and closed MC, via the CAN bus via the diagnostic connector or on the bench, with a direct connection to the dashboard connector.

On cars where additional gateway authorization is required, work only with a direct connection to the dashboard CAN bus, or remove it and work on the bench.

• Identification
• DTC Reading / Clearing
• Mileage Reading / Writing
• WORK FLASH Reading / Writing
• TCFLASH Reading
• DENSO YAZAKI reset and configuration training
• Mileage change history reading
• Mileage change history reset

A stable connection to the Internet is required for work. Not all software versions may be supported.

Approximate list of vehicles:

• Lexus ES 2018+
• Lexus LS 2018+
• Lexus LX 2018+
• Toyota Camry 2018+
• Toyota Corolla 2018+
• Toyota Harrier 2018+
• Toyota RAV4 2018+
• Toyota Yaris 2018+
• Toyota Yaris Cross 2018+

Supports working via OBDII or on the bench with SRS Siemens VW2, VW3, VW5, VW6, VW51, VW52, VW61 ECUs installed on VAG vehicles, which allows to carry out full-fledged repair and restoration work with ECU data.

• Identification
• EEPROM Reading
• EEPROM Writing
• Calculator for Siemens VW2, VW3, VW5, VW51, VW52, VW6, VW61 ECU (file editing)

Attention! The license works ONLY with Scanmatik.

Not all software versions may be supported.

Supports working via OBDII or on the bench with 6RF(U)92086x dashboards (white indication) based on the 70F3524 microcontroller without external EEPROM, installed on VAG Polo cars since 2014, which allows full repairing and ECU restoration.

OBD or bench work with dashboard is POSSIBLE ONLY AFTER PRELIMINARY READING of D70F3524 DFLASH MK via a programmer (any programmer for reading a closed NEC and saving the read file in open form).

• Identification
• Mileage reading
• Mileage change
• EEPROM reading
• EEPROM writing
• Immobilizer data reading
• Immobilizer data writing
• Viewing and editing immobilizer data

Not all software versions may be supported.

M&D Flasher Adapter might be helpful.

Allows working via the OBDII connector or on the bench with SRS based on the SPC56xx/Renesas H8Sx1725 MK installed on Acura and Honda cars, which allows for full-fledged repair and restoration work with ECU data.

Functions:

• Identification
• Reading Errors
• Erase errors
• Clearing collision information via CAN

The Scanmatik adapter is recommended. Stable internt connection is required.

Not all software versions may be supported.

Allows working with direct connection via CAN/K-Line bus (depending on the selected ECU type) with Delphi control units installed on cars of various Chinese manufacturers, which allows for full-fledged chip tuning work with ECU data.

• Delphi MT20U MC912DT128 128Kb K-Line Reading the full contents of the MK/writing the control program and calibration area recalculation of the CS of the calibration area.
• Delphi MT20U2 MC9S12KG256 256Kb K-Line Reading the full contents of the MK/writing the control program and calibration area recalculation of the CS of the calibration area.
• Delphi MT22U MS9S12XET256 256Kb K-Line Reading the full contents of the MK/writing the control program and calibration area recalculation of the CS of the calibration area.
• Delphi MT22.1 MS9S12XEP768 768Kb K-Line Reading the full contents of the MK/writing the control program and calibration area recalculation of the CS of the calibration area.
• Delphi MT22.1.1 MS9S12XET256 256Kb K-Line Reading the full contents of the MK/writing the control program and calibration area recalculation of the CS of the calibration area.
• Delphi MT22.5 MS9S12XEP768 256Kb K-Line Reading the full contents of the MK/writing the control program and calibration area recalculation of the CS of the calibration area.
• Delphi MT62.1_JAC SPS5634 1.5 Mb CAN Reading the full contents of the MK/writing the control program and calibration area without recalculating the CM.
• Delphi MT80 TC1762 1.4 Mb K-Line Reading the full contents of the MK/writing the control program and calibration area recalculation of the CS of the calibration area.
• Delphi MT92 TC17XX 2 Mb CAN Reading the full contents of the MK/writing the control program and calibration area recalculation of the CS of the calibration area.
• Delphi MT92.1 TC17XX 2.5 Mb CAN Reading the full contents of the MK/writing the control program and calibration area recalculation of the CS of the calibration area.

  Functions:

• Identification
• Read/Clear DTC
• Reading Full Flash
• Flash recording(application and calibration area)
• Recalculation of checksums (Not all software versions may be supported)

The Scanmatik adapter is recommended. Stable internet connection is required.

Not all software versions may be supported.

Reading in BSL mode (with opening on the bench) and writing without opening on the bench or on the car.

The following ECU types are supported:

• Bosch M7.9.7 K-Line based on C167 processor with external Flash 512kb, supports BSL reading, writing on the table without opening or on the car, correction of the COP.
• Bosch ME7.9.7 K-Line based on C167 processor with external Flash 1Mb, supports reading BSL, writing on the table without opening or on the car, correction of the COP.
• Bosch M7 / Bosch M7.8 / Bosch M7.8.0 / Bosch M7.8.8 / Bosch M7.9.7.1 K-Line based on ST10F275 processors with 832 KB internal Flash memory, supports BSL reading, writing with protection disabled, on the table without opening or on the car, correction of the COP.
• Bosch ME7.8.8 CAN based on ST10F275 processors with 832 KB internal Flash memory, supports BSL reading, writing with protection disabled, on the table without opening or on the car, correction of the COP.

Not all software versions may be supported.

Providies expanded functionality - working with instrument panels via the OBDII connector (where technically possible), installed on Hyundai/Kia cars since 2018, which allows for full-fledged repair and restoration work.

To work, you need a constant connection to the Internet. This add-on only works as part of licenses 27, 28.

Not all software versions may be supported.

The license is designed to work with DENSO dashboards with Renesas RH850 R7F701401 and R7F701441 microcontrollers mounted on Toyota and Lexus vehicles. It works via CAN bus on the bench with direct connection to the dashboard plug.

• Identification
• DTC reading/clearing
• Mileage reading/writing
• DATA FLASH reading/writing
• CODEFLASH area reading
• USERBOOT area reading
• OPBT0 area reading
• OPBT9 area reading
• OPBT10 area reading

Internet connection is required. Not all software versions may be supported.

Working via OBDII or on the bench with Bosch SRS units based on the Renesas RH850 R7F7010643 MK installed on Subaru Forester cars, which allows full repairing and restoration work with ECU data.

Functions:

• Identification
• Errors Reading
• Errors Erasing
• Clearing collision information via CAN

Not all software versions may be supported.

License for working with Bosch brand electric power steering on MK Nec V850 70F3187 + EEPROM 95080 on the bench or via the OBDII connector (whereit is technically possible) installed on GM cars, which allows for full repair and restoration work.
Module functions:

• Identification
• Reading/Writing FLASH 70F3187
• Reading/Writing EEPROM 95080

Not all software versions are supported.

1) Delphi MT38/MT86/DCM3.7P OBDII Mode (working on car or desktop, the tab is for car tuning chip):

• Reading Identification
• Error Reading
• Error Reset
• Flash reading
• Flash recording with recalculation of checksums of the calibration area

2) Delphi MT38 / MT86 BSL Mode (working on the bench, recovery mode, allows you to restore the ECU that does not respond):

• Flash reading
• Flash writing

Stable Internet connection is required.

Not all software versions may be supported.

Allows working via OBDII connector or on the table with SRS Bosch units based on MK + EEPROM 95080/95128/95160/95320/95640 installed on cars: Ford, Mazda, Land Rover, Hyundai, Kia, MB, Dodge, Mitsubishi, Nissan, Volvo, Subaru, which allows for full-fledged repair and restoration work with ECU data.

Functions:

• Identification
• Reading Errors
• Erase errors
• EEPROM Reading
• EEPROM Writing

The Scanmatik adapter is recommended. Stable internet connection is required.
Not all software versions may be supported.

The license supports work with BSI ECUs installed on PSA vehicles (Peugeot/Citroën/DS), which allows for full repair and restoration work on these ECUs (e.g., cloning).

Supported BSI types:

• CONTINENTAL SC667050 + 95256 UDS(BSI-Q0x-00): EEPROM/FLASH
• JC easyCAN4 + 29LV400BB + 95128 CAN(BSI2004-H0x): EEPROM/FLASH
• JC easyCAN4F1M-32 + 95128 CAN (BSI04EV-K0x): EEPROM/FLASH
• JC SPC560B60 + 95128 CAN(BSI04EV2-KEx): EEPROM/FLASH
• SIEMENS 1L00M + 95128 CAN(BSI-S0x-00): EEPROM/FLASH
• SIEMENS D76F0018 + 95160 KLine(BSI-E0x-00BSI-F0x-00): only EEPROM
• VALEO 2M48H + 24C128 CAN (BSIEV-x0x-00): EEPROM/FLASH
• VALEO 4L00M + 95128 25128 CAN (BSI2004-P0x-00):EEPROM/FLASH
• VALEO SC667152 + 95256 UDS(BSI-N0x): EEPROM/FLASH

The «x» in the marking means any letter or number; the rest must match.

• Reading FULL FLASH
• Writing FULL FLASH
• Reading EEPROM
• Writing EEPROM
• Reading PIN
• PIN Verification
• Writing PIN
• Writing VIN
• EEPROM Odometer Editor

A constant internet connection is required for operation. Not all software versions may be supported.

Allows working via the OBDII connector or on the bench with SRS Autoliv ECUs based on MK Renesas V850 70F3624, SRS Continental based on MK SPC560xxx, SRS Autoliv with an external EEPROM 95320 chip installed on PSA concern cars, which allows full repairing and restoration work with ECU data.

Functions:

• Identification
• Reading Errors
• Erasing errors
• Clearing collision information via CAN

Requires a Scanmatik 2 PRO adapter to work

Not all software versions may be supported.

1) Delphi DCM6.2A, Delphi DCM6.2V, Delphi DCM6.2A/P BSL Mode(bench work with opening the ECU, for chip tuning, cloning, recovery):

• service mode activation;
• service mode exit;
• FLASH reading;
• FLASH writing;
• Shadow Flash reading;
• checksum correction on/off

2) BENCH password reading (bench work without opening the ECU):

• VAG DCM6.2V password reading

Constant Internet connection is required.

Not all software versions may be supported.


Licence 125 works with dashboards on ARM Cortex M4(FS32K142) MC installed on Lada Vesta NG cars from 2022.

• Reading/Writing Km
• Reading/Writing PFLASH (programme and calibration area)
• Reading DFLASH
• Configuration Reading/Writing

A permanent internet connection is required for operation.

Not all software versions may be supported.

Working via OBDII connector or on the bench with SRS Continental blocks based on MC SPC560xxx installed on SsangYong cars, which allows you to make full repair and recovery work with these ECUs.

Functions:

• Identification
• Error reading
• Erasing errors
• Clearing collision information via CAN

Scanmatik adapter is recommended
Permanent internet connection is required for operation.

Not all software versions may be supported.

Working via OBDII connector or on the table with SRS Continental blocks based on MC SPC560xxx installed on Suzuki cars, which allows you to make full repair and restoration work with these ECUs.

Functions:

• Identification
• Error reading
• Erasing errors
• Clearing of collision information via CAN

Scanmatik adapter is recommended.
Permanent internet connection is required for operation.

Not all software versions may be supported.

Allows working via the OBDII connector or on the bench with SRS Continental units based on the Renesas RH850 R7F701009 MK installed on Chery cars, which allows for full-fledged repair and restoration work with ECU data.

Functions:

• Identification
• Reading Errors
• Erase errors
• Clearing collision information via CAN

The Scanmatik adapter is recommended. Stable internt connection is required.

Not all software versions may be supported.

Allows working via the OBDII connector or on the bench with SRS TRW units based on the Tricore Aurix TC234L-32F MK installed on Toyota cars, which allows for full repair and restoration work with ECU data.

Functions:

• Identification
• Reading Errors
• Erase errors
• Clearing collision information via CAN

The Scanmatik adapter is recommended. Stable internt connection is required.

Not all software versions may be supported.

Allows working via the OBDII connector or on the bench with SRS based on Tricore Aurix TC2xx installed on Hyunda/Kia cars, which allows for full repair and restoration work with ECU data.

Functions:

• Identification
• Reading Errors
• Erase errors
• Clearing collision information via CAN

The Scanmatik adapter is recommended. Stable internet connection is required.

Not all software versions may be supported.

The license works with TriCore AUDO TC17xx installed in the engine ECU of various manufacturers.

• Reading PFLASH
• Writing PFLASH (except OTP areas)
• Reading DFLASH
• Writing DFLASH
• Calculating OTP passwords 1–7
• Reading Renault EMS312x passwords via OBD
• Reading BOSCH MED17/EDC17 GPT passwords on bench
• Reading Ford EMS2211 passwords
• Reading SID208 passwords
• Reading Continental Kia/Hyundai/SsangYoung Sim2k-24x/C201 ECU passwords
• No checksums correction.

Stable Internet connection is required.
Not all software versions and ECU board configurations may be supported.

Allows working via OBD II connector with the Continental VDO MQBAB dashboard based on the NEC35xx MK installed on cars: Audi, Skoda, Seat, VW, which allows for full-fledged repair and restoration work with ECU data.

Functions:

• Identification
• Service mode
• Reading ImmoData.
• ImmoData entry

Work is supported ONLY with VDO Continental dashboards on the MQBAB platform released from ~ 2012 - 2019!
Johnson Controls dashboards are NOT SUPPORTED!!!
2017+ Full LCD(Virtual Cockpit) dashboards are NOT SUPPORTED!!!

The Scanmatik adapter is recommended. Stable internet connection is required.

Not all software versions may be supported.

The license works via OBDII connector or with direct connection via CAN bus with ITELMA M74.8/M74.9(1) control units on STM SPC58VQ and Artery AT32F4xx series gasoline engines installed on VAZ vehicles, which allows for full-fledged repair and restoration work with ECU data.

Functions:

• Identification Reading
• Error Reading
• Error Reset
• Full Flash Reading / Control Program and Calibration Area Reading.
• Control Program and Calibration Area Writing / Checking all CS and Recalculating CS Calibration Area.
• Full Flash Writing
• EEPROM Reading / Writing
• ECU Resetting, Training
• Recorder Activation
• VIN Number Writing (only for new ECUs)
• Recorder Data Editing

Scanmatik is recommended. A stable Internet connection is required for operation.

Not all software versions may be supported.

Works with the Central Design Bureau of Electronic Control (ITELMA) on the Artery AT32F435ZGT7 MK (Flash Size: 1024KB) installed on Lada Vesta NG vehicles since 2022 or Lada Largus vehicles since 2024, which allows for full-scale repair and restoration work on these types of ECUs.

With the Central Design Bureau of Electronic Control (ITELMA) on the Artery AT32F435ZGT7 MK (Flash Size: 1024KB) installed on Lada Iskra vehicles since 2025, which allows for full-scale repair and restoration work on these types of ECUs.
Identification
Read/Clear DTCs
Read/Write FULL FLASH (the read file is sufficient for recovery via JTAG)
JTAG recovery (MDFLASHER programmer required)
Read/Write EEPROM (data area, sufficient for ECU cloning, provided the base firmware matches the ECU; otherwise, FULL FLASH must be rewritten)
Read/Write Configuration
Read/Write VIN
Ignition On/Off Function
Ignition Off/On Function
Car Key Learning
Firmware Integrity Monitoring
IMMODATA EEPROM Editor

3. With ESCL WORLDTECH ECUs on the Zhixin Z20K118 MK installed on Lada Vesta NG vehicles since 2022, which allows for full repair and restoration work on these types of ECUs.
Identification
Read/Clear DTCs
Read/Write Configuration
Read/Write VIN
Ignition On Function
Ignition Off Function
ESCL (VIRGIN) Reset allows you to restore used ESCLs to NEW condition
ESCL Learning (Linking)
ESCL Locking and Unlocking (allows you to extend or retract the latch rod)

4. With parking sensor ECUs installed on Lada Vesta NG vehicles since 2022, which allows for full repair and restoration work on these types of ECUs.
Identification
Read/Clear DTCs
Read/Write Configuration
Read/Write VIN

5. With the BUI (Itelma) and CBKE (Itelma) ECUs installed on Lada Granta vehicles since 2025, which allows for full repair and restoration work on these types of ECUs.
Identification (available since software version 2.0.1.210)
Read/Clear DTCs (available since software version 2.0.1.210)
Read/Write Configuration (available since software version 2.0.1.210)
Read/Write VIN (available since software version 2.0.1.210)
Pairing of control units (CBKE -> BUI) (available since software version 2.0.1.210)

A stable internet connection is required for operation.

Not all software versions may be supported.

The license supports Magneti Marelli IAW 9GV CE ECUs installed in VAG vehicles with a direct connection via CAN-bus.

• Magneti Marelli IAW 9GV CE MPC5634 FLASH 1,50 MB (1572864 byte) - Full Flash reading/writing (sufficient for BSL recovery);
• Magneti Marelli IAW 9GV CE 95320 EEPROM 4,00 KB (4096 byte) - reading/writing, ImmoData editor.

Functions:

• Full Flash reading (sufficient for BSL recovery)
• Flash writing
• EEPROM reading
• EEPROM writing
• ImmoData editor

The Scanmatik adapter is recommended. Stable internet connection is required.

Not all software versions may be supported.

Works with Chinese-made AECS FC-34/FC-50 ECUs installed in UAZ vehicles, among others.

• Identification
• Reading/Clearing DTCs
• Reading FLASH (full contents)
• Writing FLASH (control program + calibration area or calibration areas only)
• The module does not recalculate checksums.

A stable internet connection is required for operation.

Not all software versions may be supported.

The license supports working with Frescale (Motorola) 9S12HY64 dashboards installed on cars: UAZ Patriot, UAZ Pickup, UAZ Profi, UAZ Profi 1.5.

Work is performed with a direct connection to the BDM connector on the dashboard. M&D Flasher Adapter is required.

• Microcontroller Erasing
• Mileage Writing

To work, a permanent connection to the Internet is required. Not all software versions may be supported.

The license supports working with ABS ECUs with Infineon XC2365A MCU installed on Lada Largus FL vehicles produced since 2021, which allows full repair and restoration work on these ECUs. Work is performed using a programmer and a J2534 adapter.

• Identification (via CAN bus on the bench or via the diagnostic connector)
• DTC Reading/Clearing (via CAN bus on the bench or via the diagnostic connector)
• FLASH Reading/Writing (on the bench with a direct connection to the microcontroller via a programmer; connection diagram in the help)
• FLASH Editor (changing odometer readings and writing new readings via a programmer)

Stable internet connection is required. Not all software versions may be supported.

M&D Flasher Adapter is reuired.

License supports working with dashboards with the ARM Artery MCU installed on Lada Iskra vehicles since 2025 (currently, only ECU 8450160709 sw.046 is supported), which allows full repair and restoration work on these ECUs.

• Identification
• Read/Write Operating Time
• Read/Reset Errors
• Read/Write KM
• Write FLASH (application area)
• Restore FLASH (available firmware files: 8450160709 sw.046)
• Read/Write Configuration
• Read/Write VIN
• Other Service Functions

A constant internet connection is required for operation. Not all software versions may be supported.

The license works with Bosch ME7.6.x ECUs installed on GM vehicles, which allows for full repair and restoration of the ECU data.

• Reading / Writing FULL FLASH (BENCH/OBD)
• EEPROM Reading / Writing (BENCH)

Stable internet connection is required.

Not all software versions may be supported.

License 143 allows working with instrument panels on the Artery Cortex M4 (AT32F403) installed on Lada Granta cars from 2024.

• Identification
• Mileage Reading/Writing
• Configuration Reading/Writing
• VIN Reading/Writing

Stable internet connection is required. Not all software versions may be supported.

License 144 works with ABS ECU on MK NXP Cortex M4 (FS32K144HFMLL) installed on Lada Vesta NG, Lada Granta FL vehicles from 2024.

• Identification
• DTC Reading/Clearing
• Mileage Reading/Writing
• Reading/Writing configuration (as a byte array without decryption)
• VIN Reading/Writing
• FLASH recording (application area)

To work, you need a stable Internet connection. Not all software versions may be supported.

The license supports Simos 3x/7x/9x ECUs installed in VAG vehicles.

Functions:

• FULL FLASH reading;
• FULL FLASH writing;
• EEPROM reading;
• EEPROM writing;
• PINCODE reading;
• IMMO status change.

Stable internet connection is required. Not all software versions may be supported.

Supported immobilizer systems:

• IMMO 4
• IMMO 5

The license is a IMMO data editor and is intended to work with ECUs dumps

Functionality:

• Identification
• IMMO data editing
• VIN reading/writing
• IMMO ID reading/writing
• ECU MAC reading/writing
• CS (Component Security) reading/writing
• PIN reading/writing
• CONFIG reading/writing
• IMMO STATE reading/editing

The license functionality allows to conduct the ECU recovery, cloning, replacement.

Not all software/hardware versions may be supported.

The license works with the Johnson Control BCM (BCM), enabling full diagnostic, service, and repair operations.

• BCM identification.
• Reading/Clearing fault codes.
• Reading/Writing Flash (program + calibration area).
• Reading DFLASH (possible after flashing a patch).
• Searching for ISK, PIN, and TP KEY data in DFLASH.
• Changing the VIN number.
• Resetting the BCM to VIRGIN (NEW) state.
• DFLASH file analysis: PIN search (required for writing keys to the BCM), ISK code search, Crypto Key search for PCF79xx (data required for preparing a key in case of complete loss).
• BCM training (linking a VIRGIN (NEW) unit).
• ECM training (NEW engine ECU).
• Key writing (training). Odometer reading, including current mileage and history.
• Odometer reset

List of vehicles where Johnson Control BCM (key with steel core) can be found:

• Lada Largus FL 2021+
• Lada Xray 2021+
• Lada Vesta 2015+
• Renault Logan 2012+
• Renault Duster 2012+
• Renault Dokker 2012+
• Renault Lodgy 2012+
• Renault Symbol 2012+
• Dacia Logan 2012+
• Dacia Duster 2012+
• Dacia Dokker 2012+
• Dacia Lodgy 2012+
• Dacia Symbol 2012+

Not all software versions and ECU hardware revisions may be supported.

The licnese works with Renault keys based on the PCF7961 transponder with a metal core, allowing for full service and repair operations.

An adapter - programmer for the MD Flasher is required for this operation.
Recording a "new key" image ready for programming.
Recording a "master key" image; this type of key is used to program new keys in the event of a complete loss. The data for writing to the key must be calculated based on the vehicle's Centralized Key System (TsKBS), license 047, or license 148.

List of cars where a key with a steel core can be found:

• Lada Largus FL 2021+
• Lada Xray 2021+
• Lada Vesta 2015 +
• Renault Logan 2012 +
• Renault Duster 2012 +
• Renault Dokker 2012 +
• Renault Lodgy 2012 +
• Renault Symbol 2012 +
• Dacia Logan 2012 +
• Dacia Duster 2012 +
• Dacia Dokker 2012 +
• Dacia Lodgy 2012 +
• Dacia Symbol 2012 +

Not all software versions and hardware revisions of key boards may be supported.

Universal adapter for working with microcontrollers via UART, MBUS.

The board has the following outputs: DTR, DTS, DT2,TX, RX, VCC (the adapter allows you to supply this output with any voltage up to 36 volts applied to the DC 2 mm input), GND, 3.3V (voltage from the USB port through the stabilizer) , 5V (voltage from the USB port), MBUS (switched on by a jumper on the board). Jumper to switch MBUS mode. The Reset button is used to reset the FTDI2232H microcontroller to its original state.

Currently supported with:
1. License 22 Cypress/Fujitsu/Spansion MB91F0xx/S6J3xx MCU UART
2. License 48 Cypress/Fujitsu/Spansion 96Fxx MCU UART
3. License 55 Renesas RH850 R7F701xxx MCU UART
4. License 59 - MCU Renesas V850

Female to Female Connectors for FTDI2232 UART Adapter ver. 3.0. Length 40 cm.
